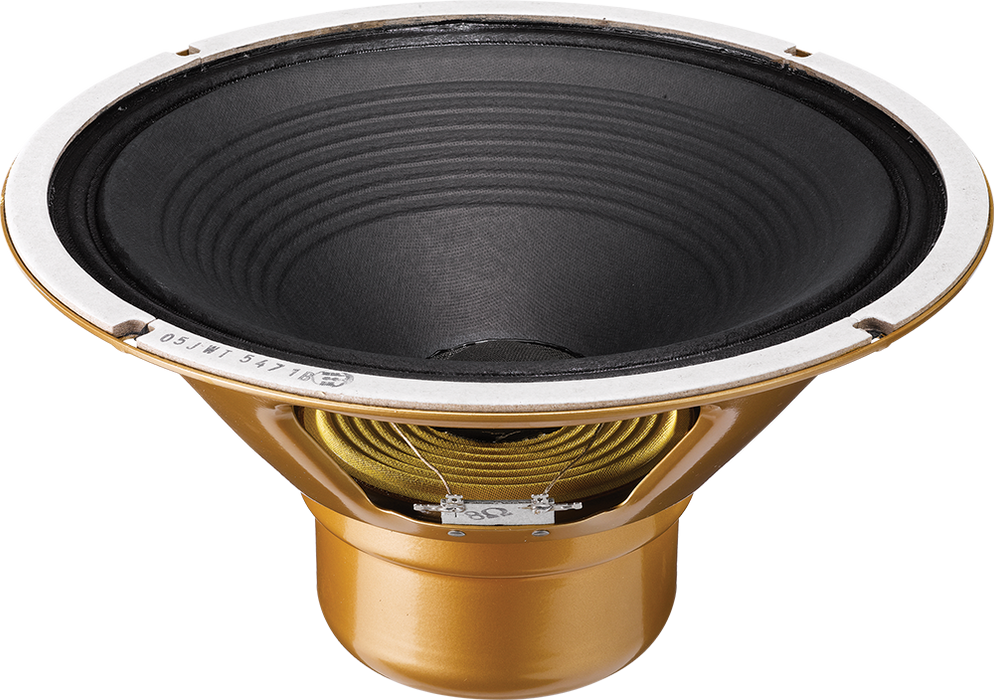

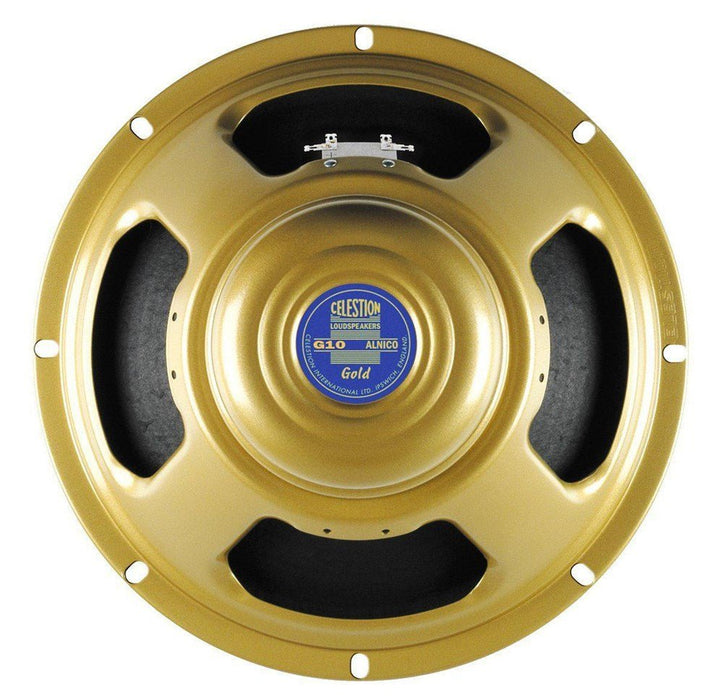

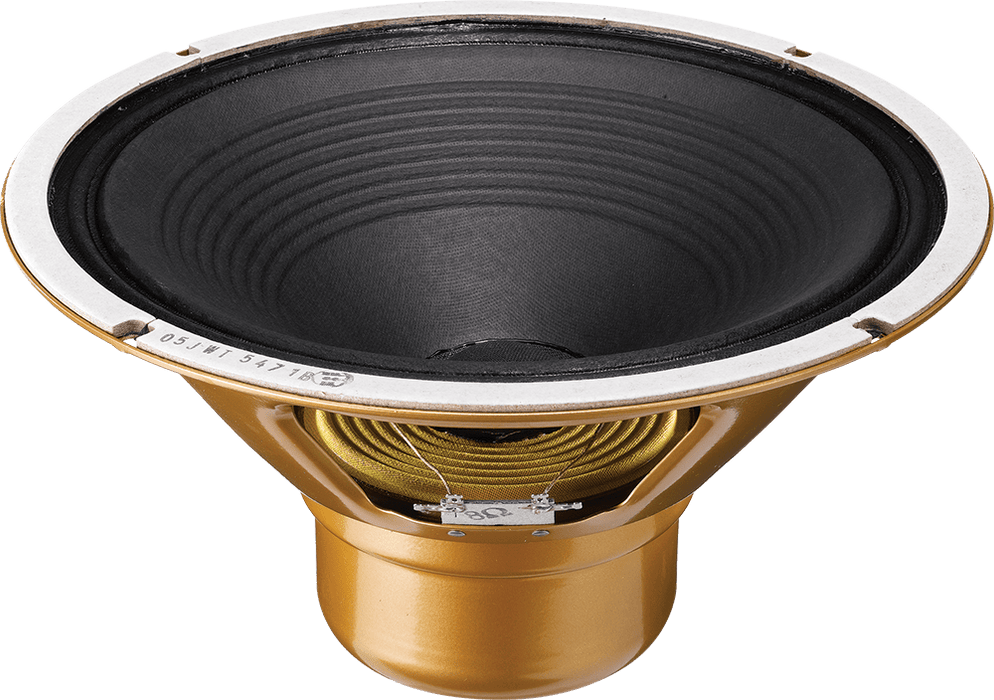

Following the great reviews we received for the Gold 12", we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10" driver.The G10 Gold is the ultimate 10" guitar speaker, blending unmistakable Alnico class with a rich low-end, creamy mid-range and vintage chiming top-end. Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4x12 cabinets.
Listen to a sound clip of this speaker here!
General Specifications
| Nominal diameter | 10", 254mm |
| Power rating | 40Wrms |
| Nominal impedance | 8 or 16 ? |
| Sensitivity | 98dB |
| Chassis type | Pressed steel |
| Voice coil diameter | 1.75", 44.5mm |
| Voice coil material | Round copper |
| Magnet type | Alnico |
| Frequency range | 80-6000Hz |
| Resonance frequency, Fs | 80Hz |
| DC resistance, Re | 6.66 or 13.56 ? |
Mounting Information
| Cut-out diameter | 9.0", 229mm |
| Diameter | 10.1", 256mm |
| Magnet structure diameter | 4.7", 119mm |
| Mounting slot PCD | 9.6", 244mm |
| Mounting slot dimensions | 0.25", 6.5mm |
| Number of mounting slots | 8 |
| Overall depth | 5.3", 135mm |
| Unit weight | 6.0lb, 2.7kg |
