HiCon - Connectors

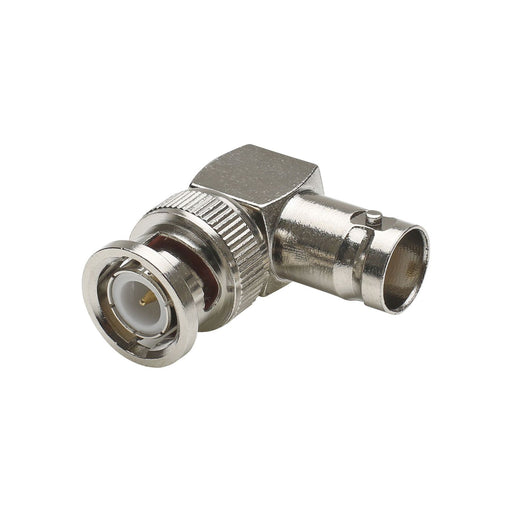

The HICON video and A/V adapters presented here consist primarily of a robust full metal housing and are ideal for professional use in media technology. Due to the high quality, HICON grants a 5-year guarantee on the adapters with metal housing ! The BNC antenna adapter has a metal housing and enables a connection from BNC female to BNC male in a 90° angled version. Code: HI-BNBN-MF90HD Name: Adapter EAN: 4049371814881 Brand: HICON Application: video Colour: grey Style variant: angled Type: BNC Type (detailed): BNC female, BNC male

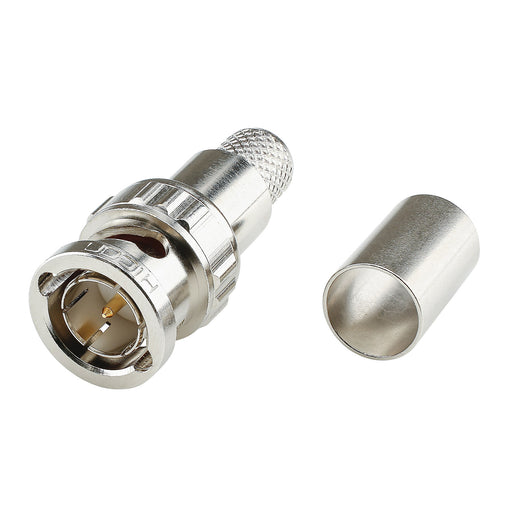

Suits Sommer Cable - Vector Plus - 12g/4k BNC1.3/5.7-6G HICON BNC 6G crimp-male connector, straight, nickel coloured. 6G‑SDI‑Broadcast, BNC connector crimp 75 Ω, 4 µm hard gold‑plated contact areas, internal thread in pin socket. Specifications: Article number BNC1.3/5.7-6G EAN 4049371813815 Brand HICON Application video Colour nickel coloured Colour detailed nickel coloured Model BNC 6G Style variant straight Gender male Coding none Codable no Pole number 2-pole Connector / Socket male connector Type of contact crimp Contact coating gold plated Mounting Cable Impedance [Ω] 75

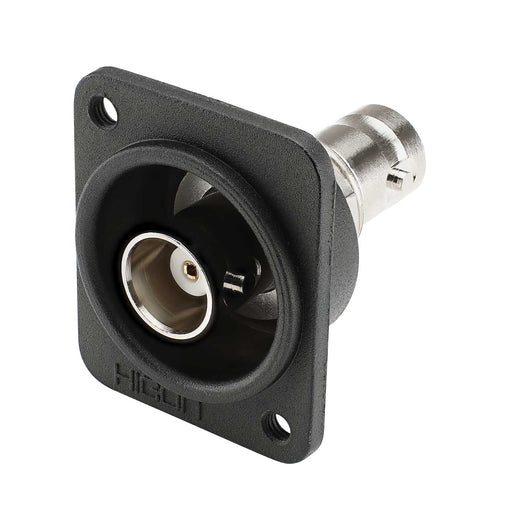

HICON BNC patch-female connector, ground isolated, Type D M3. Article number BNC-FP50D EAN 4049371812405 Brand HICON Application video Model BNC Style variant Type D M3 Gender female Coding none Codable yes Pole number 2-pole Connector / Socket female connector Type of contact Patch Ground isolated Mounting mounting Impedance [Ω] 50

HICON BNC patch-female connector, ground isolated, straight. Article number BNC-FP50 EAN 4049371811835 Brand HICON Application video Model BNC Style variant straight Gender female Coding none Codable yes Pole number 2-pole Connector / Socket female connector Type of contact Patch Ground isolated Mounting Cable Impedance [Ω] 50

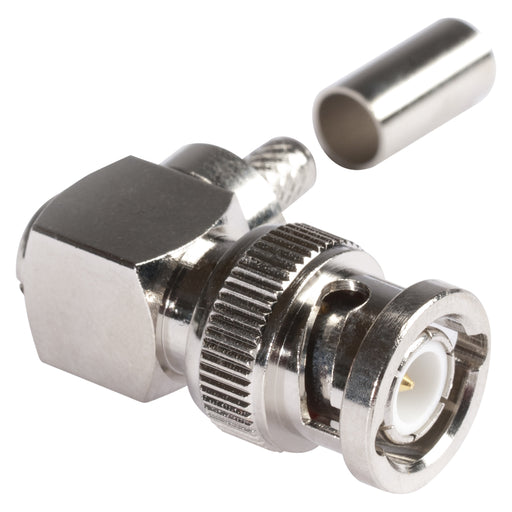

HICON BNC crimp-male connector 1.0/3.2, angled, nickel coloured. Article number BNC58M90 EAN 4049371007399 Brand HICON Application video Colour nickel coloured Colour detailed nickel coloured Model BNC Style variant angled Gender male Material metal Coding none Codable no Pole number 2-pole Connector / Socket male connector Type of contact crimp Contact coating gold plated Mounting Cable Impedance [Ω] 50

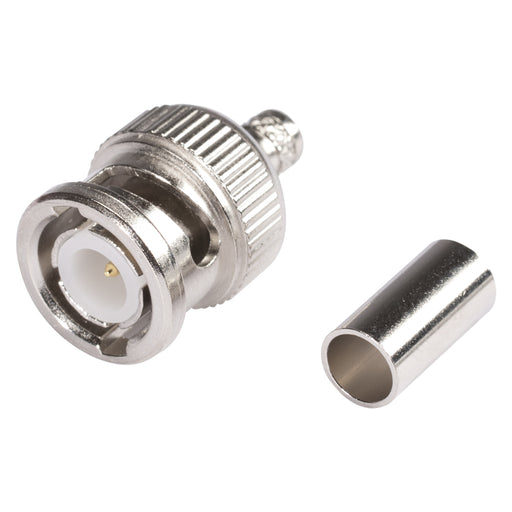

HICON BNC crimp-male connector 1.0/3.2, straight, nickel coloured. Suitable for Sommer Cable - RG58C/U LL 50 Ohm Cable . Specifications: EAN 4049371808545 Brand HICON Application video Colour nickel coloured Colour detailed nickel coloured Conductor insulation Ø [mm] 2,95 Model BNC Style variant straight Gender male Material metal Coding none Codable no Pole number 2-pole Connector / Socket male connector Type of contact crimp Contact coating gold plated Conductor cross-section [mm²] 0,48 Mounting Cable Impedance [Ω] 50

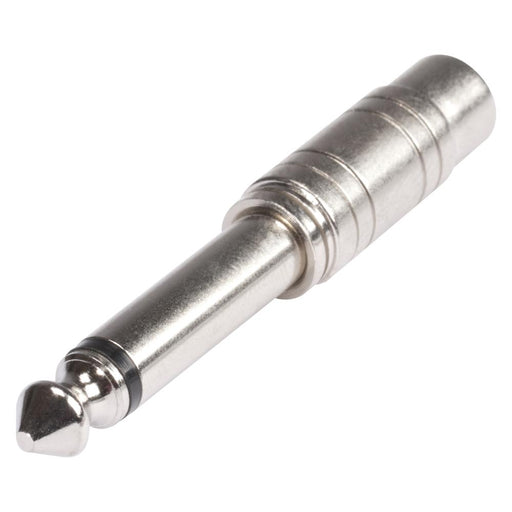

HICON Adapter | jack male 6,3 mm mono/RCA female straight, chrome coloured. Specifications: Article number HI-JM6CI-MF Name Adapter Brand HICON Application audio Colour chrome coloured Colour detailed chrome coloured Style variant straight Type jack Type RCA Type (detailed) RCA female Type (detailed) jack male 6,3 mm mono EAN 4049371803700

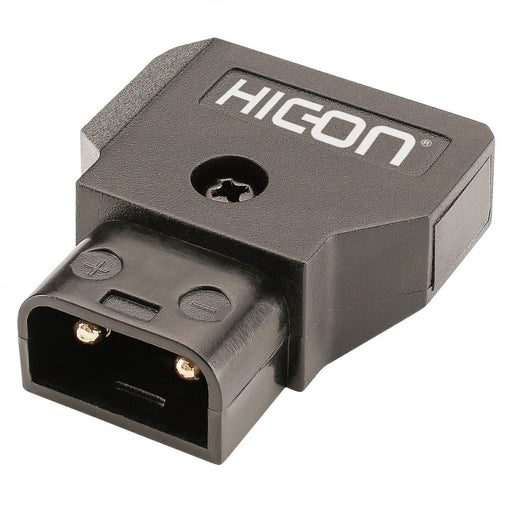

• Compact connector according to the Anton Bauer broadcasting standard• Solder connector• for DC transfer• convertible polarity• Strain relief clamp• Cable Ø: 5.0 mm / 0.197 Specifications: Application D-TAP / POWERTAP Colour black Style variant straight Gender Female EAN 4049371812740 Old article number D-TAP-F

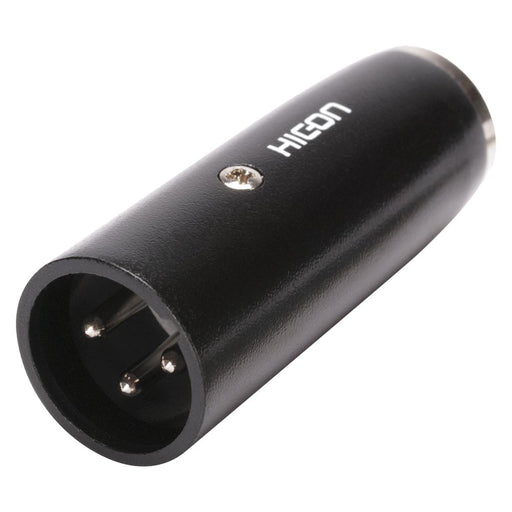

HICON Adapter | Mini-XLR male 3-pol/XLR 3-pole male straight, black. Specifications: Article number HI-X3MX3-MM Name Adapter Brand HICON Application audio Colour black Colour detailed black Style variant straight Type Mini-XLR Type XLR Type (detailed) Mini-XLR male 3-pol Type (detailed) XLR 3-pole male EAN 4049371803977

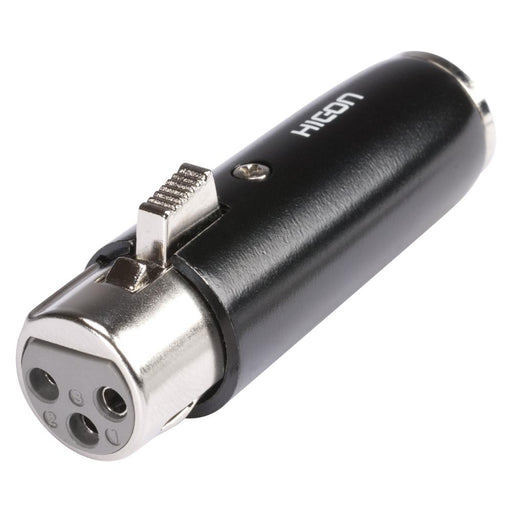

HICON Adapter | Mini-XLR male 3-pol/XLR 3-pole female straight, black. Specifications: Article number HI-X3MX3-FM Name Adapter Brand HICON Application audio Colour black Colour detailed black Style variant straight Type Mini-XLR Type XLR Type (detailed) Mini-XLR male 3-pol Type (detailed) XLR 3-pole female EAN 4049371803960

HICON Adapter | jack male 6,3 mm stereo/Mini-jack male 3,5 mm stereo straight, black. Specifications: Article number HI-J3563S Name Adapter Brand HICON Application audio Colour black Colour detailed black Model jack (3,5mm) Model jack (6,3mm) Style variant straight Gender male Material metal Codable no Pole number 3-pole Connector / Socket male connector Mounting Cable Max. cable diameter [mm] 3,8 Type jack (3,5 mm) Type jack Type (detailed) jack male 6,3 mm stereo Type (detailed) Mini-jack male 3,5 mm stereo EAN 4049371808699

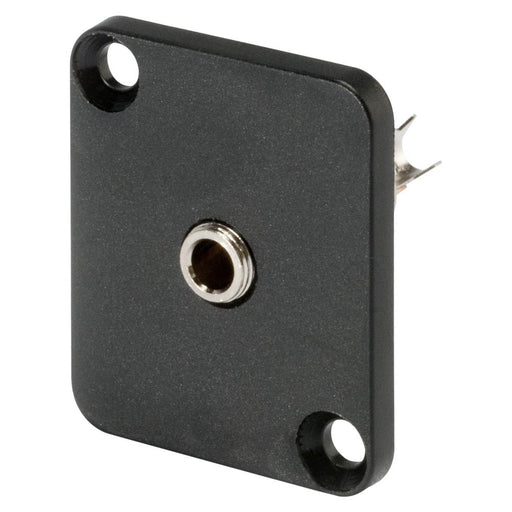

HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-female connector, nickel plated contact(s), Type D, black. Specifications: Article number HI-J35SEFD Brand HICON Application audio Colour black Colour detailed black Model Mini-jack (3,5mm) Style variant Type D Gender female Material metal Coding none Codable yes Pole number 3-pole Connector / Socket female connector Type of contact Soldering Contact coating nickel plated Mounting mounting EAN 4049371803489

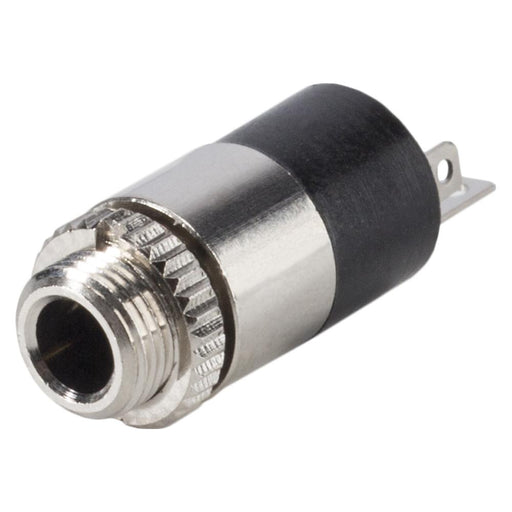

HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-female connector, nickel plated contact(s), screw thread, chrome coloured. Specifications: Article number HI-J35SEF Brand HICON Application audio Colour chrome coloured Colour detailed chrome coloured Model Mini-jack (3,5mm) Style variant screw thread Gender female Material metal Material plastic Coding none Codable no Pole number 3-pole Connector / Socket female connector Type of contact Soldering Contact coating nickel plated Mounting mounting EAN 4049371803472

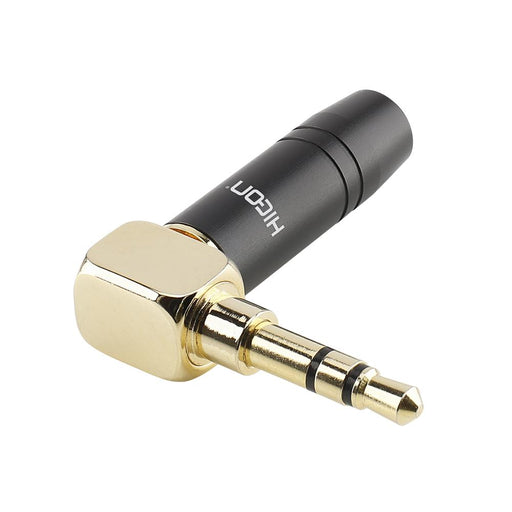

HICON jack (3,5mm), 3-pole , Aluminium-male connector, hard gold-plated contact(s), 90° angled, black. With clamping strain relief. Specifications: Article number HI-J35SA Brand HICON Application audio Colour black Colour detailed black Model jack (3,5mm) Style variant 90? angled Gender male Material Aluminium Coding none Codable no Pole number 3-pole Connector / Socket male connector Contact coating hard gold-plated Mounting Cable Max. cable diameter [mm] 5,8 EAN 4049371808743

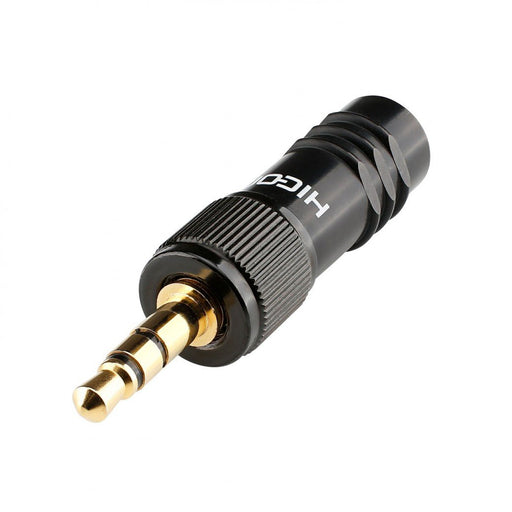

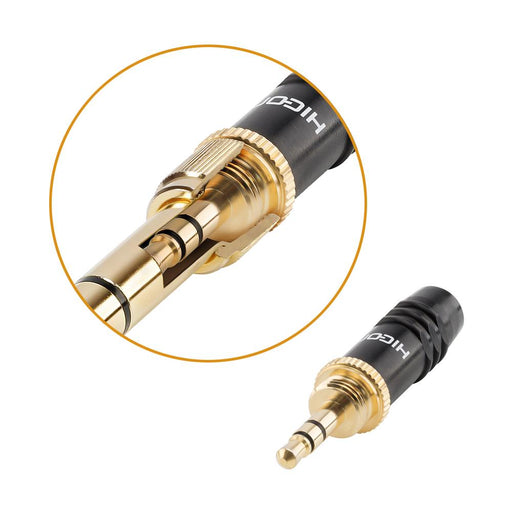

HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, black. Specifications: Article number HI-J35S-SCREW-M Brand HICON Application audio Colour black Colour detailed black Model Mini-jack (3,5mm) Style variant straight Gender male Material metal Coding none Codable yes Pole number 3-pole Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting Cable Max. cable diameter [mm] 3,8 EAN 4049371803434

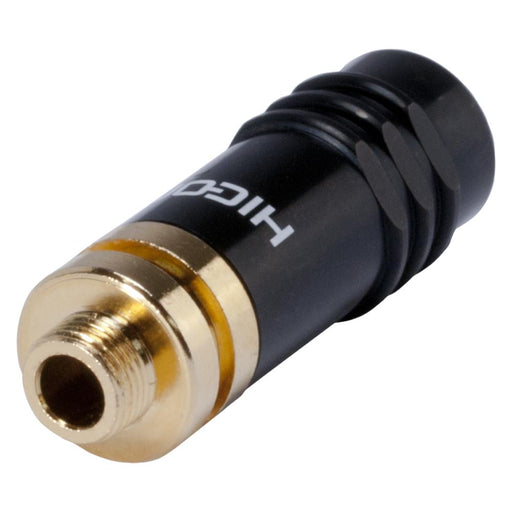

HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-female connector, gold plated contact(s), straight, black. Specifications: Article number HI-J35S-SCREW-F Brand HICON Application audio Colour black Colour detailed black Model Mini-jack (3,5mm) Style variant straight Gender female Material metal Coding none Codable yes Pole number 3-pole Connector / Socket female connector Type of contact Soldering Contact coating gold plated Mounting Cable Max. cable diameter [mm] 3,8 EAN 4049371803427

HICON jack (6,3mm) 3-pole metal-Soldering-male connector, nickel plated with Goldtip pin, angled, black. When plugged in only 11.5 mm body height! Specifications: Article number HI-J63SA05 Brand HICON Application audio Colour black Colour detailed black Model jack (6,3mm) Style variant angled Gender male Material metal Coding none Codable no Pole number 3-pole Connector / Socket male connector Type of contact Soldering Contact coating nickel plated with Goldtip Mounting Cable Cable diameter min. [mm] 4 Max. cable diameter [mm] 6,4 EAN 4049371808552

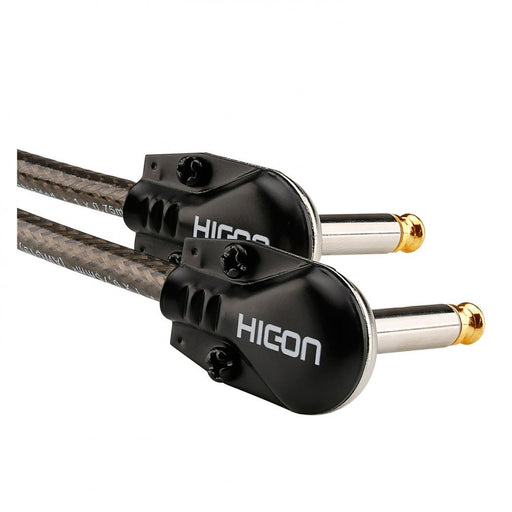

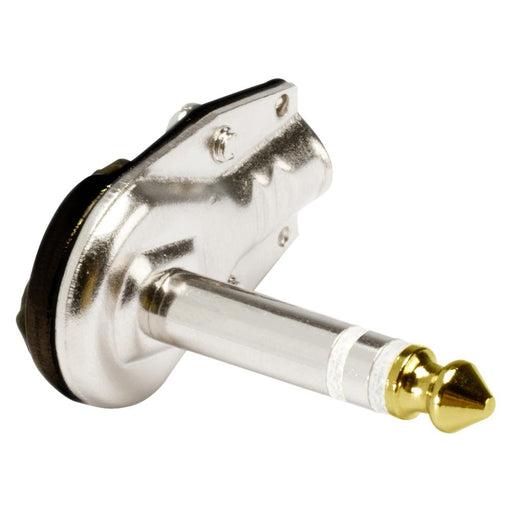

HICON jack (6,3mm) 2-pole metal-Soldering-male connector, nickel plated with Goldtip pin, angled/Pancake, black. When plugged in only 11.5 mm body height! Specifications: Article number HI-J63MA05 Brand HICON Application audio Colour black Colour detailed black Model jack (6,3mm) Style variant Pancake Style variant angled Gender male Material metal Coding none Codable no Pole number 2-pole Connector / Socket male connector Type of contact Soldering Contact coating nickel plated with Goldtip Mounting Cable Cable diameter min. [mm] 4 Max. cable diameter [mm] 6,4 EAN 4049371804783

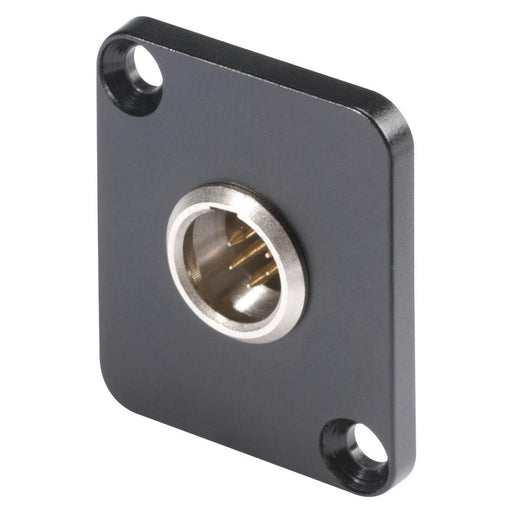

HICON Mini-XLR, 5-pol , metal-, Soldering-male connector, gold plated contact(s), Type D, dark grey. Specifications: Article number HI-XMDM5 Brand HICON Application audio Colour grey Colour detailed dark grey Model Mini-XLR Style variant Type D Gender male Material metal Coding none Codable no Pole number 5-pol Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371805674

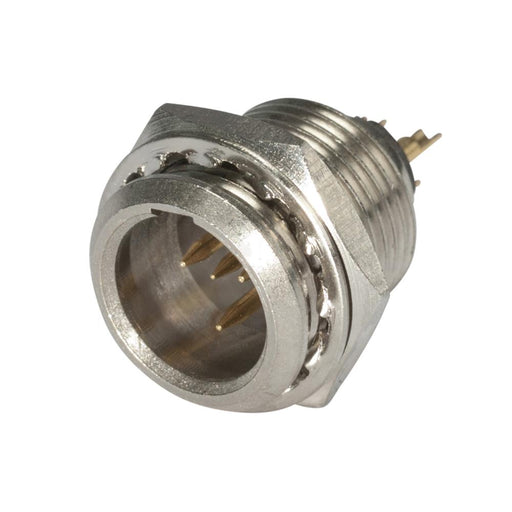

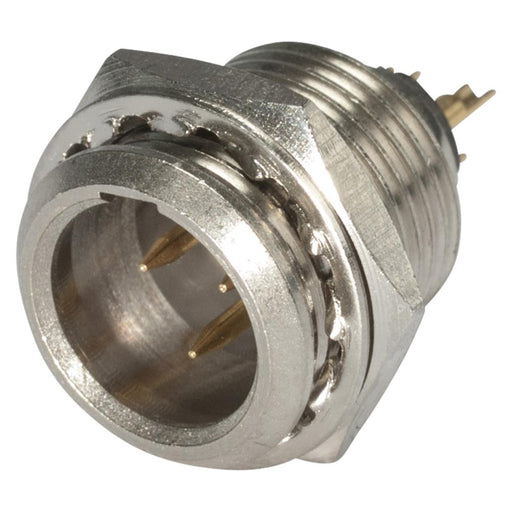

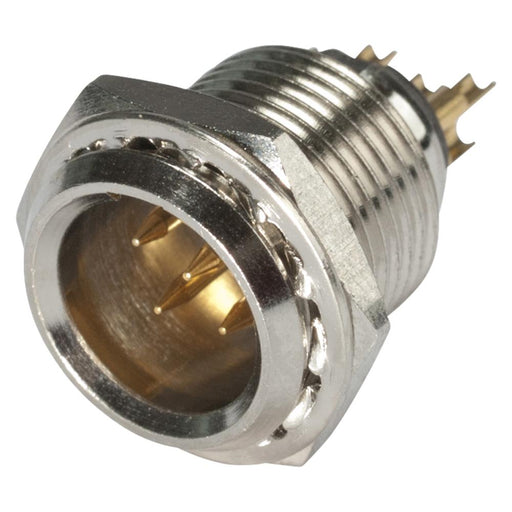

HICON Mini-XLR, 5-pol , metal-, Soldering-male connector, gold plated contact(s), Thread 10,9 mm, nickel coloured. Specifications: Article number HI-XMEM5 Brand HICON Application audio Colour nickel coloured Colour detailed nickel coloured Model Mini-XLR Style variant Thread 10,9 mm Gender male Material metal Coding none Codable no Pole number 5-pol Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371804608

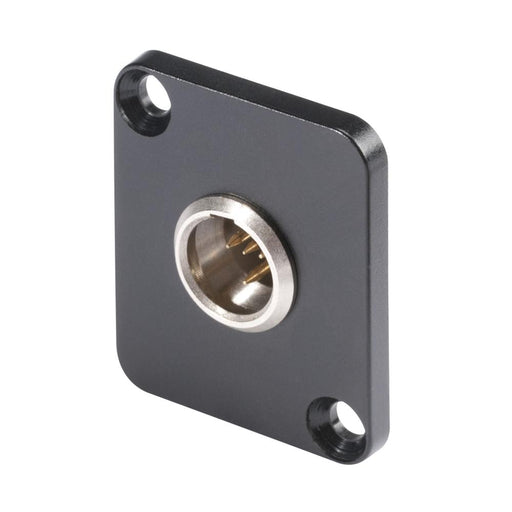

HICON Mini-XLR, 4-pole , metal-, Soldering-male connector, gold plated contact(s), Type D, dark grey. Specifications: Brand HICON Application audio Colour grey Colour detailed dark grey Model Mini-XLR Style variant Type D Gender male Material metal Coding none Codable no Pole number 4-pole Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371811804

HICON Mini-XLR, 4-pole , metal-, Soldering-male connector, gold plated contact(s), Thread 10,9 mm, nickel coloured. Specifiactions: Brand HICON Application audio Colour nickel coloured Colour detailed nickel coloured Model Mini-XLR Style variant Thread 10,9 mm Gender male Material metal Coding none Codable no Pole number 4-pole Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371811569

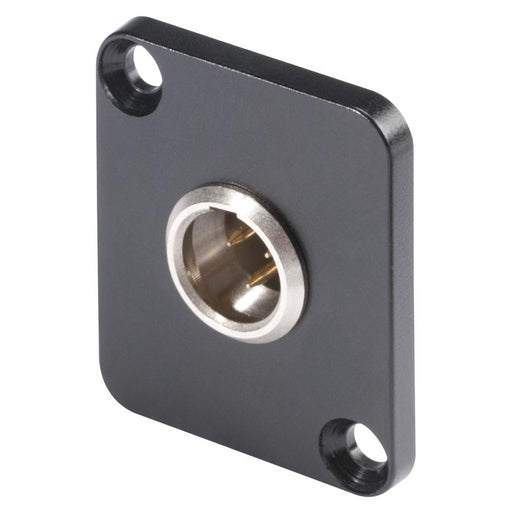

HICON Mini-XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), Type D, dark grey. Specifications: Article number HI-XMDM3 Brand HICON Application audio Colour grey Colour detailed dark grey Model Mini-XLR Style variant Type D Gender male Material metal Coding none Codable no Pole number 3-pole Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371805667

HICON Mini-XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), Thread 10,9 mm, nickel coloured. Specifications: Article number HI-XMEM3 Brand HICON Application audio Colour nickel coloured Colour detailed nickel coloured Model Mini-XLR Style variant Thread 10,9 mm Gender male Material metal Coding none Codable no Pole number 3-pole Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting mounting EAN 4049371804592

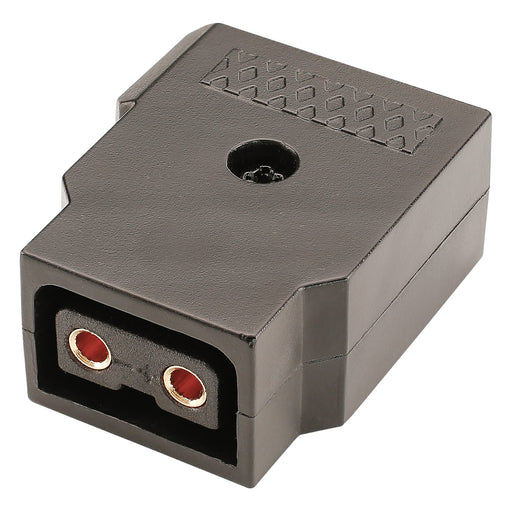

• Compact connector according to the Anton Bauer broadcasting standard• Solder connector• for DC transfer• convertible polarity• Strain relief clamp• Cable Ø: 5.0 mm / 0.197 Specifications: Article number HI-D-TAP-F EAN 4049371812733 Application D-TAP / POWERTAP Colour black Model D-tap / powertap female Style variant straight Gender female

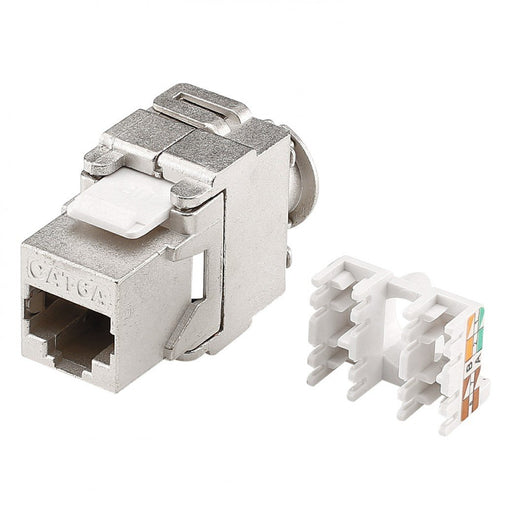

This new and very upscale CAT6A RJ-45 Keystone module is made for tool-free installation and meets all the requirements for structured communication networks pursuant to Cat. 6A Re-Embedded and Class EA (500 MHz, 10GE, in accordance with ISO/IEC 11801:2002 AM2). Owing to the large range of possible wire cross-sections, the module can be used with almost all CAT cables. Since certified products are demanded in more and more installation situations, we've had the module taken up into the GHMT Verification Program – which guarantees you the highest possible quality standard. The module is available either as a practical set of 8 or as single units. Advantages: suitable for AWG26/1 - AWG22/1, AWG27/7-AWG22/7 very short design suitable for POE+ tool-free assembly incl. dust protection cap & cable binder Miscellaneous: recommended cable: SC-Mercator CAT.7 / CAT.7a Specifications: Article number RJ45CFXL-P1 EAN 4049371404310 Application data Colour grey Colour detailed silver-grey Model RJ45 CAT.6a Style variant Keystone Clip-In Gender female Packing 1 pc. Connector / Socket female connector Type of contact IDC Mounting mounting Max. cable diameter [mm] 9

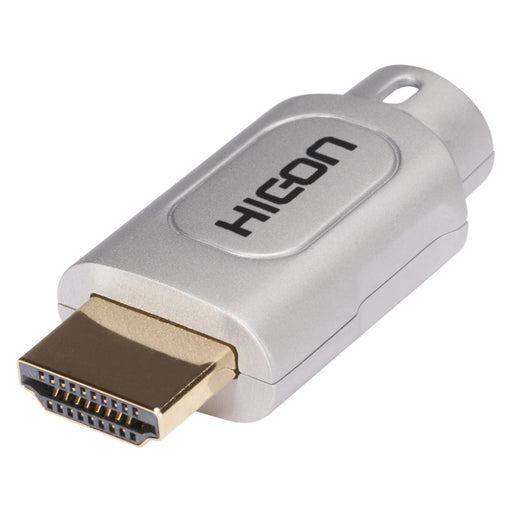

HICON HDMI, 19-pol , metal-, IDC-female connector, gold plated contact(s), straight, silver-grey. Specifications: Article number HI-HD-MSK EAN 4049371807692 Brand HICON Application audio Application video Colour grey Colour detailed silver-grey Model HDMI Style variant straight Gender male Material metal Coding none Codable no Pole number 19-pol Connector / Socket female connector Connector / Socket male connector Type of contact IDC Contact coating gold plated Mounting Cable

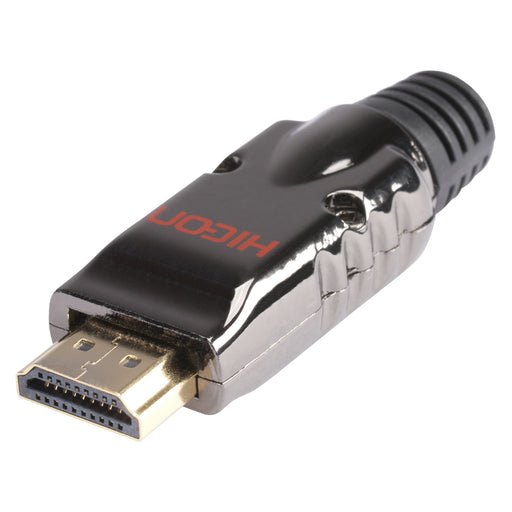

HICON HDMI, 19-pol , metal-, Soldering-male connector, gold plated contact(s), straight, chrome coloured. Specifications: Article number HI-HD-M EAN 4049371803380 Brand HICON Application audio Application video Colour chrome coloured Colour detailed chrome coloured Model HDMI Style variant straight Gender male Material metal Coding none Codable no Pole number 19-pol Connector / Socket male connector Type of contact Soldering Contact coating gold plated Mounting Cable

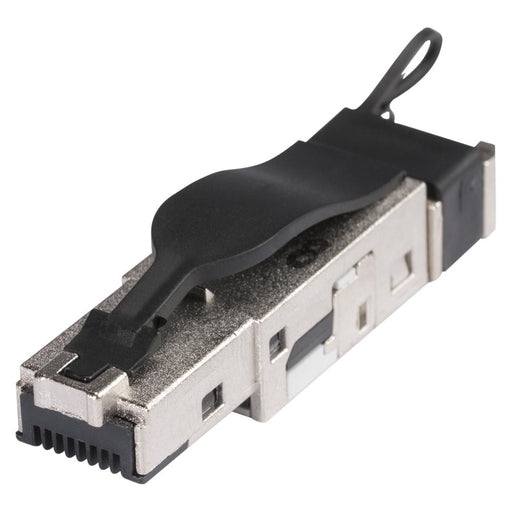

RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey. Specifications: Article number RJ45C6XL EAN 4049371057363 Application data Colour grey Colour detailed silver-grey Model RJ45 CAT.6a Style variant straight Gender male Material metal Coding none Codable no Pole number 8-pole Connector / Socket male connector Type of contact IDC Contact coating gold plated Mounting Cable Cable diameter min. [mm] 5,5 Max. cable diameter [mm] 8,5

HICON RJ45 design RJ45 protective housing ...fits D flange RJ45 sockets from Neutrik (CAT.5e) and HICON.® Miscellaneous: Connector housing: Full metal Supplied without RJ45 connector. Article number HI-C6XL-HD EAN 4049371805124 Brand HICON Type Connector housing XLR format Colour black Colour detailed black Affiliation SC-Mercator CAT.7 PUR XL Affiliation RJ45C6XL Max. cable diameter [mm] 8,2
