Sommer Cable

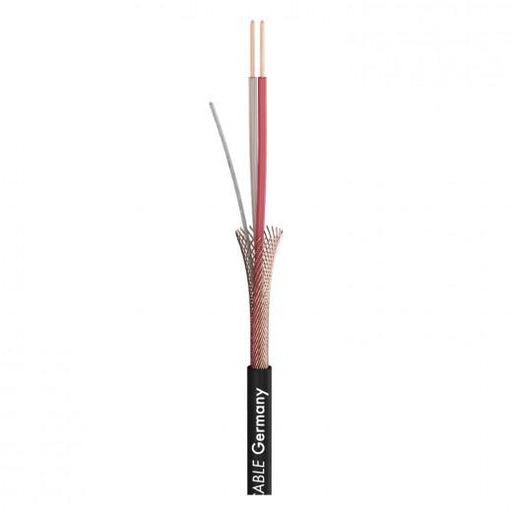

String artists... Will take pleasure in this cable. The Tricone® MKII is a flexible cable for guitar and keyboard and equally interesting for the gigging musician, studio keyboarder and home recordist. Due to its decent wire cross-section of 0,22 mm² and the fine, tin-plated single wires of 0.10 mm it's immune to cable breakage and convinces by high bending cycles. It's very robust, easy to drum and also surprisingly inexpensive. When assembling, make sure to remove the conductive shield (black PVC tube) on the insulation so that it makes no contact with the inner conductor. Tricone® MKII is a protected and registered trademark of Sommer cable GmbH. Advantages: Very robust due to the large wire cross-section and fine Cu single wires Good electrical values due to the Skin PE insulation 100 % protection by dual shielding (helical copper mesh screen + conductive carbon screen) High number of bending cycles Application: Dependable cable for live applications (guitar and keyboard) Economy-priced Line-in or Patchcable for the Homerecorder Specifications: Article number 300-0021 Name Tricone® MKII EAN 4049371002134 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2Y(LS)DY1x0,22mm² Jacket material PVC Jacket Ø [mm] 5,90 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,80 Weight per 1 m [g] 42 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 60 Width [mm] 5,9 Height [mm] 5,9 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** For everyone needing a long line... our however is recommenced for extreme lengths exceeding 40 m. But it is also preferred for short distances in professional video studios where it guarantees an image which is totally devoid of shadows and flickering. The Transit 2 HD impresses with its high flexibility, extended functionality and dual shielding (Cu mesh screen + AL/PT foil) of the single wires. Advantages: Dependable and very high-quality image transmission over long distances Very good damping and transmission values even with excessive lengths Application: For permanent installation over long distances (theatres, sports arenas, media & conference centres) Specifications: Article number 600-0851-02 Name Transit 2 HD EAN 4049371001656 Properties OFC oxygen free copper Properties Analog Properties SDI Properties Halogen-free / LSZH Properties Digital 75 Ω Properties HDTV Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area Installation Application area ELA 100 V Application video cable Colour black Colour detailed black Construction 2x2YS(ST)CY0,6/2,8 Construction (video) 2YS(ST)CY0,6/2,8 Jacket material PVC Jacket Ø [mm] 10,20 Number of Channels (video) 1 Inner conductor (video) 2 Inner conductor (video) [mm²] 0,28 Inner conductor Ø (video) [mm] 0,60 AWG (video) 23 Shielding Copper braiding tin-plated 90 % + AL / PT-foil Shielding factor [%] 100 Copper strands (video) 1 Copper strand Ø (video) [mm] 0,60 Conductor insulation material Gas-injected Foam / Skin-PE Conductor insulation Ø (video) [mm] 2,80 Weight per 1 m [g] 30 UV-resistant yes Fire load per m [kWh] 0,101 Style variant round Packing bulk stock Temperature min. [°C] -20 Temperature max. [°C] 80 Max. Transmission length (SMPTE 425M, 3G) [m] 81 Max. Transmission length (SMPTE 2081, 6G) [m] 54 Max. Transmission length (SMPTE 2082, 12G) [m] 37 Max. Transmission length (SMPTE 2082, 12G) [ft] 121,3911 Width [mm] 10,2 Height [mm] 10,2 Capacity wire/electic screen at 1m (video) [pF] 55 Capacity wire/electic screen at 1 ft. (video) [pF] 16,764 Damping at 5 MHz (100m & 20° C) [dB] 2,5 Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,762 Damping at 50 MHz (100m & 20° C) [dB] 7,3 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,225 Damping at 100 MHz (100m & 20° C) [dB] 10,4 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,1699 Damping at 200 MHz (100m & 20° C) [dB] 14,5 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,4196 Damping at 470 MHz (100m & 20° C) [dB] 22,7 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,919 Damping at 862 MHz (100m & 20° C) [dB] 31,1 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,4793 Damping at 1000 MHz (100m & 20° C) [dB] 33,6 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 10,2413 Damping at 1485 MHz (100m & 20° C) [dB] 41,5 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 12,6492 Damping at 1750 MHz (100m & 20° C) [dB] 45,2 Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 13,777 Damping at 2150 MHz (100m & 20° C) [dB] 50,9 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 15,5143 Damping at 3000 MHz (100m & 20° C) [dB] 60 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 18,288 Impedance [Ω] 75 BPVo-Euroclass Fca

Cable mono culture... is what we did with the SC-Mercator QUAD 4 x CAT.7 and DUO 2 x CAT.7 . Here we have packed no less than four or respectively two CAT.7 lines in a highly flexible and robust Strong PVC jacket. Due to the fine litz construction of the single wires the overall construction achieves a good flexibility. Each of the network lines is shielded against external interferences by an overall screen made of a braided copper mesh plus a foil screen per wire pair (PimF). With the 10 Gbit-capable SC-Mercator QUAD 4 x CAT.7 / DUO 2 x CAT.7 up to 4 or 2 high-speed ethernet or compatible signals can be transmitted simultaneously. Advantages: Four or respectively two high-speed lines in one robust jacket Full CAT.6a functionality / 10 GBit Redundant transmission capability Highly flexible due to fine litz construction Application: Linking of sound and light direction via separate networks For quick and efficient cabling, e.g. of LED video wall systems For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions Specifications: Article number 580-0311-02 Name SC-Mercator EAN 4049371446297 Properties OFC oxygen free copper Properties Digital 110 Ω AES / EBU Application area Stage / live Application area Studio / Broadcast Application area Installation Application Multipair Cat.7 Colour black Colour detailed black Construction 2 x S/FTP 4x2x0,51mm Construction (network) SFTP 4x2x0,51mm Jacket material PVC Jacket Ø [mm] 17.40 Number of Channels (network) 2 Inner conductor (network) 8 Inner conductor Ø (network) [mm] 0,51 AWG (network) 24 Shielding PimF, Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 1 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,38 Weight per 1 m [g] 260 UV-resistant yes Fire load per m [kWh] 0,15 Style variant round Packing 100 m spool Packing 500 m spool CAT-Type CAT.7 Max. section length [m] 140 Velocity factor 0,77 Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 17,8 [mm] 17,8 Capacity wire/wire at 1m (network) [pF] 45 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1 km (network) [GΩ] 5 Loop resistance per km [Ω] 190 BPVo-Euroclass Fca

***Price Is Per Meter*** Especially for the tough stage routine... we improved the jacket stability on the ELEPHANT series. Furthermore it is flexible, robust, tread-resistant, easy to reel and of course reusable time and again. Now the jacket surface is also smoother and thus easier to clean. And we have customised the outer diameter for an easier no-fuss handling with the common speaker multipins (CA-COM 8-pin, NL8, LKS19, EP5). A special mention goes to the Elephant Robust SPM2440 , for it allows to carry 8 speaker paths to the array with only one cable. Advantages: Loss-free transmission due to the special litz stranding technology Highly flexible and stage-proof, easy to reel Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors Easy to use due to well-insulated, numbered wires Application: Professional PA systems Specifications: Article number 490-0051-2440 Name Elephant Robust SPM2440 EAN 4049371467742 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area Studio / Broadcast Application area ELA 100 V Application area Installation Application Speaker Cable Colour black Construction (24LIY4,0mm²)Y Jacket material PVC Jacket Ø [mm] 26.00 Inner conductor (audio) 24 Inner conductor (audio) [mm²] 4,00 AWG (audio) 11 Copper strands (audio) 133 Copper strand Ø (audio) [mm] 0,19 Conductor insulation Ø [mm] 3,65 Weight per 1 m [g] 1412.4 UV-resistant yes Fire load per m [kWh] 3,77 Style variant round Packing bulk stock Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 26 [mm] 26 BPVo-Euroclass Fca

***Price Is Per Meter*** CATlike agility and mobility... The SC-Mercator CAT.7 PUR XL is the perfect cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in OB vans. Ethersound signals can be transmitted easily over > 100 m. Its halogen-free, flame-retardant PUR jacket (according to IEC60332.1) is extremely notch- and tread-resistant, cold-flexible and easy to reel. The wires are fitted with a foam-skin PE insulation and shielded in pairs with an AL-PT foil (PimF). The overall screen consists of Cu mesh plus fleece. This ensures optimal transmission properties over long distances. The SC-Mercator CAT.7 PUR XL with its large wire cross-section (AWG23) is the ideal choice for extremely long transmission distances of up to 125 m. Advantages: Safe data transfer due to high-quality insulation and shielding Great durability due to a special, extremely robust jacket compound Outdoor temperature resistant, easy to reel Application: For mobile OB van use and outdoor applications For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions Specifications : Article number 581-0251 Name SC-Mercator CAT.7 PUR XL EAN 4049371019750 Properties FRNC flame retardant Properties Digital 110 Ω AES / EBU Properties Halogen-free / LSZH Properties OFC oxygen free copper Properties PUR Application area Mobile outdoor / indoor Application area Installation Application area Studio / Broadcast Application Cat.7 Colour black Colour detailed black Construction SFTP 4x2x0,26 mm²/800 MHz Construction (network) SFTP 4x2x0,26 mm²/800 MHz Jacket material PUR Jacket Ø [mm] 8,50 Number of Channels (network) 1 Inner conductor (network) 8 Inner conductor (network) [mm²] 0,26 AWG (network) 23 Shielding PimF, Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 7 Copper strand Ø (network) [mm] 0,22 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 80 UV-resistant yes Fire load per m [kWh] 0,23 Style variant round Packing 500 m spool Packing 100 m spool CAT-Type CAT.7 Velocity factor 0,75 Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 8,5 [mm] 8,5 Capacity wire/wire at 1m (network) [pF] 44 Capacity wire/wire at 1 ft. (network) [pF] 13,4112 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (network) [GΩ] 5 Insulation resist. per 1000 feet (network) [GΩ] 1,524 Max. delay (skew) 15 ns @ 100 MHz/100 m BPVo-Euroclass Fca

***Price Is Per Meter*** Cable abuse without punishment... This combination cable consists of an AWG26 CAT.7 element in combination with three individual power conductors as well as an audio/DMX line with 1 x 2 x 0.14 mm² in a very compact 14.5 mm jacket. The cable is ideally suited for mobile applications in the field of sound, lighting and AV technology (active PA systems, projectors, displays, LED walls, lighting technology) as well as for fixed installations where compact and flexible connection technology is required. In combination with the HARTING HAN-ECO system, use with a "one plug" solution for power, signal and data is also possible. Advantages: Data signal transmission incl. network and audio in one cable Network cable can also be used as control cable Application: Mobile applications Self powered PA-systems LED walls Displays & Projectors Article number 502-0141-1 Name SC-Monocat 111C Ed.2 EAN 4049371448567 Properties Analog Properties OFC oxygen free copper Properties Digital 110 Ω AES / EBU Application area Installation Application area Stage / live Application area Mobile outdoor / indoor Application area Studio / Broadcast Application hybrid cable Colour black Colour detailed black Construction [3LIY3x2,5mm²+1x(4x(2LI2Yx0,14mm²))(ST)CY+1x(2LI2Y0,14mm²)DY]Y Construction (power) 3 x 2,50 mm² Construction (AES/EBU, DMX) 01(2LI2Y0,14mm²)DY Construction (network) 1x(4x(2LI2Yx0,14mm²))(ST)CY Jacket material PVC Jacket Ø [mm] 14.50 Jacket Ø (AES/EBU, DMX) [mm] 3,50 Jacket Ø (network) [mm] 6,40 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (network) 8 Inner conductor (power) [mm²] 2,50 Inner conductor (AES/EBU, DMX) [mm²] 0,14 Inner conductor (network) [mm²] 0,14 AWG (network) 26 Shielding (AES/EBU, DMX) Copper spiral, tin-plated Shielding (network) AL / PT-foil + Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 7 Copper strand Ø (network) [mm] 0,16 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 260 UV-resistant yes Style variant round Packing bulk stock CAT-Type CAT.7 Max. section length [m] 100 Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 14,5 Height [mm] 14,5 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 53 Capacity wire/wire at 1m (network) [pF] 44 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 93 Surge impedance (AES/EBU, DMX) [Ω] 110 Impedance (network) [Ω] 100 Insulation resist. per 1km (power) [GΩ] 5 Test voltage [V] 2000 Nominal voltage (power) [V] 500 Operating voltage (power) [V] 300 BPVo-Euroclass Fca

***Price Is Per Meter*** Suitable Connector - Neutrik - NBNC75BZV14X The eye of an eagle has a resolution about 3 to 4 times higher than that of the human eye. Thus the 12G UHD-SDI transmission standard enables such high visual resolutions that the human eye cannot distinguish them any more from the original scene. Owing to its compact diameter of 8 mm (0.31 in.) and the optimized shielding construction, the VECTOR 1.3/5.7 has extremely low attenuation values which so far have only been known from much thicker cables. For the conductor we use a silver-plated solid wire with ultra low tolerances, embedded in a gas-injected (skin/gas/skin) insulation which is smoothed both inside and out. The triple shielding, which consists of two robust, elastic AL/PTE foils and a tight, tin-plated copper braid with 95 % coverage, prevents from interference and impact on the electrical values. These high-class parameters ensure a perfect and error-free transmission of the SDI (520 m / 1,706 ft.), 6G-SDI- (up to about 140 m / 460 ft.) and 12G-UHD-SDI- (up to 100 m / 328 ft.) standards. The robust outer jacket consists of a cold flexible, durable and UV resistant S-PVC. Advantages: Triple shielding with 100% coverage Extremely durable and temperatur resistant components (silver-plated wires, smoothed insulation, UV resistant jacket) Super low attenuation and so thin Application: Digital HD/UHD-SDI 4K long-distance transmission Connections for radio, broadcasting and surveillance technology, cables for stadium building and generally for sports events Ideal broadband, antenna and video cable Specifications: Article number 600-0131 Name SC-Vector PLUS 1.3/5.7 4K EAN 4049371409742 Properties Analog Properties OFC oxygen free copper Properties 3G-SDI Properties Digital 75 Ω Properties 6G-SDI Properties SDI Application area ELA 100 V Application area Mobile outdoor / indoor Application area Studio / Broadcast Application area Installation Application video cable Colour black Colour detailed black Jacket material PVC Jacket Ø [mm] 8,10 Number of Channels (video) 1 Inner conductor (video) 1 Inner conductor Ø (video) [mm] 1,30 AWG (video) 16 Shielding AL foil + Cu mesh, tinned + 2nd AL foil Shielding factor [%] 100 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 5,70 Weight per 1 m [g] 90 Style variant round Packing bulk stock Velocity factor 0,84 Temperature min. [°C] -10 Temperature max. [°C] 80 Max. Transmission length (SMPTE 425M, 3G) [m] 199 Max. Transmission length (SMPTE 2081, 6G) [m] 136 Width [mm] 8,1 Height [mm] 8,1 Capacity wire/electic screen at 1m (video) [pF] 53 Capacity wire/electic screen at 1 ft. (video) [pF] 16,1544 Damping at 5 MHz (100m & 20° C) [dB] 1,2 Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,3658 Damping at 50 MHz (100m & 20° C) [dB] 3,5 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,0668 Damping at 100 MHz (100m & 20° C) [dB] 4,8 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,463 Damping at 1000 MHz (100m & 20° C) [dB] 16,1 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,9073 Damping at 1485 MHz (100m & 20° C) [dB] 20,1 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,1265 Damping at 2150 MHz (100m & 20° C) [dB] 25,3 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 7,7114 Damping at 3000 MHz (100m & 20° C) [dB] 29,8 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,083 Damping at 6000 MHz (100m & 20° C) [dB] 42,7 Damping at 12000 MHz (100m & 20° C) [dB] 64,5 Impedance [Ω] 75 Conductor resistance per 1 km [Ω] 13 Conductor resistance per 1000 ft. [Ω] 3,9624 Shield. resistance per 1 km [Ω] 6,2 Shield. resistance per 1000 ft. [Ω] 1,8898 BPVo-Euroclass Eca Max. Transmission length (SMPTE 2082, 12G) [m] 94 Max. Transmission length (SMPTE 2082, 12G) [ft] 308,399

***Price Is Per Meter*** Cable mono culture... is what we did with the SC-Mercator QUAD 4 x CAT.7 and DUO 2 x CAT.7 . Here we have packed no less than four or respectively two CAT.7 lines in a highly flexible and robust Strong PVC jacket. Due to the fine litz construction of the single wires the overall construction achieves a good flexibility. Each of the network lines is shielded against external interferences by an overall screen made of a braided copper mesh plus a foil screen per wire pair (PimF). With the 10 Gbit-capable SC-Mercator QUAD 4 x CAT.7 / DUO 2 x CAT.7 up to 4 or 2 high-speed ethernet or compatible signals can be transmitted simultaneously. Advantages: Four or respectively two high-speed lines in one robust jacket Full CAT.6a functionality / 10 GBit Redundant transmission capability Highly flexible due to fine litz construction Application: Linking of sound and light direction via separate networks For quick and efficient cabling, e.g. of LED video wall systems For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions Specifications: Article number 580-0311-04 Name SC-Mercator EAN 4049371081498 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Application area Studio / Broadcast Application area Stage / live Application area Installation Application Multipair Cat.7 Colour black Colour detailed black Construction 4 x S/FTP 4x2x0,51mm Construction (network) SFTP 4x2x0,51mm Jacket material PVC Jacket ˜ [mm] 20,80 Number of Channels (network) 4 Inner conductor (network) 8 Inner conductor ˜ (network) [mm] 0,51 AWG (network) 24 Shielding PimF, Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 1 Copper strand ˜ (network) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation ˜ [mm] 1,38 Weight per 1 m [g] 380 UV-resistant yes Fire load per m [kWh] 0,15 Style variant round Packing 100 m spool Packing 500 m spool CAT-Type CAT.7 Max. section length [m] 140 Velocity factor 0,77 Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 20,8 Height [mm] 22,5 Capacity wire/wire at 1m (network) [pF] 45 Capacity wire/wire at 1 ft. (network) [pF] 13,716 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (network) [GΩ] 5 Insulation resist. per 1000 feet (network) [GΩ] 1,524 Loop resistance per km [Ω] 190 Loop resistance per 1000 ft. [Ω] 57,912 BPVo-Euroclass Fca

***Price Is Per Meter*** The memory cable... Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-ISOPOD SO-F22D is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it. The SC-ISOPOD SO-F22D has a surge impedance of 110 Ω. Advantages: Quick and easy to handle Robust plastic jacket for long life Easy to lay thanks to “memory effect” Application: Internal wiring of racks, audio and hifi components Article number 500-0406 Name SC-Isopod SO-F22 EAN 4049371005432 Properties Analog Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Application area Installation Application Patch cable Colour grey Colour detailed grey Signal transmission symmetrical Construction (2LI2Y0,22mm²)(ST)Y Jacket material PVC Jacket Ø [mm] 3,30 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material PP Conductor insulation Ø [mm] 1,30 Weight per 1 m [g] 16 Fire load per m [kWh] 0,05 Style variant round Packing 200 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 3,3 Height [mm] 3,3 Capac. cond./cond. per 1 m (audio) [pF] 74 Capacity wire/wire at 1 ft. (audio) [pF] 22,5552 Capac. cond./shield. per 1 m (audio) [pF] 143 Capacity wire/electic screen at 1 ft. (audio) [pF] 43,5864 Impedance [Ω] 110 Surge impedance (audio) [Ω] 110 Insulation resist. per 1 km [GΩ] 0,2 Insulation resist. per 1000 feet [GΩ] 0,061 Insulation resist. per 1 km (audio) [GΩ] 0,2 Insulation resist. per 1000 feet (audio) [GΩ] 0,061 Conductor resistance per 1 km [Ω] 88 Conductor resistance per 1000 ft. [Ω] 26,8224 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** WARP 1... or, more precisely, you can reach the simple speed of light with our SC-Octopus-G FO cable. Thus digital audio and video signals can be transmitted over long distances of up to 2 km / 6,562 ft. (at 100 Mbit/s). We deliver the multimode gradient fibers with a core diameter of 50 µm (insulation/cladding Ø 125 µm) in OM4 quality for the OM4 bandwidth ≥3,500 MHz (10 G max. 550 m / 1,805 ft.). OM4 fibers meet the requirements of modern FOC interfaces (laser coupling instead of LED) which demand high data rates >6 Gbit/s and closely toleranced limit values for the differential mode delay (max. 100 ps). With OM4 the 10 Gbit standard enables up to 550 m (1,805 ft.) of transmission distance. For permanent indoor and outdoor installations we recommend the UV-resistant FRNC/LSZH version. Advantages: Digital signal transmission over long distances Compact, lightweight, robust and metal free Die-electrical glass fibre armouring (rodent protection) Longitudinal water-tight in compliance with IED 60794-1-F5 for 10G application Application: High-quality, fast connection for the transmission of digital signals Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities) Indoor and outdoor transmissions with long transmission lengths Article number 590-0511-04-OM4 Name SC-Octopus-G EAN 4049371051132 Properties FRNC flame retardant Properties Halogen-free / LSZH Properties 3G-SDI / UHD Properties Digital 75 Ω Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area Installation Application Optical fiber Colour black Colour detailed black Construction U-DQ(ZN)BH2Y Jacket material FRNC / LSZH Jacket Ø [mm] 7,00 Weight per 1 m [g] 51 UV-resistant yes Style variant round Core (fiber) [µm] 50 Cladding (fiber) [µm] 125 Fibres 4 Quality OM4 Temperature min. [°C] -10 Temperature max. [°C] 50 Max. tensile force [kN] 1,6 Width [mm] 7 Height [mm] 7 BPVo-Euroclass Fca

***Price Is Per Meter*** Cat.6a SC-MERCATOR CAT.6a highflex; PVC; black, Ø 6,20 mm Article number 580-0401 Name SC-MERCATOR CAT.6a highflex EAN 4049371446723 Properties OFC oxygen free copper Properties Strong PVC-jacket Properties Digital 110 Ω AES / EBU Application area Installation Application area Mobile outdoor / indoor Application area Studio / Broadcast Application area Stage / live Application Cat.6a Colour black Colour detailed black Construction S/FTP 4x2x0,123mm² Construction (network) S/FTP 4x2x0,123mm² Jacket material PVC Jacket Ø [mm] 6,20 Jacket Ø (network) [mm] 6,20 Number of Channels (network) 1 Inner conductor (network) 8 Inner conductor (network) [mm²] 0,12 AWG (network) 26 Shielding AL / PT foil per pair + total braiding Alu-Magnesium 65 % Shielding factor [%] 65 Conductor insulation material Foam / Skin-PE Conductor insulation Ø (network) [mm] 0,96 Weight per 1 m [g] 32.66 UV-resistant yes Style variant round Packing 500 m spool CAT-Type CAT.6a Temperature min. [°C] -15 Temperature max. [°C] 60 Width [mm] 6,2 Height [mm] 6,2 Capacity wire/wire at 1m (network) [pF] 116 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 0,5 Insulation resist. per 1 km (network) [GΩ] 0,5 Conductor resistance per 1 km [Ω] 139

***Price Is Per Meter*** Suitable for Neutrik - NBNC75BFG7 When cables get married... This is a logical consequence then! Inseparably the video and power lines are embedded side by side in one jacket. The SC-Observer 1 HD consists of a high-grade 75 Ω video cable, surrounded by a stranded power cable with a wire cross-section of 3 x 0,75 mm². This construction makes it possible to transmit video signals while at the same time establishing the power supply to the monitor or camera. The cable is very flexible, cold resistant, robust and very easy to handle. Advantages: 75 Ω cable and power line in one cable Very durable and rugged due to high-quality PVC jacket Very good damping values of the 75 Ω video line Excellent shielding owing to the combination of Cu mesh screen plus AL/PT foil Application: Control of surveillance monitors Studio and fixed installations Specifications: Article number 600-2101 Name SC-Observer 1 HD EAN 4049371003995 Properties Underwater / submerged Properties Analog Properties SDI Properties Digital 75 Ω Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Installation Application area Studio / Broadcast Application Video- & Power cable Colour black Colour detailed black Construction [LI02YSC12Y0,60mm+3x0,75mm²]Y Construction (video) LI02YSC12Y0,60mm Construction (power) 3 x 0,75 mm² Jacket material S-PVC Jacket Ø [mm] 9,00 Jacket Ø (power) [mm] 0,00 Number of Channels (video) 1 Number of Channels (power) 1 Inner conductor (video) 1 Inner conductor (power) 3 Inner conductor (video) [mm²] 0,28 Inner conductor (power) [mm²] 0,75 Inner conductor Ø (video) [mm] 0,60 Inner conductor Ø (power) [mm] 0,98 AWG (video) 23 AWG (power) 18 Shielding (video) Copper braiding + AL / PT foil Shielding factor [%] 100 Copper strands (video) 1 Copper strand Ø (video) [mm] 0,60 Wire insulation material (video) Gas Injected-PE Conductor insulation Ø (video) [mm] 2,80 Weight per 1 m [g] 110 UV-resistant yes Fire load per m [kWh] 0,38 Style variant round Packing bulk stock Temperature min. [°C] -20 Temperature max. [°C] 80 Width [mm] 9 Height [mm] 9 Capacity wire/electic screen at 1m (video) [pF] 55 Capacity wire/electic screen at 1 ft. (video) [pF] 16,764 Damping at 50 MHz (100m & 20° C) [dB] 7,3 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,225 Damping at 100 MHz (100m & 20° C) [dB] 10,8 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,2918 Damping at 200 MHz (100m & 20° C) [dB] 14,5 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,4196 Damping at 470 MHz (100m & 20° C) [dB] 22,7 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,919 Damping at 862 MHz (100m & 20° C) [dB] 31,1 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,4793 Damping at 1000 MHz (100m & 20° C) [dB] 33,6 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 10,2413 Damping at 1485 MHz (100m & 20° C) [dB] 41,2 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 12,5578 Damping at 1750 MHz (100m & 20° C) [dB] 45,5 Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 13,8684 Damping at 2150 MHz (100m & 20° C) [dB] 49,5 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 15,0876 Impedance (video) [Ω] 75 Conductor resistance per 1 km [Ω] 62,2 Conductor resistance per 1000 ft. [Ω] 18,9586 BPVo-Euroclass Fca

***Price Is Per Meter*** Suitable Connector - HiCon - BNC58LL Dance at all parties... this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission. Advantages: Extremely long life due to age-resistant jacket Consistent and precise electrical values Easy handling Suitable for all standardised connectors Application: Data transmission HF technology Antenna construction For fixed installations Hifi connections Computer technology Article number 600-0401LL Name SC-Classic Series MKII EAN 4049371003438 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area ELA 100 V Application RG/U Coax Colour black Colour detailed black Construction 02YSCY Jacket material PVC Jacket Ø [mm] 5,00 Number of Channels (video) 1 Inner conductor (video) 1 Inner conductor (video) [mm²] 0,82 Inner conductor Ø (video) [mm] 1,02 AWG (video) 18 Shielding Copper braiding tin-plated + AL-foil Shielding factor [%] 92 Copper strands (video) 1 Copper strand Ø (video) [mm] 1,02 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,95 Weight per 1 m [g] 38 UV-resistant yes Fire load per m [kWh] 0,15 Style variant round Packing 100 m ring Packing 500 m spool Velocity factor 0,66 Temperature min. [°C] -25 Temperature max. [°C] 70 RG-Type RG58 C/U LL Width [mm] 5 Height [mm] 5 Capacity wire/electic screen at 1m (video) [pF] 82 Capacity wire/electic screen at 1 ft. (video) [pF] 24,9936 Damping at 100 MHz (100m & 20° C) [dB] 10,3 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,1394 Damping at 200 MHz (100m & 20° C) [dB] 15,2 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,633 Damping at 470 MHz (100m & 20° C) [dB] 21,3 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,4922 Damping at 862 MHz (100m & 20° C) [dB] 31,4 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,5707 Impedance [Ω] 50 BPVo-Euroclass Fca

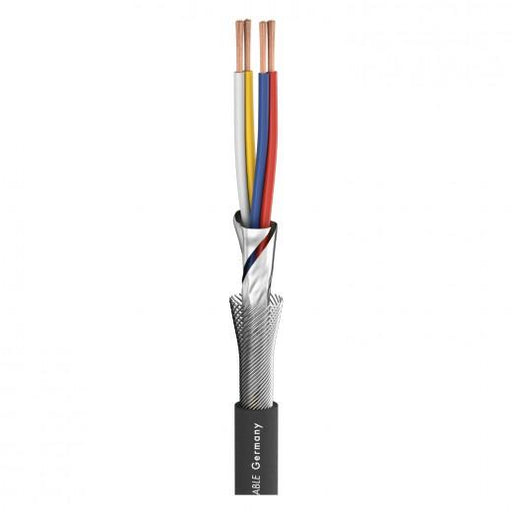

***Price Is Per Meter*** Maybe the smallest “star quad“ of all times … Is called SC-CICADA 4 with an outside diameter of merely 3.4mm (0.13 in.). Technically this cable is based on the very successful SC-CICADA SO-D14 variant, but instead of two, it has now four wires arranged in a star shape, yet remains just as flexible and top-performing. In a crossover wiring this version delivers extremely good electrical values, especially when compared to traditional microphone cables. Like the SC-CICADA SOD-14, the SC-CICADA 4 also features a robust, notch-resistant and sweat absorbing PUR Master Blend outerjacket – ideal for wiring up fitness gyms -, a tight spiral shielding with 95 % coverage and also a pre-stranded drain wire which makes cable assembly a lot easier and gives the cable an additional kink protection and a high tensile strength. The SC-CICADA 4 is the perfect microphone cable for use with mini XLR plugs, for fully assigned MIDI and DIN cables or as a compact patch cable. It is recommended e.g. for the internal wiring in racks or audio components, as feed line for clip or ear microphones or also for manufacturing high-grade adapter cables. Advantages: Super flexible due to fine CU litz construction Easy to handle owing to the extra drain wire (0.22 mm²) Tight spiral screen with 95 % coverage for excellent shielding Durable and notch-resistant due to the sturdy PUR jacket Application: Interior wiring of mixing consoles, racks, and other audio components For connecting mini XLRs, mini jacks, fully assigned MIDI and DIN cables Flexible cable for clip-on microphones, earphones, speaker units, etc. Assembly of adapter cable Specifications: Article number 200-0461 Name SC-CICADA 4 EAN 4049371360630 Properties OFC oxygen free copper Properties PUR Master Blend Properties Analog Application area Mobile outdoor / indoor Application area Installation Application Patch & Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction (4LI2Y0,14mm²)D11Y Jacket material PUR Master-Blend Jacket Ø [mm] 3,40 Inner conductor (audio) 4 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral shielding + filler strand, tin-plated (0.22 mm²) Copper strands (audio) 18 Copper strand Ø (audio) [mm] 0,10 Conductor insulation material PE Wire insulation material (audio) PE Conductor insulation Ø [mm] 0,90 Conductor insulation Ø (audio) [mm] 0,90 Weight per 1 m [g] 20 UV-resistant yes Fire load per m [kWh] 0,08 Style variant round Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 3,4 Height [mm] 3,4 Capac. cond./cond. per 1 m (audio) [pF] 75 Capacity wire/wire at 1 ft. (audio) [pF] 22,86 Capac. cond./shield. per 1 m (audio) [pF] 140 Capacity wire/electic screen at 1 ft. (audio) [pF] 42,672 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 145 Conductor resistance per 1000 ft. [Ω] 44,196 Conductor resistance per 1 km (audio) [Ω] 145 Conductor resistance per 1000 ft. (audio) [Ω] 44,196 Shield. resistance per 1 km [Ω] 39 Shield. resistance per 1000 ft. [Ω] 11,8872 Old article number 999-0001-329

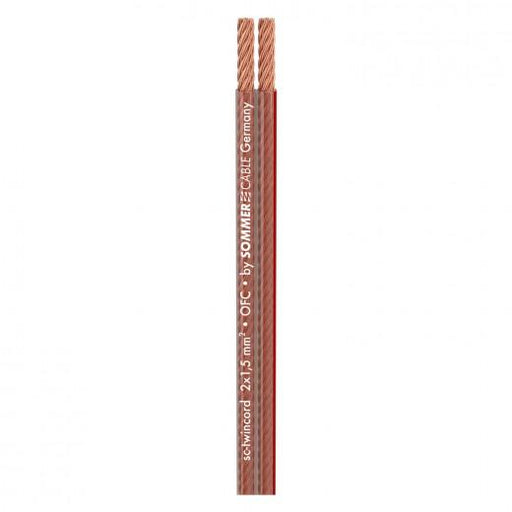

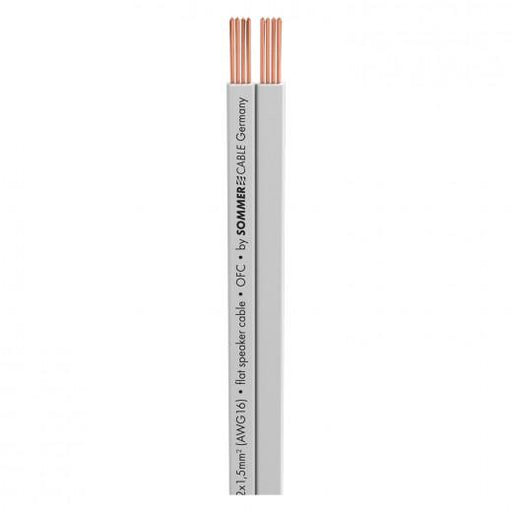

***Price Is Per Meter*** Playing hide and seek... you’re welcome to do this with our SC-Tribun, Flat-Design loudspeaker cable, because it’s so flat that you can barely see it once it has been laid. It can be perfectly laid under carpets, behind decorative strips, on the ceiling and underneath your furniture. The SC-Tribun, Flat-Design is almost invisible. And it’s all white, so that not even a mouse will recognise it! This makes it ideal for the installation in buildings (e.g. in hotels, bars, sporting arenas) and churches. The edges are slanted, so it’s impossible to get stuck with your shoes or a rollator. The bottom side is flat and finished, which allows you to affix a double-sided adhesive tape for universal attachment. The SC-Tribun, Flat-Design is easy to splice and only about 2 mm high! Advantages: Good transmission quality due to the use of oxygen-free copper litz wires Extremely flat and almost invisible laying Incredibly flexible and easy to handle Designed like a decorative strip, hence barely noticeable Affordable price Application: Fixed installation in building technology Almost invisible connection of your hifi system Church acoustics Specifications: Article number 415-0310 Name SC-Tribun, Flat-Design EAN 4049371002905 Properties OFC oxygen free copper Properties Analog Application area Installation Application area ELA 100 V Application Speaker Cable Colour white Colour detailed white Construction 2LIY1,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 1,50 Inner conductor Ø (audio) [mm] 1,38 AWG (audio) 15 Copper strands (audio) 188 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 53 Style variant Twin, flat Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 12,8 Height [mm] 2,4 Capac. cond./cond. per 1 m (audio) [pF] 60 Capacity wire/wire at 1 ft. (audio) [pF] 18,288 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 13,3 Conductor resistance per 1000 ft. [Ω] 4,0538 BPVo-Euroclass Fca

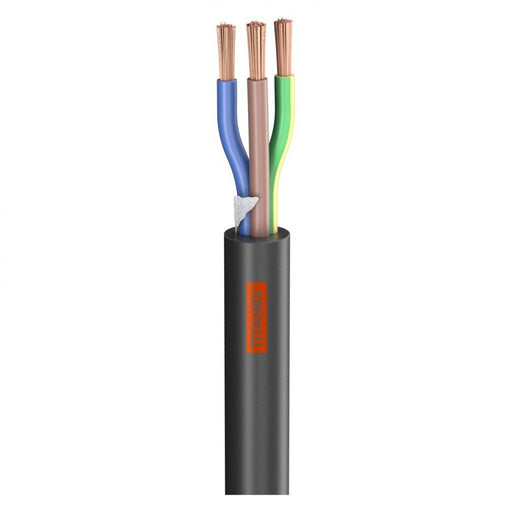

***Price Is Per Meter*** You won‘t make a mistake... if you go with the flow, for the H07RN-F rubber jacket lead is one of the best-selling cables on the world market. It can be used as a power line for audio components, spotlights and heavy machinery (mechanical engineering) and outdoors as well. This cable is very robust, highly flexible and has an extremely wear-resistant and durable Polychloropene jacket. Approved according to VDE 0282, Part 4/HD 22.453, in conformity with the EC Low-Voltage Directive 73/23/EWG. Advantages: Extremely dependable due to flame-retardant Polychloropene jacket (polychloroprene rubber) Very flexible owing to fine litz wire stranding in compliance with VDE 0293 Also suitable for outdoor use Application: Power lead for all types of electrical appliances Audio technology (light dimmers, spotlights, amplifiers, racks ...) Mechanical engineering and agricultural machinery Specifications: Article number 700-0101-0325TI Name Titanex ® EAN 4049371182546 Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Rubber Sleeve Cable Colour black Colour detailed black Construction H07RN-F 3x2,5mm² Jacket material rubber Jacket Ø [mm] 12,50 Number of Channels (power) 1 Inner conductor (power) 3 Inner conductor (power) [mm²] 2,50 Inner conductor Ø (power) [mm] 1,78 AWG (power) 13 Conductor insulation material rubber Weight per 1 m [g] 235 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 60 Width [mm] 12,5 Height [mm] 12,5 Insulation resist. per 1 km [GΩ] 0,001 Insulation resist. per 1000 feet [GΩ] 0,0003 Insulation resist. per 1km (power) [GΩ] 0,001 Insulation resist. per 1000 feet (power) [GΩ] 0,0003 Test voltage [V] 2000 BPVo-Euroclass Fca

***Price Is Per Meter*** You won‘t make a mistake... if you go with the flow, for the H07RN-F rubber jacket lead is one of the best-selling cables on the world market. It can be used as a power line for audio components, spotlights and heavy machinery (mechanical engineering) and outdoors as well. This cable is very robust, highly flexible and has an extremely wear-resistant and durable Polychloropene jacket. Approved according to VDE 0282, Part 4/HD 22.453, in conformity with the EC Low-Voltage Directive 73/23/EWG. Advantages: Extremely dependable due to flame-retardant Polychloropene jacket (polychloroprene rubber) Very flexible owing to fine litz wire stranding in compliance with VDE 0293 Also suitable for outdoor use Application: Power lead for all types of electrical appliances Audio technology (light dimmers, spotlights, amplifiers, racks ...) Mechanical engineering and agricultural machinery Specifications: Article number 700-0101-0315TI Name Titanex ® EAN 4049371183192 Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Rubber Sleeve Cable Colour black Colour detailed black Construction H07RN-F 3x1,5mm² Jacket material rubber Jacket Ø [mm] 10,00 Number of Channels (power) 1 Inner conductor (power) 3 Inner conductor (power) [mm²] 1,50 Inner conductor Ø (power) [mm] 1,38 AWG (power) 15 Conductor insulation material rubber Weight per 1 m [g] 136 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 60 Width [mm] 10 Height [mm] 10 Insulation resist. per 1 km [GΩ] 0,001 Insulation resist. per 1000 feet [GΩ] 0,0003 Insulation resist. per 1km (power) [GΩ] 0,001 Insulation resist. per 1000 feet (power) [GΩ] 0,0003 Test voltage [V] 2000 BPVo-Euroclass Fca

***Price Is Per Meter*** A thick coat... Protects the internal construction from external influences. Here a temperature resistant (-60 °C ...+180 °C) silicon jacket protects the wires against short-circuits, especially during continuous use with high temperature differences. The non-dripping insulation is made of a silicon rubber and is resistant to oil, alcohol, fat as well as diluted acids, alkalids, oxygen, and ozone. The silicon jacket is very flexible and allows bending radii down to 15 mm (0.59 in.). The fine Cu wires are tin-plated and built according to VDE0295, class 5. Advantages: High temperature resistance due to silicone jacket and insulation Excellent protection against short circuiting under extreme weather conditions High flexibility down to a bending radius of 15 mm Application: Load and lighting technology for outdoor applications Hot environment around machines, foundries, mills etc. Also suitable for cold outdoor areas down to –60 ° Specifications: Article number 700-0401-0315 Name SC-Silcoflex EAN 4049371002561 Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Silicone cable Colour black Colour detailed black Construction SIHF-J 3x1,5mm² Jacket material Silicon Jacket Ø [mm] 8,00 Number of Channels (power) 1 Inner conductor (power) 3 Inner conductor (power) [mm²] 1,50 Inner conductor Ø (power) [mm] 1,38 AWG (power) 15 Conductor insulation material Silicone rubber Weight per 1 m [g] 108 UV-resistant yes Style variant round Packing 100 m spool Temperature min. [°C] -60 Temperature max. [°C] 180 Width [mm] 8 Height [mm] 8 Test voltage [V] 2000 Nominal voltage (power) [V] 500 BPVo-Euroclass Fca

***Price Is Per Meter*** One for everything... The  Transit high speed HDMI with Ethernet  is definitely a top-quality HDMI cable for the transmission of digital video and sound data, especially for the professional media engineering and entertainment electronics sector. Combined with our HICON HDMI connector HI-HD-M, it can transmit (given a professional processing) the 4 times Full-HD resolution (3840 x 2160 pixels @ 30 Hz; 4096 x 2160 pixels @ 40 Hz) plus ethernet and audio return channel signals. It is suitable for “3D videos“ and 4K transmissions and is downward compatible with all previous HDMI versions. Depending on the hardware or the interface quality, even greater transmission distances of up to 25 m (82 ft.) are achievable due to the large cross-section. The cable has a sloid triple shielding against external interference. Advantages: 1080p image resolution (Full HD), 2K, 4K Large cross-section for increased transmission distances Solid triple shielding against external interference Current standard, downward compatible with previous standards Application: Digital transmission of audio and video data using the latest HDMI standard Professional media technology and home entertainment Laying in cable conduits Specifications: Article number 612-0251 Name Transit high speed HDMI with Ethernet EAN 4049371003568 Properties Digital 110 Ω Properties OFC oxygen free copper Properties HDTV Application area Studio / Broadcast Application area Installation Application HDMI-cable Colour black Colour detailed black Construction [(5(2LI2YS0,50mm))+(1(2LI2Y0,14mm²))+(LIY2x0,14mm²)](ST)CY Jacket material PVC Jacket Ø [mm] 9,60 Number of Channels (video) 1 Inner conductor (video) 10 Inner conductor (network) 4 Inner conductor (network) [mm²] 0,14 Inner conductor Ø (video) [mm] 0,50 AWG (video) 24 Shielding cross braiding tin-plated + AL/PT-foil + drain wire Shielding factor [%] 100 Copper strand Ø (video) [mm] 0,50 Conductor insulation material Foam / Skin-PE / PE Conductor insulation Ø [mm] 1,40 Weight per 1 m [g] 107 UV-resistant yes Style variant round Packing bulk stock Velocity factor 0,73 Temperature min. [°C] 0 Temperature max. [°C] 80 Width [mm] 9,6 Height [mm] 9,6 Capacity wire/wire at 1m (video) [pF] 90 Capacity wire/wire at 1 ft. (video) [pF] 27,432 Damping at 50 MHz (100m & 20° C) [dB] 2,8 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,8534 Damping at 100 MHz (100m & 20° C) [dB] 3,9 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,1887 Damping at 200 MHz (100m & 20° C) [dB] 5,9 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,7983 Damping at 470 MHz (100m & 20° C) [dB] 8,1 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,4689 Damping at 862 MHz (100m & 20° C) [dB] 12,3 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,749 Damping at 1000 MHz (100m & 20° C) [dB] 13,7 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,1758 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 10 Insulation resist. per 1000 feet [GΩ] 3,048 Insulation resist. per 1 km (video) [GΩ] 10 Insulation resist. per 1000 feet (video) [GΩ] 3,048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** Video killed the radio star... The prophecy of that Buggles pop song has not (yet) come true “ but still: already today a good picture goes hand in hand with good sound, Meanwhile, the S-video standard is an integral part of the good picture for all cameras, computers, audio, video, and TV end devices. A lossfree high-quality connection of these components is crucial for the picture quality. Especially with high-grade components the Cinema-SV can shine with its constant wave impedance of 75 Ohm. The robust PVC jacket is very flexible and protects two coaxial lines, each of which is embedded in a coloured fleece-banded PVC sleeve. Each wire is individually shielded by a cross mesh and an AL compound foil. Both the litz wires and the mesh screen are tinned. The Cinema-SV n is the ideal connection line for the upper S-video standard. Advantages: Easy and safe installation due to the robust and flexible outer jacket Dependable, high-quality transmission of S-video signals Good shielding due to single mesh screen plus AL compound foil Application: Video and monitor cable for higher demands For connection of high quality components Mobile application and fixed installation Article number 600-0701 Name Cinema-SV EAN 4049371000581 Properties Digital 75 Ohm Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application video cable Colour black Colour detailed black Construction [2LI2Y0,32mm(ST)CY]Y Jacket material PVC Jacket [mm] 7,50 Number of Channels (video) 2 Inner conductor (video) 1 Inner conductor (video) [mm²] 0,08 Inner conductor (video) [mm] 0,32 AWG (video) 28 Shielding Copper braiding tin-plated + AL-compound foil Shielding factor [%] 100 Copper strands (video) 7 Copper strand ˜ (video) [mm] 0,12 Conductor insulation material Foam / Skin-PE Conductor insulation ˜ [mm] 1,60 Weight per 1 m [g] 68 UV-resistant yes Style variant round Packing 200 m spool Temperature min. [°C] -15 Temperature max. [°C] 70 Width [mm] 7,5 Height [mm] 7,5 Capacity wire/electic screen at 1m (video) [pF] 64 Capacity wire/electic screen at 1 ft. (video) [pF] 19,5072 Damping at 5 MHz (100m & 20° C) [dB] 4,3 Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,3106 Damping at 50 MHz (100m & 20° C) [dB] 16,6 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 5,0597 Damping at 100 MHz (100m & 20° C) [dB] 22,5 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,858 Damping at 200 MHz (100m & 20° C) [dB] 30,6 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,3269 Damping at 470 MHz (100m & 20° C) [dB] 60,5 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 18,4404 Damping at 862 MHz (100m & 20° C) [dB] 99,3 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 30,2666 Impedance [Ω] 75 BPVo-Euroclass Fca

***Price Is Per Meter*** CATlike agility and mobility... The  SC-Mercator CAT.7 PUR  is the perfect cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in OB vans. Ethersound signals can be transmitted easily over up to 75 m. Its halogen-free, flame-retardant PUR jacket (according to IEC60332.1) is extremely notch- and tread-resistant, cold-flexible and easy to reel. The wires are fitted with a foam-skin PE insulation and shielded in pairs with an AL-PT foil (PimF). The overall screen consists of Cu mesh plus fleece. This ensures optimal transmission properties over long distances. Advantages: Safe data transfer due to high-quality insulation and shielding Great durability due to a special, extremely robust jacket compound Outdoor temperature resistant, easy to reel Application: For mobile OB van use and outdoor applications For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions Specificatations: Article number 581-0071 Name SC-Mercator CAT.7 PUR EAN 4049371005470 Properties Digital 110 Ω AES / EBU Properties Halogen-free / LSZH Properties OFC oxygen free copper Properties PUR Properties FRNC flame retardant Application area Mobile outdoor / indoor Application area Installation Application area Studio / Broadcast Application Cat.7 Colour black Colour detailed black Construction SFTP 4x2x0,14 mm²/600 MHz Construction (network) SFTP 4x2x0,14mm² / 600 MHz Jacket material PUR Jacket Ø [mm] 6,50 Number of Channels (network) 1 Inner conductor (network) 8 Inner conductor (network) [mm²] 0,14 AWG (network) 26 Shielding PimF, Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 7 Copper strand Ø (network) [mm] 0,16 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 40 UV-resistant yes Fire load per m [kWh] 0,19 Style variant round Packing 100 m spool Packing 500 m spool CAT-Type CAT.7 Velocity factor 0,75 Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 6,5 Height [mm] 6,5 Capacity wire/wire at 1m (network) [pF] 45 Capacity wire/wire at 1 ft. (network) [pF] 13,716 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 2 Insulation resist. per 1000 feet [GΩ] 0,6096 Insulation resist. per 1 km (network) [GΩ] 2 Insulation resist. per 1000 feet (network) [GΩ] 0,6096 Loop resistance per km [Ω] 290 Loop resistance per 1000 ft. [Ω] 88,392 Max. delay (skew) 10 ns @ 100 MHz/100 m BPVo-Euroclass Fca

***Price Is Per Meter*** Suitable Connector - Neutrik - NBNC75BLP9 As swift as an arrow... is the data transmission of the SC-Vector (RCB) with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) can also serve as a high-quality G-SDI-video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances. The SC-Vector (RCB) is used in OB vans, digital TV, at sporting events, live shows or other large events. Advantages: Low damping values for long distances Robust and durable outer sleeve Application: Digital SDI/HD-SDI/3G-SDI long-distance transmission Video transmission for OB van technology Specifications: Article number 600-0161 Name SC-Vector (RCB) EAN 4049371193689 Properties Digital 75 Ω Properties 3G-SDI Properties OFC oxygen free copper Properties 6G-SDI Properties Analog Properties SDI Application area Mobile outdoor / indoor Application area ELA 100 V Application area Installation Application area Studio / Broadcast Application video cable Colour black Colour detailed black Construction 1x02YS(ST)CH0,8/3,7 HD-SDI Jacket material PVC Jacket ˜ [mm] 6,00 Number of Channels (video) 1 Inner conductor (video) 1 Inner conductor (video) [mm²] 0,50 Inner conductor ˜ (video) [mm] 0,80 AWG (video) 20 Shielding AL / PT-foil + Copper braiding tin-plated 85 % Shielding factor [%] 100 Copper strands (video) 1 Copper strand ˜ (video) [mm] 0,80 Conductor insulation material Gas Injected-PE Conductor insulation ˜ [mm] 3,70 Weight per 1 m [g] 40 UV-resistant yes Fire load per m [kWh] 0,16 Style variant round Packing bulk stock Velocity factor 0,82 Temperature min. [°C] -10 Temperature max. [°C] 80 Max. transmission distance (SDI) [m] 220 Max. Transmission length (3G-SDI) [m] 160 Max. Transmission length (6G-SDI) [m] 70 Width [mm] 6 Height [mm] 6 Capacity wire/electic screen at 1m (video) [pF] 52,9 Capacity wire/electic screen at 1 ft. (video) [pF] 16,1239 Damping at 200 MHz (100m & 20° C) [dB] 11,2 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 3,4138 Damping at 470 MHz (100m & 20° C) [dB] 17 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 5,1816 Damping at 862 MHz (100m & 20° C) [dB] 24 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 7,3152 Damping at 1000 MHz (100m & 20° C) [dB] 26,4 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 8,0467 Damping at 1485 MHz (100m & 20° C) [dB] 32,8 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,9974 Damping at 1750 MHz (100m & 20° C) [dB] 35,9 Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 10,9423 Damping at 2150 MHz (100m & 20° C) [dB] 40,1 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 12,2225 Damping at 3000 MHz (100m & 20° C) [dB] 47,9 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 14,5999 Damping at 6000 MHz (100m & 20° C) [dB] 77,8 Damping at 9000 MHz (100m & 20° C) [dB] 99,4 Damping at 12000 MHz (100m & 20° C) [dB] 118,6 Impedance [Ω] 75 Conductor resistance per 1 km [Ω] 37 Conductor resistance per 1000 ft. [Ω] 11,2776 Shield. resistance per 1 km [Ω] 20 Shield. resistance per 1000 ft. [Ω] 6,096 BPVo-Euroclass Fca

***Price Is Per Meter*** Suitable for Neutrik -  NBNC75BWU13 All the way to the horizon... and then some more. This is the transmission range of the  SC-Vector Plus 1.2/5.0 , because with its special dimensions and construction it has been designed for long distance HD-SDI applications. Even as an analogue cable it is already pretty amazing: you can transmit video signals over distances of up to 1000 m and as an SDI cable it can be used for distances of up to 600 m. The  SC-Vector Plus 1.2/5.0  has an excellent shielding 100 % made of a tinned copper mesh plus AL/PT foil. The cable is very flexible and also suitable for mobile use on a cable reel. It is available in a single coax or a 5 x coax version with a PVC and FRNC jacket (according to test type C, IEC60332.3c). With HD-SDI the transmission range depends on the bitrate used (compressed or uncompressed). At 1.485 Gb/s (uncompressed) the damping value is drawn on at half the bitrate (720 MHz). The achievable cable length at a damping value <30 dB is considered as a relevant parameter. Advantages: Superb damping values for long distances of up to 1000 m Robust and durable outer jacket, reelable Application: Digital HD/SDI long distance transmission Cabling for sporting events and big TV events; OB van technology Specifications: Article number 600-0174 Name SC-Vector Plus EAN 4049371001403 Properties OFC oxygen free copper Properties Analog Properties SDI Properties Digital 75 Ω Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application video cable Colour green Colour detailed green Construction 1x02YS(ST)CH1,2/5,0 Jacket material PVC Jacket Ø [mm] 6,95 Number of Channels (video) 1 Inner conductor (video) 1 Inner conductor (video) [mm²] 0,88 Inner conductor Ø (video) [mm] 1,20 AWG (video) 18 Shielding AL / PT-foil + copper braiding 80 % tin-plated Shielding factor [%] 100 Copper strands (video) 7 Copper strand Ø (video) [mm] 0,40 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 5,00 Weight per 1 m [g] 55 Fire load per m [kWh] 0,2 Style variant round Packing bulk stock Velocity factor 0,8 Temperature min. [°C] -10 Temperature max. [°C] 80 Max. Transmission length (3G-SDI) [m] 200 Max. Transmission length (6G-SDI) [m] 80 Width [mm] 7 Height [mm] 7 Capacity wire/electic screen at 1m (video) [pF] 52 Capacity wire/electic screen at 1 ft. (video) [pF] 15,8496 Damping at 50 MHz (100m & 20° C) [dB] 4,5 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,3716 Damping at 200 MHz (100m & 20° C) [dB] 8,6 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,6213 Damping at 470 MHz (100m & 20° C) [dB] 13,4 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,0843 Damping at 862 MHz (100m & 20° C) [dB] 18,2 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 5,5474 Damping at 1000 MHz (100m & 20° C) [dB] 19,9 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,0655 Damping at 1485 MHz (100m & 20° C) [dB] 24,5 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 7,4676 Damping at 1750 MHz (100m & 20° C) [dB] 26,7 Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 8,1382 Damping at 2150 MHz (100m & 20° C) [dB] 29,9 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,1135 Damping at 3000 MHz (100m & 20° C) [dB] 35,9 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 10,9423 Damping at 6000 MHz (100m & 20° C) [dB] 51,5 Damping at 9000 MHz (100m & 20° C) [dB] 63,5 Damping at 12000 MHz (100m & 20° C) [dB] 73,5 Impedance [Ω] 75 Conductor resistance per 1 km [Ω] 21 Conductor resistance per 1000 ft. [Ω] 6,4008 Shield. resistance per 1 km [Ω] 11 Shield. resistance per 1000 ft. [Ω] 3,3528 BPVo-Euroclass Fca

***Price Is Per Meter*** CATlike agility and mobility... The SC-Mercator CAT.6 SUPERFLEX is the ideal cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in the OB van. The double-jacket design results in an unprecedented flexibility. The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper. This construction makes the cable extremely flexible and very easy to reel. For AoIP transmission lengths > 75m we recommend our multimode and singlemode fiber systems with the connectors HI-FIBER4, FIBERLENS and OpticalCON. Advantages: Safe data transfer due to high-quality insulation and shielding Great durability due to a special, extremely robust jacket compound Resistant to outdoor temperatures easy to wind Miscellaneous: Ultra flexible and easy-to-reel network cable with a large wire cross-section for outdoor applications. Outstanding network performance also for cable lengths >100 m (328 ft.). Double-jacket construction: The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper with >80 % coverage. Great durability due to a special, extremely robust jacket compound Application: For mobile OB van use and outdoor applications For mobile sound, light or video transmissions For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions Specifications: Article number 580-0201 Name SC-MERCATOR CAT.6 PUR SUPERFLEX EAN 4049371264198 Properties OFC oxygen free copper Properties PUR Properties FRNC flame retardant Properties Digital 110 Ω AES / EBU Properties Halogen-free / LSZH Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Cat.6 Colour black Colour detailed black Construction S/UTP 4x2x0.57 mm Construction (network) S/UTP 4x2x0.57 mm Jacket material PUR Jacket material (network) PVC Jacket Ø [mm] 8,00 Jacket Ø (network) [mm] 6,20 Number of Channels (network) 1 Inner conductor (network) 8 Inner conductor (network) [mm²] 0,26 AWG (network) 23 Shielding Copper braiding tin-plated (total) Shielding factor [%] 80 Copper strands (network) 1 Copper strand Ø (network) [mm] 0,57 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 78 UV-resistant yes Fire load per m [kWh] 0,24 Style variant round Packing 500 m spool Packing 100 m spool CAT-Type CAT.6 Velocity factor 0,75 Temperature min. [°C] -40 Temperature max. [°C] 80 Width [mm] 8 Height [mm] 8 Capacity wire/wire at 1m (network) [pF] 76 Capacity wire/wire at 1 ft. (network) [pF] 23,1648 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 2 Insulation resist. per 1000 feet [GΩ] 0,6096 Insulation resist. per 1 km (network) [GΩ] 2 Insulation resist. per 1000 feet (network) [GΩ] 0,6096 Max. delay (skew) 14 ns @100 MHz/100 m Old article number 580-0251 BPVo-Euroclass Fca

***Price Is Per Meter*** One step forward, one step back... Round and round, this ain't too hard. When data have to pass to and fro, a digital cable with return channel should be used. The wave impedance is also defined as 110 Ω with this cable. Of the 4 wires 2 are employed for the feedback function. The robust outer jacket is suitable for outdoor and fixed installations alike. Color coding according to DIN 47100. Owing to the double shielding (AL/PT foil + Cu braid) and the wire coding it complies with the generally applicable regulations (VDE 0812/VDE 0207). Transfer speed 256 Kbs pursuant to EIA 485 standard. Advantages: Digital transmission over long distances due to the DMX and AES/EBU standards Excellent protection against electric interference (Cu mesh screen + AL/PT foil) Extremely robust due to the special tough jacket Application: Networking of scanners and lighting systems with check-back function Connection of digital control units and devices of all kinds PUR blend version for mobile outdoor applications Article number 541-0051 Name Binary 434 DMX512 EAN 4049371002417 Properties Analog Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties PUR Master Blend Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application DMX Colour black Colour detailed black Signal transmission symmetrical Construction [2(2LI2YS0,34mm²)(ST)]CY Jacket material PUR-Blend Jacket Ø [mm] 7,00 Number of Channels (AES/EBU, DMX) 1 Inner conductor (AES/EBU, DMX) 4 Inner conductor (AES/EBU, DMX) [mm²] 0,34 Inner conductor Ø (AES/EBU, DMX) [mm] 0,66 AWG (AES/EBU, DMX) 22 Shielding Copper-cross mesh, tined + AL / PT foil Shielding factor [%] 100 Copper strands (AES/EBU, DMX) 7 Copper strand Ø (AES/EBU, DMX) [mm] 0,25 Conductor insulation material PE Conductor insulation Ø [mm] 1,70 Weight per 1 m [g] 65 UV-resistant yes Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 7 Height [mm] 7 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 58 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 17,6784 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 100 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 30,48 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 5 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 1,524 Conductor resistance per 1 km [Ω] 53 Conductor resistance per 1000 ft. [Ω] 16,1544 Shield. resistance per 1 km [Ω] 15 Shield. resistance per 1000 ft. [Ω] 4,572 BPVo-Euroclass Fca

***Price Is Per Meter*** The moon has risen... and if only the little golden stars are twinkling in the sky? Light failure! Power failure! The total failure is every technician's nightmare. The cause for this are external interference fields, which in turn are caused by badly shielded cables. So this is no place to make savings on material and shielding. Hence this cable with its soft jacket and the 100 % shielding. And all this with only 5,00 mm of outer diameter. This cable is the perfect AES/EBU line for studio engineering. It's ideal for patching or for internal wirings. Where no extreme environmental influences occur, it can also be used for permanent long-distance laying. The surge impedance of 110 Ω guarantees a loss-free transmission of digital signals. Likewise the  SC-Semicolon 2 AES/EBU  is fully shielded by the use of a tight Cu spiral screen and the underlying AL/PT foil or AL fleece. Advantages: Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece Compact and hence space-saving Application: Professional studio and microphone technology Connection of effects and control units which require a return signal Industrial technology and medical engineering Professional MIDI-technology, transfer cable High-end connection of hifi components Control of lighting and scanner systems and displays Specifications: Article number 520-0101 Name SC-Semicolon 2 AES/EBU EAN 4049371226783 Properties Analog Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Application area Installation Application area Studio / Broadcast Application DMX Colour black Colour detailed black Signal transmission symmetrical Construction (2LI2Y0,22mm²)(ST)DY Jacket material PVC Jacket Ø [mm] 5,00 Number of Channels (AES/EBU, DMX) 1 Inner conductor (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) [mm²] 0,22 Inner conductor Ø (AES/EBU, DMX) [mm] 0,53 AWG (AES/EBU, DMX) 24 Shielding Copper spiral sleeve + AL-fleece Shielding factor [%] 100 Copper strands (AES/EBU, DMX) 28 Copper strand Ø (AES/EBU, DMX) [mm] 0,10 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 33 Fire load per m [kWh] 0,13 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 5 Height [mm] 5 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 45 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 13,716 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 95 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 28,956 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 BPVo-Euroclass Fca

***Price Is Per Meter*** Swinging with your girlfriend... Swinging through the jungle like Tarzan. Literally, one could do it with this cable. Briefly: it can take a lot, whether by strain, by hook or crook. This is important when it is laid in sharp-edged lighting trusses. The  Binary 234 AES/EBU MKII  is an excellent cable for the transmission of digital signals in the 110 Ω AES/EBU and DMX data format. It features a shielding of an aluminized fleece and a Cu spiral screen with 100 % coverage. Therefore it is very well protected against electrical interferences. This cable ensures an error-free data transfer even over distances of up to 1,000 meters (3,281 ft.) With the  Binary 234 AES/EBU MKII  you're on the safe side. Advantages: AES/EBU- and DMX-conformant, highly flexible Very good shielding due to the use of a helical copper mesh screen plus an aluminium-vaporised fleece Extremely rugged due to the special tough jacket Only a little more expensive than a standard microphone cable Application: Networking of scanners, lighting systems, digital mixing consoles etc. For indoor and outdoor installation Connection of digital audio amplifiers, DAT recorders etc. Article number 520-0056 Name Binary 234 AES/EBU MKII EAN 4049371005463 Properties OFC oxygen free copper Properties Analog Properties Digital 110 Ω AES / EBU Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application DMX Colour grey Colour detailed grey Signal transmission symmetrical Construction (2LI2Y0,34mm²)(ST)DY Jacket material PVC Jacket Ø [mm] 6,20 Number of Channels (AES/EBU, DMX) 1 Inner conductor (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) [mm²] 0,34 Inner conductor Ø (AES/EBU, DMX) [mm] 0,66 AWG (AES/EBU, DMX) 22 Shielding Copper spiral shielding + aluminum steamed fleece Shielding factor [%] 100 Copper strands (AES/EBU, DMX) 19 Copper strand Ø (AES/EBU, DMX) [mm] 0,25 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,50 Weight per 1 m [g] 50 Fire load per m [kWh] 0,17 Style variant round Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 6,2 Height [mm] 6,2 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 63 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 19,2024 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 115 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 35,052 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 53 Conductor resistance per 1000 ft. [Ω] 16,1544 Shield. resistance per 1 km [Ω] 28 Shield. resistance per 1000 ft. [Ω] 8,5344 BPVo-Euroclass Fca

***Price Is Per Meter*** When the lights begin to dance... the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices. The  SC-Monolith 2 HV POWER/DMX  consists of a 3 x 2,50 mm² power cable and two DMX 512 lines. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety. Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems. Advantages: Parallel control for lighting boards through one cable via power line and DMX signal Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding Application: Control line for DMX lighting consoles (wave impedance of 0 Ω) Analogue + digital audio multipair with power supply Specifications: Article number 500-0281-2 Name SC-Monolith 2 HV EAN 4049371005418 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application DMX & Power Colour black Colour detailed black Signal transmission symmetrical Construction [(3LIY2,5mm²)Y+ 02(2LI2Y0,25mm²)DY]VLY Construction (power) (3LIY2,5mm²)Y Construction (AES/EBU, DMX) 02(2LI2Y0,25mm²)DY Jacket material PVC Jacket Ø [mm] 16,00 Jacket Ø (power) [mm] 8,30 Jacket Ø (AES/EBU, DMX) [mm] 4,30 Number of Channels (power) 1 Number of Channels (AES/EBU, DMX) 2 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (power) [mm²] 2,50 Inner conductor (AES/EBU, DMX) [mm²] 0,25 Inner conductor Ø (power) [mm] 1,78 Inner conductor Ø (AES/EBU, DMX) [mm] 0,56 AWG (power) 13 AWG (AES/EBU, DMX) 23 Shielding (AES/EBU, DMX) Braided mesh, tin-plated Shielding factor [%] 90 Copper strands (power) 48 Copper strand Ø (power) [mm] 0,25 Copper strand Ø (AES/EBU, DMX) [mm] 0,20 Wire insulation material (power) PVC Conductor insulation Ø [mm] 0,00 Conductor insulation Ø (power) [mm] 3,10 Weight per 1 m [g] 313 UV-resistant yes Fire load per m [kWh] 0,92 Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 16 Height [mm] 16 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 52 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 15,8496 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 89 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 27,1272 Impedance [Ω] 0 Surge impedance (AES/EBU, DMX) [Ω] 110 Insulation resist. per 1 km [GΩ] 0 Insulation resist. per 1000 feet [GΩ] 0 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,0305 Conductor resistance per 1 km [Ω] 0 Conductor resistance per 1000 ft. [Ω] 0 Conductor resistance per 1 km (power) [Ω] 80 Conductor resistance per 1000 ft. (power) [Ω] 24,384 BPVo-Euroclass Fca

***Price Is Per Meter*** Swinging with your girlfriend... like Tarzan in the jungle. With this cable you could just do that: it can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses. The  Binary 234 AES/EBU MKII  is an outstanding cable for the transmission of digital signals in the 110 Ω AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporized fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interference's. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the  Binary 234 AES/EBU MKII  you’ll be on the safe side. Advantages: AES/EBU- and DMX-conform-ant, highly flexible Very good shielding due to the use of a helical copper mesh screen plus an aluminium-vaporized fleece Extremely rugged due to the special tough jacket Only a little more expensive than a standard microphone cable Application: Networking of scanners, lighting systems, digital mixing consoles etc. For indoor and outdoor installation Connection of digital audio amplifiers, DAT recorders etc. Specifications: Article number 520-0051 Name Binary 234 AES/EBU MKII EAN 4049371002349 Properties Analog Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application DMX Colour black Colour detailed black Signal transmission symmetrical Construction (2LI2Y0,34mm²)(ST)DY Jacket material PVC Jacket Ø [mm] 6,20 Number of Channels (AES/EBU, DMX) 1 Inner conductor (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) [mm²] 0,34 Inner conductor Ø (AES/EBU, DMX) [mm] 0,66 AWG (AES/EBU, DMX) 22 Shielding Copper spiral shielding + aluminum steamed fleece Shielding factor [%] 100 Copper strands (AES/EBU, DMX) 19 Copper strand Ø (AES/EBU, DMX) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,50 Weight per 1 m [g] 50 UV-resistant yes Fire load per m [kWh] 0,17 Style variant round Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 6,2 Height [mm] 6,2 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 63 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 19,2024 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 115 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 35,052 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 53 Conductor resistance per 1000 ft. [Ω] 16,1544 Shield. resistance per 1 km [Ω] 28 Shield. resistance per 1000 ft. [Ω] 8,5344 BPVo-Euroclass Fca

***Price Is Per Meter*** Cable abuse without punishment... This combi line contains one CAT-cable in combination with a power cable. The SC-MONOCAT POWER Series is equally suitable for permanent installations and mobile applications. Advantages: LAN signal transmission incl. mains supply in one cable LAN cable also usable as an additional control line Application: Mobile applications Specifications: Article number 500-0151-1 Name SC-Monocat 110C EAN 4049371050975 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application hybrid cable Colour black Colour detailed black Construction [(3LIY3x2,5mm²)Y+1x(4x(2LI2Yx0,14mm²))(ST)CY]Y Construction (power) [(3LIY3x2,5mm²)Y Construction (network) 1x(4x(2LI2Yx0,14mm²))(ST)CY]Y Jacket material PVC Jacket Ø [mm] 13,80 Inner conductor (power) 3 Inner conductor (network) 8 Inner conductor (power) [mm²] 2,50 Inner conductor (network) [mm²] 0,14 Shielding (network) AL / PT-foil + Copper braiding tin-plated Shielding factor [%] 100 Copper strands (network) 7 Copper strand Ø (network) [mm] 0,16 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 254 UV-resistant yes Fire load per m [kWh] 0,77 Style variant round Packing bulk stock CAT-Type CAT.7 Max. section length [m] 100 Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 13,8 Height [mm] 13,8 Capacity wire/wire at 1m (network) [pF] 44 Capacity wire/wire at 1 ft. (network) [pF] 13,4112 Impedance (network) [Ω] 100 Insulation resist. per 1km (power) [GΩ] 5 Insulation resist. per 1000 feet (power) [GΩ] 1,524 Test voltage [V] 2000 Nominal voltage (power) [V] 300 Operating voltage (power) [V] 300 BPVo-Euroclass Fca

***Price Is Per Meter*** Thicker and bigger … Apart from the combi lines  110C  (CAT+Power),  111C  (CAT+Power+DMX),  202  (2xCAT+2xDMX) and  212  (2xCAT+2xDMX+Power) we also offer the extended variants  SC-MONOCAT POWER 414  and  810 . In addition to the power line, the  SC-MONOCAT POWER 414  has four CAT and four DMX lines each, the  SC-MONOCAT POWER 810  with its super robust, notch and cold resistant PUR jacket has eight CAT lines. Advantages: LAN signal transmission incl. mains supply in one cable LAN cable also usable as an additional control line LAN line suitable for audio transmission Application: Mobile applications Control of DMX lighting consoles Analogue + digital audio multipair with LAN and power supply Permanent Installation Specifications: Article number 500-0191-4 Name SC-Monocat Power 414 EAN 4049371166379 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application hybrid cable Colour black Colour detailed black Signal transmission symmetrical Construction [(3LIY3x2,5mm²)Y+4x(4x(2x0,51mm))(ST)CY+4x(2x(2LI2YS0,25mm²)ST))CY]Y Construction (power) (3LIY3x2,5mm²)Y Construction (AES/EBU, DMX) 4x(2x(2LI2YS0,25mm²)ST)) Construction (network) 4x(4x(2x0,51mm))(ST)CY Jacket material PVC Jacket Ø [mm] 27,00 Number of Channels (power) 1 Number of Channels (AES/EBU, DMX) 4 Number of Channels (network) 4 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (network) 8 Inner conductor (power) [mm²] 2,50 Inner conductor (AES/EBU, DMX) [mm²] 0,25 Inner conductor Ø (network) [mm] 0,51 AWG (AES/EBU, DMX) 23 Shielding (AES/EBU, DMX) Copper braiding tin-plated Shielding (network) AL / PT-foil + Copper braiding tin-plated Shielding factor [%] 100 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 850 UV-resistant yes Fire load per m [kWh] 3,25 Style variant round Packing bulk stock CAT-Type CAT.7 Max. section length [m] 110 Temperature min. [°C] -20 Temperature max. [°C] 75 Width [mm] 27 Height [mm] 27 Capacity wire/wire at 1m (network) [pF] 44 Capacity wire/wire at 1 ft. (network) [pF] 13,4112 Impedance (network) [Ω] 100 Insulation resist. per 1km (power) [GΩ] 5 Insulation resist. per 1000 feet (power) [GΩ] 1,524 Test voltage [V] 2000 Nominal voltage (power) [V] 500 Operating voltage (power) [V] 300 BPVo-Euroclass Fca

***Price Is Per Meter*** Cable abuse without punishment... This combi line contains two CAT-cables in combination with two DMX-cables and insulated power cable. It s is equally suitable for permanent installations and mobile applications. Advantages: LAN signal transmission incl. mains supply in one cable LAN cable also usable as an additional control line Application: Control of DMX lighting consoles Mobile applications Analogue + digital audio multipair with LAN and power supply Permanent Installation Specifications: Article number 500-0191-2 Name SC-Monocat Power 212 EAN 4049371165143 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application hybrid cable Colour black Colour detailed black Signal transmission symmetrical Construction [(3LI(9)Y3x2,5mm²)(11)Y+2x(4x(2LI2Yx0,57mm))(ST)CY+2x(2LI2Y0,25mm²)DY]Y Construction (power) (3LI(9)Y3x2,5mm²)(11)Y Construction (AES/EBU, DMX) 2x(2LI2Y0,25mm²)DY Construction (network) 2x(4x(2x0,57mm))(ST)CY Jacket material PVC Jacket Ø [mm] 21,80 Number of Channels (power) 1 Number of Channels (AES/EBU, DMX) 2 Number of Channels (network) 2 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (network) 8 Inner conductor (power) [mm²] 2,50 Inner conductor (AES/EBU, DMX) [mm²] 0,25 Inner conductor Ø (network) [mm] 0,57 AWG (AES/EBU, DMX) 23 Shielding (AES/EBU, DMX) Copper spiral, tin-plated Shielding (network) PiMF + tinned copper braid Shielding factor [%] 100 Conductor insulation material Foam / Skin-PE Weight per 1 m [g] 470 UV-resistant yes Fire load per m [kWh] 2,38 Style variant round Packing bulk stock CAT-Type CAT.7 Max. section length [m] 110 Temperature min. [°C] -20 Temperature max. [°C] 60 Width [mm] 21,8 Height [mm] 21,8 Capacity wire/wire at 1m (network) [pF] 44 Capacity wire/wire at 1 ft. (network) [pF] 13,4112 Impedance (network) [Ω] 100 Insulation resist. per 1km (power) [GΩ] 5 Insulation resist. per 1000 feet (power) [GΩ] 1,524 Test voltage [V] 2000 Nominal voltage (power) [V] 500 Operating voltage (power) [V] 300 BPVo-Euroclass Fca

***Price Is Per Meter*** When the lights begin to dance... the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices. The  SC-Monolith 2 POWER/DMX  consists of a 3 x 1,50 mm² power cable and two DMX 512 lines. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety. Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems. Advantages: Parallel control for lighting boards through one cable via power line and DMX signal Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding Application: Control line for DMX lighting consoles (wave impedance of 110 Ω) Analogue + digital audio multipair with power supply Specifications: Article number 500-0051-2 Name SC-Monolith 2 EAN 4049371003797 Properties OFC oxygen free copper Properties Analog Properties Digital 110 Ω AES / EBU Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application DMX & Power Colour black Colour detailed black Signal transmission symmetrical Construction [(3LIY1,5mm²)Y+ 02(2LI2Y0,14mm²)DY]VLY Construction (power) (3LIY1,5mm²)Y Construction (AES/EBU, DMX) 02(2LI2Y0,14mm²)DY Jacket material PVC Jacket Ø [mm] 12,30 Jacket Ø (power) [mm] 6,20 Jacket Ø (AES/EBU, DMX) [mm] 3,00 Number of Channels (power) 1 Number of Channels (AES/EBU, DMX) 2 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (power) [mm²] 1,50 Inner conductor (AES/EBU, DMX) [mm²] 0,14 Inner conductor Ø (power) [mm] 1,38 Inner conductor Ø (AES/EBU, DMX) [mm] 0,42 AWG (power) 15 AWG (AES/EBU, DMX) 25 Shielding (AES/EBU, DMX) Copper spiral, tin-plated Shielding factor [%] 90 Copper strands (power) 28 Copper strands (AES/EBU, DMX) 36 Copper strand Ø (power) [mm] 0,25 Copper strand Ø (AES/EBU, DMX) [mm] 0,07 Wire insulation material (power) PVC Conductor insulation Ø [mm] 0,00 Conductor insulation Ø (power) [mm] 2,30 Conductor insulation Ø (AES/EBU, DMX) [mm] 1,15 Weight per 1 m [g] 200 UV-resistant yes Fire load per m [kWh] 0,86 Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 12,3 Height [mm] 12,3 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 52 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 15,8496 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 89 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 27,1272 Impedance [Ω] 110 Surge impedance (AES/EBU, DMX) [Ω] 110 Insulation resist. per 1 km [GΩ] 0 Insulation resist. per 1000 feet [GΩ] 0 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,0305 Conductor resistance per 1 km [Ω] 0 Conductor resistance per 1000 ft. [Ω] 0 Conductor resistance per 1 km (power) [Ω] 80 Conductor resistance per 1000 ft. (power) [Ω] 24,384 BPVo-Euroclass Fca

***Price Is Per Meter*** When the lights begin to dance... the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices. The  SC-Monolith 1 POWER/DMX  consists of a 3 x 1,50 mm² power cable and one DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety. Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems. Advantages: Parallel control for lighting boards through one cable via power line and DMX signal Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding Miscellaneous: Note: two white filling elements are integrated in the cable (see cable illustration) Application: Control line for DMX lighting consoles (wave impedance of 0 Ω) Analogue + digital audio multipair with power supply Specifications: Article number 500-0051-1 Name SC-Monolith 1 EAN 4049371002554 Properties Analog Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application area Studio / Broadcast Application DMX & Power Colour black Colour detailed black Signal transmission symmetrical Construction [(3LIY1,5mm²)Y+ 01(2LI2Y0,25mm²)DY]VLY Construction (power) (3LIY1,5mm²)Y Construction (AES/EBU, DMX) 01(2LI2Y0,25mm²)DY Jacket material PVC Jacket Ø [mm] 12,40 Jacket Ø (power) [mm] 7,00 Jacket Ø (AES/EBU, DMX) [mm] 4,30 Number of Channels (power) 1 Number of Channels (AES/EBU, DMX) 1 Inner conductor (power) 3 Inner conductor (AES/EBU, DMX) 2 Inner conductor (power) [mm²] 1,50 Inner conductor (AES/EBU, DMX) [mm²] 0,25 Inner conductor Ø (power) [mm] 1,38 Inner conductor Ø (AES/EBU, DMX) [mm] 0,56 AWG (power) 15 AWG (AES/EBU, DMX) 23 Shielding (AES/EBU, DMX) Braided mesh, tin-plated Shielding factor [%] 90 Copper strands (power) 28 Copper strands (AES/EBU, DMX) 7 Copper strand Ø (power) [mm] 0,25 Copper strand Ø (AES/EBU, DMX) [mm] 0,20 Wire insulation material (power) PVC Conductor insulation Ø [mm] 0,00 Conductor insulation Ø (power) [mm] 2,30 Weight per 1 m [g] 200 UV-resistant yes Fire load per m [kWh] 0,64 Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 12,4 Height [mm] 12,4 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 52 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 15,8496 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 89 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 27,1272 Impedance [Ω] 0 Surge impedance (AES/EBU, DMX) [Ω] 110 Insulation resist. per 1 km [GΩ] 0 Insulation resist. per 1000 feet [GΩ] 0 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,1 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,0305 Conductor resistance per 1 km (power) [Ω] 80 Conductor resistance per 1000 ft. (power) [Ω] 24,384 BPVo-Euroclass Fca

***Price Is Per Meter*** Especially for the tough stage routine... we improved the jacket stability on the  ELEPHANT  series. Furthermore it is flexible, robust, tread-resistant, easy to reel and of course reusable time and again. Now the jacket surface is also smoother and thus easier to clean. And we have customised the outer diameter for an easier no-fuss handling with the common speaker multipins (CA-COM 8-pin, NL8, LKS19, EP5). Advantages: Loss-free transmission due to the special litz stranding technology Highly flexible and stage-proof, easy to reel Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors Easy to use due to well-insulated, numbered wires Special filler to avoid knot formation Application: Professional PA systems Specifications: Article number 490-0351-840 Name Elephant Robust SPM840 EAN 4049371020510 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour black Colour detailed black Construction (8LIY4,0mm²)Y Jacket material PVC Jacket Ø [mm] 18,50 Number of Channels (audio) 1 Inner conductor (audio) 8 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 128 Copper strand Ø (audio) [mm] 0,20 Conductor insulation Ø [mm] 3,75 Weight per 1 m [g] 570 UV-resistant yes Fire load per m [kWh] 2,25 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 18,5 Height [mm] 18,5 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 Test voltage [V] 2000 Old article number 490-0251-840 BPVo-Euroclass Fca

***Price Is Per Meter*** The wires are running hot... and the crowd is cheering when the speaker walls are turned up all the way. Then not only the spirits are heating up, but also the cables. This puts very high demands on the cable which means that the outer jacket of the cable must be as thick as elephant skin. But it should also be flexible, robust, tread-resistant, easy to reel and of course reusable time and again. Compare it with other speaker cables the ELEPHANT is bound to convince you all out! Advantages: Loss-free transmission due to the special litz stranding technology Highly flexible and stage-proof, easy to reel Compatible with the common Neutrik Speakon connectors Easy to use due to well-insulated, numbered wires Application: Professional PA systems Surround and woofer systems For permanent installation Specifications: Article number 490-0051-425 Name Elephant SPM425 EAN 4049371002233 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour black Colour detailed black Construction (4LIY2,5mm²) Jacket material PVC Jacket ˜ [mm] 10,20 Number of Channels (audio) 1 Inner conductor (audio) 4 Inner conductor (audio) [mm²] 2,50 Inner conductor ˜ (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 78 Copper strand ˜ (audio) [mm] 0,20 Conductor insulation ˜ [mm] 3,05 Weight per 1 m [g] 180 UV-resistant yes Fire load per m [kWh] 0,8 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 10,2 Height [mm] 10,2 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 7,7 Conductor resistance per 1000 ft. [Ω] 2,347 Test voltage [V] 2000 BPVo-Euroclass Fca
