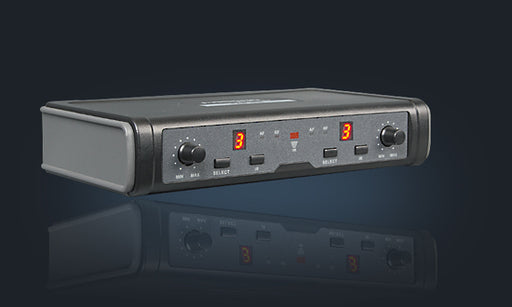

PAW-266 UHF PLL Dual Channel Receiver ?Built-in Antenna ?Digital display and light touch button with simple setups. ?Tone key squelch circuit to avoid interference ?Infrared data synchronization Frequency range is 655-679mhz - New Zealands Legal Range. PBT-172 Bodypack Transmitter ?Low battery indicator. ?Three optional input gain control adjustments. ?Infrared data synchronization.

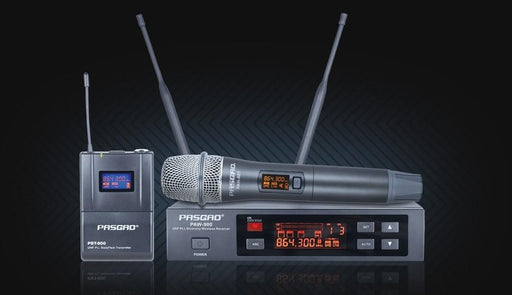

Single channel true diversity wireless microphone system. The PAW-900 wireless microphone system consists of the PAW-900 receiver, the PAH-801 handheld transmitter or the PBT-801 bodypack transmitter. The system has 10 frequency groups with a total of 160 channels, and each frequency band has up to 16 channels that do not interfere with each other. The system has the functions of automatically searching for idle channels, infrared data synchronization and the like. The system offers a rock-solid performance,crystal clear sound quality,intuitive operation.An ideal choice for professional clubs,churches and other demanding venuse. PAW-900R • True diversity design ensures rock-solid performance • LCD shows all working status. • Up to 192 selectable frequencies • Automatic frequency selection • Adjustable gain level • 6-segment audio meters • 6-segment RF meters • 3-segment transmitter battery fuel gauges • Squelch adjustment • Infrared data synchronlzauon • Rugged metal chassis PAH-801 • Modularized microphone head design of handheld transmitter for free choice and easy replacement • LCD screen with orange backlight indicates frequency, battery life, RF, gain, mute and Lock status • 3 optional audio gain adjustments • 3 optional transmit power adjustments • Infrared data synchronization • Rock-solid metal body design and strong rubber end structure with good anti-drop performance PAT-801 • LCD screen with orange backlight indicates frequency, battery life, RF, gain,mute and Lock status • 3 optional audio gain adjustments • 3 optional transmit power adjustments • Infrared data synchronization Specifications: PAW-900R: Frequency Range 500 ~ 937.5MHz Working Range 100 meters Modulation FM Pilot Tone 32.768KHz Optional Frequency 192 System Compatibility 8pcs Frequency Response 50Hz ~ 15KHz (±3dB) Dynamic Range > 105dB T.H.D. < 0.5% S/N Ratio > 102dB(A) RF Sensitivity < -95dBm Image Rejection > 60dB Output Connectors (XLR×1)/(1/4-inch connector×1) Audio Output Level (XLR Impedance (XLR Display LCD×1 Power Requirements 12V/0.5A DC Operating Temperature Range 0-50 ℃ Dimensions 160(L)*212(W)*44(H)mm Weight 880g PAH-801: Gain Adjustment Range 0/3/6dB Input Impedance 5KΩ Output Power：2mW/10mW/30mW Spurious > 50dB Display LCD Power Requirements 1.5V*2(AA) Battery Life >8H/1300mAH Dimensions 250(L)*50(Φ)mm Weight 360g PBT-801: Gain Adjustment Range 0/3/6dB Input Impedance 5KΩ Output Power：2mW/10mW/30mW Harmonic Rejection > 50dB Display LCD Power Requirements 1.5V*2(AA) Battery Life >8H/1300mAH Dimensions 65(L)*165(H)*23(W)mm Weight 130g

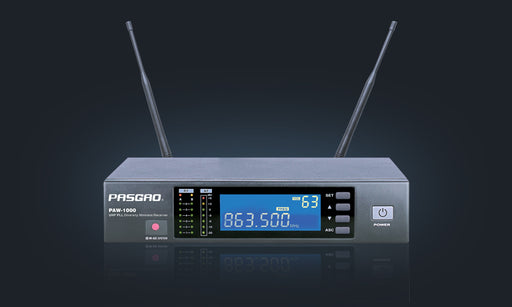

Pasgao - PAW-1000/PBT-1000/PL20 - Wireless Mic System With Belt Pack and 1 x Lapel Mic PAW-1000 UHF True Diversity Wireless Microphone System. Pasgao early generation diversity wireless system offers a rock-sol id performance, crystal clear sound quality, intuitive operation. An ideal choice for professional clubs, churches and other demanding venues. PAW-1000 UHF True Diversity Wireless Microphone System ? True diversity design ensures rock-sol id performance ? LCD shows al l working status ? Up to 160 selectable frequencies ? Automatic frequency selection ? Adjustable gain level ? 6-segment audio meters ? 6-segment RF meters ? 3-segment transmitter battery fuel gauges ? Squelch adjustment ? Infrared data synchronization ? Rugged metal chassis RF Carrier Frequency Range: 655-679mhz Working Range: 100M Modulation: FM Pilot Tone: / Max Channel Number: 192 System Compatibility: 8 channels Audio Frequency Range: 70HZ ~ 18KHz (?3db) Dynamic Range: > 103db System Distortion: THD< 0.7% S/N Ratio: > 100db(A? RF Sensitivity: < -95dbm for 30db S/N ratio Image Rejection: > 60db Output Connectors: (XLR?1) /(1/4-inch connector?1 ) Audio Output Level: (XLR: +8dbV) / (1/4-inch connector?1 (+6dbV) Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?) Display: LCD Power Requirments: 12V/0.5A DC Operating Temperature Range: 0-50 ? Dimensions:160*212*44mm Weight:900g PBT-1000 Bodypack Transmitter ? LCD screen with light-green backlight indicates frequency, battery life, RF, gain level, mute and lock status ? 3 optional audio gain adjustments from -9dB up to 6dB ? 3 optional transmit power adjustments ? Double input circuit design for microphone and guitar ? Infrared data synchronization Gain Adjustment Range:-10/0/10db Input Impedance : (Mic:5K?)/(Guitar : 760K?) RF Power Output : 20mW Spurious Rejection:> 50db Pilot Tone:/ Display: LCD Power Requirments:1.5V?2(AA) Battery Life:> 8h/1300mAH Dimensions:89*65*24mm Weight:85g

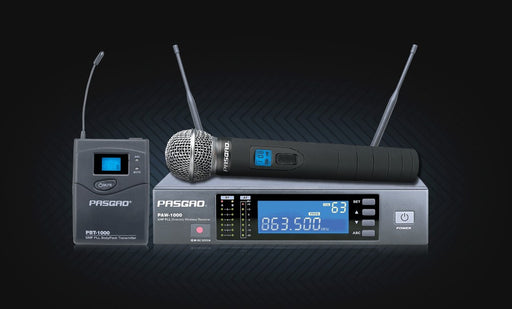

Pasgao - PAW-1000/PBT-1000/PH20 - Wireless Mic System With Belt Pack and 1 x Handheld Mic. PAW-1000 UHF True Diversity Wireless Microphone System. Pasgao early generation diversity wireless system offers a rock-sol id performance, crystal clear sound quality, intuitive operation. An ideal choice for professional clubs, churches and other demanding venues. PAW-1000 UHF True Diversity Wireless Microphone System ? True diversity design ensures rock-sol id performance ? LCD shows al l working status ? Up to 160 selectable frequencies ? Automatic frequency selection ? Adjustable gain level ? 6-segment audio meters ? 6-segment RF meters ? 3-segment transmitter battery fuel gauges ? Squelch adjustment ? Infrared data synchronization ? Rugged metal chassis RF Carrier Frequency Range: 655-679mhz Working Range: 100M Modulation: FM Pilot Tone: / Max Channel Number: 192 System Compatibility: 8 channels Audio Frequency Range: 70HZ ~ 18KHz (?3db) Dynamic Range: > 103db System Distortion: THD< 0.7% S/N Ratio: > 100db(A? RF Sensitivity: < -95dbm for 30db S/N ratio Image Rejection: > 60db Output Connectors: (XLR?1) /(1/4-inch connector?1 ) Audio Output Level: (XLR: +8dbV) / (1/4-inch connector?1 (+6dbV) Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?) Display: LCD Power Requirments: 12V/0.5A DC Operating Temperature Range: 0-50 ? Dimensions:160*212*44mm Weight:900g PBT-1000 Bodypack Transmitter ? LCD screen with light-green backlight indicates frequency, battery life, RF, gain level, mute and lock status ? 3 optional audio gain adjustments from -9dB up to 6dB ? 3 optional transmit power adjustments ? Double input circuit design for microphone and guitar ? Infrared data synchronization Gain Adjustment Range:-10/0/10db Input Impedance : (Mic:5K?)/(Guitar : 760K?) RF Power Output : 20mW Spurious Rejection:> 50db Pilot Tone:/ Display: LCD Power Requirments:1.5V?2(AA) Battery Life:> 8h/1300mAH Dimensions:89*65*24mm Weight:85g

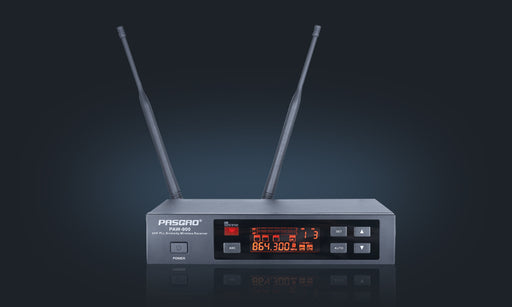

Pasgao - PAW-900/PBT-801/PH20 - Wireless Mic System With Belt Pack and 1 x Lapel Mic. PAW-900 Single Channel True Diversity Wireless Microphone System PAW-900 system has 10 frequency groups, a total of 160 channels, and each frequency band up to 16 channels without disturbing each other. The system can search vacant channels automatical ly and has Infrared data synchronization function. PAW-900 TRUE DIVERSITY RECEIVER ? LCD shows clear wor king status. ? Digital volume control system light touch button with simple setup. ? True diversity receive technology ,tone key squelch circuit to avoid interference. ? Automatic frequency selection. ? Transmitter battery volume indication. ? I nfrared data synchronization product parameters Frequency Range?580-870MHz Max. Channel Quantity?192??????? Band Width?24MHz Receiver Sensitivity?102dB (A) Distortion?<1% Dynamic Range?>95dB Audio Socket?XLR+jack Audio Output Level?XLR?8dBu max Volume?12V DC/300mA ???? Weight?212x160x44mm PAH-801 HANDHELD TRANSMITTER ? metal body and rubber end structure with good function of antidrop LCD creen shows Group ?Channel?Battery volume?power? gain?mute status. ? RF power adjustment and audio gain control adjustments. ? Infrared data synchronization. product parameters Frequency Range?580-870MHz Max. Channel Quantity?192 Band Width?15MHz Max. Frequency Deviation?65KHZ Secondary wave suppression:> 50dBc Frequency Response?50~15000Hz Distortion?<1% Input Voltage Range:>8mW Audio Output Level?>300mV Use Time Of The Battery:>8 h Power:2x1.5 V(AA) Volume?47x245m Weight?195g PAH-801 HANDHELD TRANSMITTER ? LCD shows group? channels?battery volume?power?gain?mute and lock status. ? 3 optional input gain and power adjustment. ? Double input circuit design for microphone and guitar. ? nfrared data synchronization product parameters Frequency Range?655-679mhz Max. Channel Quantity?192 Band Width?15MHz Max. Frequency Deviation?>86KHz Secondary wave suppression:> 50dBc Frequency Response?50~15000Hz Distortion?<1% Input Voltage Range:>16mW Audio Output Level?>850mV Use Time Of The Battery:>8 h Power:2x1.5 V(AA) Volume?90x70x24mm Weight?90g

Pasgao - PAW-900/PBT-801/PL20 - Wireless Mic System With Belt Pack and 1 x Lapel Mic. PAW-900 Single Channel True Diversity Wireless Microphone System PAW-900 system has 10 frequency groups, a total of 160 channels, and each frequency band up to 16 channels without disturbing each other. The system can search vacant channels automatical ly and has Infrared data synchronization function. PAW-900 TRUE DIVERSITY RECEIVER ? LCD shows clear wor king status. ? Digital volume control system light touch button with simple setup. ? True diversity receive technology ,tone key squelch circuit to avoid interference. ? Automatic frequency selection. ? Transmitter battery volume indication. ? I nfrared data synchronization product parameters Frequency Range?580-870MHz Max. Channel Quantity?192??????? Band Width?24MHz Receiver Sensitivity?102dB (A) Distortion?<1% Dynamic Range?>95dB Audio Socket?XLR+jack Audio Output Level?XLR?8dBu max Volume?12V DC/300mA ???? Weight?212x160x44mm PAH-801 HANDHELD TRANSMITTER ? metal body and rubber end structure with good function of antidrop LCD creen shows Group ?Channel?Battery volume?power? gain?mute status. ? RF power adjustment and audio gain control adjustments. ? Infrared data synchronization. product parameters Frequency Range?580-870MHz Max. Channel Quantity?192 Band Width?15MHz Max. Frequency Deviation?65KHZ Secondary wave suppression:> 50dBc Frequency Response?50~15000Hz Distortion?<1% Input Voltage Range:>8mW Audio Output Level?>300mV Use Time Of The Battery:>8 h Power:2x1.5 V(AA) Volume?47x245m Weight?195g PAH-801 HANDHELD TRANSMITTER ? LCD shows group? channels?battery volume?power?gain?mute and lock status. ? 3 optional input gain and power adjustment. ? Double input circuit design for microphone and guitar. ? nfrared data synchronization product parameters Frequency Range?655-679mhz Max. Channel Quantity?192 Band Width?15MHz Max. Frequency Deviation?>86KHz Secondary wave suppression:> 50dBc Frequency Response?50~15000Hz Distortion?<1% Input Voltage Range:>16mW Audio Output Level?>850mV Use Time Of The Battery:>8 h Power:2x1.5 V(AA) Volume?90x70x24mm Weight?90g

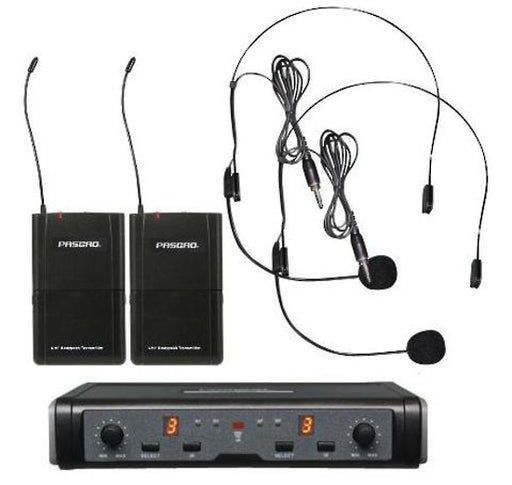

PAW-266 UHF PLL Dual Channel Receiver Built-in Antenna Digital display and light touch button with simple setups. Tone key squelch circuit to avoid interference Infrared data synchronization Frequency range is 655-679mhz - New Zealands Legal Range. BT-172 Bodypack Transmitter Low battery indicator. Three optional input gain control adjustments. Infrared data synchronization.

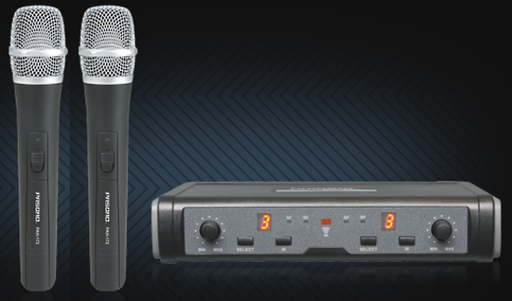

Antenna diversity dual-channel wireless microphone system. This wireless microphone system has two kinds of receivers to choose based on your application background.PAW-266 is dual-channel receiver. As for the transmitter, you can equip PAH-172 handheld transmitter, or PBT-172 bodypack transmitter. The simple buttons on receiver make it easy to operate.The pilot tone prevents it from unexpected startup noise. The transmitter battery lasts up to eight hours without any interrupting. Compared with PAW-266,PAW-267 has an additional XLR audio output in the rear panel. In this way, we can provide multiply choices for you.As many as 4 channels can be used simultaneously within the same frequency band. It has attracted customers from both overseas and domestic markets because of cost-efficient,good-performance, and multi-channel features. PAW-266R • Built-in antenna design. • Digital LED display, touch button control. • Tone key squelch circuit to avoid interference. • Infrared data synchronization. PAH-172 • Cast metal structure stands high mechanical strength • Microphone head separate design for free choice and easy replacement • Infrared data synchronization PBT-172 • Low battery indication • 3 optional input gain adjustments • Infrared data synchronization Specifications: PAW-266R: Frequency Range 500 ~ 937.5MHz Oscillation Pattern PLL Working Range 60meters Modulation FM Pilot Tone 32.768KHz Optional Frequency 16 System Compatibility 4pcs Frequency Response 70Hz~ 15KHz (±3dB) Dynamic Range > 102dB T.H.D. < 0.8% S/N Ratio > 98dB（A） RF Sensitivity < -92dBm Image Rejection > 50dB Output Connectors 1/4-inch connector×1 Audio Output Level +6dBV Output Impedance 3KΩ Display LED luminescent tube Power Requirements 12V/0.5A DC power adaptor Operating Temperature Range 0-50 ℃ Dimensions 210(L)*116(W)*42(H)mm Weight 360g PAH-172: Input Impedance 5KΩ Output Power 20mW Harmonic Rejection > 50dB Display LED Luminescent Tube Power Requirements 1.5V*2(AA) Battery Life > 8H/1300mAH Dimensions 242(L)*(45)Φmm Weight 195g PBT-172: Gain Adjustment Range -10/0/10dB Input Impedance (Mic Output Power 20mW Harmonic Rejection > 50dB Display LED Luminescent Tube Power Requirements 1.5V*2(AA) Battery Life > 8H/1300mAH Dimensions 105(H)*63(L)*24(W)mm Weightt 80g
