THE RIGHT CABLE REEL FOR YOUR SUCCESS!
Where one is working with cables, wires or pipes, cable drums are nearby. Our cable drums are the solution for many different demands, to make work in the household, handicraft, in the industry, with television and radio broadcasters or also at events substantially easy.
A high standard of competency, many years of know-how and a great deal of flair towards innovative solutions are the foundation for our intelligent cable reel systems. The market presence, the high quality standards via a quality management system as per DIN EN ISO 9001:2015 provide our customers with additional safety.
Sizing Table:
ORDER-NO. |
GT235 |
GT310 |
GT380 |
GT450 |
HT300K |
HT380 |
HT381 |
HT480 |
HT481 |
HT482 |
HT582 |
SK4600.RM |
SK4601.RM |
SK4602.RM |
SK4822 |
| Outer-Ø (mm) | 235 | 310 | 380 | 445 | 300 | 380 | 380 | 460 | 460 | 460 | 580 | 460 | 460 | 460 | 460 |
| Core-Ø (mm) | 135 | 170 | 236 | 295 | 178 | 178 | 240 | 178 | 240 | 320 | 320 | 280 | 280 | 280 | 320 |
| Wind. width (mm) | 110 | 112 | 166 | 177 | 142 | 142 | 170 | 142 | 170 | 170 | 170 | 250 | 350 | 500 | 336 |
| Wind. length/ | |||||||||||||||
| max. (m) | |||||||||||||||
| Ø 7.0 mm | 60 | 120 | 220 | 290 | 110 | 200 | 195 | 340 | 350 | 250 | 530 | 450 | 630 | 900 | 500 |
| Ø 8.0 mm | 40 | 90 | 170 | 210 | 85 | 150 | 140 | 245 | 255 | 180 | 390 | 330 | 460 | 660 | 360 |
| Ø 9.0 mm | 31 | 75 | 150 | 150 | 75 | 115 | 105 | 180 | 190 | 135 | 300 | 250 | 350 | 500 | 270 |
| Ø 11.0 mm | 23 | 45 | 100 | 110 | 40 | 80 | 75 | 155 | 155 | 100 | 220 | 180 | 250 | 350 | 190 |
| Ø 12.0 mm | 20 | 35 | 74 | 95 | 36 | 70 | 65 | 120 | 120 | 85 | 180 | 150 | 210 | 310 | 170 |
| Ø 13.0 mm | 15 | 30 | 65 | 70 | 33 | 60 | 60 | 100 | 110 | 75 | 160 | 140 | 190 | 260 | 140 |
| Ø 14.0 mm | 11 | 25 | 58 | 60 | 25 | 50 | 50 | 85 | 85 | 60 | 140 | 110 | 160 | 220 | 125 |
| Ø 15.0 mm | - | 21 | 42 | 63 | - | 40 | 40 | 70 | 70 | 50 | 100 | 100 | 140 | 190 | 100 |
| Ø 17.0 mm | - | 18 | 34 | 46 | - | - | 33 | - | 50 | 40 | 80 | 75 | 105 | 145 | 85 |
| Ø 20.0 mm | - | - | 23 | 27 | - | - | 25 | - | 40 | 33 | 60 | 45 | 75 | 105 | 55 |
| Ø 23.0 mm | - | - | - | 25 | - | - | 15 | - | 33 | 25 | 50 | 40 | 60 | 85 | 50 |
| Ø 25.0 mm | - | - | - | 24 | - | - | - | - | - | 20 | 40 | 33 | 50 | 70 | 40 |
| Ø 27.0 mm | - | - | - | - | - | - | - | - | - | 15 | 33 | 30 | 40 | 60 | 30 |
| Ø 30.0 mm | - | - | - | - | - | - | - | - | - | 10 | 25 | 20 | 30 | 50 | 20 |
-

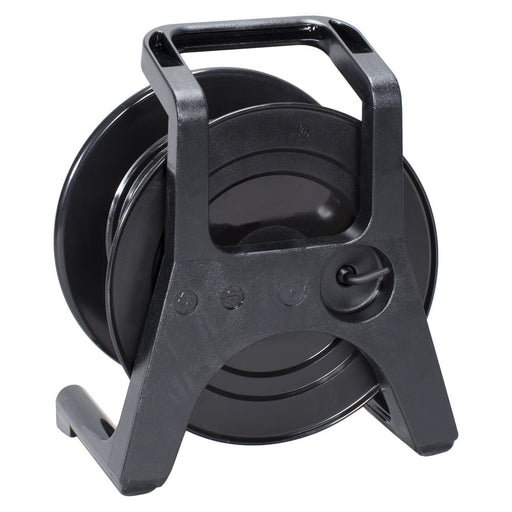

Schill - GT235
Schill$205.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$205.99 -
Currently Out Of Stock

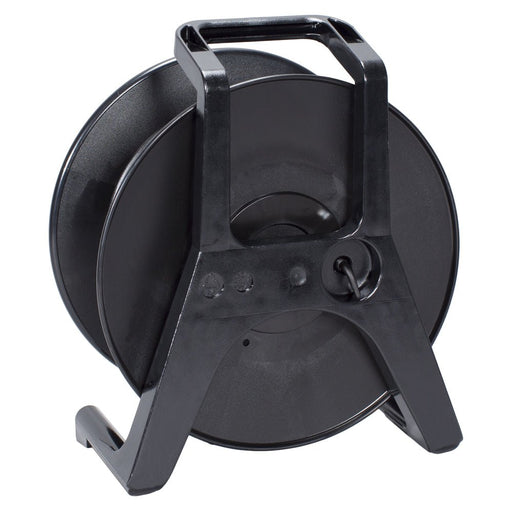

Schill - GT310
Schill$309.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$309.99Currently Out Of Stock -
Schill - GT310.RM
Schill$349.99Roll over Beethoven...or anyone else for that matter. These are the official cable reels for musicians, sound-men, and broadcasting technicians. Th...
View full details$349.99 -
Currently Out Of Stock
Schill - GT310.S0
Schill$338.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$338.99Currently Out Of Stock -
Currently Out Of Stock

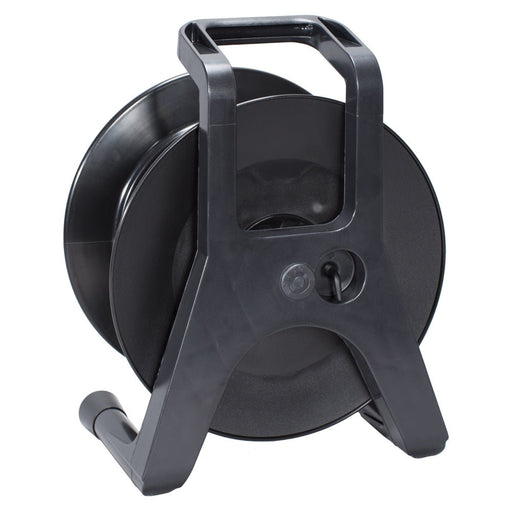

Schill - GT380
Schill$560.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$560.99Currently Out Of Stock -
Schill - GT380.RM
Schill$738.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$738.99 -
Currently Out Of Stock
Schill - GT380.S0
Schill$695.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. Th...
View full details$695.99Currently Out Of Stock -
Schill - GT450
Schill$822.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. Th...
View full details$822.99 -
Schill - HT480.RM-SW
Schill$1,015.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. T...
View full details$1,015.99 -

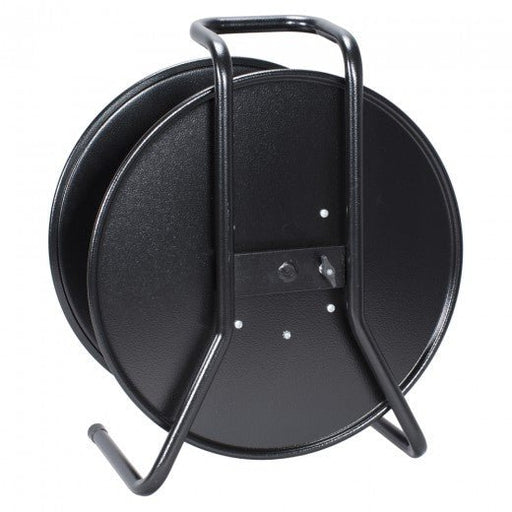

Schill - HT485-SW
Schill$953.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, sound-men, and broadcasting technic...
View full details$953.99 -
Currently Out Of Stock

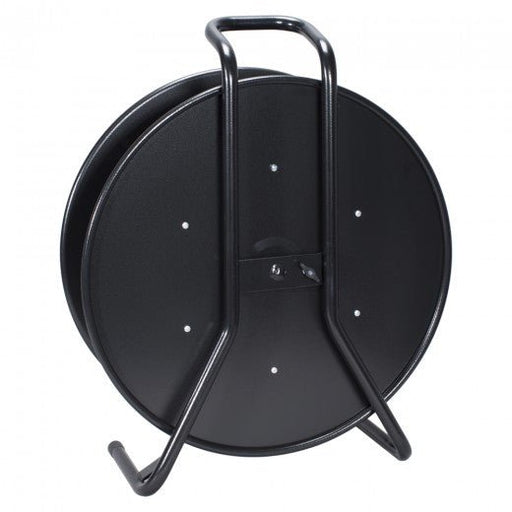

Schill - HT582-SW
Schill$1,830.99Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technici...
View full details$1,830.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.310.MFK
Schill$245.99SCHILL Cover with lockable door for GT310-, HT-model and SK 302Technical Data:- Type: Cover with lockable door- Affiliation: GT310-, HT-model and S...
View full details$245.99Currently Out Of Stock -
Currently Out Of Stock

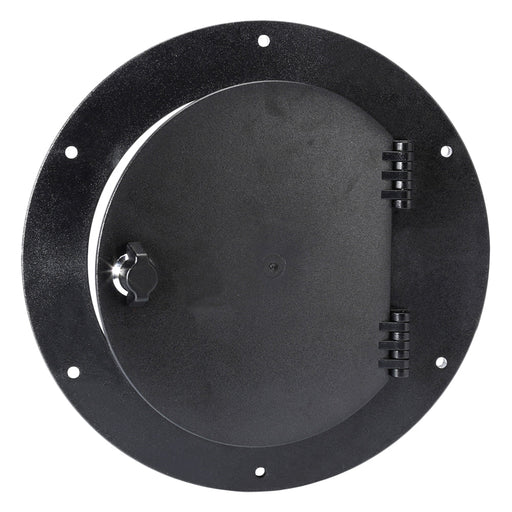

Schill - KOMB.380.MFK
Schill$279.99SCHILL Cover with lockable door for GT380 and SK 380Technical Data:- Type: Cover with lockable door- Affiliation: GT380 and SK 380 Specifications:...
View full details$279.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.380.RM
Schill$92.99SCHILL Winding extension for GT380Technical Data:- Type: Winding extension Specifications: Article number KOMB.380.RM EAN 4013046060...
View full details$92.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.380.SO
Schill$103.99SCHILL Blank cover, plastic for GT380Technical Data:- Type: Blank cover, plastic Specifications: EAN 4013046050027 Brand SCHILL ...
View full details$103.99Currently Out Of Stock -
Currently Out Of Stock

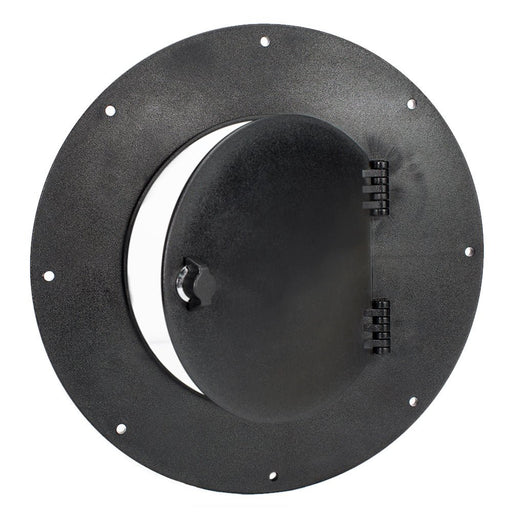

Schill - KOMB.450.MFK
Schill$291.99SCHILL Cover with lockable door for GT450 and SK450Technical Data:- Type: Cover with lockable door- Affiliation: GT450 and SK450 Specifications: ...
View full details$291.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.450.RM
Schill$47.99SCHILL Winding attachment, for cable splice for GT450Technical Data:- Type: Winding attachment, for cable splice Specifications: EAN 40130...
View full details$47.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.450.SO
Schill$103.99SCHILL Blank cover, plastic for GT450, SD050 and SD060Technical Data:- Type: Blank cover, plastic- Affiliation: GT450, SD050 and SD060 Specificati...
View full details$103.99Currently Out Of Stock -
Schill - KOMB.RM - Winding Attachment For GT310
Schill$48.99SCHILL Winding attachment, for cable splice for GT310, HT and SK-ModelTechnical Data:- Type: Winding attachment, for cable splice- Affiliation: GT3...
View full details$48.99 -
Currently Out Of Stock
Schill - KOMB.RM-ALU
Schill$178.99Sommer cable Winding attachment, metal for GT310, HT and SK-ModelleTechnical Data:- Type: Winding attachment, metal- Affiliation: GT310, HT and SK-...
View full details$178.99Currently Out Of Stock -
Currently Out Of Stock
Schill - KOMB.SO
Schill$40.99SCHILL Blank cover, plastic for GT310, HT and SK-ModelTechnical Data:- Type: Blank cover, plastic- Affiliation: GT310, HT and SK-Model Specificati...
View full details$40.99Currently Out Of Stock -
Currently Out Of Stock
Schill - SK450
Schill$1,747.99Roll over Beethoven...or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The...
View full details$1,747.99Currently Out Of Stock
