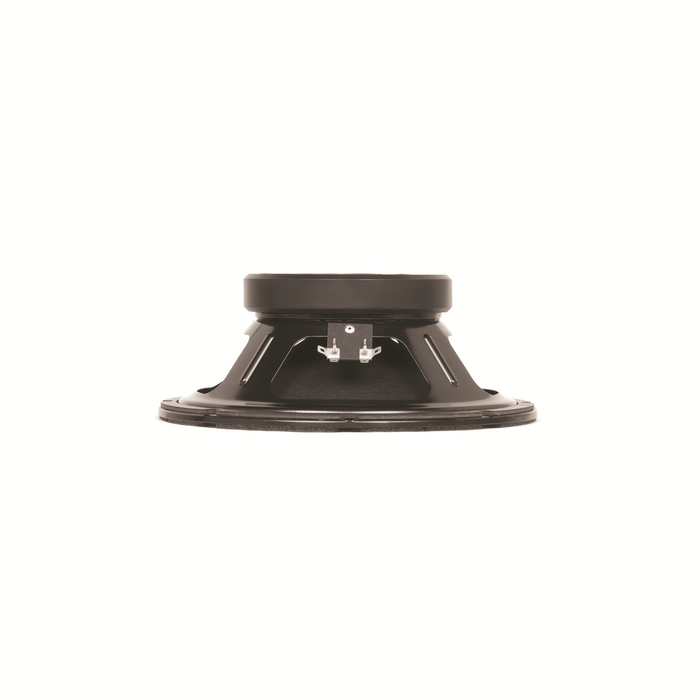

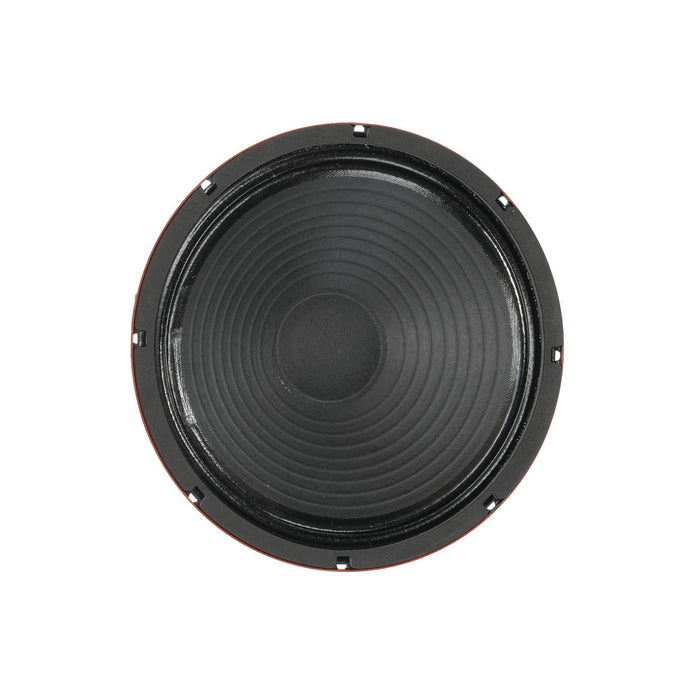

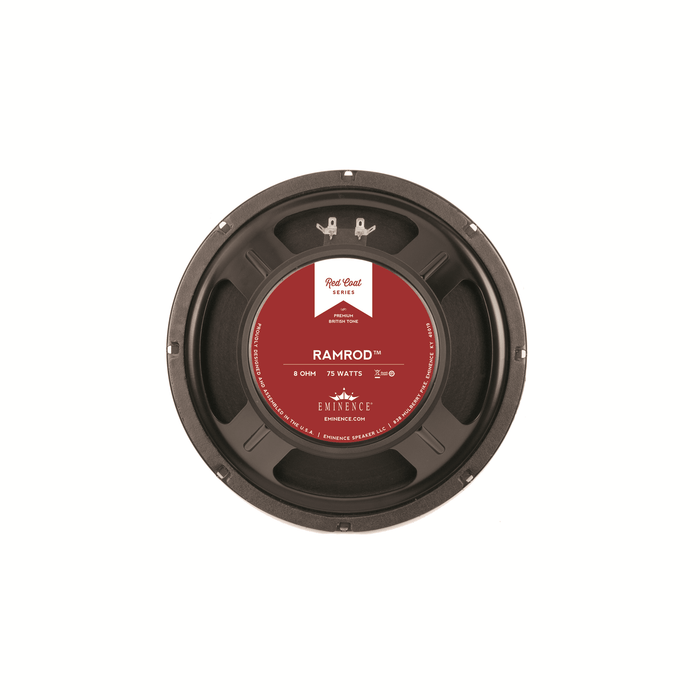

The Eminence Ramrod guitar speaker takes your best licks and drives them home. Very loud and gutsy, with meaty tone. The highs really sing with nice, clear overtones.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8?? |
| Power Rating* | |
| Program Power | N/A |
| Watts | 75 W |
| Resonance | 101 Hz |

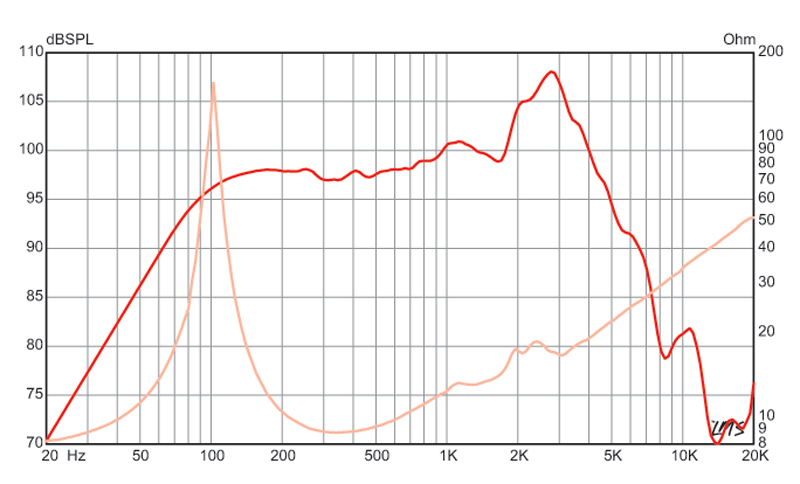

| Usable Frequency Range | 80 Hz - 4 kHz |
| Sensitivity* | 100.2 dB |
| Magnet Weight | 30 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 1.5", 38 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 101 Hz |
| DC Resistance (Re) | 7.3?? |
| Coil Inductance (Le) | 0.39m H |
| Mechanical Q (Qms) | 10.8 |
| Electromagnetic Q (Qes) | 0.68 |
| Total Q (Qts) | 0.64 |
| Compliance Equivalent Volume (Vas) | 24.6 liters / 0.87 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 17.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
| BL Product (BL) | 11.5 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 19 grams |
| Efficiency Bandwidth Product (EBP) | 149 |
| Maximum Linear Excursion (Xmax) | 0.48 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 4.3", 109.2 mm |
| Net Weight | 6.4 lbs, 2.9 kg |
| Shipping Weight | 8.3 lbs, 3.76 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
