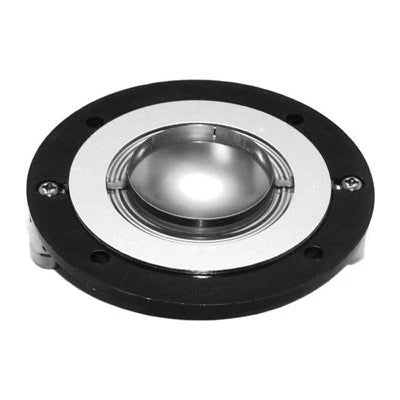

Replacement diaphragm for ASD1001 and ASD1001B

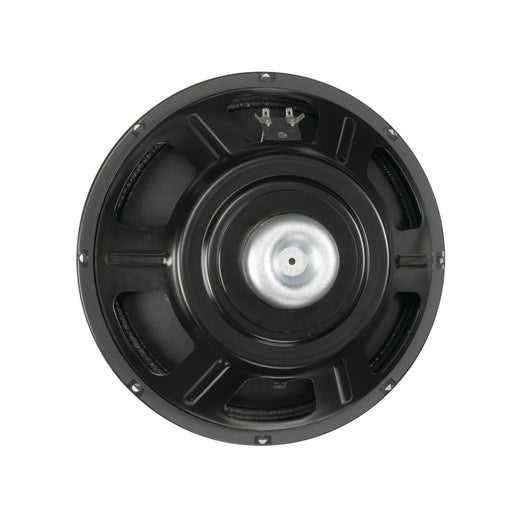

Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X12 enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 300 W Watts 150 W Resonance 48 Hz Usable Frequency Range 49 Hz - 4.5 kHz Sensitivity* 99 dB Magnet Weight 4 oz. Gap Height 0.28", 7.1 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 48 Hz DC Resistance (Re) 5.1 Ω Coil Inductance (Le) 0.43m H Mechanical Q (Qms) 5.5 Electromagnetic Q (Qes) 0.53 Total Q (Qts) 0.48 Compliance Equivalent Volume (Vas) 90.6 liters / 3.2 cu.ft. Peak Diaphragm Displacement Volume (Vd) 270.1 cc Mechanical Compliance of Suspension (Cms) 0.24 mm/N BL Product (BL) 11.7 T-M Diaphragm Mass Inc. Airload (MMs) 46 grams Efficiency Bandwidth Product (EBP) 91 Maximum Linear Excursion (Xmax) 5.2 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 9.8 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.059 cu.ft. / 1.67 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.1", 129.5 mm Net Weight 4.1 lbs, 1.86 kg Shipping Weight 5.8 lbs, 2.63 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition felt dust cap

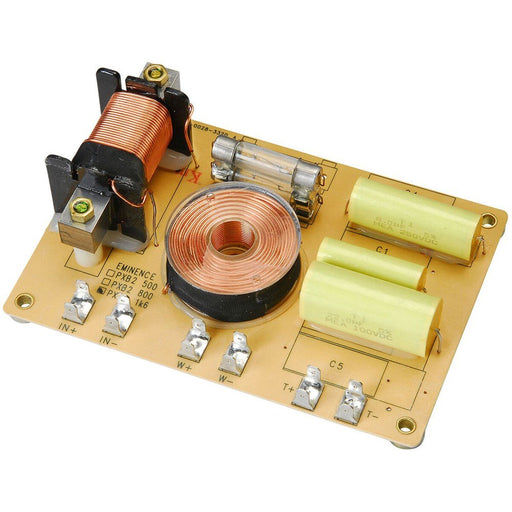

Eminence PXB crossovers feature advanced circuit design to both preserve the crossover and your HF drivers. Specifications: Crossover type Two-way, board only Crossover frequency 1,600 Hz, 18 dB/octave HP, 12 dB/octave LP Power handling 400 watts RMS

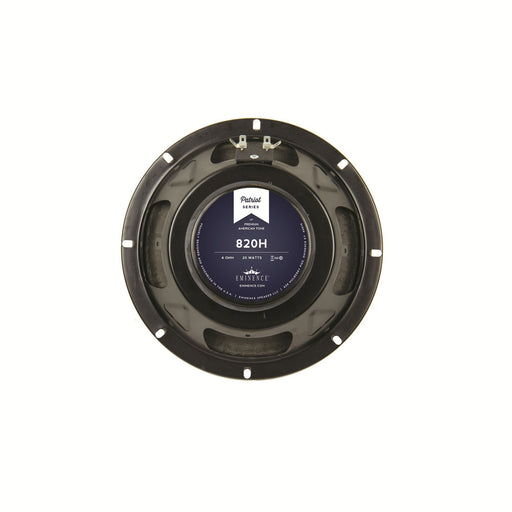

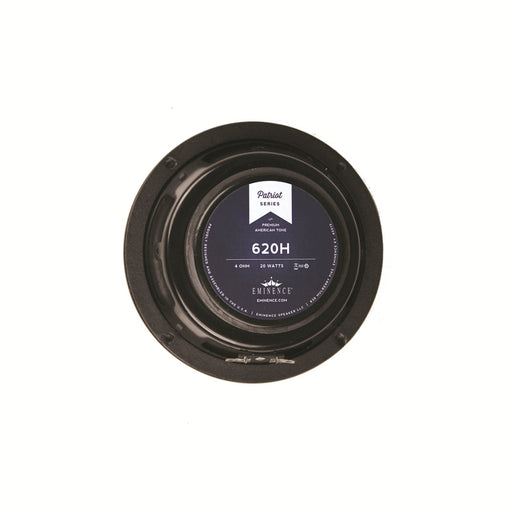

The little brother to the 820H, the 620H is a four ohm hemp cone speaker with warm, full, and clean tone that will make a small, thin amp sound bigger and fatter. Cleaner, warmer, fatter, and better definition than any stock 6.5" speaker. SPECIFICATION Nominal Basket Diameter 6", 165 mm Nominal Impedance* 4 Ω Power Rating* Program Power 40 W Watts 20 W Resonance 114 Hz Usable Frequency Range 100 Hz - 5.3 kHz Sensitivity* 94.6 dB Magnet Weight 15 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1", 25 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 114 Hz DC Resistance (Re) 3.94 Ω Coil Inductance (Le) 0.25m H Mechanical Q (Qms) 5.5 Electromagnetic Q (Qes) 0.54 Total Q (Qts) 0.49 Compliance Equivalent Volume (Vas) 8.67 liters / 0.31 cu.ft. Peak Diaphragm Displacement Volume (Vd) 5.3 cc Mechanical Compliance of Suspension (Cms) 0.32 mm/N BL Product (BL) 5.62 T-M Diaphragm Mass Inc. Airload (MMs) 6 grams Efficiency Bandwidth Product (EBP) 210 Maximum Linear Excursion (Xmax) 0.4 mm Surface Area of Cone (Sd) 139.7 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.011 cu.ft. / 0.3 liters Overall Diameter 6.59", 167.4 mm Baffle Hole Diameter 5.65", 143.5 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 6.06", 153.9mm Depth 2.8", 71.1 mm Net Weight 2.9 lbs, 1.32 kg Shipping Weight 3.6 lbs, 1.63 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Full molded paper cone Dust Cap Composition Paper dust cap

4 ohm hemp cone speaker with rich, warm, full bodied tone with fat, punchy lows, smooth, but defined highs, and a nice break up. Prominent mids, but with a warm, smooth texture. SPECIFICATION Nominal Basket Diameter 8", 203 mm Nominal Impedance* 4 Ω Power Rating* Program Power 40 W Watts 20 W Resonance 144 Hz Usable Frequency Range 80 Hz - 4.6 kHz Sensitivity* 96.1 dB Magnet Weight 15 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1", 25 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 144 Hz DC Resistance (Re) 3.64 Ω Coil Inductance (Le) 0.33m H Mechanical Q (Qms) 18.78 Electromagnetic Q (Qes) 0.92 Total Q (Qts) 0.88 Compliance Equivalent Volume (Vas) 9.62 liters / 0.34 cu.ft. Peak Diaphragm Displacement Volume (Vd) 36.7 cc Mechanical Compliance of Suspension (Cms) 0.13 mm/N BL Product (BL) 5.74 T-M Diaphragm Mass Inc. Airload (MMs) 9 grams Efficiency Bandwidth Product (EBP) 156 Maximum Linear Excursion (Xmax) 1.59 mm Surface Area of Cone (Sd) 230.9 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.018 cu.ft. / 0.51 liters Overall Diameter 8.24", 209.3 mm Baffle Hole Diameter 7.13", 181.1 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 7.75", 196.9mm Depth 3.06", 77.7 mm Net Weight 3.1 lbs, 1.41 kg Shipping Weight 3.9 lbs, 1.77 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Full paper cone Dust Cap Composition Zurette dust cap

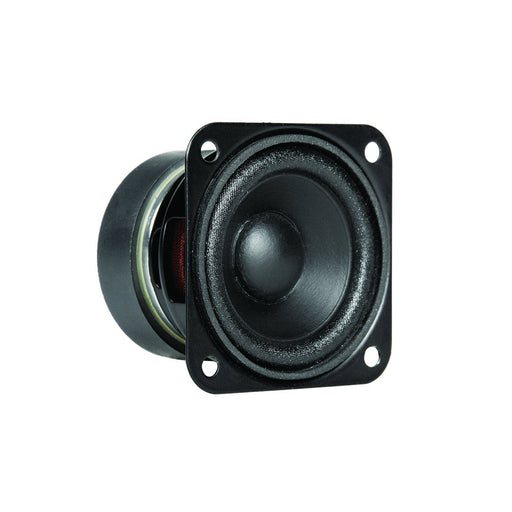

New to the American Standard Series is the Alpha 2 full range driver. Ideal for tight fitting column and line array applications, the Alpha 2 features a 0.64" copper voice coil and 2.7 oz. ferrite magnet. With under spider venting and a flux source cap, this 8 ohm driver lets the heat out while containing the magnetic flux, which is critical for multi-unit designs packed tightly together. Rated at 30 watts program power, the Alpha 2 has a wide usable frequency range of 200 Hz - 20 kHz. SPECIFICATION Nominal Basket Diameter 2", 51 mm Nominal Impedance* 8 Ω Power Rating* Program Power 30 W Watts 20 W Resonance 186 Hz Usable Frequency Range 200 Hz - 20 kHz Sensitivity* 83.8 dB Magnet Weight 3 oz. Gap Height 0.12", 3 mm Voice Coil Diameter 0.64", 16 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 186 Hz DC Resistance (Re) 6.4 Ω Coil Inductance (Le) 0.13m H Mechanical Q (Qms) 3.06 Electromagnetic Q (Qes) 0.94 Total Q (Qts) 0.72 Compliance Equivalent Volume (Vas) 0.18 liters / 0.01 cu.ft. Peak Diaphragm Displacement Volume (Vd) 2.1 cc Mechanical Compliance of Suspension (Cms) 0.84 mm/N BL Product (BL) 2.64 T-M Diaphragm Mass Inc. Airload (MMs) 1 grams Efficiency Bandwidth Product (EBP) 198 Maximum Linear Excursion (Xmax) 1.7 mm Surface Area of Cone (Sd) 12.4 cm2 Maximum Mechanical Limit (Xlim) 2.2 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented N/a Driver Volume Displaced 0.071 cu.ft. / 2 liters Overall Diameter 2.13", 54.1 mm Baffle Hole Diameter 2", 50.8 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.15", 3.8mm Mounting Holes B.C.D. 2.36", 59.9mm Depth 0", 0 mm Net Weight 0.4 lbs, 0.18 kg Shipping Weight 2 lbs, 0.91 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Core Details Solid / Flux source cap Basket Materials Pressed steel basket Cone Composition Cone Edge Composition Paper/Poly Sandwich Cone Dust Cap Composition Poly dust cap

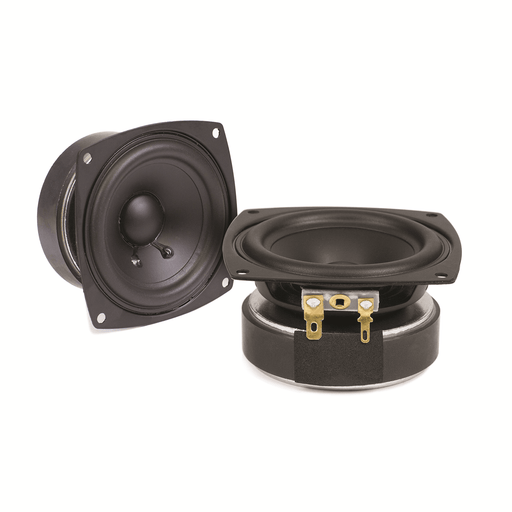

The Eminence Alpha 3-32 is a truly versatile compact full-range driver perfectly suited for tight fitting pro audio line array and column array applications. With a program power rating of 70 watts, this 3" driver utilizes an 8.3 oz ferrite magnet in conjunction with an internal neodymium bucking magnet for increased sensitivity and extends the response out to 20kHz. The highly pressed cone sandwiches paper with a layer of water-resistant polypropylene for increased stiffness and lower distortion. SPECIFICATION Nominal Basket Diameter 3", 0 mm Nominal Impedance* 8 or 32 Ω Power Rating* Program Power 70 W Watts 35 W Resonance 117 Hz Usable Frequency Range 150 Hz - 20 kHz Sensitivity* 88 dB Magnet Weight 8 oz. Gap Height 0.08", 2 mm Voice Coil Diameter 0.787", 20 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 117 Hz DC Resistance (Re) 5.12 or 22.43 Ω Coil Inductance (Le) 0.23m H Mechanical Q (Qms) 5.87 Electromagnetic Q (Qes) 0.85 Total Q (Qts) 0.74 Compliance Equivalent Volume (Vas) 0.98 liters / 0.03 cu.ft. Peak Diaphragm Displacement Volume (Vd) 7.4 cc Mechanical Compliance of Suspension (Cms) 0.86 mm/N BL Product (BL) 6.46 T-M Diaphragm Mass Inc. Airload (MMs) 2 grams Efficiency Bandwidth Product (EBP) 138 Maximum Linear Excursion (Xmax) 2.6 mm Surface Area of Cone (Sd) 28.6 cm2 Maximum Mechanical Limit (Xlim) 4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0 cu.ft. / 0.01 liters Overall Diameter 3.98", 101.1 mm Baffle Hole Diameter 3.04", 77.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.16", 4.1mm Mounting Holes B.C.D. 3.63", 92.2mm Depth 1.76", 44.7 mm Net Weight 0.9 lbs, 0.41 kg Shipping Weight 1.1 lbs, 0.5 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented / Flux source cap Basket Materials Pressed steel basket Cone Composition Paper/Poly sandwich cone Cone Edge Composition Poly cone edge Dust Cap Composition Poly dust cap

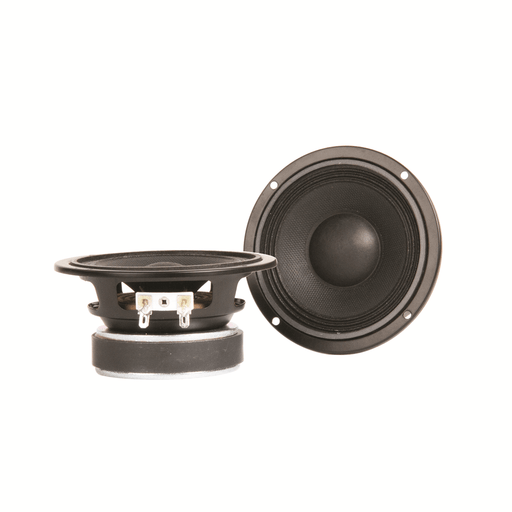

Perfectly suited for line arrays, car doors and side panels, and other tight fitting applications, the Alpha 4 is a very versatile 110 watt driver that can be used full range, as a midbass, or as a midrange. They can be stacked by themselves in a column for vocal applications, or in conjunction with a tweeter and a sub for compact, high performance PA or MI applications. SPECIFICATION Nominal Basket Diameter 4", 102 mm Nominal Impedance* 4 or 8 Ω Power Rating* Program Power 110 W Watts 55 W Resonance 120 Hz Usable Frequency Range 105 Hz - 10 kHz Sensitivity* 88 dB Magnet Weight 10 oz. Gap Height 0.144", 3.7 mm Voice Coil Diameter 1", 25 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 120 Hz DC Resistance (Re) 3.42 or 6.73 Ω Coil Inductance (Le) 0.18m H Mechanical Q (Qms) 6.41 Electromagnetic Q (Qes) 0.7 Total Q (Qts) 0.63 Compliance Equivalent Volume (Vas) 1.76 liters / 0.06 cu.ft. Peak Diaphragm Displacement Volume (Vd) 15 cc Mechanical Compliance of Suspension (Cms) 0.38 mm/N BL Product (BL) 4.12 T-M Diaphragm Mass Inc. Airload (MMs) 5 grams Efficiency Bandwidth Product (EBP) 172 Maximum Linear Excursion (Xmax) 2.6 mm Surface Area of Cone (Sd) 57.7 cm2 Maximum Mechanical Limit (Xlim) 4.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 1.84-4.53 liters / 0.07-0.16 cu.ft. Vented 3.96-7.08 liters / 0.14-0.25 cu.ft. Driver Volume Displaced 0.012 cu.ft. / 0.33 liters Overall Diameter 4.57", 116.1 mm Baffle Hole Diameter 3.77", 95.8 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.15", 3.8mm Mounting Holes B.C.D. 4.25", 108mm Depth 2.31", 58.7 mm Net Weight 1.5 lbs, 0.68 kg Shipping Weight 3.3 lbs, 1.5 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Non-Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

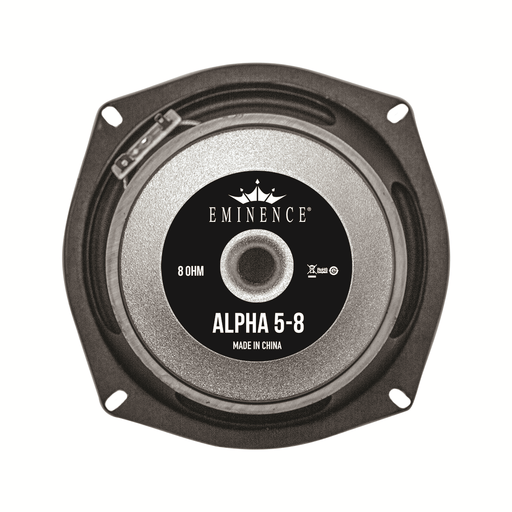

The Alpha 5 offers unmistakable performance with an emphasis on value. Rated at 250 watts program power, this 5" midbass features a water-resistant cone and dust cap, making it an excellent choice for line array or column array applications. SPECIFICATION Nominal Basket Diameter 5", 127 mm Nominal Impedance* 8 Ω Power Rating* Program Power 250 W Watts 125 W Resonance 87 Hz Usable Frequency Range 87 Hz - 3.5 kHz Sensitivity* 89.4 dB Magnet Weight 20 oz. Gap Height 0.23", 5.8 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 87 Hz DC Resistance (Re) 5 Ω Coil Inductance (Le) 0.29m H Mechanical Q (Qms) 11.81 Electromagnetic Q (Qes) 0.56 Total Q (Qts) 0.54 Compliance Equivalent Volume (Vas) 6.14 liters / 0.22 cu.ft. Peak Diaphragm Displacement Volume (Vd) 60.8 cc Mechanical Compliance of Suspension (Cms) 0.42 mm/N BL Product (BL) 6.22 T-M Diaphragm Mass Inc. Airload (MMs) 8 grams Efficiency Bandwidth Product (EBP) 155 Maximum Linear Excursion (Xmax) 5.92 mm Surface Area of Cone (Sd) 102.6 cm2 Maximum Mechanical Limit (Xlim) 6.4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 1.091 cu.ft. / 30.9 liters Overall Diameter 5.87", 149.1 mm Baffle Hole Diameter 4.8", 121.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.2", 5mm Mounting Holes B.C.D. 5.39", 136.9mm Depth 2.91", 73.9 mm Net Weight 3.1 lbs, 1.41 kg Shipping Weight 3.5 lbs, 1.59 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Water resistant pulp Cone Edge Composition Cloth cone edge Dust Cap Composition Water resistant paper

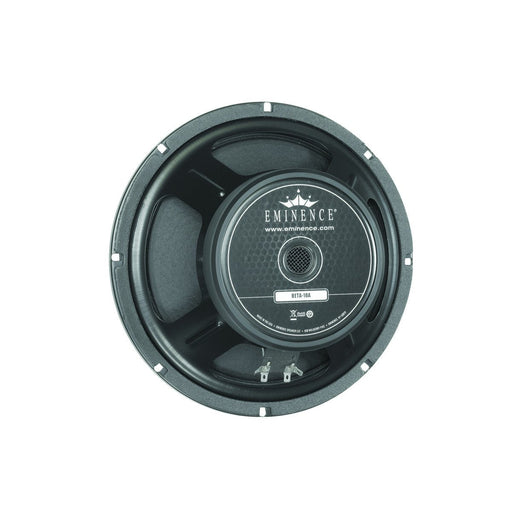

Recommended for professional audio mid-bass applications in a small sealed cabinet. SPECIFICATION Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating* Program Power 300 W Watts 150 W Resonance 50 Hz Usable Frequency Range 57 Hz - 4.5 kHz Sensitivity* 95.6 dB Magnet Weight 20 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 50 Hz DC Resistance (Re) 5.31 Ω Coil Inductance (Le) 0.66m H Mechanical Q (Qms) 5.21 Electromagnetic Q (Qes) 0.66 Total Q (Qts) 0.59 Compliance Equivalent Volume (Vas) 82.2 liters / 2.9 cu.ft. Peak Diaphragm Displacement Volume (Vd) 114 cc Mechanical Compliance of Suspension (Cms) 0.46 mm/N BL Product (BL) 7.5 T-M Diaphragm Mass Inc. Airload (MMs) 22 grams Efficiency Bandwidth Product (EBP) 76 Maximum Linear Excursion (Xmax) 3.2 mm Surface Area of Cone (Sd) 355.4 cm2 Maximum Mechanical Limit (Xlim) 9.1 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 8.5-11.3 liters / 0.3-0.4 cu.ft. Vented 28.3-53.8 liters / 1-1.9 cu.ft. Driver Volume Displaced 0.034 cu.ft. / 0.95 liters Overall Diameter 10.11", 256.8 mm Baffle Hole Diameter 9.13", 231.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 9.6", 243.8mm Depth 3.9", 99.1 mm Net Weight 4.5 lbs, 2.04 kg Shipping Weight 5.6 lbs, 2.54 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

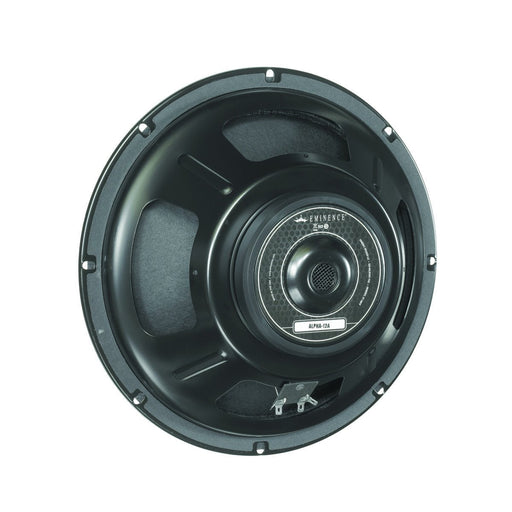

Recommended for professional audio mid-bass applications in a small sealed or medium vented enclosure. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 300 W Watts 150 W Resonance 49 Hz Usable Frequency Range 51 Hz - 4.3 kHz Sensitivity* 95.6 dB Magnet Weight 20 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 49 Hz DC Resistance (Re) 6.3 Ω Coil Inductance (Le) 0.79m H Mechanical Q (Qms) 6.53 Electromagnetic Q (Qes) 0.88 Total Q (Qts) 0.77 Compliance Equivalent Volume (Vas) 121.5 liters / 4.29 cu.ft. Peak Diaphragm Displacement Volume (Vd) 125 cc Mechanical Compliance of Suspension (Cms) 0.32 mm/N BL Product (BL) 8.5 T-M Diaphragm Mass Inc. Airload (MMs) 33 grams Efficiency Bandwidth Product (EBP) 56 Maximum Linear Excursion (Xmax) 2.4 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 6.6 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 17-22.7 liters / 0.6-0.8 cu.ft. Vented 56.6-113.3 liters / 2-4 cu.ft. Driver Volume Displaced 0.063 cu.ft. / 1.78 liters Overall Diameter 12.26", 311.4 mm Baffle Hole Diameter 11.06", 280.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.71", 297.4mm Depth 4.73", 120.1 mm Net Weight 5.3 lbs, 2.4 kg Shipping Weight 7.4 lbs, 3.36 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition felt dust cap

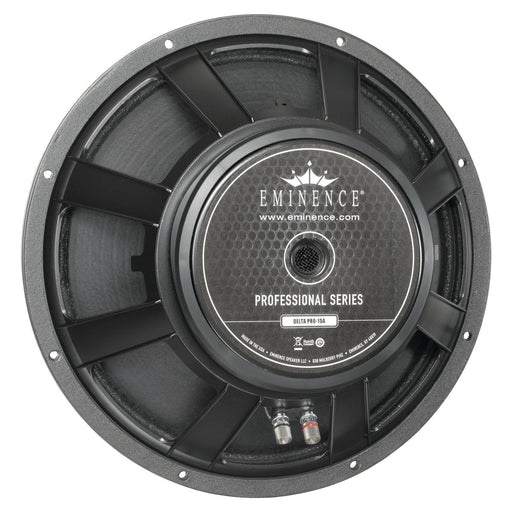

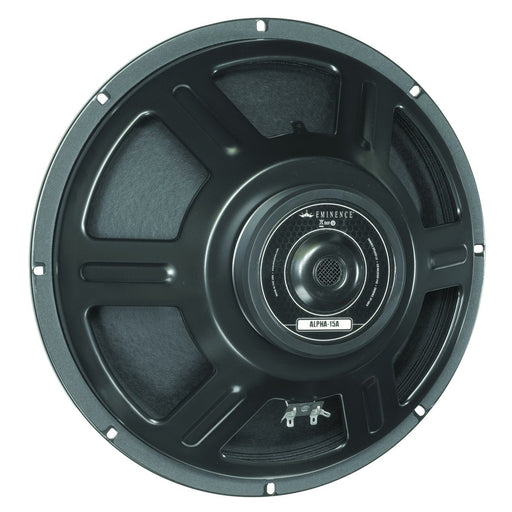

Recommended for professional audio and bass guitar applications as a woofer in a vented or sealed enclosure. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 400 W Watts 200 W Resonance 41 Hz Usable Frequency Range 46 Hz - 3.5 kHz Sensitivity* 97 dB Magnet Weight 25 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 41 Hz DC Resistance (Re) 5.88 Ω Coil Inductance (Le) 0.84m H Mechanical Q (Qms) 7.23 Electromagnetic Q (Qes) 1.53 Total Q (Qts) 1.26 Compliance Equivalent Volume (Vas) 260 liters / 9.18 cu.ft. Peak Diaphragm Displacement Volume (Vd) 325 cc Mechanical Compliance of Suspension (Cms) 0.25 mm/N BL Product (BL) 7.7 T-M Diaphragm Mass Inc. Airload (MMs) 59 grams Efficiency Bandwidth Product (EBP) 27 Maximum Linear Excursion (Xmax) 3.8 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 8.4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 71-85 liters / 2.5-3 cu.ft. Vented 106-177 liters / 3.75-6.25 cu.ft. Driver Volume Displaced 0.113 cu.ft. / 3.21 liters Overall Diameter 15.15", 384.8 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 5.83", 148.1 mm Net Weight 6.7 lbs, 3.04 kg Shipping Weight 8.8 lbs, 3.99 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

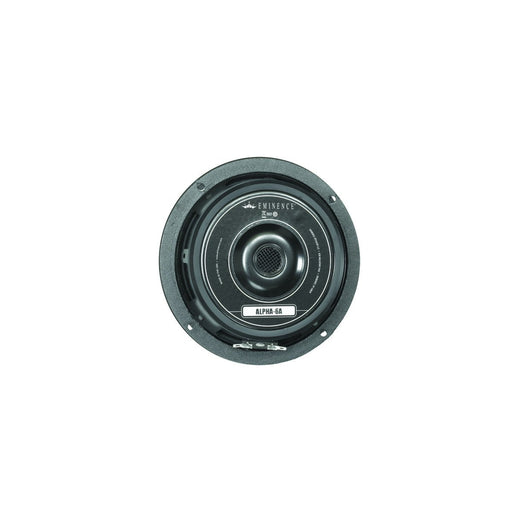

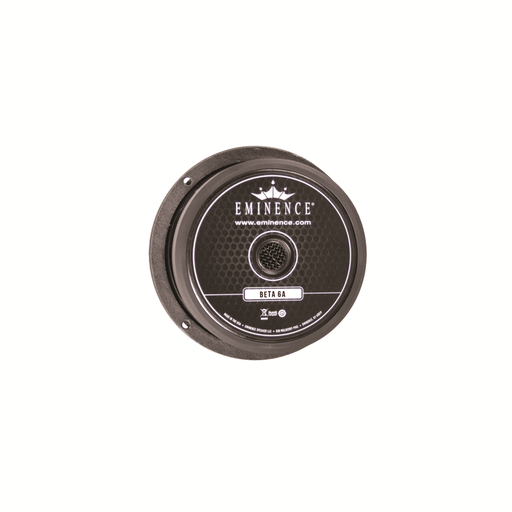

Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure. SPECIFICATION Nominal Basket Diameter 6", 165 mm Nominal Impedance* 4 or 8 Ω Power Rating* Program Power 200 W Watts 100 W Resonance 103 Hz Usable Frequency Range 95 Hz - 6 kHz Sensitivity* 93.6 dB Magnet Weight 20 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 103 Hz DC Resistance (Re) 3.2 or 7.2 Ω Coil Inductance (Le) 0.19m H Mechanical Q (Qms) 5.68 Electromagnetic Q (Qes) 0.6 Total Q (Qts) 0.54 Compliance Equivalent Volume (Vas) 5.8 liters / 0.2 cu.ft. Peak Diaphragm Displacement Volume (Vd) 44 cc Mechanical Compliance of Suspension (Cms) 0.26 mm/N BL Product (BL) 8 T-M Diaphragm Mass Inc. Airload (MMs) 7 grams Efficiency Bandwidth Product (EBP) 159 Maximum Linear Excursion (Xmax) 3.5 mm Surface Area of Cone (Sd) 126.7 cm2 Maximum Mechanical Limit (Xlim) 4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 2.8-5.7 liters / 0.1-0.2 cu.ft. Vented 3.4-15.6 liters / 0.12-0.55 cu.ft. Driver Volume Displaced 0.014 cu.ft. / 0.41 liters Overall Diameter 6.59", 167.4 mm Baffle Hole Diameter 5.65", 143.5 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 6.06", 153.9mm Depth 2.8", 71.1 mm Net Weight 4.1 lbs, 1.86 kg Shipping Weight 4.8 lbs, 2.18 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

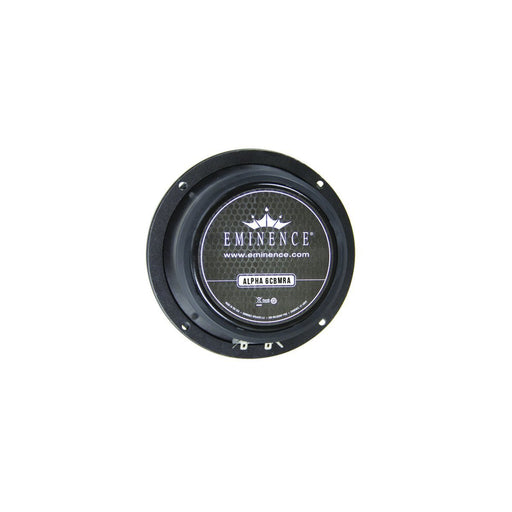

Recommended for pro audio, car audio, and bass guitar midrange applications. Sealed basket affords this speaker enclosure independence. SPECIFICATION Nominal Basket Diameter 6", 165 mm Nominal Impedance* 8 Ω Power Rating* Program Power 200 W Watts 100 W Resonance 407 Hz Usable Frequency Range 400 Hz - 5 kHz Sensitivity* 97.8 dB Magnet Weight 16 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 407 Hz DC Resistance (Re) 5.26 Ω Coil Inductance (Le) 0.38m H Mechanical Q (Qms) 6.04 Electromagnetic Q (Qes) 1.74 Total Q (Qts) 1.35 Compliance Equivalent Volume (Vas) 0.45 liters / 0.02 cu.ft. Peak Diaphragm Displacement Volume (Vd) 19 cc Mechanical Compliance of Suspension (Cms) 0.02 mm/N BL Product (BL) 7.86 T-M Diaphragm Mass Inc. Airload (MMs) 8 grams Efficiency Bandwidth Product (EBP) 234 Maximum Linear Excursion (Xmax) 1.5 mm Surface Area of Cone (Sd) 126.7 cm2 Maximum Mechanical Limit (Xlim) 3 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented - liters / - cu.ft. Driver Volume Displaced 0.014 cu.ft. / 0.4 liters Overall Diameter 6.59", 167.4 mm Baffle Hole Diameter 5.69", 144.5 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 6.06", 153.9mm Depth 2.2", 55.9 mm Net Weight 3.7 lbs, 1.68 kg Shipping Weight 4.4 lbs, 2 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure. SPECIFICATION Nominal Basket Diameter 8", 203 mm Nominal Impedance* 8 Ω Power Rating* Program Power 250 W Watts 125 W Resonance 73 Hz Usable Frequency Range 58 Hz - 5 kHz Sensitivity* 94 dB Magnet Weight 20 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 73 Hz DC Resistance (Re) 5.3 Ω Coil Inductance (Le) 0.44m H Mechanical Q (Qms) 4.6 Electromagnetic Q (Qes) 0.68 Total Q (Qts) 0.59 Compliance Equivalent Volume (Vas) 17.7 liters / 0.63 cu.ft. Peak Diaphragm Displacement Volume (Vd) 67 cc Mechanical Compliance of Suspension (Cms) 0.28 mm/N BL Product (BL) 7.8 T-M Diaphragm Mass Inc. Airload (MMs) 17 grams Efficiency Bandwidth Product (EBP) 107 Maximum Linear Excursion (Xmax) 3.2 mm Surface Area of Cone (Sd) 210 cm2 Maximum Mechanical Limit (Xlim) 7.1 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 5-7 liters / 0.18-0.25 cu.ft. Vented 16.7-25.5 liters / 0.59-0.9 cu.ft. Driver Volume Displaced 0.02 cu.ft. / 0.58 liters Overall Diameter 8.24", 209.3 mm Baffle Hole Diameter 7.13", 181.1 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 7.75", 196.9mm Depth 3.25", 82.6 mm Net Weight 4.3 lbs, 1.95 kg Shipping Weight 5.1 lbs, 2.31 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

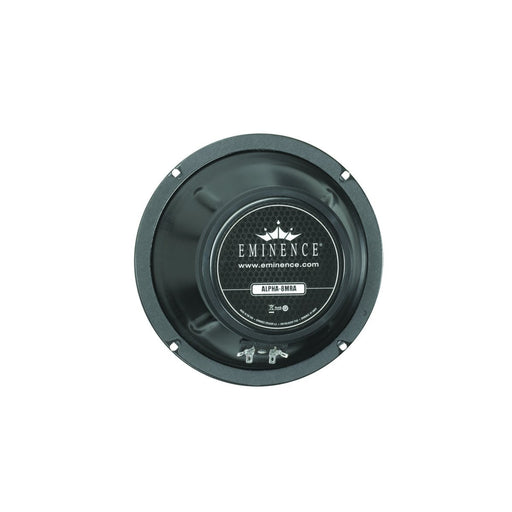

Recommended for pro audio and bass guitar applications as a midrange. Sealed basket makes this woofer independent of enclosure design. SPECIFICATION Nominal Basket Diameter 8", 203 mm Nominal Impedance* 8 Ω Power Rating* Program Power 250 W Watts 125 W Resonance 514 Hz Usable Frequency Range 400 Hz - 4.8 kHz Sensitivity* 100.9 dB Magnet Weight 20 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1.5", 38 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 514 Hz DC Resistance (Re) 7.32 Ω Coil Inductance (Le) 0.34m H Mechanical Q (Qms) 4.48 Electromagnetic Q (Qes) 2.08 Total Q (Qts) 1.42 Compliance Equivalent Volume (Vas) 0.8 liters / 0.03 cu.ft. Peak Diaphragm Displacement Volume (Vd) 0 cc Mechanical Compliance of Suspension (Cms) 0.01 mm/N BL Product (BL) 8.9 T-M Diaphragm Mass Inc. Airload (MMs) 7 grams Efficiency Bandwidth Product (EBP) 247 Maximum Linear Excursion (Xmax) 1.6 mm Surface Area of Cone (Sd) 205.9 cm2 Maximum Mechanical Limit (Xlim) 3 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented - liters / - cu.ft. Driver Volume Displaced 0.02 cu.ft. / 0.58 liters Overall Diameter 8.22", 208.8 mm Baffle Hole Diameter 7.19", 182.6 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 7.78", 197.6mm Depth 3.25", 82.6 mm Net Weight 4.4 lbs, 2 kg Shipping Weight 5.1 lbs, 2.31 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket with closed back Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Solid composition paper dust cap

APT:50 Driver with APT:150S Horn SPECIFICATION Type Constant Directivity Throat Size 1", 25.4mm Dispersion 100 x 50 Power Rating 35W (AES) Nominal impedance 8 Ω Minimum impedance 7.7 Ω @ 6 kHz Sensitivity 102.4 dB Resonance 2.7 kHz Usable Frequency Range 3500 Hz - 20 kHz Low Rec. Crossover 3.5 kHz W x H x D (in) 4.5" x 7.6" x 5.1" W x H x D (mm) 114.3 x 193 x 129.5mm Cut Out 6.7 x 3.4 , 170 x 86 mm Weight 1.9lbs, 0.86kg Material ABS

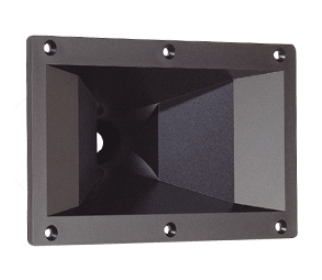

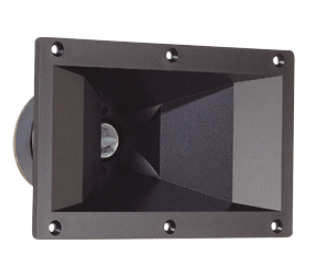

APT 150S Horn Flare SPECIFICATION Type Constant Directivity Throat Size 1", 25.4mm Attachment Method Screw-on Dispersion 100 x 50 Low Rec. Crossover 1.5 kHz WxHxD (in) 4.49" x 7.55" x 3.18" WxHxD (mm) 114mm x 191.8mm x 80.8mm Cut Out 3.4 x 6.7", 86 x 170mm Weight 0.27lbs, 0.12g Material ABS

APT:50 Driver with APT:200S Horn SPECIFICATION Type Bi-Radial Throat Size 1", 25.4mm Dispersion 90 x 90 Power Rating 35W (AES) Nominal impedance 8 Ω Minimum impedance 7.3 Ω @ 6.1 kHz Sensitivity 103.0 dB Resonance 2.6 kHz Usable Frequency Range 3500 Hz - 20 kHz Low Rec. Crossover 3.5 kHz W x H x D (in) 6" x 5.9" x 6.3" W x H x D (mm) 152.4 x 149.9 x 160mm Cut Out 4.3 x 4.3 , 109 x 112 mm Weight 2.5lbs, 1.13kg Material ABS

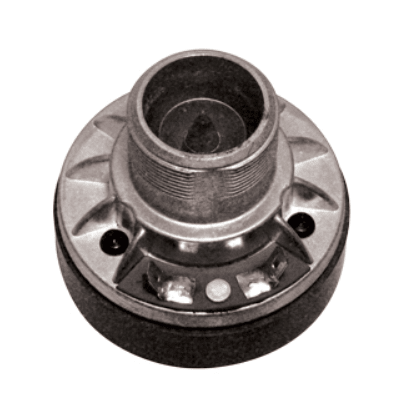

APT 50 SPECIFICATION Throat Size 1", 25.4mm Nominal Impedance* 8 Ohm Minimum Impedance 7.4 Ohm @ 6.1 kHz Power Rating** 35 W (AES) Resonance 2.1kHz Usable Frequency Range 3500Hz-20kHz Recommended Crossover 3.5 kHz / 12 dBkHz Sensitivity*** 104.7 Magnet Material Ferrite Magnet Weight 8oz, 0.23kg Voice Coil Diameter 1" / 25.4mm Voice Coil Former Kapton Diaphragm Material Phenolic DC Resistance (Re) 6.3 ohm MOUNTING INFORMATION Overall Diameter 2.75", 69.8mm Driver Volume Displaced 0.004 cu.ft., 0.12 liters Depth 2.53", 64.3mm Weight 1.7 lbs, 0.8 kg Mounting Thread Use Apt Horn or Adaptor Mounting Holes Diameter N/A Mounting Holes B.C.D. N/A

APT:50 Driver with APT:80S Horn SPECIFICATION Type Conical Throat Size 1", 25.4mm Dispersion 80 Power Rating 35W (AES) Nominal impedance 8 Ω Minimum impedance 7.3 Ω @ 6 kHz Sensitivity 102.3 dB Resonance 1.5 kHz Usable Frequency Range 3500 Hz - 20 kHz Low Rec. Crossover 3.5 kHz W x H x D (in) 3.4" x 3.4" x 3.7" W x H x D (mm) 86.4 x 86.4 x 94mm Cut Out 3.15 in., 80 mm Weight 1.8lbs, 0.82kg Material ABS

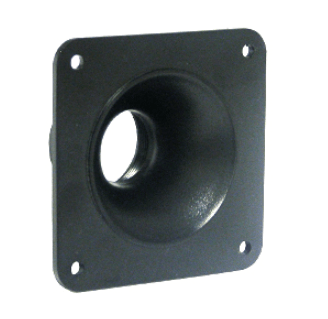

APT 80s SPECIFICATION Type Conical Throat Size 1", 25.4mm Attachment Method Screw-on Dispersion 80 degrees conical Low Rec. Crossover 3.0 kHz WxHxD (in) 3.44" x 3.44" x 1.62" WxHxD (mm) 87.4mm x 87.4mm x 41.1mm Cut Out 2.94", 74.7mm Weight 0.1lbs, 0.05g Material ABS

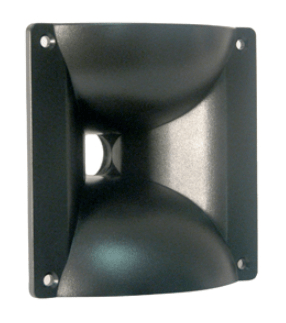

APT200s SPECIFICATION Type Radial Throat Size 1", 25.4mm Attachment Method Screw-on Dispersion 90 x 90 Low Rec. Crossover 1.3 kHz WxHxD (in) 5.92" x 5.95" x 4.32" WxHxD (mm) 150.4mm x 151.1mm x 109.7mm Cut Out 4.3 x 4.3", 108 x 114mm Weight 0.44lbs, 0.2g Material ABS

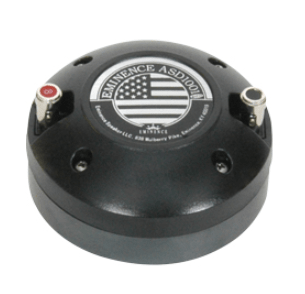

ASD 1001 SPECIFICATION Throat Size 1", 25.4mm Nominal Impedance* 8 Ω Minimum Impedance 7.7 Ω @ 3.0 kHz Power Rating** 50 W (EIA-426A) Resonance 0.59kHz Usable Frequency Range 2500Hz-20kHz Recommended Crossover 2.5 kHz / 18 dBkHz Sensitivity*** 104.4 Magnet Material Ferrite Magnet Weight 12oz, 0.34kg Voice Coil Diameter 1.3" / 33mm Voice Coil Former Aluminum Diaphragm Material Titanium DC Resistance (Re) 6.7 ohm MOUNTING INFORMATION Overall Diameter 3.5", 88.9mm Driver Volume Displaced 0.009 cu.ft., 0.26 liters Depth 2.45", 62.2mm Weight 1.7 lbs, 0.8 kg Mounting Thread 1 3/8 in. 18 ext. Mounting Holes Diameter N/A Mounting Holes B.C.D. N/A

The " B2S-A" aluminum adaptor converts bolt-on driver to accept a screw-on horn. 2x 1/4-20 or 3x M6 driver to 1 3/8" 18 UNEF horn.

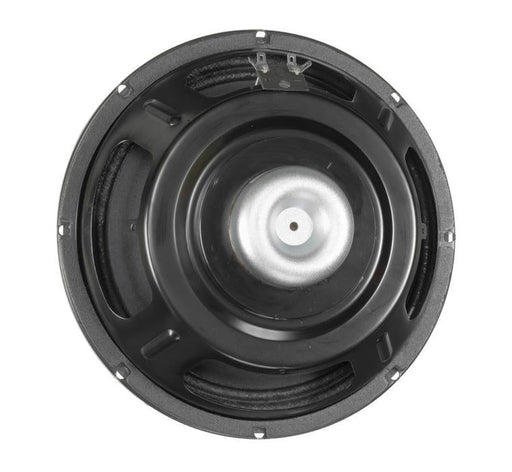

Neodymium magnet for less weight, more punch. The Eminence Basslite CA2010 10" Bass Speaker delivers the tone you want. Nice tight top end. Recommended for bass guitar. Excellent in either sealed or vented cabs. Eminence recommends the Basslite CA2010 as a direct replacement speaker in the Gallian-Krueger Goldlite 410 GLX speaker cabinet. Features Nice tight top end Excellent in either sealed or vented speaker cabinets Basslite CA2010 10" 150W Bass Speaker Specifications: Nominal Basket Diameter: 10", 254mm Nominal Impedance*: 8 ohms Power Rating**: 150W Resonance: 51Hz Usable Frequency Range: 48Hz-7kHz Sensitivity***: 93.5 Magnet Weight: 4 oz. Gap Height: 0.28", 7.2mm Voice Coil Diameter: 2", 50.8mm Thiele & Small Parameters Resonant Frequency (fs): 51Hz DC Resistance (Re): 5.46 Coil Inductance (Le): 0.55mH Mechanical Q (Qms): 17.5 Electromagnetic Q (Qes): 0.52 Total Q (Qts): 0.51 Compliance Equivalent Volume (Vas): 49 liters / 1.7 cu. ft. Peak Diaphragm Displacement Volume (Vd): 126cc Mechanical Compliance of Suspension (Cms): 0.27mm/N BL Product (BL): 11.2 T-M Diaphragm Mass inc. Airload (Mms): 37 grams Efficiency Bandwidth Product (EBP): 98 Maximum Linear Excursion (Xmax): 3.5mm Surface Area of Cone (Sd): 360.7 cm2 Maximum Mechanical Limit (Xlim): 7.0mm Recommended Enclosure Volume Vented: 17-51 liters/ 0.6-1.8 cu.ft. Overall Diameter: 10.25", 260.4mm Baffle Hole Diameter: 9.13", 231.9mm Front Sealing Gasket: fitted as standard Rear Sealing Gasket: fitted as standard Mounting Holes Diameter: 0.28", 7.0mm Mounting Holes B.C.D.: 9.73", 247.1mm Depth: 4.75", 121mm Net Weight: 3.6 lbs., 1.6 kg Shipping Weight: 4.7 lbs., 2.1 kg Materials of Construction Copper voice coil Polyimide former Neodymium magnet Non-vented core Die-cast aluminum basket Aluminum Alloy Cone Cloth cone edge Solid composition felt dust cap *Please inquire about alternative impedances. **Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment. ***The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges)

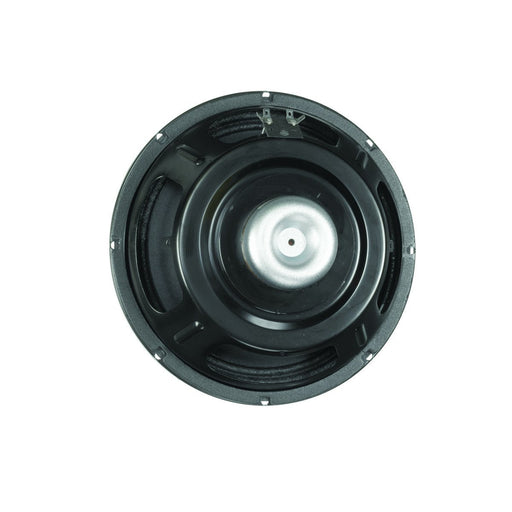

Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures. SPECIFICATION Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating* Program Power 300 W Watts 150 W Resonance 46 Hz Usable Frequency Range 54 Hz - 3 kHz Sensitivity* 96.2 dB Magnet Weight 4 oz. Gap Height 0.28", 7.1 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 46 Hz DC Resistance (Re) 5.02 Ω Coil Inductance (Le) 0.47m H Mechanical Q (Qms) 4.16 Electromagnetic Q (Qes) 0.34 Total Q (Qts) 0.31 Compliance Equivalent Volume (Vas) 63.4 liters / 2.24 cu.ft. Peak Diaphragm Displacement Volume (Vd) 140 cc Mechanical Compliance of Suspension (Cms) 0.36 mm/N BL Product (BL) 11.9 T-M Diaphragm Mass Inc. Airload (MMs) 33 grams Efficiency Bandwidth Product (EBP) 135 Maximum Linear Excursion (Xmax) 4 mm Surface Area of Cone (Sd) 350.1 cm2 Maximum Mechanical Limit (Xlim) 8 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented Acceptable Driver Volume Displaced 0.03 cu.ft. / 0.84 liters Overall Diameter 10.08", 256 mm Baffle Hole Diameter 9.18", 233.2 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 9.66", 245.4mm Depth 4.25", 108 mm Net Weight 3.5 lbs, 1.59 kg Shipping Weight 4.6 lbs, 2.09 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition felt dust cap

Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures. SPECIFICATION Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating* Program Power 500 W Watts 250 W Resonance 53 Hz Usable Frequency Range 51 Hz - 3.8 kHz Sensitivity* 97 dB Magnet Weight 34 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 53 Hz DC Resistance (Re) 5.75 Ω Coil Inductance (Le) 0.67m H Mechanical Q (Qms) 8.14 Electromagnetic Q (Qes) 0.52 Total Q (Qts) 0.49 Compliance Equivalent Volume (Vas) 60.1 liters / 2.12 cu.ft. Peak Diaphragm Displacement Volume (Vd) 103.5 cc Mechanical Compliance of Suspension (Cms) 0.36 mm/N BL Product (BL) 9.6 T-M Diaphragm Mass Inc. Airload (MMs) 25 grams Efficiency Bandwidth Product (EBP) 102 Maximum Linear Excursion (Xmax) 3 mm Surface Area of Cone (Sd) 344.9 cm2 Maximum Mechanical Limit (Xlim) 8.6 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 8.5-14.2 liters / 0.3-0.5 cu.ft. Vented 19.8-70.8 liters / 0.7-2.5 cu.ft. Driver Volume Displaced 0.04 cu.ft. / 1.13 liters Overall Diameter 10.11", 256.8 mm Baffle Hole Diameter 9.13", 231.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 9.6", 243.8mm Depth 3.98", 101.1 mm Net Weight 6.8 lbs, 3.08 kg Shipping Weight 7.8 lbs, 3.54 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

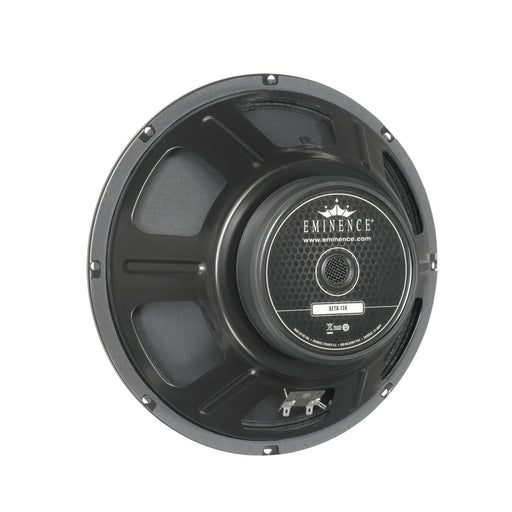

Recommended for professional audio and bass guitar applications as a woofer in a vented enclosure. Also works well for PA in a sealed or bandpass enclosure. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 500 W Watts 250 W Resonance 47 Hz Usable Frequency Range 43 Hz - 3.8 kHz Sensitivity* 98 dB Magnet Weight 38 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 47 Hz DC Resistance (Re) 5 Ω Coil Inductance (Le) 0.64m H Mechanical Q (Qms) 6 Electromagnetic Q (Qes) 0.5 Total Q (Qts) 0.46 Compliance Equivalent Volume (Vas) 120.1 liters / 4.24 cu.ft. Peak Diaphragm Displacement Volume (Vd) 237 cc Mechanical Compliance of Suspension (Cms) 0.29 mm/N BL Product (BL) 10.8 T-M Diaphragm Mass Inc. Airload (MMs) 40 grams Efficiency Bandwidth Product (EBP) 94 Maximum Linear Excursion (Xmax) 4.4 mm Surface Area of Cone (Sd) 538.9 cm2 Maximum Mechanical Limit (Xlim) 11 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 25.5-35.4 liters / 0.9-1.25 cu.ft. Vented 36.8-139 liters / 1.3-4.9 cu.ft. Driver Volume Displaced 0.071 cu.ft. / 2 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.5", 139.7 mm Net Weight 7.5 lbs, 3.4 kg Shipping Weight 9.7 lbs, 4.4 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

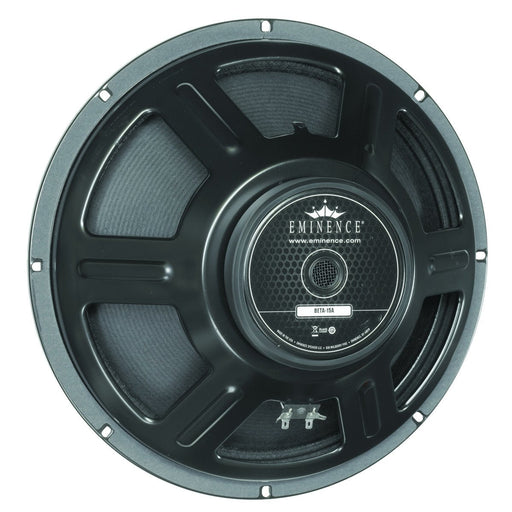

Recommended for professional audio as a woofer in sealed and vented enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 600 W Watts 300 W Resonance 35 Hz Usable Frequency Range 45 Hz - 3.7 kHz Sensitivity* 98.2 dB Magnet Weight 34 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 35 Hz DC Resistance (Re) 6.32 Ω Coil Inductance (Le) 1.1m H Mechanical Q (Qms) 8.1 Electromagnetic Q (Qes) 0.63 Total Q (Qts) 0.58 Compliance Equivalent Volume (Vas) 334.6 liters / 11.82 cu.ft. Peak Diaphragm Displacement Volume (Vd) 330 cc Mechanical Compliance of Suspension (Cms) 0.35 mm/N BL Product (BL) 11.5 T-M Diaphragm Mass Inc. Airload (MMs) 60 grams Efficiency Bandwidth Product (EBP) 56 Maximum Linear Excursion (Xmax) 4 mm Surface Area of Cone (Sd) 823.7 cm2 Maximum Mechanical Limit (Xlim) 11.6 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 45-62 liters / 1.6-2.2 cu.ft. Vented 99-175.6 liters / 3.5-6.2 cu.ft. Driver Volume Displaced 0.118 cu.ft. / 3.33 liters Overall Diameter 15.15", 384.8 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.05", 153.7 mm Net Weight 8.8 lbs, 3.99 kg Shipping Weight 10.8 lbs, 4.9 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

High power 6.5 inch Mid/Bass driver for use in concert sound systems or in high power auto sound as a mid/bass or a midrange driver. Works well in tiny sealed or vented enclosures, and in Infinite Baffles too. SPECIFICATION Nominal Basket Diameter 6", 165 mm Nominal Impedance* 8 Ω Power Rating* Program Power 350 W Watts 175 W Resonance 123 Hz Usable Frequency Range 95 Hz - 4 kHz Sensitivity* 94 dB Magnet Weight 30 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 123 Hz DC Resistance (Re) 5.18 Ω Coil Inductance (Le) 0.43m H Mechanical Q (Qms) 3.46 Electromagnetic Q (Qes) 0.66 Total Q (Qts) 0.56 Compliance Equivalent Volume (Vas) 3.51 liters / 0.12 cu.ft. Peak Diaphragm Displacement Volume (Vd) 61.1 cc Mechanical Compliance of Suspension (Cms) 0.15 mm/N BL Product (BL) 8.13 T-M Diaphragm Mass Inc. Airload (MMs) 11 grams Efficiency Bandwidth Product (EBP) 185 Maximum Linear Excursion (Xmax) 4.5 mm Surface Area of Cone (Sd) 129.9 cm2 Maximum Mechanical Limit (Xlim) 5.7 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 2.38-9999.99 liters / 0.08-9999.99 cu.ft. Vented 5.1-14.16 liters / 0.18-0.5 cu.ft. Driver Volume Displaced 0.021 cu.ft. / 0.6 liters Overall Diameter 6.59", 167.4 mm Baffle Hole Diameter 5.65", 143.5 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 6.06", 153.9mm Depth 2.66", 67.6 mm Net Weight 5.6 lbs, 2.54 kg Shipping Weight 6.3 lbs, 2.86 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Water resistant paper cone Cone Edge Composition Treated cloth cone edge Dust Cap Composition Water resistant treated paper dust cap

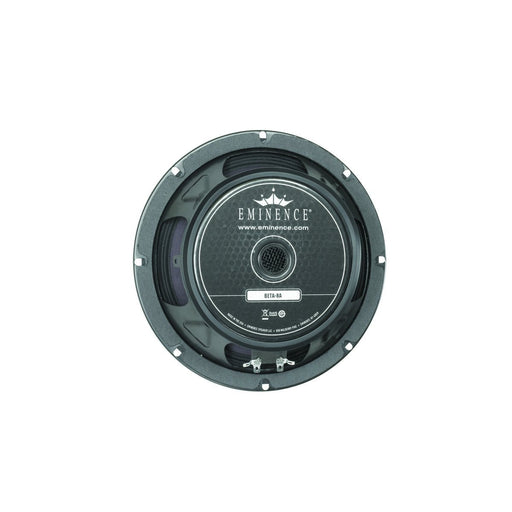

Recommended for professional audio mid-bass applications or as a woofer in vented enclosures. Also suitable as a mid-bass speaker in sealed enclosures. SPECIFICATION Nominal Basket Diameter 8", 203 mm Nominal Impedance* 8 Ω Power Rating* Program Power 450 W Watts 225 W Resonance 65 Hz Usable Frequency Range 78 Hz - 4.5 kHz Sensitivity* 95.1 dB Magnet Weight 34 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 65 Hz DC Resistance (Re) 5.99 Ω Coil Inductance (Le) 0.49m H Mechanical Q (Qms) 4.95 Electromagnetic Q (Qes) 0.42 Total Q (Qts) 0.38 Compliance Equivalent Volume (Vas) 23.3 liters / 0.82 cu.ft. Peak Diaphragm Displacement Volume (Vd) 63 cc Mechanical Compliance of Suspension (Cms) 0.37 mm/N BL Product (BL) 9.6 T-M Diaphragm Mass Inc. Airload (MMs) 16 grams Efficiency Bandwidth Product (EBP) 156 Maximum Linear Excursion (Xmax) 3 mm Surface Area of Cone (Sd) 210 cm2 Maximum Mechanical Limit (Xlim) 7.4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 5.7-9.9 liters / 0.2-0.35 cu.ft. Vented 8.5-19 liters / 0.3-0.67 cu.ft. Driver Volume Displaced 0.027 cu.ft. / 0.76 liters Overall Diameter 8.24", 209.3 mm Baffle Hole Diameter 7.13", 181.1 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 7.75", 196.9mm Depth 3.5", 88.9 mm Net Weight 6.6 lbs, 2.99 kg Shipping Weight 7.4 lbs, 3.36 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio mid-range reproduction in sealed enclosures. Also suitable for mid-bass or floor monitor applications in vented 2-way cabinets. SPECIFICATION Nominal Basket Diameter 8", 203 mm Nominal Impedance* 8 Ω Power Rating* Program Power 500 W Watts 250 W Resonance 62 Hz Usable Frequency Range 95 Hz - 3.3 kHz Sensitivity* 92.9 dB Magnet Weight 38 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 62 Hz DC Resistance (Re) 5.37 Ω Coil Inductance (Le) 0.67m H Mechanical Q (Qms) 6.57 Electromagnetic Q (Qes) 0.31 Total Q (Qts) 0.29 Compliance Equivalent Volume (Vas) 21.43 liters / 0.76 cu.ft. Peak Diaphragm Displacement Volume (Vd) 67.2 cc Mechanical Compliance of Suspension (Cms) 0.35 mm/N BL Product (BL) 11.21 T-M Diaphragm Mass Inc. Airload (MMs) 19 grams Efficiency Bandwidth Product (EBP) 201 Maximum Linear Excursion (Xmax) 3.2 mm Surface Area of Cone (Sd) 210 cm2 Maximum Mechanical Limit (Xlim) 6.9 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 3.4-9.91 liters / 0.12-0.35 cu.ft. Vented 7.08-16.99 liters / 0.25-0.6 cu.ft. Driver Volume Displaced 0.028 cu.ft. / 0.79 liters Overall Diameter 8.24", 209.3 mm Baffle Hole Diameter 7.13", 181.1 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 7.75", 196.9mm Depth 3.5", 88.9 mm Net Weight 6.8 lbs, 3.08 kg Shipping Weight 7.5 lbs, 3.4 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Kapton former Magnet Composition Ferrite magnet Core Details Tapered Coax Basket Materials Pressed steel basket Cone Composition Paper Cone Cone Edge Composition Sealed cloth cone edge Dust Cap Composition Zurette dust cap

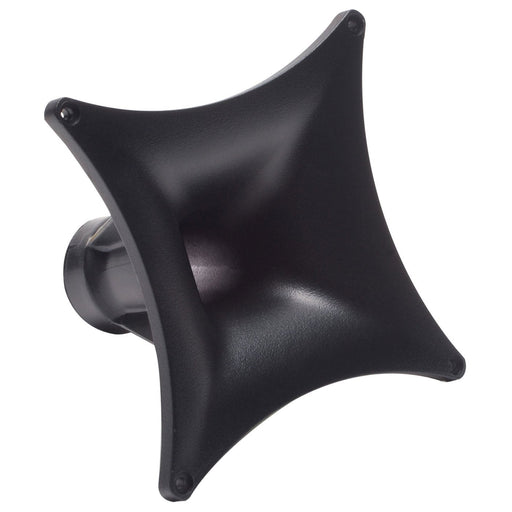

BH410 Horn Flare SPECIFICATION Type Exponential Throat Size 1", 25.4mm Attachment Method Screw-on Dispersion 60 x 60 Low Rec. Crossover 1.2 kHz WxHxD (in) 5.59" x 5.59" x 4.38" WxHxD (mm) 142mm x 142mm x 111.3mm Cut Out 3.56 x 3.5", 90.4 x 90.4mm Weight 0.35lbs, 0.16g Material ABS
