Sommer Cable

***Price Is Per Meter*** The wires are running hot... and the crowd is cheering when the speaker walls are turned up all the way. Then not only the spirits are heating up, but also the cables. This puts very high demands on the cable which means that the outer jacket of the cable must be as thick as elephant skin. But it should also be flexible, robust, tread-resistant, easy to reel and of course reusable time and again. Compare it with other speaker cables – the  ELEPHANT  is bound to convince you all out! Advantages: Loss-free transmission due to the special litz stranding technology Highly flexible and stage-proof, easy to reel Compatible with the common Neutrik Speakon connectors Easy to use due to well-insulated, numbered wires Application: Professional PA systems Surround and woofer systems For permanent installation Specifications: Article number 490-0351-825 Name Elephant SPM825 EAN 4049371020503 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour black Colour detailed black Construction (8LIY2,5mm²)Y Jacket material PVC Jacket Ø [mm] 15,30 Number of Channels (audio) 1 Inner conductor (audio) 8 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 78 Copper strand Ø (audio) [mm] 0,20 Conductor insulation Ø [mm] 3,25 Weight per 1 m [g] 354 UV-resistant yes Fire load per m [kWh] 1,9 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 15,3 Height [mm] 15,3 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 7,6 Conductor resistance per 1000 ft. [Ω] 2,3165 Test voltage [V] 2000 BPVo-Euroclass Fca

***Price Is Per Meter*** Especially for the tough stage routine... We have reworked the jacket stability of the 4.0 mm² (0.006 sq in.)  ELEPHANT  series. In addition it is flexible, robust, tread-resistant, easy to reel and always reusable, the jacket surface is now smoother and therefore easier to clean. Especially for the common speaker multipins (CA-COM 8-pole, NL8, LKS19, EP5) we have adapted the outer diameters so that they can be assembled with relatively little effort. Advantages: Loss-free transmission due to the special litz stranding technology Highly flexible and stage-proof, easy to reel Compatible with CA-COM 8-pin, NL8, LKS19, and EP5 connectors Easy to use due to well-insulated, numbered wires Application: Professional PA systems Specifications: Article number 490-0051-440 Name Elephant Robust SPM440 EAN 4049371002240 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour black Colour detailed black Construction (4LIY4,0mm²)Y Jacket material PVC Jacket Ø [mm] 11,00 Number of Channels (audio) 1 Inner conductor (audio) 4 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 224 Copper strand Ø (audio) [mm] 0,15 Conductor insulation Ø [mm] 3,75 Weight per 1 m [g] 246 UV-resistant yes Fire load per m [kWh] 0,85 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 11 Height [mm] 11 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 Test voltage [V] 2000 BPVo-Euroclass Fca

***Price Is Per Meter*** Up and down, time and again... This speaker cable will always return to its normal position. Even with severe traffic violations – when rolled over by a flight case – it will always stand its ground. As a special feature we have fitted the cable with a viscose filled PVC smoother and a 0.50 mm² sense line. This cable can withstand even the toughest stage demands. This speaker cable has fine and tightly stranded OFC litz wires like they are normalle found only in exclusive top-class hifi cables. For optimum conductivity we have grouped the copper litz wires into complex bundles. Which is why this cable has not only an incredible flexibility, but also an outstanding transmission quality. This can be noticed also with longer cable runs by clean and clear highs, dynamic mids and increased bass punch. Advantages: Loss-free signal transmission even over long distances due to the use of tightly stranded copper litz wires Highly flexible due to the use of a rubberlike PVC jacket Extremely robust and dependable Application: PA/sound reinforcement systems For fixed installation Top-quality hifi connections Specifications: Article number 440-0256 Name SC-Eclipse SPQ240 MKII EAN 4049371002202 Properties OFC oxygen free copper Properties Analog Application area ELA 100 V Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Speaker Cable Colour grey Colour detailed grey Construction (2LIY4,0mm²+0,5 mm²)Y Jacket material PVC Jacket Ø [mm] 9,50 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 224 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material PVC Conductor insulation Ø [mm] 3,60 Weight per 1 m [g] 165 Fire load per m [kWh] 0,46 Style variant round Packing 100 m spool Packing 200 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 9,5 Height [mm] 9,5 Capac. cond./cond. per 1 m (audio) [pF] 136 Capacity wire/wire at 1 ft. (audio) [pF] 41,4528 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 BPVo-Euroclass Fca

***Price Is Per Meter*** You can easily hear the grass grow... with our  SC-Orbit 225 MKII, HighEnd . If you care for true, natural sound and dynamics, then the  SC-Orbit 225 MKII, HighEnd  is your cable. At the end of the audio signal path is the loudspeaker, but just how the music gets there is nowhere near bananas! You already have the good speaker, now all you need is the cable – and the difference is audible! Here too we offer top quality with an attractive look, because the cables are often laid visibly – or invisibly, therefore as flat as possible is the name of the game. Due to a very tight litz stranding, the copper strand has the necessary surface for a clean transmission of the treble range. The individual wires are reverse-braided. So this cable will always return to its original position, even after extreme twisting. Advantages: Absolutely neutral transmission quality due to fine, tightly tranded copper litz wires Highly flexible and easy to reel due to rubberlike PVC jacket Noble finish with a black, transparent outer jacket Very low impedance values due to special litz stranding Application: Connection to HiFi-High End Speaker Systems Interior wiring of HiFi Loudspeakers and PA Systems For fixed installation Car hifi connection Specifications: Article number 425-0151 Name SC-Orbit 225 MKII, HighEnd EAN 4049371002967 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour transparent Colour black Colour detailed black transparent Construction 2LIY2,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 651 Copper strand Ø (audio) [mm] 0,07 Weight per 1 m [g] 90 UV-resistant yes Fire load per m [kWh] 0,17 Style variant twin Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 10,2 Height [mm] 4,8 Capac. cond./cond. per 1 m (audio) [pF] 60 Capacity wire/wire at 1 ft. (audio) [pF] 18,288 Insulation resist. per 1 km [GΩ] 0,01 Insulation resist. per 1000 feet [GΩ] 0,003 Insulation resist. per 1 km (audio) [GΩ] 0,01 Insulation resist. per 1000 feet (audio) [GΩ] 0,003 Conductor resistance per 1 km [Ω] 7,8 Conductor resistance per 1000 ft. [Ω] 2,3774 BPVo-Euroclass Fca

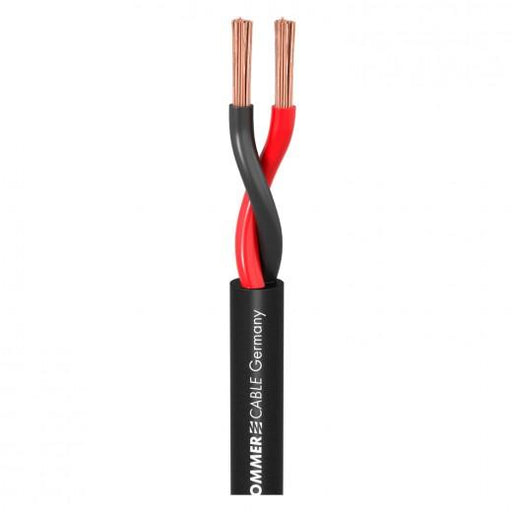

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust Meridian Mobile SP240 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 440-0051 Name Meridian Mobile SP240 EAN 4049371206419 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Speaker Cable Colour black Colour detailed black Construction (2LIY4,0mm²)Y Jacket material PVC Jacket Ø [mm] 9,50 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,76 AWG (audio) 11 Copper strands (audio) 56 Copper strand Ø (audio) [mm] 0,30 Conductor insulation Ø [mm] 4,20 Weight per 1 m [g] 150 UV-resistant yes Fire load per m [kWh] 0,46 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 9,5 Height [mm] 9,5 Capac. cond./cond. per 1 m (audio) [pF] 125 Capacity wire/wire at 1 ft. (audio) [pF] 38,1 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 BPVo-Euroclass Fca

***Price Is Per Meter*** Playing hide and seek... you’re welcome to do this with our SC-Tribun, Flat-Design loudspeaker cable, because it’s so flat that you can barely see it once it has been laid. It can be perfectly laid under carpets, behind decorative strips, on the ceiling and underneath your furniture. The SC-Tribun, Flat-Design is almost invisible. And it’s all white, so that not even a mouse will recognise it! This makes it ideal for the installation in buildings (e.g. in hotels, bars, sporting arenas) and churches. The edges are slanted, so it’s impossible to get stuck with your shoes or a rollator. The bottom side is flat and finished, which allows you to affix a double-sided adhesive tape for universal attachment. The SC-Tribun, Flat-Design is easy to splice and only about 2 mm high! Advantages: Good transmission quality due to the use of oxygen-free copper litz wires Extremely flat and almost invisible laying Incredibly flexible and easy to handle Designed like a decorative strip, hence barely noticeable Affordable price Application: Fixed installation in building technology Almost invisible connection of your hifi system Church acoustics Specifications: Article number 440-0310 Name SC-Tribun, Flat-Design EAN 4049371003049 Properties OFC oxygen free copper Properties Analog Application area Installation Application area ELA 100 V Application Speaker Cable Colour white Colour detailed white Construction 2LIY4,00mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 500 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 108 Style variant Twin, flat Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 17,5 Height [mm] 3 Capac. cond./cond. per 1 m (audio) [pF] 56 Capacity wire/wire at 1 ft. (audio) [pF] 17,0688 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 4,9 Conductor resistance per 1000 ft. [Ω] 1,4935 BPVo-Euroclass Fca

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust  Meridian Mobile SP225 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 425-0051 Name Meridian Mobile SP225 EAN 4049371050944 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Speaker Cable Colour black Colour detailed black Construction (2LIY2,5mm²)Y Jacket material PVC Jacket Ø [mm] 7,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 140 Copper strand Ø (audio) [mm] 0,15 Conductor insulation Ø [mm] 3,05 Weight per 1 m [g] 106 UV-resistant yes Fire load per m [kWh] 0,33 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 7,8 Height [mm] 7,8 Capac. cond./cond. per 1 m (audio) [pF] 136 Capacity wire/wire at 1 ft. (audio) [pF] 41,4528 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 7,5 Conductor resistance per 1000 ft. [Ω] 2,286 BPVo-Euroclass Fca

***Price Is Per Meter*** For life under ground... and on a green background we deliver the " Major Invisible" speaker cable of the successful "OFFROAD SERIES". On request of numerous customers we have opted for this new olive green jacket color. This unobtrusive color does make sense especially with outdoor installations, e.g. at big events, in amusement parks, at Christmas markets, carnival festivities or outdoor sporting events. This robust, easy winding cable is special designed for loudspeakers and meets all the relevant technical requirements. Oxygen-free Cu wires ensure better sound and higher durability. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of a special coating mixture Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 425-008M Name Major Invisible EAN 4049371005289 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application Speaker Cable Colour green Colour detailed olive green Construction (2LIY2,5 mm²)Y Jacket material PVC Jacket [mm] 7,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 140 Copper strand (audio) [mm] 0,15 Conductor insulation [mm] 3,05 Weight per 1 m [g] 106 Fire load per m [kWh] 0,33 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 7,8 Height [mm] 7,8 Capac. cond./cond. per 1 m (audio) [pF] 136 Capacity wire/wire at 1 ft. (audio) [pF] 41,4528 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 7,5 Conductor resistance per 1000 ft. [Ω] 2,286 BPVo-Euroclass Fca

***Price Is Per Meter*** RAZZMATAZZ - NYFAZ... SC-Nyfaz  cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters. We deliver a durable and reliable quality with oxygen-free copper (99.96 %). Advantages: Unflashy colouring Good & reasonably priced Easy handling “Memory“-effect, easy to install Application: Development and fast wiring of prototypes Fixed installation in dry and closed buildings Interior wiring in electrical devices Specifications: Article number 420-0250-SW Name SC-Nyfaz EAN 4049371002943 Properties Analog Application area Installation Application area ELA 100 V Application Installation cable Colour black Colour detailed black Construction 2LIY2,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 140 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 63 UV-resistant yes Style variant twin Packing 500 m spool Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 7,5 Height [mm] 3,5 Capac. cond./cond. per 1 m (audio) [pF] 140 Capacity wire/wire at 1 ft. (audio) [pF] 42,672 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 BPVo-Euroclass Fca

***Price Is Per Meter*** RAZZMATAZZ - NYFAZ... SC-Nyfaz  cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters. We deliver a durable and reliable quality with oxygen-free copper (99.96 %). Advantages: Unflashy colouring Good & reasonably priced Easy handling “Memory“-effect, easy to install Application: Development and fast wiring of prototypes Fixed installation in dry and closed buildings Interior wiring in electrical devices Specifications: Article number 420-0400-SW Name SC-Nyfaz EAN 4049371002950 Properties Analog Application area Installation Application area ELA 100 V Application Installation cable Colour black Colour detailed black Construction 2LIY4,00mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 226 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 101 UV-resistant yes Style variant twin Packing 500 m spool Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 10,2 Height [mm] 4,4 Capac. cond./cond. per 1 m (audio) [pF] 160 Capacity wire/wire at 1 ft. (audio) [pF] 48,768 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 BPVo-Euroclass Fca

***Price Is Per Meter*** RAZZMATAZZ - NYFAZ... SC-Nyfaz  cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters. We deliver a durable and reliable quality with oxygen-free copper (99.96 %). Advantages: Unflashy colouring Good & reasonably priced Easy handling “Memory“-effect, easy to install Application: Development and fast wiring of prototypes Fixed installation in dry and closed buildings Interior wiring in electrical devices Specifications: Article number 420-0150-SW Name SC-Nyfaz EAN 4049371002660 Properties Analog Application area Installation Application area ELA 100 V Application Installation cable Colour black Colour detailed black Construction 2LIY1,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 1,50 Inner conductor Ø (audio) [mm] 1,38 AWG (audio) 15 Copper strands (audio) 84 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 40 UV-resistant yes Style variant twin Packing 500 m spool Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,5 Height [mm] 2,8 Capac. cond./cond. per 1 m (audio) [pF] 140 Capacity wire/wire at 1 ft. (audio) [pF] 42,672 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 BPVo-Euroclass Fca

***Price Is Per Meter*** Playing hide and seek... you’re welcome to do this with our SC-Tribun, Flat-Design loudspeaker cable, because it’s so flat that you can barely see it once it has been laid. It can be perfectly laid under carpets, behind decorative strips, on the ceiling and underneath your furniture. The SC-Tribun, Flat-Design is almost invisible. And it’s all white, so that not even a mouse will recognise it! This makes it ideal for the installation in buildings (e.g. in hotels, bars, sporting arenas) and churches. The edges are slanted, so it’s impossible to get stuck with your shoes or a rollator. The bottom side is flat and finished, which allows you to affix a double-sided adhesive tape for universal attachment. The SC-Tribun, Flat-Design is easy to splice and only about 2 mm high! Advantages: Good transmission quality due to the use of oxygen-free copper litz wires Extremely flat and almost invisible laying Incredibly flexible and easy to handle Designed like a decorative strip, hence barely noticeable Affordable price Application: Fixed installation in building technology Almost invisible connection of your hifi system Church acoustics Specifications: Article number 425-0310 Name SC-Tribun, Flat-Design EAN 4049371002981 Properties Analog Properties OFC oxygen free copper Application area ELA 100 V Application area Installation Application Speaker Cable Colour white Colour detailed white Construction 2LIY2,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 320 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 72 Style variant Twin, flat Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 14,6 Height [mm] 2,6 Capac. cond./cond. per 1 m (audio) [pF] 60 Capacity wire/wire at 1 ft. (audio) [pF] 18,288 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 7,9 Conductor resistance per 1000 ft. [Ω] 2,4079 BPVo-Euroclass Fca

***Price Is Per Meter*** RAZZMATAZZ - NYFAZ... SC-Nyfaz  cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters. We deliver a durable and reliable quality with oxygen-free copper (99.96 %). Advantages: Unflashy colouring Good & reasonably priced Easy handling “Memory“-effect, easy to install Application: Development and fast wiring of prototypes Fixed installation in dry and closed buildings Interior wiring in electrical devices Specifications: Article number 420-0075-SW Name SC-Nyfaz EAN 4049371002653 Properties Analog Application area Installation Application area ELA 100 V Application Installation cable Colour black Colour detailed black Construction 2LIY0,75mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,75 Inner conductor Ø (audio) [mm] 0,98 AWG (audio) 18 Copper strands (audio) 24 Copper strand Ø (audio) [mm] 0,20 Weight per 1 m [g] 21 UV-resistant yes Style variant twin Packing 500 m spool Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 4,5 Height [mm] 2,3 Capac. cond./cond. per 1 m (audio) [pF] 140 Capacity wire/wire at 1 ft. (audio) [pF] 42,672 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 BPVo-Euroclass Fca

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust  Meridian Mobile SP215 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 415-0051 Name Meridian Mobile SP215 EAN 4049371050937 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Speaker Cable Colour black Colour detailed black Construction (2LIY1,50mm²)Y Jacket material PVC Jacket Ø [mm] 6,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 1,50 Inner conductor Ø (audio) [mm] 1,38 AWG (audio) 16 Copper strands (audio) 84 Copper strand Ø (audio) [mm] 0,15 Conductor insulation Ø [mm] 2,62 Weight per 1 m [g] 78 UV-resistant yes Fire load per m [kWh] 0,28 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 6,8 Height [mm] 6,8 Capac. cond./cond. per 1 m (audio) [pF] 150 Capacity wire/wire at 1 ft. (audio) [pF] 45,72 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 13 Conductor resistance per 1000 ft. [Ω] 3,9624 BPVo-Euroclass Fca

***Price Is Per Meter*** Less is more... this is what many hifi enthusiasts say and prefer even smaller and finer single litz wires in twin cables. Hereby the conductor surface is increased, which produces even greater dynamics and gives you pure listening pleasure. Apart from its fine single litz construction, the  SC-Prisma  is very similar to the  SC-TWINCORD , but has a somewhat smarter finish and is available in several colour combinations. Advantages: Very flat and easy to install due “memory“ effect Plus pin identification by a coloured strip Available in different colours Very neutral audio transmission Application: Dependable, long-life hifi cable Interior wiring of racks and HiFi Loudspeakers Permanent installation in buildings, recording studios etc. Specifications: Article number 401-0250-WS Name SC-Prisma EAN 4049371002882 Properties OFC oxygen free copper Properties Analog Application area Studio / Broadcast Application area Installation Application Speaker Cable Colour white Colour detailed white Construction 2LIY2,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 322 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 83 Fire load per m [kWh] 0,17 Style variant twin Packing 100 m Temperature min. [°C] -15 Temperature max. [°C] 70 Width [mm] 9,1 Height [mm] 4,3 Capac. cond./cond. per 1 m (audio) [pF] 60 Capacity wire/wire at 1 ft. (audio) [pF] 18,288 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (audio) [GΩ] 5 Insulation resist. per 1000 feet (audio) [GΩ] 1,524 BPVo-Euroclass Fca

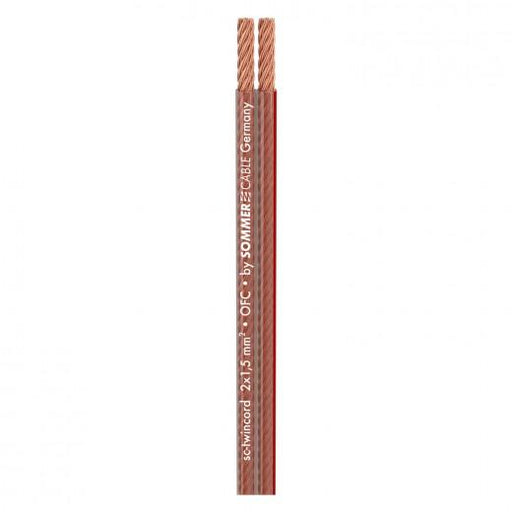

***Price Is Per Meter*** Transparency is called for... not only for the jacket material, but also for sound transmission between HiFi-amplifiers and speakers. The  SC-Twincord  is a reasonable, but very dependable speaker cable with high quality copper and more dense stranding than the standard cable. It also has a somewhat harder jacket material, so that it can be installed very easily, e.g. under your carpet or in areas of your apartment that are difficult to access. The professional sound technician or soundman uses the  SC-Twincord  for fixed installation or for interior wiring of racks and speaker systems. Advantages: Good & reasonably priced Very flat and easy to install due “memory“ effect Plus pin identification by a coloured strip Application: Dependable, long-life hifi cable Interior wiring of racks and HiFi Loudspeakers Permanent installation in buildings, recording studios etc. Specifications: Article number 400-0400 Name SC-Twincord EAN 4049371002820 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour transparent Colour detailed transparent Construction 2LIY4,00mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 224 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 97,4 Fire load per m [kWh] 0,16 Style variant twin Packing 200 m Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 9 Height [mm] 4,3 Capac. cond./cond. per 1 m (audio) [pF] 56 Capacity wire/wire at 1 ft. (audio) [pF] 17,0688 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (audio) [GΩ] 5 Insulation resist. per 1000 feet (audio) [GΩ] 1,524 BPVo-Euroclass Fca

***Price Is Per Meter*** Transparency is called for... not only for the jacket material, but also for sound transmission between HiFi-amplifiers and speakers. The  SC-Twincord  is a reasonable, but very dependable speaker cable with high quality copper and more dense stranding than the standard cable. It also has a somewhat harder jacket material, so that it can be installed very easily, e.g. under your carpet or in areas of your apartment that are difficult to access. The professional sound technician or soundman uses the  SC-Twincord  for fixed installation or for interior wiring of racks and speaker systems. Advantages: Good & reasonably priced Very flat and easy to install due “memory“ effect Plus pin identification by a coloured strip Application: Dependable, long-life hifi cable Interior wiring of racks and HiFi Loudspeakers Permanent installation in buildings, recording studios etc. Specifications: Article number 400-0250 Name SC-Twincord EAN 4049371002813 Properties Analog Properties OFC oxygen free copper Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour transparent Colour detailed transparent Construction 2LIY2,50mm² Jacket material PVC Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 140 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 60 Fire load per m [kWh] 0,13 Style variant twin Packing 200 m Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 7,5 Height [mm] 3,5 Capac. cond./cond. per 1 m (audio) [pF] 57 Capacity wire/wire at 1 ft. (audio) [pF] 17,3736 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (audio) [GΩ] 5 Insulation resist. per 1000 feet (audio) [GΩ] 1,524 BPVo-Euroclass Fca

***Price Is Per Meter*** Transparency is called for... not only for the jacket material, but also for sound transmission between HiFi-amplifiers and speakers. The SC-Twincord is a reasonable, but very dependable speaker cable with high quality copper and more dense stranding than the standard cable. It also has a somewhat harder jacket material, so that it can be installed very easily, e.g. under your carpet or in areas of your apartment that are difficult to access. The professional sound technician or soundman uses the SC-Twincord for fixed installation or for interior wiring of racks and speaker systems. Advantages: Good & reasonably priced Very flat and easy to install due “memory“ effect Plus pin identification by a coloured strip Application: Dependable, long-life hifi cable Interior wiring of racks and HiFi Loudspeakers Permanent installation in buildings, recording studios etc. Specifications: Article number 400-0150 Name SC-Twincord EAN 4049371002806 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour transparent Colour detailed transparent Construction 2LIY1,50mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 1,50 Inner conductor Ø (audio) [mm] 1,38 AWG (audio) 15 Copper strands (audio) 84 Copper strand Ø (audio) [mm] 0,15 Weight per 1 m [g] 42 Fire load per m [kWh] 0,06 Style variant twin Packing 200 m Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,5 Height [mm] 2,8 Capac. cond./cond. per 1 m (audio) [pF] 67 Capacity wire/wire at 1 ft. (audio) [pF] 20,4216 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (audio) [GΩ] 5 Insulation resist. per 1000 feet (audio) [GΩ] 1,524 BPVo-Euroclass Fca

***Price Is Per Meter*** The twin cable... is similar in design and quality to the  TRICONE MKII , but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The  SC-Onyx 2025 MKII  can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and red. Advantages: Very flexible because of its fine single litz design Each conductor is insulated and individually shielded with a helical copper mesh screen Cables may be separated easily by hand Small jacket diameter, ensuring easy handling with RCA and jack connectors Application: Cabling of unbalanced devices (keyboards) Connection lead for hifi components Assembly of Y-adapter cable Assembly of insert cable Specifications: Article number 320-0101 Name SC-Onyx 2025 MKII EAN 4049371003292 Properties Analog Properties OFC oxygen free copper Application area Installation Application area Studio / Broadcast Application Patch & Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2YDY2x0,25mm² Jacket material PVC Number of Channels (audio) 2 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,25 Inner conductor Ø (audio) [mm] 0,56 AWG (audio) 24 Shielding Copper spiral shielding Shielding factor [%] 90 Copper strands (audio) 32 Copper strand Ø (audio) [mm] 0,10 Conductor insulation material PE Weight per 1 m [g] 38 UV-resistant yes Fire load per m [kWh] 0,23 Style variant round Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 8,3 Height [mm] 3,8 Capac. cond./shield. per 1 m (audio) [pF] 120 Capacity wire/electic screen at 1 ft. (audio) [pF] 36,576 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 115 Conductor resistance per 1000 ft. [Ω] 35,052 BPVo-Euroclass Fca

***Price Is Per Meter*** The twin cable... is similar in design and quality to the  TRICONE MKII , but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The  SC-Onyx 2008  can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and yellow. The  SC-Onyx 2008  is very small in diameter which makes it ideal for fitting mini jack connectors. Advantages: Very flexible because of its fine single litz design Each conductor is insulated and individually shielded with a helical copper mesh screen Cables may be separated easily by hand Small jacket diameter, ensuring easy handling with RCA and jack connectors Application: Cabling of unbalanced devices (keyboards) Connection lead for hifi components Assembly of Y-adapter cable Assembly of insert cable Specifications: Article number 320-0061 Name SC-Onyx 2008 EAN 4049371004695 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application Patch & Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2YDY2x0,08mm² Jacket material PVC Number of Channels (audio) 2 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,08 Inner conductor Ø (audio) [mm] 0,32 AWG (audio) 28 Shielding Copper spiral shielding Shielding factor [%] 90 Copper strands (audio) 10 Copper strand Ø (audio) [mm] 0,10 Conductor insulation material PE-HD Weight per 1 m [g] 26 UV-resistant yes Fire load per m [kWh] 0,2 Style variant twin Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 5,9 Height [mm] 2,6 Capac. cond./shield. per 1 m (audio) [pF] 120 Capacity wire/electic screen at 1 ft. (audio) [pF] 36,576 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 220 Conductor resistance per 1000 ft. [Ω] 67,056 BPVo-Euroclass Fca

***Price Is Per Meter*** Three corners has my hat... and also the  Tricone® XXL  jack connector which you can configure yourself on the  Tricone® XXL  cable without using a soldering gun. With the  Tricone® XXL  set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary – in record time. For detailed information see chapter “Premade Cables“ or "Connectors“. The  Tricone® XXL  has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength Advantages: Powerful, clear sound with the transmission of any instrument signals Dual shielding by Cu mesh screen and conductive carbon screen Highly flexible and easy to reel because of its fine single litz design Extremely durable and rugged due to LONGLIFE COMPOUND jacket Application: High-quality guitar lead for stage & studio Unbalanced cable for all string instruments, keyboards, samplers, mixing desks etc. Specifications: Article number 300-0273 Name Tricone® XXL EAN 4049371050487 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Instrument Cable Colour red Colour detailed red Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm2 Jacket material LLC (Long Life Compound) Jacket Ø [mm] 5,90 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,80 Weight per 1 m [g] 44 Fire load per m [kWh] 0,27 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 60 Width [mm] 5,9 Height [mm] 5,9 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** Three corners has my hat... and also the  Tricone® XXL  jack connector which you can configure yourself on the  Tricone® XXL  cable without using a soldering gun. With the  Tricone® XXL  set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary – in record time. For detailed information see chapter “Premade Cables“ or "Connectors“. The  Tricone® XXL  has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength Advantages: Powerful, clear sound with the transmission of any instrument signals Dual shielding by Cu mesh screen and conductive carbon screen Highly flexible and easy to reel because of its fine single litz design Extremely durable and rugged due to LONGLIFE COMPOUND jacket Application: High-quality guitar lead for stage & studio Unbalanced cable for all string instruments, keyboards, samplers, mixing desks etc. Specifications: Article number 300-0271 Name Tricone® XXL EAN 4049371050920 Properties OFC oxygen free copper Properties Analog Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm2 Jacket material LLC (Long Life Compound) Jacket Ø [mm] 5,90 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,80 Weight per 1 m [g] 44 UV-resistant yes Fire load per m [kWh] 0,27 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 60 Width [mm] 5,9 Height [mm] 5,9 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** Three corners has my hat... and also the  Tricone® XXL  jack connector which you can configure yourself on the  Tricone® XXL  cable without using a soldering gun. With the  Tricone® XXL  set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary – in record time. For detailed information see chapter “Premade Cables“ or "Connectors“. The  Tricone® XXL  has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength Advantages: Powerful, clear sound with the transmission of any instrument signals Dual shielding by Cu mesh screen and conductive carbon screen Highly flexible and easy to reel because of its fine single litz design Extremely durable and rugged due to LONGLIFE COMPOUND jacket Application: High-quality guitar lead for stage & studio Unbalanced cable for all string instruments, keyboards, samplers, mixing desks etc. Specifications: Article number 300-0270 Name Tricone® XXL EAN 4049371246385 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Instrument Cable Colour white Colour detailed white Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm2 Jacket material LLC (Long Life Compound) Jacket Ø [mm] 5,90 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,80 Weight per 1 m [g] 44 Fire load per m [kWh] 0,27 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -25 Temperature max. [°C] 60 Width [mm] 5,9 Height [mm] 5,9 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** Three corners has my hat... and also the  Tricone® XXL  jack connector which you can configure yourself on the  Tricone® XXL  cable without using a soldering gun. With the  Tricone® XXL  set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary – in record time. For detailed information see chapter “Premade Cables“ or "Connectors“. The  Tricone® XXL  has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength Advantages: Powerful, clear sound with the transmission of any instrument signals Dual shielding by Cu mesh screen and conductive carbon screen Highly flexible and easy to reel because of its fine single litz design Extremely durable and rugged due to LONGLIFE COMPOUND jacket Application: High-quality guitar lead for stage & studio Unbalanced cable for all string instruments, keyboards, samplers, mixing desks etc. Specifications: Article number 300-0273 Name Tricone® XXL EAN 4049371050487 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Instrument Cable Colour red Colour detailed red Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm2 Jacket material LLC (Long Life Compound) Jacket Ø [mm] 5,90 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,80 Weight per 1 m [g] 44 Fire load per m [kWh] 0,27 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 60 Width [mm] 5,9 Height [mm] 5,9 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 BPVo-Euroclass Fca

***Price Is Per Meter*** Those die-hard... Collectors of vintage guitar technology. For these oldtimer freaks there is now also the right cable on offer. The  SC-Classique  looks at least visually old, but features a new and fresh technology. The core is an inner wire with a cross-section of 0,50 mm² that consists of 28 fine Cu single litz wires to ensure an untroubled musical pleasure even with lengths above 20 m (65.6 ft.), which is often regarded as a problematic length among musicians obsessed with detail. The cable is rounded off by a thick insulation of a foamed and lacquered PE plus a tight, tin-plated Cu braid. A conspicuous feature is, of course, the extra textile fabric which gives the SC-Classique the necessary vintage flair. And it also sounds like a cable from the 1960s: the  SC-Classique  impresses with a lot of warmth, fat sound and crystal clear highs. Advantages: Warm and fat “sixties” sound Robust vintage style textile jacket Very low capacitance and dual shielding (Cu mesh screen + semiconductor) Easy to reel Application: High-end guitar and instrument cable with vintage sound and styling Unbalanced cable for stage and studio Specifications: Article number 300-0117 Name SC-Classique EAN 4049371004640 Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Instrument Cable Colour yellow Colour black Colour detailed tweed-yellow Colour detailed vintage tweed Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm² Jacket material PVC + fabric Jacket Ø [mm] 6,50 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,20 Weight per 1 m [g] 54 Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Temperature min. [°C] -40 Temperature max. [°C] 80 Width [mm] 6,5 Height [mm] 6,5 Capac. cond./shield. per 1 m (audio) [pF] 78 Capacity wire/electic screen at 1 ft. (audio) [pF] 23,7744 Insulation resist. per 1 km [GΩ] 0,01 Insulation resist. per 1000 feet [GΩ] 0,003 Insulation resist. per 1 km (audio) [GΩ] 0,01 Insulation resist. per 1000 feet (audio) [GΩ] 0,003 Conductor resistance per 1 km [Ω] 36 Conductor resistance per 1000 ft. [Ω] 10,9728 BPVo-Euroclass Fca

***Price Is Per Meter*** Those die-hard... Collectors of vintage guitar technology. For these oldtimer freaks there is now also the right cable on offer. The  SC-Classique  looks at least visually old, but features a new and fresh technology. The core is an inner wire with a cross-section of 0,50 mm² that consists of 28 fine Cu single litz wires to ensure an untroubled musical pleasure even with lengths above 20 m (65.6 ft.), which is often regarded as a problematic length among musicians obsessed with detail. The cable is rounded off by a thick insulation of a foamed and lacquered PE plus a tight, tin-plated Cu braid. A conspicuous feature is, of course, the extra textile fabric which gives the SC-Classique the necessary vintage flair. And it also sounds like a cable from the 1960s: the  SC-Classique  impresses with a lot of warmth, fat sound and crystal clear highs. Advantages: Warm and fat “sixties” sound Robust vintage style textile jacket Very low capacitance and dual shielding (Cu mesh screen + semiconductor) Easy to reel Application: High-end guitar and instrument cable with vintage sound and styling Unbalanced cable for stage and studio Specifications: Article number 300-0110 Name SC-Classique EAN 4049371004657 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area Studio / Broadcast Application Instrument Cable Colour black Colour white Colour detailed black-white Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm² Jacket material PVC + fabric Jacket Ø [mm] 6,50 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,20 Weight per 1 m [g] 54 Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Temperature min. [°C] -40 Temperature max. [°C] 80 Width [mm] 6,5 Height [mm] 6,5 Capac. cond./shield. per 1 m (audio) [pF] 78 Capacity wire/electic screen at 1 ft. (audio) [pF] 23,7744 Insulation resist. per 1 km [GΩ] 0,01 Insulation resist. per 1000 feet [GΩ] 0,003 Insulation resist. per 1 km (audio) [GΩ] 0,01 Insulation resist. per 1000 feet (audio) [GΩ] 0,003 Conductor resistance per 1 km [Ω] 36 Conductor resistance per 1000 ft. [Ω] 10,9728 BPVo-Euroclass Fca

***Price Is Per Meter*** Making the impossible come true… when dealing with a new guitar cable, this involves creating an extremely low capacitance together with a breathtaking flexibility. Developing an insulation which ensures super low values by means of a gas-injected foaming – this is not an easy job, but well within the bounds of possibility for a professional cable maker. However, protecting this fragile insulation also against motion, creasing or twisting, is indeed a true challenge. With the  SC-SPIRIT LLX "LOW LOSS"  we have fallen back on the same insulation design as it is used in professional HD-SD video cables. For extra stability of the inner construction we use an optimised concentrical litz stranding and a special insulation curing on the surface. For the outer jacket we have applied a rubberlike soft PVC jacket, which is highly flexible, extremely compact, stretches hardly and protects the whole inner structure from exterior influences. Due to its low capacitance and its very special construction the  SC-SPIRIT LLX "LOW LOSS"  is one of the world’s ultra-low loss guitar cables. With DIY assembly please watch out that the black carbon screen (sitting on the white insulation) is conductive and must therefore be removed to avoid ground contact with the inner conductor. Advantages: Extremely low capacitance values Robust, twist-proof and easy to reel Low-loss, detailed and neutral transmission properties Double shielding by Cu mesh plus conductive carbon screen Application: Highly flexible cable for the demanding studio and live guitarist High-quality patch cabling in the professional studio technology High-end cable for the live DJ Specifications: Article number 300-0091 Name SC-SPIRIT LLX "LOW LOSS" EAN 4049371220248 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application area Studio / Broadcast Application Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2Y(LS)CY 1x0,38mm² Jacket material PVC Jacket Ø [mm] 7,20 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,38 Inner conductor Ø (audio) [mm] 0,70 AWG (audio) 21 Shielding Copper braided shielding + semiconductor Shielding factor [%] 100 Copper strands (audio) 19 Copper strand Ø (audio) [mm] 0,16 Conductor insulation material Foam / Skin-PVC Weight per 1 m [g] 62,2 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing 100 m Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 7,2 Height [mm] 7,2 Capac. cond./shield. per 1 m (audio) [pF] 52 Capacity wire/electic screen at 1 ft. (audio) [pF] 15,8496 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 48 Conductor resistance per 1000 ft. [Ω] 14,6304 BPVo-Euroclass Fca

***Price Is Per Meter*** Those die-hard... Collectors of vintage guitar technology. For these oldtimer freaks there is now also the right cable on offer. The  SC-Classique  looks at least visually old, but features a new and fresh technology. The core is an inner wire with a cross-section of 0,50 mm² that consists of 28 fine Cu single litz wires to ensure an untroubled musical pleasure even with lengths above 20 m (65.6 ft.), which is often regarded as a problematic length among musicians obsessed with detail. The cable is rounded off by a thick insulation of a foamed and lacquered PE plus a tight, tin-plated Cu braid. A conspicuous feature is, of course, the extra textile fabric which gives the SC-Classique the necessary vintage flair. And it also sounds like a cable from the 1960s: the  SC-Classique  impresses with a lot of warmth, fat sound and crystal clear highs. Advantages: Warm and fat “sixties” sound Robust vintage style textile jacket Very low capacitance and dual shielding (Cu mesh screen + semiconductor) Easy to reel Application: High-end guitar and instrument cable with vintage sound and styling Unbalanced cable for stage and studio Specifications: Article number 300-0112 Name SC-Classique EAN 4049371004664 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area Studio / Broadcast Application Instrument Cable Colour black Colour blue Colour detailed black-blue Signal transmission asymmetrical Construction LI2Y(LS)CY1x0,50mm² Jacket material PVC + fabric Jacket Ø [mm] 6,50 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 2,20 Weight per 1 m [g] 54 Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Temperature min. [°C] -40 Temperature max. [°C] 80 Width [mm] 6,5 Height [mm] 6,5 Capac. cond./shield. per 1 m (audio) [pF] 78 Capacity wire/electic screen at 1 ft. (audio) [pF] 23,7744 Insulation resist. per 1 km [GΩ] 0,01 Insulation resist. per 1000 feet [GΩ] 0,003 Insulation resist. per 1 km (audio) [GΩ] 0,01 Insulation resist. per 1000 feet (audio) [GΩ] 0,003 Conductor resistance per 1 km [Ω] 36 Conductor resistance per 1000 ft. [Ω] 10,9728 BPVo-Euroclass Fca

***Price Is Per Meter*** Bet that... you can hear this cable on the radio? We’ve added the  SC-Symbiotic  to our range to meet the demands of our ambitious broadcast and sound engineers. They appreciate the extremely dense dual helical mesh screen of oxygen-free copper, the small diameter and the impressive flexibility we have achieved with the extremely fine strand construction of 102 x 0,05 mm single litz wires. The  SC-Symbiotic  was custom-designed according to specifications set forth by broadcasting stations all over the world. Because of its minimal weight the  SC-Symbiotic  is also ideal for use with gooseneck microphones. Advantages: Designed according to German radio and BBC specifications Extremely flexible due to the fine strand construction (102 x0,05 mm single litz wires) Small diameter for inconspicuous installation Perfectly shielded against RF interference Application: Professional radio, TV and studio technology Permanent indoor and outdoor installation in public buildings Ideal for use with gooseneck microphones Specifications: Article number 200-0601 Name SC-Symbiotic EAN 4049371002677 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Installation Application area Studio / Broadcast Application Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction (2LI2Y0,20mm²)YDDY Jacket material PVC Jacket Ø [mm] 5,20 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,20 Inner conductor Ø (audio) [mm] 0,50 AWG (audio) 24 Shielding Double copper spiral, counter-rotating Shielding factor [%] 100 Copper strands (audio) 102 Copper strand Ø (audio) [mm] 0,05 Conductor insulation material PE Conductor insulation Ø [mm] 1,30 Weight per 1 m [g] 38 UV-resistant yes Fire load per m [kWh] 0,13 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 5,2 Height [mm] 5,2 Capac. cond./cond. per 1 m (audio) [pF] 95 Capacity wire/wire at 1 ft. (audio) [pF] 28,956 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Insulation resist. per 1 km [GΩ] 0,2 Insulation resist. per 1000 feet [GΩ] 0,061 Insulation resist. per 1 km (audio) [GΩ] 0,2 Insulation resist. per 1000 feet (audio) [GΩ] 0,061 Conductor resistance per 1 km [Ω] 94 Conductor resistance per 1000 ft. [Ω] 28,6512 Shield. resistance per 1 km [Ω] 25 Shield. resistance per 1000 ft. [Ω] 7,62 BPVo-Euroclass Fca

***Price Is Per Meter*** Like a lasso... By the guitarists tossing the cables around. That's why this of all cables must be particularly tread resistant and have an elaborate construction. At first musicians tend to spend big money until they finally have to realize exasperatedly that the newly purchased low-cost cable may at best be used as an average short-wave receiver or even brings the overall sound image of the high-priced instrument to crumble. We have refrained from cheapo products and offer a top-quality cable at a fair price. The  SC-Spirit  has a thick insulation between wire and screen. This improves the capacitive values and ensures a loss-free reproduction of the highs even with longer cables. To avoid crackling and hum interferences, we use a special conductive carbon screen and a braided Cu shield. Please make sure when soldering that the carbon screen does not make any contact with the inner conductor. Your audience will be amazed at the sound of this cable! Advantages: Incredibly punchy and clear sound with bass, guitar and keyboard due to our special litz stranding and a wire cross-section of 0,50 mm² Dual shielding by a combination of a copper mesh screen plus conductive carbon screen Low-loss transmission due to low capacitance Very flexible and easy to reel because of its fine single litz design Extremely durable and sturdy due to a special high-quality PVC jacket compound Strain relief and good sleeve support due to thick PVC jacket Application: High-quality guitar cable for studio and stage Unbalanced cable for keyboards, samplers, mixing desks etc. Connection lead for CD/DVD player/recorder Specifications: Article number 300-0051 Name SC-Spirit EAN 4049371002097 Properties OFC oxygen free copper Properties Analog Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Instrument Cable Colour black Colour detailed black Signal transmission asymmetrical Construction LI2Y(LS)CY 1x0,50mm² Jacket material PVC Jacket Ø [mm] 7,00 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,50 Inner conductor Ø (audio) [mm] 0,80 AWG (audio) 20 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 19 Copper strand Ø (audio) [mm] 0,18 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 3,10 Weight per 1 m [g] 66 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 7 Height [mm] 7 Capac. cond./shield. per 1 m (audio) [pF] 78 Capacity wire/electic screen at 1 ft. (audio) [pF] 23,7744 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 39 Conductor resistance per 1000 ft. [Ω] 11,8872 BPVo-Euroclass Fca

***Price Is Per Meter*** Life in the wilderness... is hard and merciless.  SOMMER  CABLE  has developed the  Colonel Incredible  especially for this purpose! It is sturdy, flexible, strong and olive-green! This lets you and your cable adapt to the environment just perfectly, and thanks to the military colour you can leave the place of disgrace furtively after a bad gig. But seriously - the  Colonel Incredible  from our “OFFROAD SERIES“ is a respectable cable with a very well-balanced sound image an a wonderfully smooth frequency response. The high-end guitar cable features a technically optimised two-wire design. The first wire consists of concentrically stranded, silver-plated litz and is shielded by a dense copper mesh screen. Furthermore, a second earth wire with red insulation has been braided in which needs to be soldered to mesh screen of the first wire. Caution:  To avoid impact noise, the soldering must be made according to this scheme. The  Colonel Incredible  is recommended for both ambitious studio musicians and live musicians. Many professional musicians describe the sound image as very punchy, clean and well-defined. Advantages: Very robust due to the large wire cross-section and fine Cu single litz wires Good electrical values due to dual-wire construction Application: A reliable cable for live and studio applications (guitar and keyboard) Specifications: Article number 300-008M Name Colonel Incredible EAN 4049371004633 Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Mobile outdoor / indoor Application Instrument Cable Colour green Colour detailed olive green Signal transmission asymmetrical Construction LI2Y(LS)DY2x0,35mm² Jacket material PVC Jacket Ø [mm] 7,20 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,35 Inner conductor Ø (audio) [mm] 0,67 AWG (audio) 22 Shielding Copper braiding tin-plated Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,25 Conductor insulation material PE Weight per 1 m [g] 64 Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 7,2 Height [mm] 7,2 Capac. cond./cond. per 1 m (audio) [pF] 41 Capacity wire/wire at 1 ft. (audio) [pF] 12,4968 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 78 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 55 Conductor resistance per 1000 ft. [Ω] 16,764 BPVo-Euroclass Fca

***Price Is Per Meter*** Our endurance test champion... in our ranks is called  SC-Spirit XXL . This high-end guitar cable has been one of our most successful products over the past few years and enjoys absolute cult status among guitarists and bass players. Owing to its excellent price/performance ratio, it turned out as a multiple test winner in the German and international specialized press. The cable is robust and yet flexible, and its smoke-colored jacket gives it a high recognition value. The shielding is exemplary: its braid with 95 % coverage and the thick carbon screen (100 %) protect it from interferences. A special lacquer gives the lavishly foamed PE insulation an extreme durability and guarantees excellent transmission properties for many years to come. The wire cross-section of 0,75 mm² ensures a high signal level even over long distances. Our customers describe the sound of the  SC-Spirit XXL  as crystal clear, clean, very neutral, and it outstandingly reproduces the verve of bass attacks.  CAUTION:  The black carbon screen under the braided shield and on the insulation has a high conductance. Therefore it should by all means be removed when soldering! Advantages: Enormously powerful and clear sound image with bass, guitar and keyboard Dual shielding by a combination of a copper mesh screen plus conductive carbon screen Low-loss transmission due to low capacitance and large wire gauge Very flexible and easy to reel because of its fine single litz design Extremely durable and sturdy due to a special high-quality PVC jacket compound Application: High quality guitar and bass cable for studio and stage Unbalanced cable for keyboards, samplers, mixing desks etc. Connection lead for CD/DVD/BluRay player/recorder Specifications: Article number 300-0071 Name SC-Spirit XXL EAN 4049371004626 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area Studio / Broadcast Application Instrument Cable Colour black-tranparent Colour detailed black, transparent Signal transmission asymmetrical Construction LI2Y(LS)CY 1x0,75mm² Jacket material PVC Jacket material (audio) transp. PVC Jacket Ø [mm] 6,80 Number of Channels (audio) 1 Inner conductor (audio) 1 Inner conductor (audio) [mm²] 0,75 Inner conductor Ø (audio) [mm] 0,98 AWG (audio) 18 Shielding Copper spiral tin-plated + semiconductor Shielding factor [%] 100 Copper strands (audio) 42 Copper strand Ø (audio) [mm] 0,15 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 3,10 Weight per 1 m [g] 52 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 6,8 Height [mm] 6,8 Capac. cond./shield. per 1 m (audio) [pF] 86 Capacity wire/electic screen at 1 ft. (audio) [pF] 26,2128 Insulation resist. per 1 km [GΩ] 0,05 Insulation resist. per 1000 feet [GΩ] 0,0152 Insulation resist. per 1 km (audio) [GΩ] 0,05 Insulation resist. per 1000 feet (audio) [GΩ] 0,0152 Conductor resistance per 1 km [Ω] 25 Conductor resistance per 1000 ft. [Ω] 7,62 BPVo-Euroclass Fca

***Price Is Per Meter*** The memory cable... makes a clean sweep. Switchboards and racks often resemble granny's knitting pattern sheets. You ought to clean up! The SC-Isopod SO-F50 is a 2-wire, foil-screened cable with a compact outer diameer 4,20 mm. The cable is used primarily for the internal wiring of audio and hifi components. It has a memory effect and may be easily laid around the corner. The Cu litz wires of the individual wire pairs are already pre-stranded and may be stripped very easily. For a simpler connection the cable has an extra pre-twisted and tinned drain wire. It is shielded by an AL/PT foil which will automatically stick to the jacket when stripping it down. The SC-ISOPOD SO-F50 has a larger wire cross-section (2 x 0,50 mm?) for crimp contacts. Advantages: Quick and easy to handle Robust plastic jacket for long life Easy to lay thanks to memory effect Application: Internal wiring of racks, audio and hifi components Building Installation Specifications: Name SC-Isopod SO-F50 Properties Analog Properties OFC oxygen free copper Application area Installation Application Patch cable Colour grey Colour detailed grey Signal transmission symmetrical Construction (2LI2Y0,50mm)(ST)Y Jacket material PVC Jacket [mm] 4,20 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm] 0,50 Inner conductor (audio) [mm] 0,80 AWG (audio) 21 Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated Copper strands (audio) 7 Copper strand (audio) [mm] 0,30 Conductor insulation material PE Conductor insulation [mm] 1,50 Weight per 1 m [g] 58 Fire load per m [kWh] 0,07 Style variant round Shielding factor [%] 100 Packing 200 m spool Temperature min. [C] -25 Temperature max. [C] 70 Width [mm] 4,2 Height [mm] 4,2 Capac. cond./cond. per 1 m (audio) [pF] 100 Capacity wire/wire at 1 ft. (audio) [pF] 30,48 Capac. cond./shield. per 1 m (audio) [pF] 160 Capacity wire/electic screen at 1 ft. (audio) [pF] 48,768 Insulation resist. per 1 km [G] 0,2 Insulation resist. per 1000 feet [G] 0,061 Insulation resist. per 1 km (audio) [G] 0,2 Insulation resist. per 1000 feet (audio) [G] 0,061 Conductor resistance per 1 km 39 Conductor resistance per 1000 ft. 11,8872 Shield. resistance per 1 km 75 Shield. resistance per 1000 ft. 22,86 EAN 4049371004619 Fca

***Price Is Per Meter*** Two friends we must be... and fit into two connectors. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA connector. Advantages: Highly flexible due to the use of a cold-resistant and soft PVC jacket Multiple applications, as the individual wires can be separated anytime Application: Wiring of stereo microphones Assembly of insert cable Specifications: Article number 200-0552 Name SC-Peacock MKII EAN 4049371002073 Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Stage / live Application Patch & Microphone Cable Colour blue Colour detailed blue Signal transmission symmetrical Construction [2(2LI2Y0,22mm²)DY]Y Jacket material S-PVC Number of Channels (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) [mm²] 0,22 Inner conductor Ø (AES/EBU, DMX) [mm] 0,53 AWG (AES/EBU, DMX) 24 Shielding Copper spiral sleeve Shielding factor [%] 95 Copper strands (AES/EBU, DMX) 28 Copper strand Ø (AES/EBU, DMX) [mm] 0,10 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,30 Weight per 1 m [g] 53,6 Fire load per m [kWh] 0,18 Style variant twin Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 9,2 Height [mm] 4,5 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 70 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 21,336 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 125 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 38,1 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,5 Insulation resist. per 1000 feet [GΩ] 0,1524 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,5 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,1524 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 Shield. resistance per 1 km [Ω] 36 Shield. resistance per 1000 ft. [Ω] 10,9728 BPVo-Euroclass Fca

***Price Is Per Meter*** Two friends we must be... and fit into two connectors. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA connector. Advantages: Highly flexible due to the use of a cold-resistant and soft PVC jacket Multiple applications, as the individual wires can be separated anytime Application: Wiring of stereo microphones Assembly of insert cable Specifiactaions: Article number 200-0551 Name SC-Peacock MKII EAN 4049371000512 Properties OFC oxygen free copper Properties Analog Properties Digital 110 Ω AES / EBU Application area Studio / Broadcast Application area Stage / live Application area Installation Application Patch & Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction [2(2LI2Y0,22mm²)DY]Y Jacket material S-PVC Number of Channels (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) 2 Inner conductor (AES/EBU, DMX) [mm²] 0,22 Inner conductor Ø (AES/EBU, DMX) [mm] 0,53 AWG (AES/EBU, DMX) 24 Shielding Copper spiral sleeve Shielding factor [%] 95 Copper strands (AES/EBU, DMX) 28 Copper strand Ø (AES/EBU, DMX) [mm] 0,10 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,30 Weight per 1 m [g] 53,6 UV-resistant yes Fire load per m [kWh] 0,18 Style variant twin Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 9,2 Height [mm] 4,5 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 70 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 21,336 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 125 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 38,1 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,5 Insulation resist. per 1000 feet [GΩ] 0,1524 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 0,5 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,1524 Conductor resistance per 1 km [Ω] 90 Conductor resistance per 1000 ft. [Ω] 27,432 Shield. resistance per 1 km [Ω] 36 Shield. resistance per 1000 ft. [Ω] 10,9728 BPVo-Euroclass Fca

***Price Is Per Meter*** The memory cable... Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The  SC-Isopod SO-F22  is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it. Advantages: Quick and easy to handle Robust plastic jacket for long life Easy to lay thanks to “memory effect” Application: Internal wiring of racks, audio and hifi components Specifications: Article number 200-0404 Name SC-Isopod SO-F22 EAN 4049371004527 Properties OFC oxygen free copper Properties Analog Application area Installation Application Patch cable Colour green Colour detailed green Signal transmission symmetrical Construction (2LI2Y0,22mm²)(ST)Y Jacket material PVC Jacket Ø [mm] 3,30 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material PE Conductor insulation Ø [mm] 1,12 Weight per 1 m [g] 16 Fire load per m [kWh] 0,05 Style variant round Packing 200 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 3,3 Height [mm] 3,3 Capac. cond./cond. per 1 m (audio) [pF] 74 Capacity wire/wire at 1 ft. (audio) [pF] 22,5552 Capac. cond./shield. per 1 m (audio) [pF] 143 Capacity wire/electic screen at 1 ft. (audio) [pF] 43,5864 Insulation resist. per 1 km [GΩ] 0,2 Insulation resist. per 1000 feet [GΩ] 0,061 Insulation resist. per 1 km (audio) [GΩ] 0,2 Insulation resist. per 1000 feet (audio) [GΩ] 0,061 Conductor resistance per 1 km [Ω] 88 Conductor resistance per 1000 ft. [Ω] 26,8224 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca
