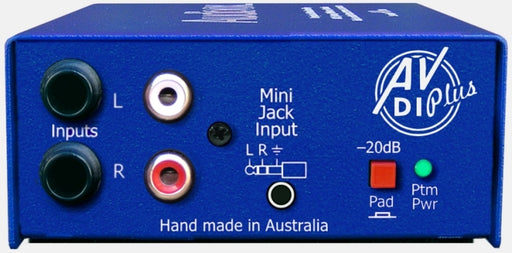

Introducing the new AV-DI Plus Stereo Audiovisual Active Direct Box …the only AV-DI box you'll need! The new AV-DI Plus from ARX Systems is a stereo Audio Visual Active Direct box, featuring industry standard dual 6.5mm, RCA and stereo mini jack inputs and dual balanced XLR outputs. This latest addition to the Audibox™ range is designed as a straightforward solution for interfacing computer sound cards, smart phones, iPads and similar devices with professional sound systems. Finished in a heavy-duty all-steel chassis and with a fibreglass PCB, the compact AV-DI Plus is built to last. The AV-DI Plus features a -20dB input Pad & Mono output switch plus Phantom or 12 - 18V DC power options. Applications: Sound Reinforcement, Broadcast, Studio, Corporate, IT and AV. Features and benefits of the AV-DI Plus : The AV Plu s converts Unbalanced Audio signals to Balanced, Low Impedance signals suitable for use with professional equipment and long cable runs. Switchable Ground isolation provides low-noise operation suitable for any application, preventing ground loops and other extraneous noise. The AV Plus features industry standard dual 6.5mm, RCA and a stereo mini jack input and dual balanced Amphenol XLR outputs. As an added feature, for those applications including Corporate AV and Computer interfacing the AV Plus also features a Mono'ing switch allowing Stereo signals to be easily summed to mono, thereby requiring only one mixer channel for playback Optional bracket kit for under-table security mounting. Specifications: Input Impedance: 47K Ohms unbalanced, all inputs Max Input Level: Line +8 dB with Pad switch Out, + 28dB with Pad switch In Gain through Unit: 6dB, Pad switch Out; -14dB Pad switch In Output Noise: -90 dB Unweighted, -96 dB 'A' weighted, inputs loaded Frequency Response: 20 - 20 KHz ± 0.3 dB Power Requirements: 48V Phantom power on XLR pins 2 and 3; 12-18V DC from external supply Input Connectors: Left and Right RCA (phono) connectors, plus Tip-Ring-Sleeve Mini Jack Output Connectors: Dual 3 pin XLR wired Pin 1 Ground, Pin 2 + Hot, Pin 3 – Cold. Construction: All-steel chassis, fibreglass PCB

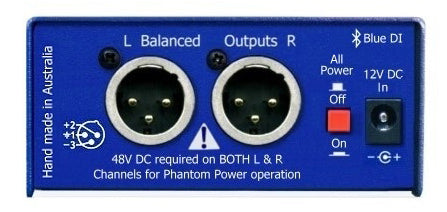

Blue DI Wireless Direct Box Smart Phones and Tablets have rapidly become the audio source of choice for Corporate A.V Presentations, Seminars, System Demonstrations and Testing, Musicians, D.Js and many other audio system users. Designed by the ARX Engineering team to fill the market niche for a wireless Active Direct Box interface, the new Blue DI connects today's (and tomorrow's) SmartPhones, Tablets and similar devices, to the Balanced Line Level Pro Audio world. Simply place your wireless enabled SmartPhone, PC or tablet near the Blue DI, scan for 'ARX Blue DI', and then pair with it. Pull up a music file, press PLAY, and that's all there is to it! Ultra low noise and distortion circuitry, plus electronically Balanced XLR outputs complete the Blue DI package. Features: Muliple power options - Phantom Power and12 V DC Wireless connection - allows many portable media devices to still charge while playing Electronically Balanced Outputs with 200 Ohms output impedance lets you drive long cable runs without signal loss Ultra low distortion (.01% @ 0dB out) circuitry , with a Frequency Response of 20 Hz to 20 KHz ±1dB The Blue DI is fitted into a Heavy duty all-steel chassi s finished in attractive textured blue polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad Optional bracket kit for under-table mounting. Analog Specifications: Gain: Nominally unity with source device Outputs: Stereo Balanced - 200 Ohms output impedance Pin 1 Ground Pin 2 + Signal Pin 3 – Signal Power Requirements: +48VDC Phantom Power - Please Note that both Left and Right XLR outputs must have 48 VDC Phantom applied +12VDC socket for External 'Wall Wart' power supply Receiver Specifications: Range: Approx 12 metres LED Indicators: Scan Red LED Red LED Flashes Lock Blue LED Matching/Pairing: Blue LED Flashes Matched/Paired: Blue LED On Frequency: 2.402 - 2.480 GHz Sensitivity: -90dBM @0.1% BER Construction: All-steel polyurethane coated chassis, fibreglass PCB

About the BSX16 The NEW ARX BSX16 Active Microphone/Line Splitter has been developed to deliver the performance required by the increasingly sophisticated level of today’s standards of E.N.G and broadcast audio production. 16 Output splits The BSX16 is a single channel 16 way active press/broadcast splitter with transformer balanced and isolated Output Splits. Although a single channel unit, there are Dual inputs with individual Gain and Level controls, for use when using lecterns with dual microphones. Dual Loop Outputs are available to connect the BSX16 to additional units, or for the dual inputs to continue on to a mixing console. An additional XLR PA Output connector is available on the rear panel for basic system connection. Numbered marker panels above or below each split provide a space where individual connections can be noted. Splits 1–8 are at Line level, and splits 9–16 are switchable mic or line level. There is a –20 dB input Pad switch, plus silently switchable 48V Phantom power, LED metering (–40dB, 0dB and +6dB) and a separate Pre-Fade headphone level control and socket, for signal monitoring. Internals Internally, powerful RF input filtering removes both common mode and differential interference at ultrasonic frequencies and above. High CMRR is achieved by the use of precision components throughout. The BSX16 ’s internal transformer based power supply is double shielded to get the maximum benefit from the ultra low noise design of the circuitry. To sum up, this feature packed two RU device is the answer wherever multiple transformer output splits from up to 2 input signals are required. The ultra low noise design and intuitive, 'user friendly' layout of the BSX16 provide flawless audio performance in any professional application. Every BSX16 is hand soldered, with a 48 hour burn in followed by a 100% re-test and visual PCB QC check prior to shipping. Features: 16 way active press/broadcast splitter with transformer isolation Splits 1–8 Line level out; splits 9–16 switchable mic or line level Dual inputs with individual Gain and Level controls Dual Loop Outputs Additional XLR PA Output connector on rear Ultra low noise design 'SilentSwitch' 48v Phantom Power switching –20 dB pad switch on Inputs Headphone monitoring LED meter on Output Electronically Balanced Inputs Transformer isolated Outputs Intuitive, 'user friendly' layout Flawless audio performance Front Panel 1 and 2 XLR Input connectors Pin 3 –, Pin 2 +, Pin 1 Ground 1 and 2 Input Gain trim controls 1 and 2 Output level controls 1 and 2 Output Loop XLR connectors 1–16 Balanced XLR Output splits. Pin 3–, Pin 2 +, Pin 1 No Connection Mic / Line switches for outputs 9–16 Numbered marker panels for labelling individual splits 'SilentSwitch' 48v Phantom Power switching –20dB pad switch LED metering: -40, 0, and +6dB AC Power connected LED Headphone level control and 6.5mm socket Rear Panel Balanced XLR Output to PA system Pin 3 –, Pin 2 +, Pin 1 Ground IEC 3 pin AC connector and integral fuseholder. Replace fuse with correct value only: 100–120 V AC 5 amp, 220–240 V AC 3 amp. 2 x XLR Balanced Mic/ Line inputs with hardwired XLR loop through outs Specifications: Signal to Noise ratio: (Gain set @ 20 dB) –88dB Unweighted, –94dB ‘A’ weighted Distortion @ Unity Gain: 0.05%, 1 KHz Input Gain: 10dB through to 50dB Input Impedance: 4 K Ohm Input Headroom: +21dB Input Pad: –20dB attenuation Maximum Output: +21dB Output Impedance: 300 Ohm Transformer Balanced Output Level (Max): +20dB Line Out Level –10dB Mic Output level Frequency Response: 40Hz – 20KHz ±0.5 dB Phantom Power: Switchable Global +48VDC slow turn on/turn off Transformer Type: Low noise shielded 16 Transformer Isolated Outputs Outputs 1 - 8: are Line Level (0dB) Outputs 9 - 16: are Switchable Mic (-30dB) Line (0dB) Output Level Dynamic Range: 109 dB Output Section: Headphone Volume and Output: for audible monitoring of signal Headphone Output 500mW @ 8 ohms output Headphone Connector: 6.5mm TRS Jack wired mono LED output level: indicators: -40dB, 0dB, +6dB Rear Panel: Output to PA system or Self Powered Loudspeakers at Line Level - Balanced Male XLR Output Impedance: 300 Ohms Max Output: + 21dB AC Mains Input: Fused IEC socket AC Power: 100-120V AC 2 amp 220-240V AC 10 VA. Replace fuse with correct value only: 100–120 V AC 2 amp, 220–240 V AC 1 amp. Size: 2 RU - 19”W x 3½”H x 8”D, 482 x 89 x 200 mm Weight: 12 lbs (5.5 Kg)

Phantom and Rechargeable NiMH battery powered in a rugged steel chassis, with separate Speaker Level input connector. Working with the pedigree of our industry standard DI Plus and DI Plus 2 Direct Boxes, we've redesigned and updated our circuitry and packaging, and the end result is our new DI Plus RC Direct Box. As a manufacturer, ARX is well aware of the problems of disposing of batteries in an environmentally friendly way so we've powered the DI Plus2 RC with an internal long life NiMH (Nickel Metal Hydride) rechargeable battery that can be charged off either the phantom power on the mic line, or via the 12V DC input, removing battery "throw away" as an issue. The new DI Plus RC features a low noise high impedance input buffer with switchable 20dB Pad, and a low distortion high current output stage able to drive the longest cable runs. It represents another major step forward in active direct boxes. Packaged in a single channel stand-alone format, the DI Plus RC represents a fresh look at active D.I. concepts. Precision engineered Ultra quiet, ultra clean circuitry delivers maximum headroom whatever the signal. Premium grade components, plus an all-steel chassis gives excellent hum and noise specifications and superb audio quality in a tough, roadworthy package. Level control The DI Plus RC features a Normal gain high impedance unbalanced input on the front panel, running to a balanced XLR output on the rear. There is also a separate -40dB Speaker Level input for signal coming from the External (auxiliary) speaker output of an amplifier. A global Pad switch drops both the normal input and the speaker input by a further 20dB, making it suitable for all applications, from the softest keyboard to the hottest broadcast levels. The DI Plus RC will automatically switch itself to the console's own Phantom Power, if available, and an LED will indicate this mode. Turn the Phantom Power off and it will instantly revert back to battery mode. Rugged all-steel case A lot of direct boxes are fitted into brittle cast alloy cases. Not this one! The tough all-steel inner and outer chassis of the DI Plus RC provide excellent RF/EMF shielding while making it a sturdy, heavy duty unit that is hard to dislodge, and hard to leave behind. Whether you're a Studio or Live Sound engineer, installation contractor, or broadcast engineer, you want all the dynamics and clarity of the original sound source transferred to the mixing console. The ARX DI Plus RC provides a rugged, no-compromise solution to all direct injection and signal balancing requirements. Specifications: Input Impedance: 1 Meg Ohm Max Input Level +13 dB Phantom powered +6 dB Battery powered Max Output Level: +17 dB 10K Ohm load Phantom powered +12 dB 10K Ohm load Battery powered +11 dB 600 Ohm load Phantom powered +12 dB 600 Ohm load Battery powered Output Impedance: 680 Ohms Balanced Output Signal to Noise: -100 dB unweighted -104 dB A weighted Dynamic Range: 117 dB 10K Ohm load Phantom powered 112 dB 10K Ohm load Battery powered 111 dB 600 Ohm load Phantom powered 107.5 dB 600 Ohm load Battery powered Distortion: 100 Hz .0027%, 1KHz .0028%, 10KHz .0037% Frequency Response: 20Hz to 20KHz, ± 0.2 dB Gain through Unit: 6dB (Normal input, Pad switch out) Pad Switch : -20 dB attenuation Speaker Input: -40 dB attenuation, equivalent to 100:1 decrease in input level -60 dB attenuation available with Pad switch Input Connectors: Insulated jacks ( !!! Note that the Input connectors switch the unit on when a plug is inserted. Remove plug when storing to avoid battery drain !!! ) Output Connector: 3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. With Audio Ground (Pin 1) lift switch Construction: All-steel chassis, fibreglass PCB, NiMH battery

Ear Driver The ARX Ear Driver is an ultra compact Headphone monitoring breakout box, allowing you to independently adjust the audio levels of up to 4 sets of headphones. Internally, stereo true Class AB amplifiers drive the headphones, for pristine audio reproduction Expanded Input Options As well as Left and Right 6.5mm (1/4") jack inputs, there is also a stereo Mini jack input, making the unit usable with any portable media player. Inserting a 6.5mm/1/4" into the Left Input only will Mono all Outputs for added flexibility. The Ear Driver 's heavy duty all-steel chassis is finished in attractive matt textured blue polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. The Ear Driver requires 9 - 15V DC power to operate. This can be supplied from any well regulated 9 or 12 Volt wall mounted DC power supply, with the connector wired Centre Pin positive (+) and Outer Sleeve negative (–). Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Feature packed, compact and powerful, the intuitive ARX Ear Driver is a true professional Four channel headphone amplifier for any individual mionitoring application. Specifications: Inputs: 40 K Ohms Balanced, 20 K Ohms Unbalanced Stereo Headphone Outputs: 4 independent stereo power amplifiers each delivering 1 watt @ 8 ohms max. Frequency Response: 20 Hz - 20 KHz ± .5dB Distortion: Max .1% prior to clipping. Power Requirements: 12V DC from external supply, wired Centre Pin positive (+) and Outer Sleeve negative (–). Input Connectors: Mini-jack stereo connector, Insulated Left and Right jack connectors. Inserting 1/4" jack into Left Input only will mono all Outputs for added flexibility. Output Connectors: Insulated Tip-Ring-Sleeve jack. Wired Tip - Left out, Ring - Right out, Sleeve - Ground / Earth x 4 channels Construction: All-steel chassis, fibreglass PCB; External 12 V DC power supply required for operation

Audibox ISO Balancer The Balancer will convert an Unbalanced Low Impedance signal to a Balanced Low Impedance signal suitable for use with professional equipment and long cable runs. Transformer Ground isolation provides low-noise operation suitable for any application Heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Gain Balancer Dual Channel unit only Applications Any consumer-to-pro interfacing Especially suited to sending Audio-for-Video around venues for AV displays, plasma screens, etc when used with the Audibox De-Balancer Specifications: Input Impedance: 10K Ohms Unbalanced Output Impedance: 10K Ohms Balanced Input Level (max): +12dB Frequency Response: 20Hz - 20 KHz ± 0.5dB Distortion: 0.2% Maximum THD, 0dB 1KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm load) Input Connector: stereo RCA connectors. RCA Ground connected to XLR Pin 1 Output Connector: 3 pin male XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Construction: All-steel powdercoated chassis, fibreglass PCB

Audibox ISO Balancer DI The Iso Balancer DI converts Unbalanced Audio signals to Balanced, Low Impedance signals suitable for use with professional equipment and long cable runs. Transformer Ground isolation provides low-noise operation suitable for any application, preventing ground loops and other extraneous noise. The Iso Balancer DI features industry standard 6.5mm Jack, RCA and 3.5mm Jack inputs to cover all plug types, and transformer balanced Left and Right XLR outputs. As an added feature, for those applications including Corporate AV and Computer interfacing the Iso Balancer DI also features a Mono'ing switch allowing Stereo signals to be easily mono'd. The heavy duty all-steel chassis is finished in attractive matt textured blue powdercoat, with hardwearing epoxy screen printing and a large slip resistant rubber pad underneath. The Iso Balancer DI is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Available in Dual Channel format only Dual Channel unit only Applications Any consumer-to-pro interfacing Corporate AV use Computer interfacing Specifications: Input Impedance: 10K Ohms Unbalanced Output Impedance: 10K Ohms Balanced Input Level (max): +12dB Frequency Response: 20Hz - 20 KHz ± 0.5dB Distortion: 0.05% Maximum THD, 0dB 1KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm load) Insertion Loss - Mono Switch in –4dB Input Connectors: Stereo RCA connectors, plus 6.5mm Mono Jacks (Left & Right) Sleeve - Ground, Tip + signal 3.5mm Stereo Jack wired Tip - Left, Ring - Right, Sleeve - Ground / Earth Output Connectors: 3 pin Amphenol male XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Construction: All-steel blue polyurethane coated chassis, fibreglass PCB Input and Output grounds have both resistive and capacitive coupling for RFI suppression.

Audibox ISO Balancer VC The NEW ISO Balancer VC still converts a stereo Unbalanced Low Impedance signal to a stereo Balanced Low Impedance signal suitable for use with professional equipment and long cable runs, but now you can reduce the output level as required for accurate level matching. Applications include: In corporate AV applications the output from a DVD player, Laptop Computer, i-Pad or other audio source can be remotely controlled externally by the ISO Balancer VC without the need to scroll through pull down menus mid performance, or access the Mixing Console, or AV system network controllers. Setting and varying DJ monitor loudspeaker levels can be problematic, since most DJ Mixers only have 1 variable master output and a non variable output. The ISO Balancer VC allows the monitor volume to be controlled by the DJ, and provides transformer isolation to eliminate ground loop hums. Controlling the volume of powered loudspeakers, especially in installations can be difficult when being fed by CD Players etc, which normally have no output level control. CD player outputs can be connected to the RCA inputs of the ISO Balancer VC , and the Balanced XLR outputs then go to the inputs on a mixer or a pair of powered speakers over long cable runs, without introducing ground hums and other interference. The level can be adjusted from maximum down to zero with the volume control on the ISO Balancer VC . Transformer Ground isolation provides low-noise operation suitable for any application, and an Audio Ground lift switch is also fitted, to minimise/remove ground loop hum. Switch in or out as required. The ISO Balancer VC is a totally passive device with no power requirements, making it a truly universal problem solver. Its heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber basepad. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Applications Any consumer-to-pro interfacing eg. - CD/DVD player to Balanced Input, DJ console monitor speaker feed Level Control at the point of balancing Specifications: Input Impedance: 10K Ohms Unbalanced Output Impedance: 10K Ohms Balanced Input Level (max): +12dB Frequency Response: 20Hz - 20 KHz ± 0.5dB Distortion: 0.2% Maximum THD, 0dB 1KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm load) Input Connector: stereo RCA connectors. RCA Ground connected to XLR Pin 1 Output Connector: 3 pin male XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Construction: All-steel powdercoated chassis, fibreglass PCB

ISO Combiner The ISO-Combiner is a new transformer isolated combiner for the Audibox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one silently and easily. A pair of transformer balanced female XLR inputs combine to deliver a single transformer isolated male XLR output in this essential audio package. Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Combiner is a totally passive device with no power requirements, making it a universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The DUO version has a second input and output set on the rear, making it doubly useful. Specifications: Input Impedance: 600 Ohms Balanced Max Input Level: +20 dB THD: Max 0.2% 30Hz to 20 KHz Frequency Response: 20 - 20 KHz ± 0.5 dB Insertion Loss: < 6dB @ 1 KHz (600 Ohm source/load) Power Requirements: None Input Connectors: 2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 – Cold. Output Connectors: Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 – Cold. Construction: All-steel powdercoated chassis chassis, fibreglass PCB, ultra low noise audio transformers Please Note When combining Unbalanced Inputs, Pins 1 and 3 should be bridged and the Ground wired to Pin 3.

ISO Combiner The ISO-Combiner is a new transformer isolated combiner for the Audibox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one silently and easily. A pair of transformer balanced female XLR inputs combine to deliver a single transformer isolated male XLR output in this essential audio package. Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Combiner is a totally passive device with no power requirements, making it a universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The DUO version has a second input and output set on the rear, making it doubly useful. Specifications: Input Impedance: 600 Ohms Balanced Max Input Level: +20 dB THD: Max 0.2% 30Hz to 20 KHz Frequency Response: 20 - 20 KHz ± 0.5 dB Insertion Loss: < 6dB @ 1 KHz (600 Ohm source/load) Power Requirements: None Input Connectors: 2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 – Cold. Output Connectors: Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 – Cold. Construction: All-steel powdercoated chassis chassis, fibreglass PCB, ultra low noise audio transformers Please Note When combining Unbalanced Inputs, Pins 1 and 3 should be bridged and the Ground wired to Pin 3

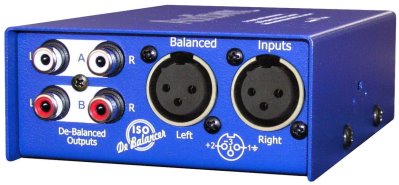

Audibox ISO De-Balancer A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the other end This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Available in Dual Channel format only. Applications Any pro audio-to-consumer interfacing; Especially suited to receiving Audio-for-Video around venues for AV displays, plasma screens, etc when used with the Audibox Balancer or Optimizer. Specifications: Input Impedance: 10K Ohms Balanced Output Impedance: 10K Ohms Unbalanced Input Level (max): +12dB Frequency Response: 20Hz - 20 KHz ± 0.5dB THD at Max Output: 0.2% 30 Hz - 20KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source) Input Connector: 3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Chassis Ground connected to XLR Pin 1 Output Connectors: Dual stereo RCA connectors Construction: All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer

ISO Later A transformer isolated de-coupler, for removinging Ground loops and for use in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Later is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Available in Single Channel or Double Header format. Specifications: Input Impedance: 600 Ohms Output Impedance: 600 Ohms Frequency Response: 20Hz - 20 KHz ± 0.1dB Maximum Output Level: + 24dBm THD at Max Output: 0.2% 30 Hz - 20KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected Ground Reference: Chassis is grounded to Output Pin 1; Duo version chassis is grounded to Channel 1 Output Pin 1 Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer

ISO Later A transformer isolated de-coupler, for removinging Ground loops and for use in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Later is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Available in Single Channel or Double Header format. Specifications: Input Impedance: 600 Ohms Output Impedance: 600 Ohms Frequency Response: 20Hz - 20 KHz ± 0.1dB Maximum Output Level: + 24dBm THD at Max Output: 0.2% 30 Hz - 20KHz Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected Ground Reference: Chassis is grounded to Output Pin 1; Duo version chassis is grounded to Channel 1 Output Pin 1 Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer

ISO S elector The simplest ideas are usually the best! The new ISO Selector is a stereo Output signal switcher for the extremely popular Audibox range. A front panel push switch silently switches a pair of female XLR inputs to either of A or B pairs of XLR male output connectors. ARX ‘SoftSwitch’ technology achieves this with no loud transients or bangs through the audio system when switching. Typical applications include switching between loudspeaker speaker systems, or between monitor speakers, equipment testing, and lots more. Note - Connectors are inserted from the top of the unit. Please allow adequate space above the ISO Selector to allow for the connectors to be removed and / or replaced. ISO Selector Stereo Output selector. A front panel push switch silently switches a pair of female XLR inputs to either A or B pairs of XLR male output connectors. Very simple but very effective! Specifications: Frequency Response: DC to Daylight ± 0.0dB Power Requirements: None, passive unit. Input Connectors: 2 x Left and Right Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold. Output Connectors: 2 x A and B Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold. Chassis: Is grounded and earthed via Pin 1 Ch A input Female XLR Connector Construction: All-steel chassis, textured blue polyurethane paint, epoxy printining, fibreglass PCB

ISO Splitter A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 20Hz - 20 KHz ± 0.1dB Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 1.6dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected Ground Reference: Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1 Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer

ISO Splitter Duo A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 20Hz - 20 KHz ± 0.1dB Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 1.6dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected Ground Reference: Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1 Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer

ISO Switcher The simplest ideas are usually the best! The new ISO Switcher is a stereo Input signal switcher for the extremely popular Audibox range. A front panel push button switch silently switches between two pairs of A or B female XLR inputs to a stereo pair of XLR male output connectors. ARX ‘SoftSwitch’ technology achieves this with no loud bangs through the audio system when switching. Typical applications include switching between Live Band or DJ when both are using the same speaker system. Note - Connectors are inserted from the top of the unit. Please allow adequate space above the ISO Switcher to allow for the connectors to be removed and / or replaced. Specifications: Frequency Response: DC to Daylight ± 0.0dB Power Requirements: None Input Connectors: Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold. Output Connectors: Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold. Construction: All-steel chassis, blue textured polyurethane paint, epoxy printing, fibreglass PCB

For the Installation Contractor, accurately mixing line level audio signals has never been easy. Using the wrong product can lead to lack of headroom, vastly differing input levels, uneven output levels, RF breakthrough - the problems have been seemingly endless. Until now, that is! The Solution Introducing the MaxiMIX from ARX: Two independent mixdown groups, each consisting of 4 line inputs with individual level controls and RF filters. Both groups can be linked for a Mono 8 channel mix. Each input has up to +6dB of gain available, and full attenuation to allow matching of any line level signals. Balanced Inputs and Outputs In Stereo mode, each of the 4 electronically balanced inputs combine into fully balanced Master outputs, each of which has 2 male XLR sockets. In Mono mode all Eight inputs mix down to a single linked pair of Master outputs Wide Dynamic Range Internally, careful attention to the signal path design has resulted in a unit with wide dynamic range, enough headroom to cope with the hottest line signal, and better than digital noise specifications Universal AC Power AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch. Applications A typical MaxiMIX application would be as an Installation Master Mixer, combining Live Band Mix, Disco, KTV and Audio-for-Video signals. In this way they can all run independently of each other through the one speaker system. Other applications include using it as a line sub-mixer for external effects units, and as a Keyboards, Drum machines or other Electronic Instruments sub-mixer. Accurate and compact, the MaxiMIX's unique combination of ultra low distortion, low noise and high headroom makes it the ideal installation line mixer. Front Panel Controls Individual Level controls for all 8 input channels Mode status LEDs Marker panel for labelling input channels Rear Panel Balanced Inputs and Outputs, on Balanced XLR connectors Switch for 4 channel stereo mixer mode or 8 channel mono mixer mode AC input connector, with voltage switch and fuse Specifications: Modes of operation: 2 x 4:1 Line Mixer, 1 x 8:1 Line Mixer Input Impedance: 44K Ohms Balanced, 22K Ohms Unbalanced Input Headroom: +21dB Output Level: +26dB Output Signal/Noise (@ unity gain): -95dB unweighted, 101dB A weighted Output Impedance: 300 Ohms Balanced, 150 Ohms Unbalanced Dynamic Range: 120dB Frequency Response: 20Hz-20 KHz -1dB Distortion (@ unity gain: 100Hz .0035% 1KHz .0033% 10KHz .0037% Input Connector Type: Female XLR Output Connector Type: Male XLR

In the modern multi-zone Installation audio environment it has become a fact of life that one signal now has to go to more than one place, and usually at differing levels. And, to ensure a low noise floor and good frequency response, the split signal needs to be buffered and balanced as well. The Solution To fulfil this seemingly simple but important signal splitting task, ARX have designed the MaxiSPLIT : - two independent channels of 1 into 4 Splitters, switchable to a single channel 1 into 8 Splitter by using the rear panel channel link switch. Mode status is shown by the front panel LED indicators. Balanced Inputs and Outputs Each channel features Male and Female electronically balanced XLR inputs, with passive RF filtering to prevent RF breakthrough. Each output features an electronically balanced Male XLR output with individual output gain control on the front panel, providing up to +6dB of gain. Wide Dynamic Range Internally, careful attention to signal path design has resulted in a unit with wide dynamic range, enough headroom to cope with the hottest line signal, and better than digital noise specifications. Universal AC Power AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a standard IEC connector, with built-in fuse and voltage change switch Applications A typical MaxiSplit application would be as a Master Line Distribution Splitter. In this way it can control the levels of 4 different zones in a stereo installation, or up to 8 different zones in a mono installation. Other applications include splitting effects sends to multiple effects units in both Studio and Live sound applications, supplying different feeds from the main signal, and separating OB signals in broadcasting. Accurate and compact, the MaxiSplit's unique combination of ultra low distortion, low noise and high headroom makes it the ideal installation line distribution splitter. Front Panel Controls Individual Level controls for all 8 splits Mode status LEDs Marker panel for labelling split assigns Rear Panel Balanced Inputs and Outputs, on Balanced XLR connectors Switch for 4 x stereo split mode or 8 x mono split mode AC input connector, with voltage switch and fuse Specifications: Modes of operation: 2 channel 1:4 Splitter, 1 channel 1:8 Splitter Input Impedance: 44K Ohms Balanced, 22K Ohms Unbalanced Input Headroom: +21dB Output Level: +26dB Output Signal/Noise (@ unity gain): -95dB unweighted -101dB A weighted Output Impedance: 300 Ohms Balanced, 150 Ohms Unbalanced Dynamic Range: 121dB Frequency Response: 20Hz-20 KHz -.5dB Distortion (@ unity gain): 100Hz .0035% 1KHz .0033% 10KHz .0037% Input Connector Type: Female XLR plus Male XLR Input Loop Output Connector Type: Male XLR

Innovation ARX introduces the MIXX 4 channel Microphone/Line mixer,with 3 way EQ on all four channels, plus Balanced XLR master outputs on the rear. It's the companion product to the MIXXMaster : another innovative mixing product. Use the MIXX for more microphone channels; use the MIXXMaster for more line channels. Great Features Each Microphone/Line input on the MIXX has 3 way EQ and Pan controls, plus Balanced Low Noise Microphone pre-amps. All 4 Channels also have a direct output, ideal for recording applications. Switchable Phantom power is available on all four Mic Inputs AC Power Both the MIXX and MIXXMaster models are available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch. With its superb audio quality, massive headroom and intuitive interface, the MIXXMaster and the MIXX series are the total solution to today’s install requirements. Features Only 1 RU high Balanced XLR Mic Inputs and Outputs 3 way EQ and Pan controls Switchable Phantom power User friendly layout Flawless performance in any audio environment Applications Sound Reinforcement Industrial Paging/BGM Systems AV Systems/CD/VIDEO Clubs/Gyms/Karaoke/Restaurants Studio, Live and Broadcast Submixers Mic Pre-amp/Mixer for Hard disk recording, Modular Digital Multitrack, ADAT Input Gain: Variable 20dB-60dB on each channel by rear panel trim control, plus Mic/Line input switch Channel Level: Infinity to +6dB Gain Channel Pan: True L and R constant level Control Channel EQ: Low 100Hz 15dB Cut/Boost Shelving Mid 800HZ 15dB Cut/Boost Bell, Broad Q High 10KHz 15dB Cut/Boost Shelving Frequency Response: 20-20KHz +or- 1dB Distortion: Below .005% 100Hz to 10KHz Master Outputs Signal/Noise: -90dB unweighted. Phantom Power: +48VDC switchable on all Microphone Inputs Microphone Inputs: Electronically Balanced XLR connector Channel Outputs: 150 Ohms Line Level jack connector Master Outputs: Electronically Balanced XLR 300 ohms Line Level Max Output Level: +20dB AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable

Innovation: SmartPhones, Tablets, Laptops and other Wireless audio and USB enabled devices have rapidly become the program source of convenience for Corporate A.V Presentations, Seminars, Musicians, D.Js, Entertainment Venues, System Demonstrations and Testing, and many other audio playback applications. To cope with all these audio sources. ARX introduces the MIXXMaker - a new multi-channel Mic/Line Master Mixer. This unique device features Wireless audio, USB and MiniJack inputs, 2 Mic/Line inputs, 2 stereo line inputs, and Left/Right (or Zone 1 and 2) Master level controls, as well as an Auxiliary mono output with its own level control. That's a lot of Inputs and a lot of control in a compact, user-friendly unit only 1 RU tall! Great Features The Wireless audio receiver, USB connector and the MiniJack inputs all have their own individual level controls. Each Microphone channel on the MIXXMaker has a Balanced Low Noise Mic input, plus individual Gain and Level controls. The Mic input can also be switched to be a Line input as required. Switchable Phantom power is also available on both Mic Inputs. The Stereo Line Inputs 3/4 and 5/6 each have rear panel input trim controls, as well as front panel output level controls, and their inputs are industry standard RCA type connectors. Additionally there are Left and Right Master controls, and a mono L+R Aux Output with its own level control. The Left and Right Master Output XLR connectors can also be switched to Mono if required, by a rear panel switch. The rear panel also has a connector for a push-to-talk jack, and a Priority override ducker switch for Channel 1. Pressing this switch in will duck the level of the other channels by 20dB when Channel 1 is used. LED Indicators The front panel has LED indicators for Wireless audio (see Specifications below), USB active, Priority Override enabled, Phantom Power enabled, Outputs switched to Mono, and AC power. AC Power It is available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch. The ARX MIXXMaker is an intuitive, user-friendly Master mixer, capable of handling all commonly used current audio interfaces. In other words, a total solution to today’s install requirements. Features Has Wireless audio, USB and MiniJack inputs! Plus 2 x Balanced XLR Mic / Line Inputs Plus 2 x stereo Line In channels Global 3 way EQ control Switchable Phantom power Switchable push-to-talk with a Priority override ducker for Mic channel 1 User-friendly layout in 1 RU package Flawless performance in any audio environment Applications Clubs /Gyms /Karaoke /Restaurants Industrial Paging/BGM Systems AV Systems Broadcast Submixers Sound Reinforcement ...and much, much more Specifications: Microphone Inputs: Electronically Balanced on XLR Connectors Stereo Line Inputs: Line level inputs on RCA Connectors Mic Priority: Switchable Channel 1 override; 20dB attenuation to all other channels Input Gain: Variable 0dB to 60dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB) Channel Level: Infinity to +6dB Gain Mic and Line Channel EQ: Low 100Hz 15dB Cut/Boost Shelving Mid 800HZ 15dB Cut/Boost Bell, Broad Q High 10KHz 15dB Cut/Boost Shelving Frequency Response: 20-20KHz +or- 1dB Distortion: Below .005% 100Hz to 10KHz Phantom Power: +48VDC switchable on all Microphone Inputs Master Outputs: Electronically Balanced XLR 300 ohms Line Level Master Outputs Signal/Noise: -90dB unweighted. Max Output Level: +20dB Wireless Audio Receiver Specifications: Range: Approx 2 - 4 metres Depends on paired source device LED Indicators: Scan Red LED Red LED Flashes Lock Blue LED Matching/Pairing: Blue LED Flashes Matched/Paired: Blue LED On Frequency: 2.402 - 2.480 GHz Sensitivity: -90dBM @0.1% BER USB Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution USB Power: Operating current via USB Port 80mA MIXXMaker AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable

About the MSX 12 The ARX MSX 12 Transformer isolated Microphone/Line Splitter has been developed to deliver noise-free audio splitting with minimal setup time. Its intuitive layout and clear, uncluttered labelling enables a quick and easy solution to the increasing complexity of today’s standards of audio production. The MSX 12 is a totally passive device requiring no power, and consists of Four channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel. On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed. Marker panels on the front provide a space where individual channel connections can be noted. The all-steel chassis of the MSX 12 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation. The MSX 12 is the easy answer to multi channel signal splitting requirements. Features: Four channel / three way split per channel Passive unit - no power required Ultra low noise design Transformer Balanced Inputs and Outputs Inputs and Main Outputs hard wired to pass Phantom Power Intuitive, 'user friendly' layout Flawless audio performance Applications: Houses of worship Conference centres Educational facilities Broadcast splitting Every MSX12 is hand soldered, with a 48 hour burn in followed by a 100% re-test and visual PCB QC check prior to shipping. Front Panel 4 x Hardwired balanced XLR Input and Main Outputs. Pin 3–, Pin 2 +, Pin 1 Ground 4 x Hardwired transformer isolated balanced XLR Monitor Splits. Pin 3–, Pin 2 +, Pin 1 floating (not connected) Marker panel for labelling individual channel assigns Rear Panel 4 x Hardwired transformer isolated balanced XLR Auxiliary Splits. Pin 3–, Pin 2 +, Pin 1 floating (not connected) 2 x D Sub connectors for Monitor Splits 2 x D Sub connectors for Auxiliary Splits Screw Terminal Chassis Ground point Note: No connections to Audio ground Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 30Hz - 20 KHz ± 1dB Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 0.5dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Main Output: 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold Monitor & Aux Output Split: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating. Weight: 5 lbs (2.2 Kg)

Electronically Balanced Main and Monitor Outputs, Transformer Balanced Outputs Splits 1 and 2. Superb Audio Quality Active microphone and line signal splitting has a number of benefits over using passive splitters: primarily these are improved sound quality, noise figures comparable to the best microphone inputs, and increased resistance to RFI. About the MSX 32 With these benefits in mind, the NEW ARX MSX 32 Active Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today’s standards of audio production. The MSX 32 consists of eight channels of actively buffered ultra low noise Microphone/Line Splitter. Each of these channels has two transformer Balanced splits on the front panel and two electronically Balanced outputs on the rear panel for Main and Monitor. These can be optionally transformer Balanced. Each channel has a –20 dB pad switch plus silently switchable 48V Phantom power with indicator LED. A PFL switch and 6 LED metering enables each channel to be easily checked with headphones for signal monitoring, and also for line tracing when troubleshooting. The PFL busses of multiple MSX32 units can be linked by connectors on the rear panel. Gain through the MSX 32 can be set individually by adjusting the rotary Gain control on the front panel of each channel, from 0dB through to +40 dB in 10 dB steps A ‘Link’ switch links each channel to the previous one, providing an ultimate maximum of 32 Outputs from a single input. An indicator LED shows when this is active. A Clip LED indicates imminent signal overload through the channel. Each channel also has a rear panel switch hard-linking the Input to the Main output. Internally, powerful RF input filtering removes both common mode and differential interference at ultrasonic frequencies and above. High CMRR is achieved by the use of precision components throughout. Internal Power Supply and the PSU32 Redundant back-up supply The MSX 32 uses an internal toroidal transformer based power to get the maximum benefit from the ultra low noise design of the splitter circuitry. However, for “critical” applications where systems must keep operating, we recommend including the PSU 32 redundant power supply unit. Individual +V, -V and 48VDC rail LED indicators show when the PSU 32 redundant power supply unit is connected to the MSX 32. An illuminated power switch on the front panel provides visual confirmation of AC power connection to the unit. The headphone output and the 6 LED PFL metering are both mounted on the right hand side of the front panel. Rear panel connectors enable this function to be linked when using multiple MSX 32 units. To sum up, this feature packed two RU device is the answer wherever transparent signal buffering and routing is required. Features: Eight channel / four way split per channel Channels linkable up to 1 in, 32 out Ultra low noise design 'SilentSwitch' Phantom Power switching –20 dB pad switch 0 to +40 dB Gain on front panel rotary switches Headphone monitoring and PFL metering Electronically Balanced Inputs with transformer Balanced A and B front splits (standard) Transformer Balanced Outputs option for Main and Monitor Optional PSU 32 redundant power supply for critical 'must run' situations Intuitive, 'user friendly' layout Flawless audio performance Front Panel Rotary Gain switches: 0dB, +10, +20, +30, +40 A and B transformer balanced XLR Output splits Channels 1 through 8. Pin 3–-, Pin 2 +, Pin 1 Not Connected PFL (Pre Fade Listening) switch 48V Phantom Power switch and LED Link to previous channel switch and LED –20dB pad switch and LED Headphone level control Headphone socket 6 LED PFL metering: -40, -12, -6, 0, +3 and +6dB Status LEDs to indicate PSX32 Backup/redundant power supply is connected Illuminated AC power switch Rack handles Rear Panel Balanced XLR Input Channels 1 through 8. Pin 3 –, Pin 2 +, Pin 1 Ground Input Direct to Main Output switch Balanced XLR Main (FOH) Output (same wiring as Input) Channels 1 through 8 Balanced XLR Monitor Output (same wiring as Input) Channels 1 through 8 PFL Input and Output loop XLR connectors. Pin 3 –, Pin 2 +, Pin 1 Ground Aux PSU 5 pin XLR type connector from PSU32 Redundant Power Supply. – Pin 1: + VDC, Pin 2: – VDC, Pins 3 and 4: Ground, Pin 5 +48V IEC 3 pin AC connector and integral fuseholder. Replace fuse with correct value only: 220–240 V AC 1 amp, 100–120 V AC 2 amp. Specifications: Signal / Noise Ratio: -94dB Distortion: .008% 1KHz; Split, Main and Monitor 0.003% Gain through Unit: Switchable 0, +10, +20, +30, +40 dB Maximum Output: +24dB Pad Switch: –20dB attenuation Phantom Power: +48VDC slow turn on/turn off Output Impedance: Front - 600 Ohm Transformer Balanced; Rear - 100 Ohms Electronically Balanced (Optional 600 Ohm Transformer balancing available) Clip LED 1dB before clipping Headphones: 1 watt/8 ohms AC Mains Input: Fused IEC socket with removable power lead AC Power: Fixed: 220-240V AC 1 amp, 100-120V AC 2 amp Transformer Type: Low noise shielded toroidal Size: 2 RU - 19”W x 3½”H x 8”D, 482 x 89 x 200 mm Weight: ~ 15 lbs (~7 Kg) model dependent

Transformer Balanced All Outputs. Superb Audio Quality Active microphone and line signal splitting has a number of benefits over using passive splitters: primarily these are improved sound quality, noise figures comparable to the best microphone inputs, and increased resistance to RFI. About the MSX 32 With these benefits in mind, the NEW ARX MSX 32 Active Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today’s standards of audio production. The MSX 32 consists of eight channels of actively buffered ultra low noise Microphone/Line Splitter. Each of these channels has two transformer Balanced splits on the front panel and two electronically Balanced outputs on the rear panel for Main and Monitor. These can be optionally transformer Balanced. Each channel has a –20 dB pad switch plus silently switchable 48V Phantom power with indicator LED. A PFL switch and 6 LED metering enables each channel to be easily checked with headphones for signal monitoring, and also for line tracing when troubleshooting. The PFL busses of multiple MSX32 units can be linked by connectors on the rear panel. Gain through the MSX 32 can be set individually by adjusting the rotary Gain control on the front panel of each channel, from 0dB through to +40 dB in 10 dB steps A ‘Link’ switch links each channel to the previous one, providing an ultimate maximum of 32 Outputs from a single input. An indicator LED shows when this is active. A Clip LED indicates imminent signal overload through the channel. Each channel also has a rear panel switch hard-linking the Input to the Main output. Internally, powerful RF input filtering removes both common mode and differential interference at ultrasonic frequencies and above. High CMRR is achieved by the use of precision components throughout. Internal Power Supply and the PSU32 Redundant back-up supply The MSX 32 uses an internal toroidal transformer based power to get the maximum benefit from the ultra low noise design of the splitter circuitry. However, for “critical” applications where systems must keep operating, we recommend including the PSU 32 redundant power supply unit. Individual +V, -V and 48VDC rail LED indicators show when the PSU 32 redundant power supply unit is connected to the MSX 32. An illuminated power switch on the front panel provides visual confirmation of AC power connection to the unit. The headphone output and the 6 LED PFL metering are both mounted on the right hand side of the front panel. Rear panel connectors enable this function to be linked when using multiple MSX 32 units. To sum up, this feature packed two RU device is the answer wherever transparent signal buffering and routing is required. Features: Eight channel / four way split per channel Channels linkable up to 1 in, 32 out Ultra low noise design 'SilentSwitch' Phantom Power switching –20 dB pad switch 0 to +40 dB Gain on front panel rotary switches Headphone monitoring and PFL metering Electronically Balanced Inputs with transformer Balanced A and B front splits (standard) Transformer Balanced Outputs option for Main and Monitor Optional PSU 32 redundant power supply for critical 'must run' situations Intuitive, 'user friendly' layout Flawless audio performance Front Panel Rotary Gain switches: 0dB, +10, +20, +30, +40 A and B transformer balanced XLR Output splits Channels 1 through 8. Pin 3–-, Pin 2 +, Pin 1 Not Connected PFL (Pre Fade Listening) switch 48V Phantom Power switch and LED Link to previous channel switch and LED –20dB pad switch and LED Headphone level control Headphone socket 6 LED PFL metering: -40, -12, -6, 0, +3 and +6dB Status LEDs to indicate PSX32 Backup/redundant power supply is connected Illuminated AC power switch Rack handles Rear Panel Balanced XLR Input Channels 1 through 8. Pin 3 –, Pin 2 +, Pin 1 Ground Input Direct to Main Output switch Balanced XLR Main (FOH) Output (same wiring as Input) Channels 1 through 8 Balanced XLR Monitor Output (same wiring as Input) Channels 1 through 8 PFL Input and Output loop XLR connectors. Pin 3 –, Pin 2 +, Pin 1 Ground Aux PSU 5 pin XLR type connector from PSU32 Redundant Power Supply. – Pin 1: + VDC, Pin 2: – VDC, Pins 3 and 4: Ground, Pin 5 +48V IEC 3 pin AC connector and integral fuseholder. Replace fuse with correct value only: 220–240 V AC 1 amp, 100–120 V AC 2 amp. Specifications: Signal / Noise Ratio: -94dB Distortion: .008% 1KHz; Split, Main and Monitor 0.003% Gain through unit: Switchable 0, +10, +20, +30, +40 dB Maximum Output: +24dB Pad Switch: –20dB attenuation Phantom Power: +48VDC slow turn on/turn off Output Impedance: Front - 600 Ohm Transformer Balanced; Rear - 100 Ohms Electronically Balanced (Optional 600 Ohm Transformer balancing available) Clip LED: 1dB before clipping Headphones: 1 watt/8 ohms AC Mains Input: Fused IEC socket with removable power lead AC Power: Fixed: 220-240V AC 1 amp, 100-120V AC 2 amp Transformer Type: Low noise shielded toroidal Size: 2 RU - 19”W x 3½”H x 8”D, 482 x 89 x 200 mm Weight: ~ 15 lbs (~7 Kg) model dependent

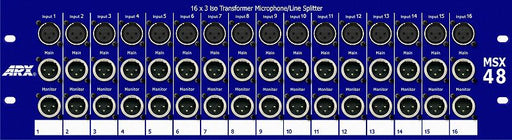

The ARX MSX48 Transformer isolated Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today’s standards of audio production. The MSX 48 is a totally passive device requiring no power, and consists of Sixteen channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel. On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed. Duplicates of the Monitor and Aux splits are also provided on two sets of dual 25 pin D connectors on the rear panel, wired to Tascam wiring protocol. Numbered marker panels on the front and rear provide a space where individual channel connections can be noted. The all-steel chassis of the MSX 48 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation. The MXS 48 is the user-friendly and straightforward answer to multi channel signal splitting requirements. Features: Sixteen channel / three way split per channel Passive unit - no power required Ultra low noise design D sub connectors on rear panel for Monitor and Auxiliary Splits (Tascam wiring) Transformer Balanced Inputs and Outputs Inputs and Main Outputs hard wired to pass Phantom Power Intuitive, 'user friendly' layout Flawless audio performance Front Panel 16 x Hardwired balanced XLR Input and Main Outputs. Pin 3–-, Pin 2 +, Pin 1 Ground 16 x Hardwired transformer isolated balanced XLR Monitor Splits. Pin 3–-, Pin 2 +, Pin 1 floating (not connected) Numbered marker panel for labelling individual channel assigns Rear Panel 16 x Hardwired transformer isolated balanced XLR Auxiliary Splits. Pin 3–-, Pin 2 +, Pin 1 floating (not connected) 2 x D Sub connectors for Monitor Splits 2 x D Sub connectors for Auxiliary Splits Screw Terminal Chassis Ground point Note: No connections to Audio ground Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 30Hz - 20 KHz ± 1dB Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 0.5dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Main Output: 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold Monitor & Aux Output: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating. Weight: 13.5 lbs (6 Kg)

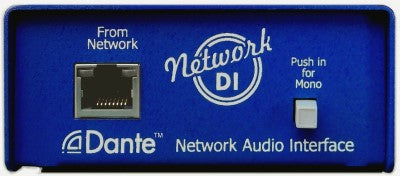

Network powered - requires no external power The new Network DI from ARX is an analog breakout box using the popular Dante network protocol to extract audio from a network and convert it to Transformer isolated analog audio, suitable for connecting to mixing consoles and other devices requiring an analog source A Mono switch on the front panel provides Left and Right analog summation for applications requirig a mono signal The Network DI is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. Security features include an optional bracket kit for under-table mounting. Network DI || T E C H N I C A L || S P E C I F I C A T I O N S The Network DI is designed to receive audio channels from a Dante network and provide studio quality, low latency audio via balanced XLR output connectors to analog audio equipment. Thus any audio available on the network can be converted to Analog and routed via the Network DI to, for example. an amplifier, or powered speaker(s), mixing console, digital signal processor and many other analog audio devices. Dante Audio In: Input Connector 1 x RJ45 Ethernet Sample Rate 44.1KHz, 48 KHz (default), 96KHz Bit Depth 24 Bits Network Speed 100 Mbps Power Consumption 2 Watts max. Power over Ethernet Class 1 802.3af POE PD compliant Analog audio out: Output Connectors 2 x Male XLR connectors, Pin 1 Chassis ground, Pin 2+, Pin 3- Output impedance 150 ohm balanced, 75 ohm unbalanced Output Level +4dBu @ 0dBFS Frequency Response 20Hz - 20 kHZ +- .5dB Dynamic range < 100dB Signal to noise < 100dB THD <.01% at +4dBu Features: Mono Switch L & R summation Construction: All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad Precision engineered With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.

A flexible, compact Active Direct box, with normal High Impedance input as well as a separate speaker level input for connection to an aux speaker output on the back of instrument amplifiers. Heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber pad. Features include –20 dB Pad and Audio Ground Lift switches, plus Phantom or 12V DC power options. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Specifications: Max Input Level: +12 dB Phantom powered, +8 dB using 12 VDC Power Supply. Input Impedance: 1 Meg Ohm Max Output Level (nominal): +12 dB 10K Ohm load using Phantom power +11 dB 600 Ohm load using 12 VDC Power Supply Output Impedance: 680 Ohms Balanced Output Signal to Noise: -100 dB unweighted, -104 dB A weighted Dynamic Range: 112 dB 10K Ohm load using 12 VDC Power Supply Distortion: @100 Hz 0.0025%, @1KHz 0.0026%, @10KHz 0.0033% Frequency Response: 20Hz to 20KHz, ± 0.2 dB Gain through Unit: 6dB (Normal input, Pad switch out) Power Requirements: 48V Phantom power on XLR pins 2 and 3; 12-15V DC from external supply Pad Switch: -20 dB attenuation Speaker Input: -40 dB attenuation, equivalent to 100:1 decrease in input level. -60 dB attenuation available when Pad switch also enabled Input Connectors: Insulated jacks Output Connector: 3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Audio Ground (Pin 1) lift switch fitted Construction: All-steel powdercoated chassis, fibreglass PCB

A flexible, compact Active Direct box, with normal High Impedance input as well as a separate speaker level input for connection to an aux speaker output on the back of instrument amplifiers. Heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber pad. Features include –20 dB Pad and Audio Ground Lift switches, plus Phantom or 12V DC power options. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Specifications: Max Input Level: +12 dB Phantom powered, +8 dB using 12 VDC Power Supply. Input Impedance: 1 Meg Ohm Max Output Level (nominal): +12 dB 10K Ohm load using Phantom power +11 dB 600 Ohm load using 12 VDC Power Supply Output Impedance: 680 Ohms Balanced Output Signal to Noise: -100 dB unweighted, -104 dB A weighted Dynamic Range: 112 dB 10K Ohm load using 12 VDC Power Supply Distortion: @100 Hz 0.0025%, @1KHz 0.0026%, @10KHz 0.0033% Frequency Response: 20Hz to 20KHz, ± 0.2 dB Gain through Unit: 6dB (Normal input, Pad switch out) Power Requirements: 48V Phantom power on XLR pins 2 and 3; 12-15V DC from external supply Pad Switch: -20 dB attenuation Speaker Input: -40 dB attenuation, equivalent to 100:1 decrease in input level. -60 dB attenuation available when Pad switch also enabled Input Connectors: Insulated jacks Output Connector: 3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Audio Ground (Pin 1) lift switch fitted Construction: All-steel powdercoated chassis, fibreglass PCB

The Q switch is a Quad Channel Stereo Switcher; a new addition to our popular AudiBox range of precision audio tools. What does it do? With this useful device you can: Switch any of FOUR stereo inputs to ONE stereo output, OR Switch ONE stereo input to any of FOUR stereo outputs. Careful user-friendly annotation makes it easy to understand and to see which input or output is being switched. A bank of four latching interlocked switches mean you can only select one switch at a time. A 'scribble-strip' lets you write above each switch with a Chinagraph® or grease pencil, so you can easily confirm what is being switched. Its innovative precision design allows the Q switch to be used in two modes: 1 : 4 for sending any one of 4 sets of Powered Loudspeakers, Sub Woofers etc, or 4 : 1 for selecting any one of 4 stereo input signal sources to one output in Broadcast, Installation, Studio, and Live Sound applications The Q switch has TipRingSleeve jack sockets which accept balanced or unbalanced signals. How does it work? On the Right side of the rear panel (see above), a Left and Right pair of jack sockets are marked IN/OUT. If these are being used as the Inputs , then the 4 jack pairs to the Left of the white line are the Outputs , and pushing the switches on the front panel makes one of those pairs active, depending on the switch you push. However, If you are using these 4 pairs of jack sockets as Inputs , then whichever switch you press on the front will switch that signal to the Right pair of jack sockets, and they will then be the Outputs . It really is as simple as that. No mode switches to set, no learning curve, no software to set up, just Plug and Play in the truest sense of the word! Depending on which mode you use, you can cross out the IN or OUT notations with your Chinagraph® or grease pencil. If you change you mind and change the application, just wipe it off and cross out the other. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The Q switch is a totally passive device with no power requirements, making it a truly universal problem solver. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. Applications Any audio switching - multiple inputs to one output or vice versa Especially suited to powered loudspeaker demonstrations and use, or Broadcast, Live and Studio switching Specifications: Frequency Response: DC to Daylight (± 0.5dB) THD at Max Output: 0 Insertion Loss: 0 Input and Output Connectors: Five pairs of Insulated TRS (TipRingSleeve) Balanced jack, wired Sleeve - Ground, Tip + Hot, Ring – Cold Switches: Mega switch array - Single bank of four latching and interlocked switches Construction: All-steel powdercoated chassis, fibreglass PCB

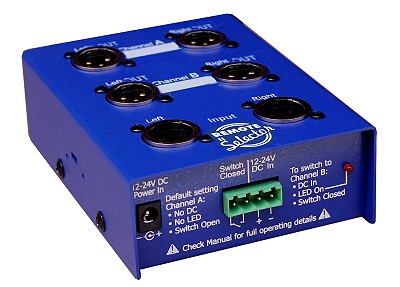

Remote Selector The simplest ideas are usually the best! ARX's new Remote Selector is a stereo out signal selector for the extremely popular Audibox range. The new Remote Selector silently switches a stereo pair of XLR female input connectors to either A or B pairs of male XLR outputs ARX ‘SoftSwitch’ technology achieves this with no loud bangs through the audio system when switching. Output Channel control can be selected in 2 ways: Mode 1 by remote switch / relay closure (using an external power pack / wall wart), or Mode 2 by 12 - 24VDC With no DC voltage applied, Output A , the default normal audio signal, is selected. When +12 – 24VDC is applied to Pins 3 and 4 on the Dinkle type connector, then Output B is selected. Typical applications include remote controlled zoning, loudspeaker selection, and A-B comparison of audio units. Another useful application is remotely switching between 2 bands, or Live Band and DJ when both are using different Speaker system. Note - Connectors are inserted in the top of the unit. Please allow adequate space above the Remote Selector to allow for the connectors to be removed or inserted. Specifications: Frequency Response: 10Hz to 50KHz + - 0.5dB Power Requirements: DC Input +12 – 24 VDC Connector 2.5mm center pin Remote Switch and External Input: 4 Pin Dinkle type socket, 5mm pin spacing. Connector supplied with unit Pin 1 and 2 Remote Switch – Open Input = Channel A selected, Closed Input = Channel B selected. Pin 3 and 4 Remote DC control – Pin 3 +12 - 24VDC Pin 4 0VDC / Gnd Input Connectors: Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold Output Connectors A and B: Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold Chassis Ground/Earth: Via Pin 1's on Left Channels Construction: All-steel polyurethane coated chassis, fibreglass PCB

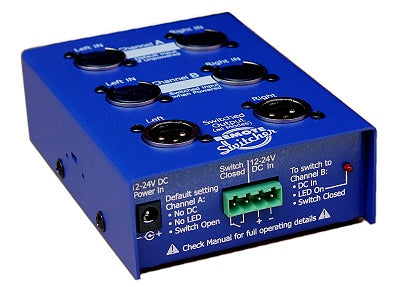

Remote Switcher The simplest ideas are usually the best! ARX's new Remote Switcher is a stereo Input signal switcher for the extremely popular Audibox range. The new Remote Switcher silently switches between two pairs of A or B female XLR inputs to a stereo pair of XLR male output connectors. ARX ‘SoftSwitch’ technology achieves this with no loud bangs through the audio system when switching. Input Channel control can be selected in 2 ways: Mode 1 by remote switch / relay closure (using an external power pack / wall wart), or Mode 2 by 12 - 24VDC supplied from an EWIS panel or similiar. Typical applications include switching between Audio Systems, and EWIS emergency announcements. With no DC voltage applied, Input A , the default normal audio signal is selected. When +12 – 24VDC is applied to Pins 3 and 4 on the Dinkle type connector, then Input B, carrying Emergency announcements, alarm signal etc is selected. Another useful application is remotely switching between Live Band or DJ when both are using the same Audio Speaker system. Note - Connectors are inserted in the top of the unit. Please allow adequate space above the Remote Switcher to allow for the connectors to be removed and / or replaced. Specifications: Frequency Response: 10Hz to 50KHz + - .5dB Power Requirements: DC Input +12 – 24 VDC Connector 2.5mm center pin Remote Switch and External Input: 4 Pin Dinkle type socket, 5mm pin spacing. Connector supplied with unit Pin 1 and 2 Remote Switch – Open Input = Channel A selected, Closed Input = Channel B selected. Pin 3 and 4 Remote DC control – Pin 3 +12 - 24VDC Pin 4 0VDC / Gnd Input Connectors: Female XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold Output Connectors: Male XLR, Wired Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 – Cold Chassis Ground/Earth: Via Pin 1's on Left Channels Construction: All-steel polyurethane coated chassis, fibreglass PCB

ARX's new SuperSplitter is a transformer isolated one input to three outputs passive splitter. It is ideal for splitting one audio signal three ways in applications where complete Galvanic isolation is required. Galvanic Isolation using a transformer is the classic method used to prevent Ground Loops and Hums, providing Noiseless Signal routing, Broadcast Split feeds, Remote Recording splits and many more applications. The SuperSplitter allows Phantom powering of Microphones and Direct Boxes via the Direct Out to Input XLR, and features 3 XLR direct & Isolated outputs. Features: Input and Direct output are directly connected via an internal "loop through", allowing +48 VDC Phantom power to pass through the unit to Phantom power Microphones and DI Boxes Transformer isolation prevents ground loops, hums and other extraneous electrical noise and interference. Available in either Single Channel or Dual Channel "Double Header" format. Split 1 and Split 2 are fully transformer isolated outputs, with no direct Earth / Ground connection via XLR pin 1s. Uses the same Broadcast standard audio transformer as our industry standard MSX 48 & MSX 12 Splitters. The SuperSplitter is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. Security features include an optional bracket kit for under-table mounting. The ARX SuperSplitter is hand made in Australia. Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 30Hz - 20 KHz ± 1dB Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 0.5dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Direct Output: 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold Split 1 and Split 2: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.

ARX's new SuperSplitter is a transformer isolated one input to three outputs passive splitter. It is ideal for splitting one audio signal three ways in applications where complete Galvanic isolation is required. Galvanic Isolation using a transformer is the classic method used to prevent Ground Loops and Hums, providing Noiseless Signal routing, Broadcast Split feeds, Remote Recording splits and many more applications. The SuperSplitter allows Phantom powering of Microphones and Direct Boxes via the Direct Out to Input XLR, and features 3 XLR direct & Isolated outputs. Features: Input and Direct output are directly connected via an internal "loop through", allowing +48 VDC Phantom power to pass through the unit to Phantom power Microphones and DI Boxes Transformer isolation prevents ground loops, hums and other extraneous electrical noise and interference. Available in either Single Channel or Dual Channel "Double Header" format. Split 1 and Split 2 are fully transformer isolated outputs, with no direct Earth / Ground connection via XLR pin 1s. Uses the same Broadcast standard audio transformer as our industry standard MSX 48 & MSX 12 Splitters. The SuperSplitter is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. Security features include an optional bracket kit for under-table mounting. The ARX SuperSplitter is hand made in Australia. Specifications: Input Impedance: 300 Ohms Output Impedance: 2 secondaries @ 600 Ohms each Frequency Response: 30Hz - 20 KHz ± 1dB: Maximum Output Level: + 20dBm THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm Insertion Loss: 0.5dB @ 1 KHz (600 Ohm source & load) Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold Direct Output: 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold Split 1 and Split 2: 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.

In keeping with our policy of creating essential audio interfaces, ARX is excited to present the new ARX USB DI - a true Plug and Play 24 bit High Resolution digital to analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. It features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion. Plug and Play The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7 and 8 The front panel has a Type B USB input connector and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input. A status LED on the front panel indicates that the USB DI is connected and operating. The USB DI is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber pad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. The USB DI is available in Dual Channel format, includes a premium quality USB-A to USB-B cable , and is hand made in Australia. Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: Maximum nominal output level 0dB Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Floating / not connected Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber feet System Requirements: Windows PC running Windows XP , Windows 7/8/10, Mac running OS X or later USB port

In response to many requests from users of our original USB DI who have been using it for specific applications, ARX is excited to present the new ARX USB DI- HP - everything that the original USB DI was, with the addition of a headphone output with its own level control. It is still a true Plug and Play 24 bit digital to analog pro audio interface, removing the need to use any existing sound card outputs, but now its output level can be monitored quietly and accurately. Naturally it still features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion. The addition of the headphone output and control allows easy personal monitoring of the audio signal passing through the USB DI- HP without the need for Monitor Loudspeakers. Plug and Play The USB DI- HP installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Windows XP, 7/8/10 . However, a quick visit to our USB Audio Knowledge Base page will give you a very good idea of what USB audio can and can't do. The front panel has a Type B USB input connector and a Headphone Output Level control. While the USB DI- HP's Transformer Ground isolation provides low-noise operation, an Audio Ground lift switch is also fitted, to minimise/remove ground loop hum. Switch in or out as required. A status LED on the front panel next to the USB Input indicates that the USB DI- HP is connected and operating. The rear panel has both 6.5mm (¼ inch) and 3.5mm ((mini-jack) headphone outputs, and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced XLR analog input The USB DI- HP is housed in a heavy duty all-steel chassis finished in attractive matt blue textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber basepad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The USB DI- HP is available in Dual Channel format, includes a premium quality USB-A to USB-B cable , and is hand made in Australia Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level 0dB Output Noise: USB - System dependent ISO transformer - Environment sensitive Power: Operating current via USB Port 80mA Headphone output specs: Max. output level 300mW @ 32 Ohms Frequency Response 20 - 20 KHz ± 0.5 dB Dynamic range 90dB 'A' Weighted Frequency Response: 20 - 20 KHz ± 0.5 dB Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber basepad System Requirements: Windows PC running Windows XP, 7/8/10 or Mac running OS X or later USB port

The USB DI Plus is ARX's 'Second Generation' USB DI , and the first with Dual Mode audio interface - Digital and Analog. In fact, it's "Two DI's in One! " In Digital USB Mode The USB DI Plus has an inbuilt 24 bit High Resolution digital to analog converter (DAC) which removes the need to use a Computer's existing internal sound card outputs, with their inherent noise and distortion. The USB DI Plus installs as a fully compatible generic "Plug and Play" USB audio device, requiring no special driver program installation. The USB DI Plus 's DAC delivers Professional Line Level audio signals to Left and Right balanced XLR outputs. When switched to USB mode the USB DI Plus is powered via the USB cable, so no batteries or phantom power required to use it. In Analog Mode: Many Tablet Devices, Phones and iPads have no direct USB Digital Audio output, and interfacing their Audio with the professional world of balanced audio can be problematic. Switching the USB DI Plus to Analog mode effortlessly solves this problem by buffering the audio signal from the Headphone or Line output and producing a Professional Balanced Line Level audio signal on Left and Right balanced XLR outputs. To ensure reliability, Analog mode is passive with no batteries or phantom power required for use. Low Noise Both the USB DI Plus Digital and Analog operating modes feature full transformer balanced output isolation. This eliminates earth loops / ground hum and helps remove extraneous interaction noise and distortion ensuring noise free operation even in the harshest audio environments. Two Models The USB DI Plus is available in two models: USB DI Plus - Standard version, with no external gain / volume control, making it as Tamper Proof as possible. Straightforward Plug-and-Play makes it ideal for Production Companies. USB DI Plus VC - Still Plug-and-Play but with an external gain / volume control allowing users to vary the sound levels at a distance from the mixing console. Plug and Play The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX and Win XP or later The front panel has a Type B USB input connector, plus a Mini-Jack stereo Analog input, as well as two 6.5mm Left and Right analog jack inputs. A front panel switch will switch between the USB or Analog Inputs The rear has two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input, with a Mono Outputs switch and an audio Ground lift switch A USB status LED on the front panel indicates that the USB DI Plus is connected and operating in USB mode. The USB DI Plus is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include an optional bracket kit for under-table mounting. The USB DI Plus includes a premium quality USB-A to USB-B cable, and is hand made in Australia. Specifications: Input Connector: Digital - USB type B port Input Connectors: Analog - Stereo Mini-Jack input, standard Left and Right 6.5mm Jacks Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: Maximum nominal output level 0dB Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA in USB mode Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 - switchable via Ground Lift switch on rear Construction: All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad System Requirements for USB operation: Computer running Windows XP, 7/8/10 or Mac running OS X or later USB port Precision engineered: With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
