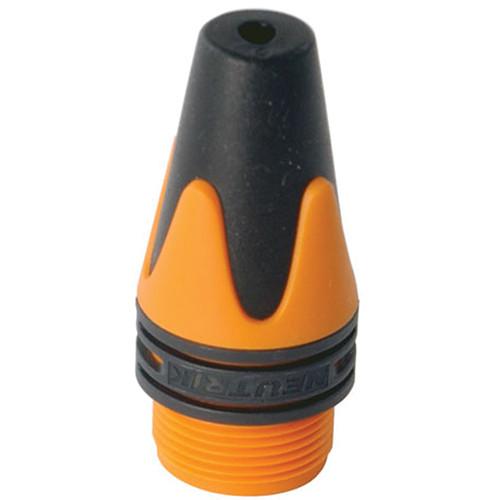

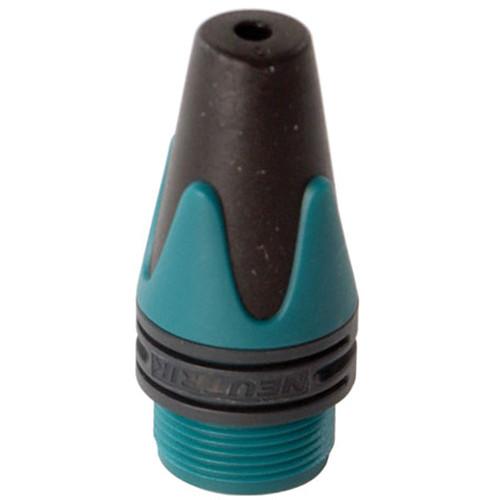

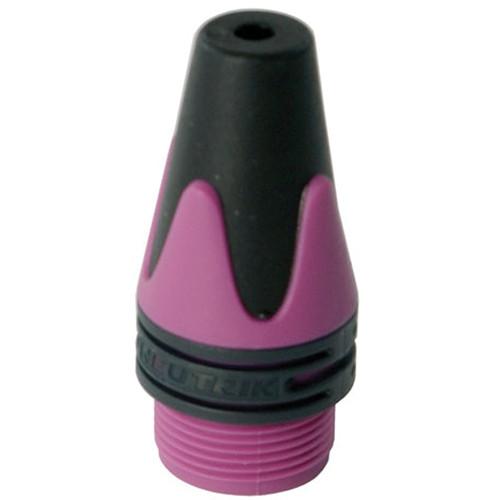

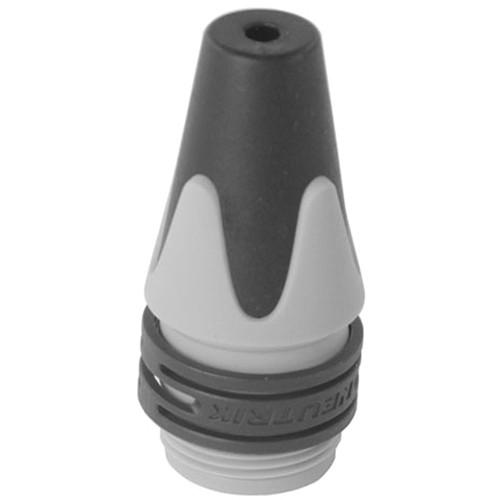

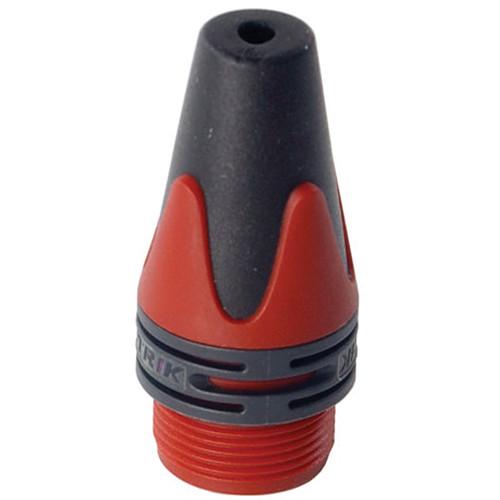

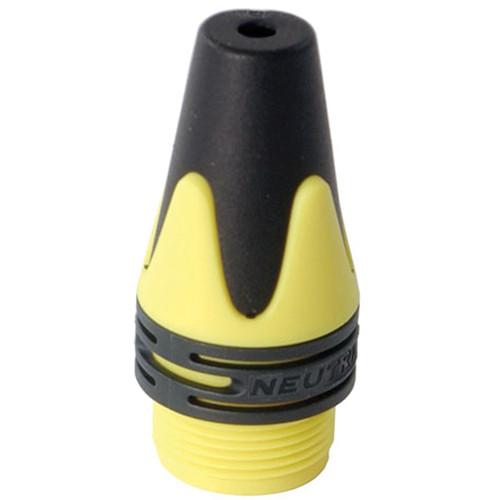

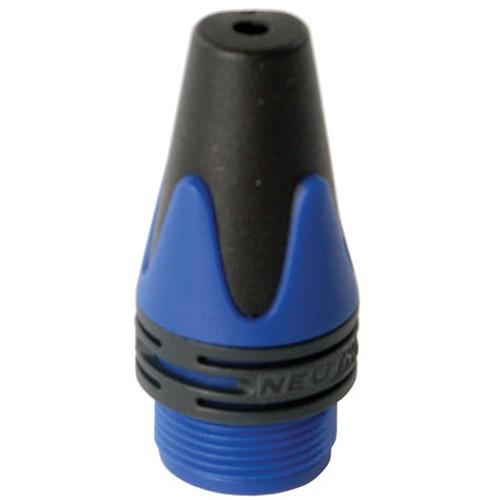

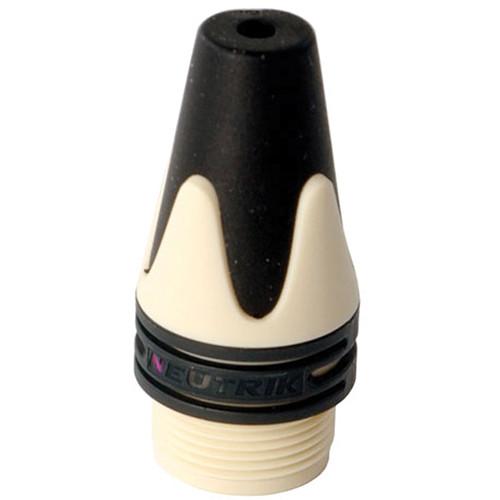

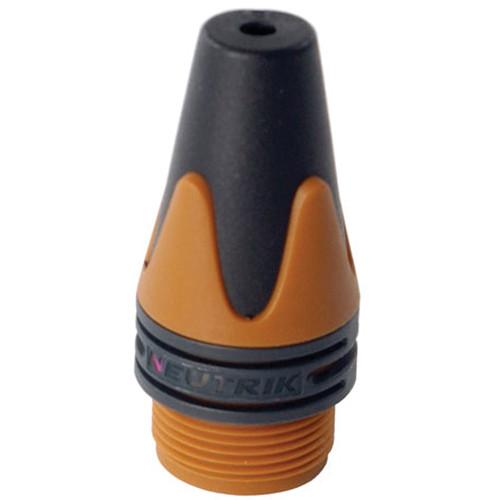

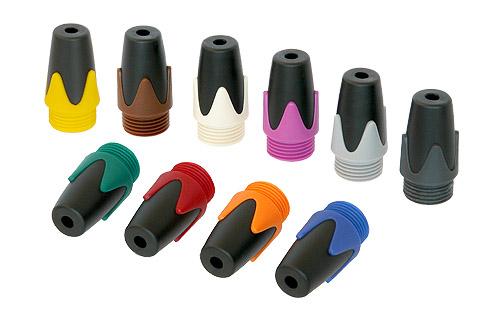

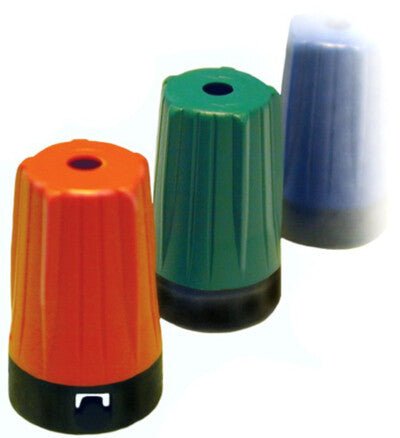

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

BPX-* Colored boots for PX-Series. Color coding: 1 - Brown 2 - Red 3 - Orange 4 - Yellow 5 - Green 6 - Blue 7 - Violet 8 - Grey 9 - White

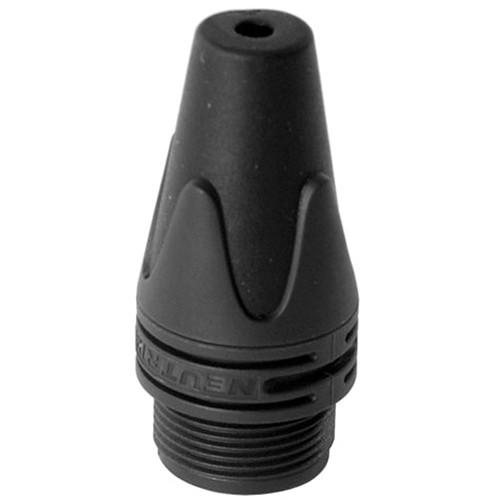

Bushings for color coding. Black

Bushings for color coding. Brown

Bushings for color coding. Red

Bushings for color coding. Orange

Bushings for color coding. Yellow

Bushings for color coding. Green

Bushings for color coding. Blue

Bushings for color coding. Violet

Bushings for color coding. Grey

Bushings for color coding. White

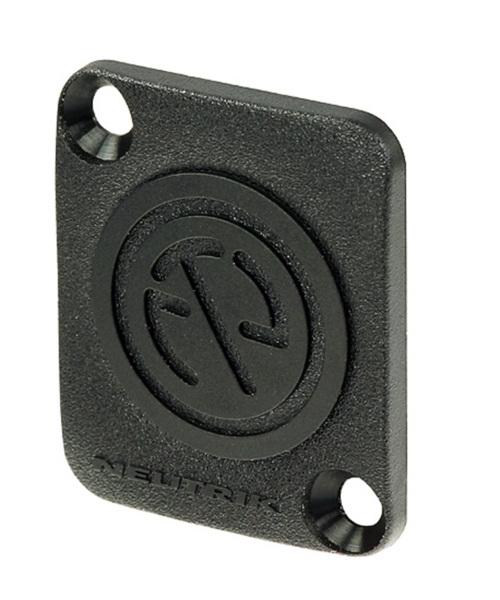

Dummy-plate to cover D-shape cutouts

The fixing plate with M3 thread offers efficient and ease mounting of all D-sized chassis connectors by M3 screws.

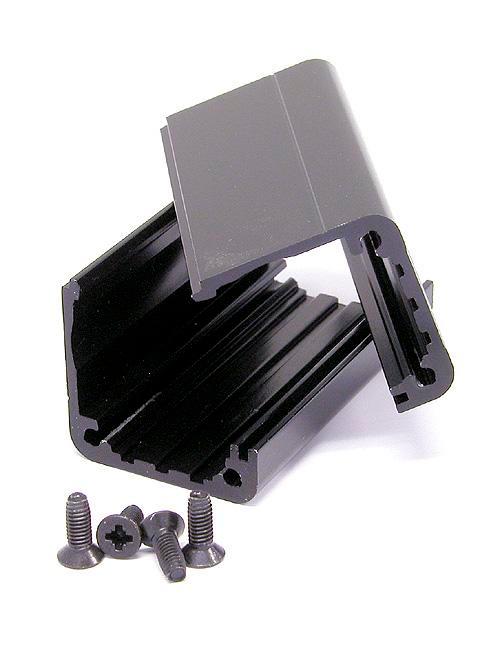

NA-Housing Extrusion profile set including screws, black plated, for combination with all D Shape connectors without rear PCB.

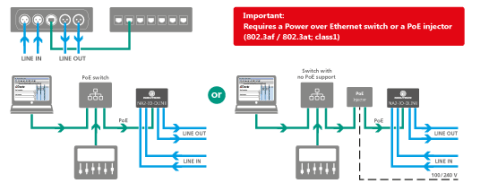

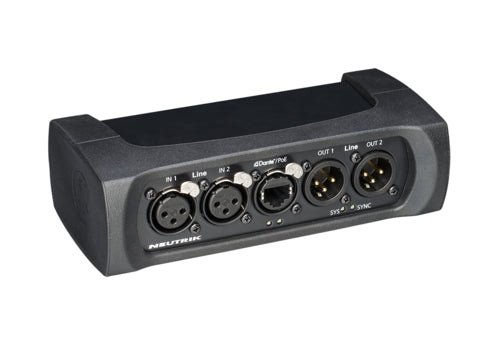

Connect your legacy audio gear to the Dante ? ? world. The NA2-IO-DLINE is an end-of-network device. It is a breakout box which allows two channels of audio to be integrated into a Dante ? ? network. Simultaneously, NA2-IO-DLINE converts a Dante ? ? stream into analog audio signals. Hence, it is possible to use this tiny box to feed analog audio signals into the Dante ? ? network while at the same time receiving a mix from another Dante ? ? source. NA2-IO-DLINE is designed for harsh stage conditions. It therefore features lockable chassis connectors for both the audio and network connections. For fixed installations, the rubber protection can be removed. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, or in equipment racks. Features & Benefits Connect analog audio equipment to a Dante ? ? network Heavy duty adapter for rugged stage conditions Lockable audio and network connections Convert up to two analog line signals to a Dante ? ? network Feed non Dante ? ? ready amplifiers, speakers or mixing desks with signals from the Dante ? ? network Requires a Power over Ethernet switch or a PoE injector (802.3 af/at; class 1) AES67 compliant Rack mountable For Dante ? ? related questions, refer to the Audinate web site: ? www.audinate.com . The Audinate web site features a wealth of manuals, teaching material, FAQs and videos. Please see the Technical Specifications in the NA2-IO-DLINE brochure.? Audinate? is a registered trademark of Audinate Pty Ltd. Dante ? ? is a trademark of Audinate Pty Ltd. ?

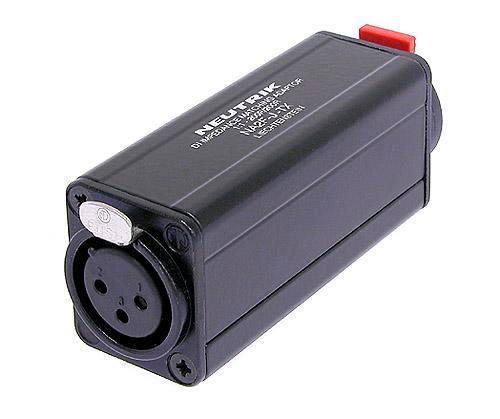

Miniature transformer balancing adapter, 3 pole XLR female - 1/4" jack, ground lifted Features & Benefits The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications Rugged aluminium extrusion housing for best reliability Miniature transformer balancing adapters Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required Audio transformer 1:1 Impedance ratio: 200:200 Source/load impedance in Ohm: 200/2k, (600/10k) Max. Input level (@ 50 Hz, 1% THD): -3 dBu Product Title NA2F-J-TX Connection Type Adapter Mechanical Locking device Latch lock

3 pole XLR female BNC socket Wired according to IEC 268-12: Pin 2: signal Pin 1 and 3: connected to ground. Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability. Technical Information Product Title NA2FBNC Connection Type Adapter Mechanical Wiresize Locking device Bayonett, Latch lock

3 pole XLR female – RCA / phono socket Wired according to IEC 268-12: Pin 2: signal Pin 1 and 3: connected to ground Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability Technical Information Product Title NA2FPMF Connection Type Adapter Mechanical Wiresize Locking device Latch lock

3 pole XLR male – BNC socket Wired according to IEC 268-12: Pin 2: signal Pin 1 and 3: connected to ground Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability Technical Information Product Title NA2MBNC Connection Type Adapter Mechanical Wiresize Locking device Bayonett, Latch lock

3 pole XLR male – RCA / Phono socket Wired according to IEC 268-12: Pin 2: signal Pin 1 and 3: connected to ground Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability. Technical Information Product Title NA2MPMF Connection Type Adapter Mechanical Wiresize Locking device Latch lock

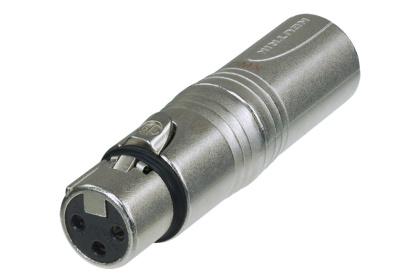

3 pole XLR female - 5 pole XLR male for lighting (DMX) applications. Features & Benefits Compact XLR 3 to 5 pole adapter for lighting (DMX) applications Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard Professional look and compact space saving design, based on the XX Series Rugged diecast shell for best reliability Technical Information Product Title NA3F5M Connection Type Adapter Electrical Contact resistance 3 m Dielectric strength 1,5 kVdc Insulation resistance > 2 G Rated current per contact 3 A Mechanical Insertion force < 20 N Withdrawal force < 20 N Lifetime > 1000 mating cycles Wiresize Locking device Latch lock Material Contact plating 2 m Ag Contacts Bronze (CuSn6) (female) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Temperature range -30 °C to +80 °C

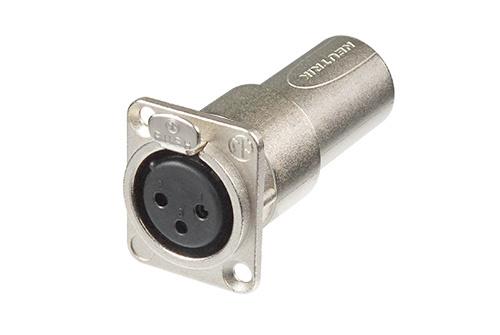

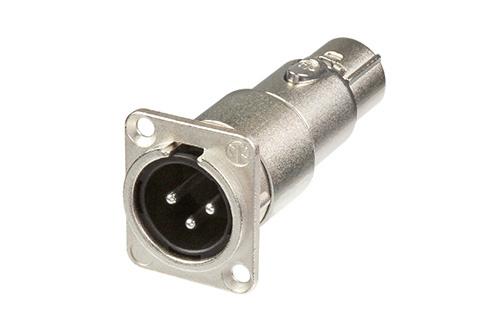

XLR female-male feedthrough adapter for panel mount. Technical Information Product Title NA3FDM Connection Type Adapter Electrical Capacitance between contacts 4 pF Contact resistance 5 m Dielectric strength 1,5 kVdc Insulation resistance > 2 G (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force 20 N Withdrawal force 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 m Ag over 2 m Ni Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact) Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the XX Series Rugged diecast shell for best reliability Technical Information Product Title NA3FJ Connection Type Adapter Electrical Contact resistance ≤ 3 mΩ (XLR) Contact resistance ≤ 6 mΩ Dielectric strength 1.5 kV dc / > 1 kVdc (XLR/Jack) Insulation resistance > 2 GΩ Mechanical Wiresize Locking device Latch lock Material Contact plating 2 µm Ag Contacts Bronze (CuBe2) (jack) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating gal Cu/Ni Environmental Temperature range -20 °C to +65 °C

Stereo 1/4" locking jack - Stereo 1/4" locking jack (Tip, Ring, Sleeve contact), extension adapter. Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard) Rugged diecast shell for best reliability. Technical Information Product Title NA3JJ Connection Type Adapter Mechanical Wiresize Locking device Latch lock

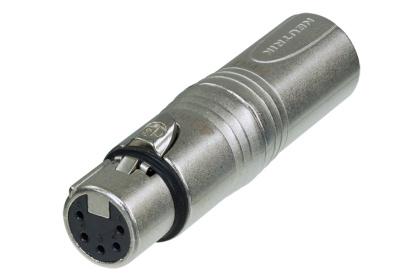

3 pole XLR male - 5 pole XLR female for lighting (DMX) applications. Features & Benefits Compact XLR 3 to 5 pole adapter for lighting (DMX) applications Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard Professional look and compact space saving design, based on the XX Series Rugged diecast shell for best reliability Technical Information Product Title NA3M5F Connection Type Adapter Electrical Contact resistance < 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ Rated current per contact 7,5 A Mechanical Insertion force < 20 N Withdrawal force < 20 N Lifetime > 1000 mating cycles Wiresize Locking device Latch lock Material Contact plating 2 µm Ag Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Temperature range -30 °C to +80 °C

XLR male-female feedthrough adapter for panel mount. Technical Information Product Title NA3MDF Connection Type Adapter Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

Features & Benefits Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems Professional look and compact space saving design, based on the XX XLR Series Rugged diecast shell for best reliability Technical Information Product Title NA3MJ Connection Type Adapter Electrical Contact resistance ≤ 3 mΩ (XLR) Contact resistance ≤ 6 mΩ Dielectric strength 1.5 kV dc / > 1 kVdc (XLR/Jack) Insulation resistance > 2 GΩ Mechanical Wiresize Locking device Latch lock Material Contact plating 2 µm Ag Contacts Bronze (CuBe2) (jack) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating gal Cu/Ni Environmental Temperature range -20 °C to +65 °C

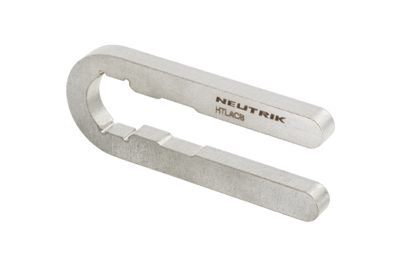

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches) Product related questions and answers Question Answer What is the different between the -S and -L Version? Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1. The S-version is certified other Cables then the L-version, cables as follows: S-Version: H05VV-F 3G1.5mm², H05VV-F 3G2.5mm², H07RN-F 3G 1.5 mm² and SJOOW 14/3 AWG. L-Version: H07RN-F 3G 2.5 mm², SOOW 16/3, SJOOW 16/3 and SJOOW 14/3 When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. Technical Information Product Title NAC3F-TRUE1-L Product Family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance >0.1GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Cable O.D. 10 - 16 mm (0.39 – 0.63 inches) Lifetime > 5000 mating cycles Wiresize (mm²) 1.0 – 2.5mm² Wiresize (AWG) 14 - 12 AWG Material Contact plating 2 μm Ag Locking element Polyamide (PA 66) Contacts Copper Alloy Insert Polyamide (PA 66) Shell Polyamide (PA 66) Strain relief Polyketon Environmental Flammability UL 94 V-0 Protection class IP 65 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1
