Bulk Cable

***Price Is Per Meter*** Suitable Connector - Neutrik - NBNC75BZV14X The eye of an eagle has a resolution about 3 to 4 times higher than that of the human eye. Thus the 12G UHD-SDI transmission standard enables such high visual resolutions that the human eye cannot distinguish them any more from the original scene. Owing to its compact diameter of 8 mm (0.31 in.) and the optimized shielding construction, the VECTOR 1.3/5.7 has extremely low attenuation values which so far have only been known from much thicker cables. For the conductor we use a silver-plated solid wire with ultra low tolerances, embedded in a gas-injected (skin/gas/skin) insulation which is smoothed both inside and out. The triple shielding, which consists of two robust, elastic AL/PTE foils and a tight, tin-plated copper braid with 95 % coverage, prevents from interference and impact on the electrical values. These high-class parameters ensure a perfect and error-free transmission of the SDI (520 m / 1,706 ft.), 6G-SDI- (up to about 140 m / 460 ft.) and 12G-UHD-SDI- (up to 100 m / 328 ft.) standards. The robust outer jacket consists of a cold flexible, durable and UV resistant S-PVC. Advantages: Triple shielding with 100% coverage Extremely durable and temperatur resistant components (silver-plated wires, smoothed insulation, UV resistant jacket) Super low attenuation and so thin Application: Digital HD/UHD-SDI 4K long-distance transmission Connections for radio, broadcasting and surveillance technology, cables for stadium building and generally for sports events Ideal broadband, antenna and video cable Specifications: Article number 600-0131 Name SC-Vector PLUS 1.3/5.7 4K EAN 4049371409742 Properties Analog Properties OFC oxygen free copper Properties 3G-SDI Properties Digital 75 Ω Properties 6G-SDI Properties SDI Application area ELA 100 V Application area Mobile outdoor / indoor Application area Studio / Broadcast Application area Installation Application video cable Colour black Colour detailed black Jacket material PVC Jacket Ø [mm] 8,10 Number of Channels (video) 1 Inner conductor (video) 1 Inner conductor Ø (video) [mm] 1,30 AWG (video) 16 Shielding AL foil + Cu mesh, tinned + 2nd AL foil Shielding factor [%] 100 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 5,70 Weight per 1 m [g] 90 Style variant round Packing bulk stock Velocity factor 0,84 Temperature min. [°C] -10 Temperature max. [°C] 80 Max. Transmission length (SMPTE 425M, 3G) [m] 199 Max. Transmission length (SMPTE 2081, 6G) [m] 136 Width [mm] 8,1 Height [mm] 8,1 Capacity wire/electic screen at 1m (video) [pF] 53 Capacity wire/electic screen at 1 ft. (video) [pF] 16,1544 Damping at 5 MHz (100m & 20° C) [dB] 1,2 Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 0,3658 Damping at 50 MHz (100m & 20° C) [dB] 3,5 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,0668 Damping at 100 MHz (100m & 20° C) [dB] 4,8 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,463 Damping at 1000 MHz (100m & 20° C) [dB] 16,1 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,9073 Damping at 1485 MHz (100m & 20° C) [dB] 20,1 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,1265 Damping at 2150 MHz (100m & 20° C) [dB] 25,3 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 7,7114 Damping at 3000 MHz (100m & 20° C) [dB] 29,8 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,083 Damping at 6000 MHz (100m & 20° C) [dB] 42,7 Damping at 12000 MHz (100m & 20° C) [dB] 64,5 Impedance [Ω] 75 Conductor resistance per 1 km [Ω] 13 Conductor resistance per 1000 ft. [Ω] 3,9624 Shield. resistance per 1 km [Ω] 6,2 Shield. resistance per 1000 ft. [Ω] 1,8898 BPVo-Euroclass Eca Max. Transmission length (SMPTE 2082, 12G) [m] 94 Max. Transmission length (SMPTE 2082, 12G) [ft] 308,399

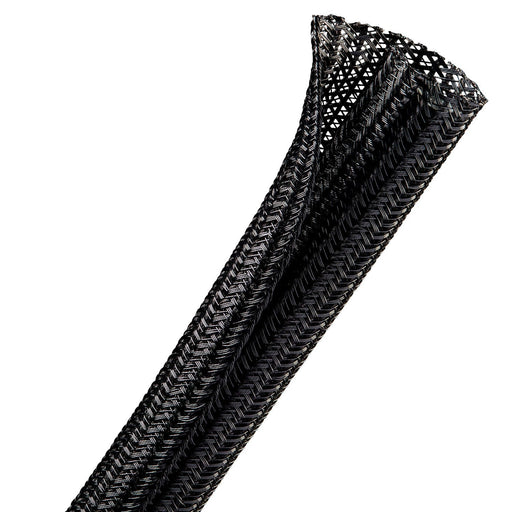

FLEXO F6's unique split, semi-rigid braided construction makes it the ideal solution for applications where ease of installation is of primary importance. The lateral split allows the sleeve to open up to accommodate a variety of bundling requirements. The semi-rigid braid configuration simply closes around the entire installation without need for any additional fasteners. The 25% edge overlap allows coverage around inline plugs, connectors and splices. F6 will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, it will not impair or affect the flexibility of the harness. Like FLEXO WRAP, F6 provides for easy on and off installation, as well as instant and convenient access for harness break-outs and rework along the entire length of the run. Ideal for a cable tidy or cable cover. Features: Semi-Rigid Braid with 25% Edge Overlap Cut and Abrasion Resistant Retains Shape and Rigidity Halogen Free Specifications: Nominal Diameter: 19mm

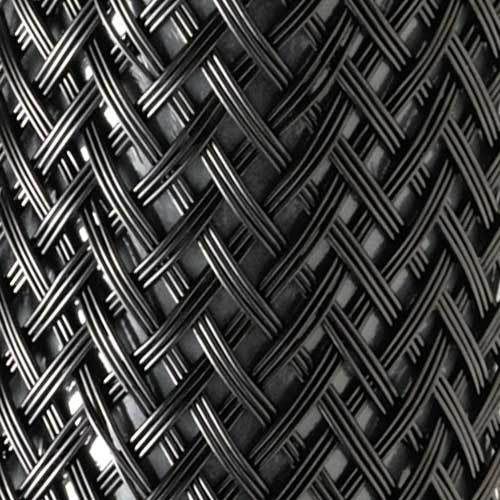

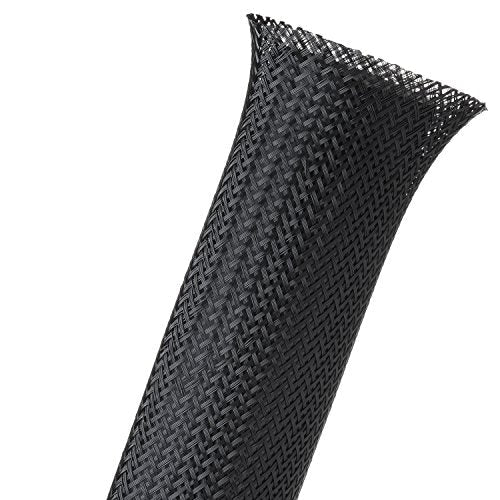

Flexo PET is used in electronics, automotive, marine and industrial wire and cable harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows for quick and easy installation over large connectors and long runs. Great for audio interconnects and cable covers. Made from 10 mil polyethylene terephthalate (PET) monofilament yarns, FLEXO PET can be found in applications ranging from small office/home office to high tech wire and cable harnesses. Features: General purpose Expandable Braided Sleeving Cut and Abrasion Resistant Expands up to 150% to slip over connectors Resists gasoline, Engine Chemicals and Cleaning Chemicals Halogen Free. FMVSS 302 and FAR 25 approved Specifications: Nominal Diameter: 3mm Expansion Range: Min. 2mm - Max. 6mm

Flexo PET is used in electronics, automotive, marine and industrial wire and cable harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows for quick and easy installation over large connectors and long runs. Great for audio interconnects and cable covers. Made from 10 mil polyethylene terephthalate (PET) monofilament yarns, FLEXO PET can be found in applications ranging from small office/home office to high tech wire and cable harnesses. Features: General purpose Expandable Braided Sleeving Cut and Abrasion Resistant Expands up to 150% to slip over connectors Resists gasoline, Engine Chemicals and Cleaning Chemicals Halogen Free. FMVSS 302 and FAR 25 approved Specifications: Nominal Diameter: 6mm Expansion Range: Min. 3mm - Max. 11mm

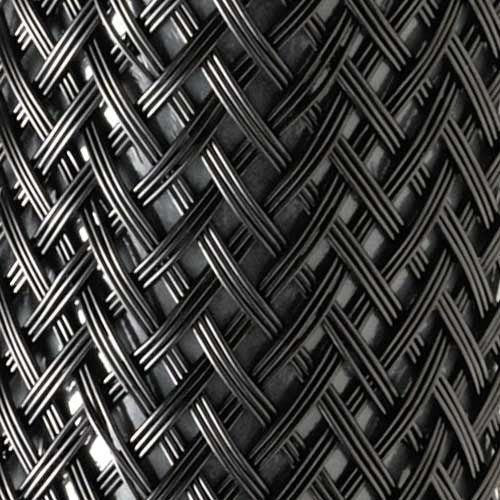

Flexo PET is used in electronics, automotive, marine and industrial wire and cable harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows for quick and easy installation over large connectors and long runs. Great for audio interconnects and cable covers. Made from 10 mil polyethylene terephthalate (PET) monofilament yarns, FLEXO PET can be found in applications ranging from small office/home office to high tech wire and cable harnesses. Features: General purpose Expandable Braided Sleeving Cut and Abrasion Resistant Expands up to 150% to slip over connectors Resists gasoline, Engine Chemicals and Cleaning Chemicals Halogen Free. FMVSS 302 and FAR 25 approved Specifications: Nominal Diameter: 12mm Expansion Range: Min. 6mm - Max. 19mm
