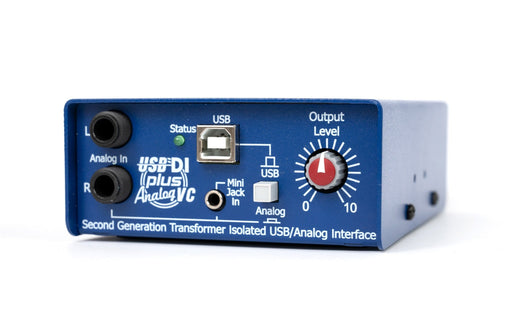

The USB DI Plus VC is ARX's 'Second Generation' USB DI , and the first with Dual Mode audio interface - Digital and Analog. In fact, it's "Two DI's in One! " In Digital USB Mode The USB DI Plus VC has an inbuilt 24 bit High Resolution digital to analog converter (DAC) which removes the need to use a Computer's existing internal sound card outputs, with their inherent noise and distortion. The USB DI Plus VC installs as a fully compatible generic "Plug and Play" USB audio device, requiring no special driver program installation. The USB DI Plus VC 's DAC delivers Professional Line Level audio signals to Left and Right balanced XLR outputs. When switched to USB mode the USB DI Plus VC is powered via the USB cable, so no batteries or phantom power required to use it. In Analog Mode: Many Tablet Devices, Phones and iPads have no direct USB Digital Audio output, and interfacing their Audio with the professional world of balanced audio can be problematic. Switching the USB DI Plus VC to Analog mode effortlessly solves this problem by buffering the audio signal from the Headphone or Line output and producing a Professional Balanced Line Level audio signal on Left and Right balanced XLR outputs. To ensure reliability, Analog mode is passive with no batteries or phantom power required for use. Low Noise Both the USB DI Plus VC Digital and Analog operating modes feature full transformer balanced output isolation. This eliminates earth loops / ground hum and helps remove extraneous interaction noise and distortion ensuringt noise free operation even in the harshest audio environments. Two Models The USB DI Plus is available in two models: USB DI Plus - Standard version, with no external gain / volume control, making it as Tamper Proof as possible. Straightforward Plug-and-Play makes it ideal for Production Companies. USB DI Plus VC - Still Plug-and-Play but with an external gain / volume control allowing users to vary the sound levels at a distance from the mixing console. Plug and Play The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX and Win XP or later The front panel has a Type B USB input connector, plus a Mini-Jack stereo Analog input, as well as two 6.5mm Left and Right analog jack inputs. A front panel switch will switch between the USB or Analog Inputs The rear has two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input, with a Mono Outputs switch and an audio Ground lift switch A USB status LED on the front panel indicates that the USB DI Plus is connected and operating in USB mode. The USB DI Plus VC is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include an optional bracket kit for under-table mounting. The USB DI Plus VC includes a premium quality USB-A to USB-B cable, and is hand made in Australia. Specifications: Input Connector: Digital - USB type B port Input Connectors: Analog - Stereo Mini-Jack input, standard Left and Right 6.5mm Jacks Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: Maximum nominal output level 0dB, user variable via front panel volume control Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA in USB mode Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 - switchable via Ground Lift switch on rear Construction: All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad System Requirements for USB operation: Computer running Windows XP, 7/8/10 or Mac running OS X or later USB port Precision engineered: With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.

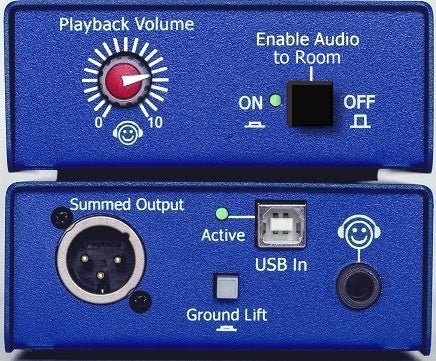

The ARX USB DI-Q The ARX USB DI-Q is an USB to Analog audio playback interface for the playback and monitoring of audio files from Windows or Mac computers for applications including education lecture theatres, corporate presentations and courtroom environments. Monitor and Cue: The USB DI-Q allows the user to monitor and cue audio files in a closed headphone environment and switches / enables the audio output to a Public Address/sound system as required. Plug and Play: The USB DI-Q installs as a fully compatible 'Plug and Play' generic USB audio device so does not require any special driver installation on Mac OSX, Win7/8/10. Compatible: The USB DI-Q is ideal for interfacing any USB equipped computer with the balanced inputs of a professional sound system. Retrofit: The simplicity of the setup of the USB DI-Q means that this product can be integrated easily into the existing AV infrastructure of a building. Simple: Once in place, the USB DI-Q only requires touch button operation so that it can be used by non technical operators. The USB DI-Q is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and non-slip rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs of professional sound systems. Security features include an optional bracket kit for under-table mounting. The USB DI-Q includes a premium quality USB-A to USB-B cable , and is hand made in Australia Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: 0dB max USB System dependent ISO transformer Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA Headphone output specs Max. output level 300mW @ 32 Ohms Dynamic range 90dB ‘A’ Weighted Balanced Output Frequency Response 20 - 20 KHz ±0.5 dB Output Connectors: 1 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber feet System Requirements: Windows PC running Windows XP , Windows 7/8/10, Mac running OS X or later USB port

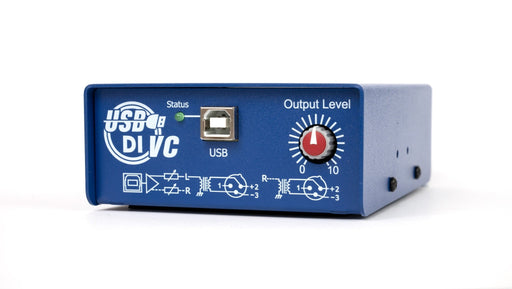

In response to many requests from users of our original USB DI who have been using it for specific applications, ARX is excited to present the new ARX USB DI- VC - everything that the original USB DI was, with the addition of an output level control. It is still a true Plug and Play digital to analog pro audio interface, removing the need to use any existing sound card outputs, but now the output level can be modified quickly and accurately.. Naturally it still features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion. The addition of the volume control allows the USB DI- VC to be used without a mixer. This is a very useful option when driving active loudspeakers from a laptop - the level control lets you reduce the level instantly to suit the required SPL, which still retaining an excellent signal-to-noise ratio. Plug and Play The USB DI- VC installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Windows XP, 7/8/10 The rear panel has a Type B USB input connector while the front panel has an Output Level control and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input. A status LED on the rear panel next to the USB Input indicates that the USB DI- VC is connected and operating. The USB DI- VC is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The USB DI- VC is available in Dual Channel format, includes a premium quality USB-A to USB-B cable , and is hand made in Australia. Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: User variable from 0dB down to infinity (off) Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber feet System Requirements: Windows PC running Windows XP, 7/8/10 , Mac running OS X or later USB port

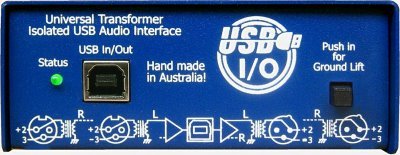

In keeping with our aim of creating essential audio interfaces, ARX is excited to present the new ARX USB I/O - a true 24 bit High Resolution Plug and Play USB digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. Based on the same expanded Audibox Plus platform as the DI Plus and Plus 2 Rechargeable Direct boxes, the ARX USB I/O features full transformer balanced Inputs and Outputs, providing the isolation required to eliminate earth loops / ground hum and other extraneous interaction noise and distortion. Plug and Play The USB I/O installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows XP, 7/8/10 or Mac OSX The front panel has Left and Right transformer balanced analog XLR Input and output connectors that connect to any standard balanced analog inputs and outputs. On the rear panel there is a Type B USB connector, as well as a ground lift switch. A status LED on the rear panel indicates that the USB I/O is connected and operating. The USB I/O is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The ARX USB I/O is available in Dual Channel format, includes a premium quality USB-A to USB-B cable , and is hand made in Australia. Specifications: Connector: USB type B port Codec: 24 bit, High Resolution Input Impedance: 10 KOhms Transformer Balanced Output Impedance: 300 Ohms Transformer Balanced Maximum Input Level: Nominal 0 dB Maximum Output Level: Nominal 0 dB Input/Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA Input Connectors: 2 x Female XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch Construction: All-steel polyurethane coated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base. Package includes a premium quality USB-A to USB-B cable System Requirements: Windows PC running Windows XP, 7/8/10 , Mac running OS X or later USB port Audio software installed 98SE will need the Win 98SE CD Rom to install driver. However, in reality if you're serious about music you'll already be using a later operating system

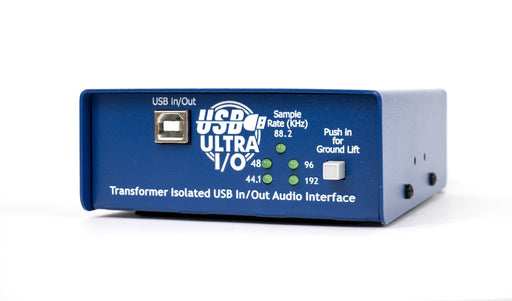

USB Ultra I/O Dual Channel USB Audio Interface. ARX is excited to present the ARX USB Ultra I/O - a true 24 bit High Resolution Plug and Play USB 2 channel play and record digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. The ARX USB Ultra I/O - a true 24 bit High Resolution Plug and Play USB 2 digital/analog pro audio interface with five selectable sample rates: 44.1 KHz, 48 KHz, 88.2KHz, 96KHz or 192 KHz . Full transformer balanced Inputs and Outputs provide the isolation required to eliminate earth loops / ground hum and other extraneous noise and distortion Plug and Play The USB ULTRA I/O installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows 10 or Mac OSX On the Front panel there is a standard Type B USB connector, as well as a ground lift switch and Status LEDs indicating the sample rate selected or available. The Rear panel has Left and Right transformer balanced analog Amphenol XLR Input and output connectors that connect to any standard balanced analog inputs and outputs. The USB ULTRA I/O is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing USB equipped computers (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Optional features include an optional bracket kit for under-table mounting. The ARX USB ULTRA I/O ships with a premium quality USB-A to USB-B cable, and is hand made in Australia. USB ULTRA I/O Technical Specifications: Connector: USB type B port Codec: Hi Resolution 24 bit 192 KHz Sample Rate: Software selectable : 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz and 192 KHz Input Impedance: 10 KOhms Transformer Balanced Output Impedance: 300 Ohms Transformer Balanced Maximum Input Level: Nominal 0 dB Maximum Output Level: Nominal 0 dB Input/Output Noise: USB - System dependent ISO transformer - Enviroment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power Consumption: via USB Port - typically 0.8W Input Connectors: Channel 1 / Left and Channel 2 / Right 2 x Female Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch Output Connectors: Channel 1 / Left and Channel 2 / Right 2 x Male Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch Construction: All-steel polyurethane coated chassis, fibreglass PCB, epoxy printing, USB Ultra I/O chassis grounded via USB connection slip-resistant rubber base. Package includes a premium quality USB-A to USB-B cable Recommended ASIO Driver (if required or desired): ASIO4all download at: www.asio4all.org System Requirements Windows 10 Mac running OS X or later Audio software installed

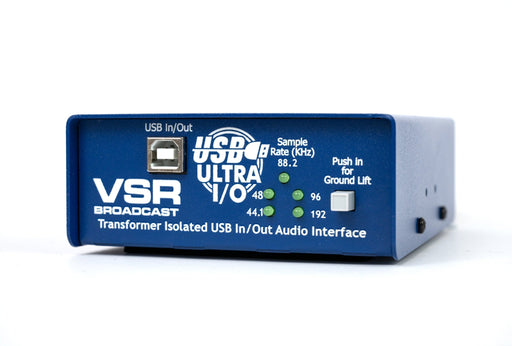

USB ULTRA VSR Broadcast In keeping with our aim of creating essential audio interfaces, ARX is excited to present the ARX USB Ultra VSR Broadcast - a true 24 bit High Resolution Plug and Play USB 2 channel play and record digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. Analog style headroom - Exclusive to the Ultra VSR Broadcast The ARX USB ULTRA VSR Broadcast model features Analog style headroom when recording in the digital domain. With five selectable sample rates: 44.1 KHz, 48 KHz, 88.2KHz, 96KHz or 192 KHz , 24 bit High Resolution and USB 2 Plug and Play performance. Full transformer balanced Inputs and Outputs provide the isolation required to eliminate earth loops / ground hum and other extraneous noise and distortion Plug and Play The USB ULTRA VSR Broadcast installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows 10 or Mac OSX On the Front panel there is a standard Type B USB connector, as well as a ground lift switch and Status LEDs indicating the sample rate selected or available. The Rear panel has Left and Right transformer balanced analog Amphenol XLR Input and output connectors that connect to any standard balanced analog inputs and outputs. The USB ULTRA VSR Broadcast is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing USB equipped computers (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Optional features include an optional bracket kit for under-table mounting. The USB ULTRA VSR Broadcast ships with a premium quality USB-A to USB-B cable, and is hand made in Australia. USB ULTRA VSR Broadcast Technical Specifications Connector : USB type B port Codec : Hi Resolution 24 bit 192 KHz Sample Rate : Software selectable : 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz and 192 KHz Input Impedance : 10 KOhms Transformer Balanced Output Impedance : 300 Ohms Transformer Balanced Maximum Input Level : Nominal 0 dB Maximum Output Level : Nominal 0 dB Input/Output Noise : USB - System dependent ISO transformer - Enviroment sensitive Frequency Response : 20 - 20 KHz ± 0.5 dB Power Consumption : via USB Port - typically 0.8W Input Connectors Channel 1 / Left and Channel 2 / Right 2 x Female Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch Output Connectors Channel 1 / Left and Channel 2 / Right 2 x Male Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch Construction : All-steel powder coated chassis, fibreglass PCB, epoxy printing, USB Ultra I/O chassis grounded via USB connection Slip-resistant rubber base pad. Package includes a premium quality USB-A to USB-B cable System Requirements Windows 10 Mac running OS X or later Audio software installed

SmartPhones, Tablets, Laptops and other Wireless audio and USB enabled devices have rapidly become the program source of convenience for Corporate A.V Presentations, Seminars, Musicians, D.Js, Entertainment Venues, System Demonstrations and Testing, and many other audio playback applications. To cope with all these audio sources. ARX introduces the MIXXMaker - a new multi-channel Mic/Line Master Mixer. This unique device features Wireless audio, USB and MiniJack inputs, 2 Mic/Line inputs, 2 stereo line inputs, and Left/Right (or Zone 1 and 2) Master level controls, as well as an Auxiliary mono output with its own level control. That's a lot of Inputs and a lot of control in a compact, user-friendly unit only 1 RU tall! Great Features The Wireless audio receiver, USB connector and the MiniJack inputs all have their own individual level controls. Each Microphone channel on the MIXXMaker has a Balanced Low Noise Mic input, plus individual Gain and Level controls. The Mic input can also be switched to be a Line input as required. Switchable Phantom power is also available on both Mic Inputs. The Stereo Line Inputs 3/4 and 5/6 each have rear panel input trim controls, as well as front panel output level controls, and their inputs are industry standard RCA type connectors. Additionally there are Left and Right Master controls, and a mono L+R Aux Output with its own level control. The Left and Right Master Output XLR connectors can also be switched to Mono if required, by a rear panel switch. The rear panel also has a connector for a push-to-talk jack, and a Priority override ducker switch for Channel 1. Pressing this switch in will duck the level of the other channels by 20dB when Channel 1 is used. LED Indicators The front panel has LED indicators for Wireless audio (see Specifications below), USB active, Priority Override enabled, Phantom Power enabled, Outputs switched to Mono, and AC power. AC Power It is available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch. The ARX MIXXMaker is an intuitive, user-friendly Master mixer, capable of handling all commonly used current audio interfaces. In other words, a total solution to today’s install requirements. Features Has Wireless audio, USB and MiniJack inputs! Plus 2 x Balanced XLR Mic / Line Inputs Plus 2 x stereo Line In channels Global 3 way EQ control Switchable Phantom power Switchable push-to-talk with a Priority override ducker for Mic channel 1 User-friendly layout in 1 RU package Flawless performance in any audio environment Applications Clubs /Gyms /Karaoke /Restaurants Industrial Paging/BGM Systems AV Systems Broadcast Submixers Sound Reinforcement ...and much, much more Specifications: Microphone Inputs: Electronically Balanced on XLR Connectors Stereo Line Inputs: Line level inputs on RCA Connectors Mic Priority: Switchable Channel 1 override; 20dB attenuation to all other channels Input Gain: Variable 0dB to 60dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB) Channel Level: Infinity to +6dB Gain Mic and Line Channel EQ: Low 100Hz 15dB Cut/Boost Shelving Mid 800HZ 15dB Cut/Boost Bell, Broad Q High 10KHz 15dB Cut/Boost Shelving Frequency Response: 20-20KHz +or- 1dB Distortion: Below .005% 100Hz to 10KHz Phantom Power: +48VDC switchable on all Microphone Inputs Master Outputs: Electronically Balanced XLR 300 ohms Line Level Master Outputs Signal/Noise: -90dB unweighted. Max Output Level: +20dB Input Connector: USB type B port Codec: 24 bit High Resolution USB Power: Operating current via USB Port 80mA MIXXMaker AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable Wireless audio Receiver Specifications: Range: Approx 2 - 4 metres Depends on paired source device LED Indicators: Scan Red LED Red LED Flashes Lock Blue LED Matching/Pairing: Blue LED Flashes Matched/Paired: Blue LED On Frequency 2.402 - 2.480 GHz Sensitivity -90dBM @0.1% BER
