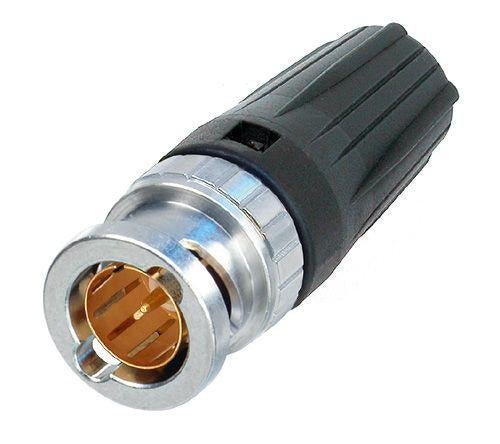

Neutrik - NBNC75BWU13 - A true 75 ohm design and is perfectly suitable for HD applications.
by Neutrik
$17.99
SKU NBNC75BWU13
Suitable for Sommer Cable - Vector Plus
The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Draka 1.2L/4.8Dz, Draka 1.2L/4.95AF, Canford SDV-F-HD, Cordial CVM 12-50 HD-FLEX, Cordial CVM 12-50 UHD-Flex, Percon VK770F
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits
- ?rearTWIST Principle? locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the ?head? of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Information
| Product | |
| Title | NBNC75BWU13 |
| Connection Type | BNC 75 ? |
| Gender | male |
| Electrical | |
| Contact resistance | ? 3 m? (inner) |
| Contact resistance | ? 2 m? (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 ? |
| Insulation resistance | > 5 G? |
| Rated voltage | <50 V |
| VSWR | ?1.050/>32 dB up to 1 GHz ?1.065/>30 dB up to 2 GHz ?1.100/>26 dB up to 3 Ghz |
| Mechanical | |
| Cable O.D. | 7.3 mm |
| Cable retention | > 30 N (Center) |
| Crimp size | 7,36 Hex crimp (shield) acc. MIL22520/5-41(A) |
| Crimp size (pin) | 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Material | |
| Contacts | Brass (CuZn35Pb2), 0.2 ?m AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy? |
| Environmental | |
| Temperature range | -30 ?C to +85 ?C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
