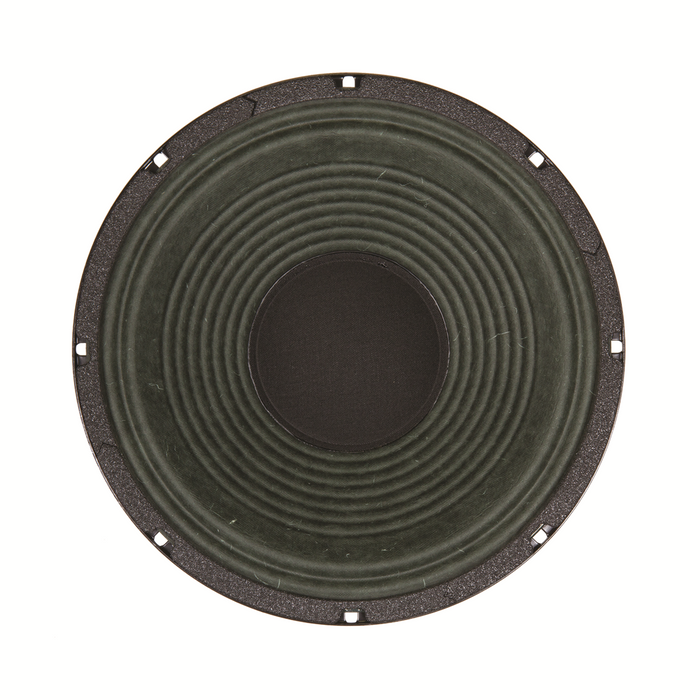

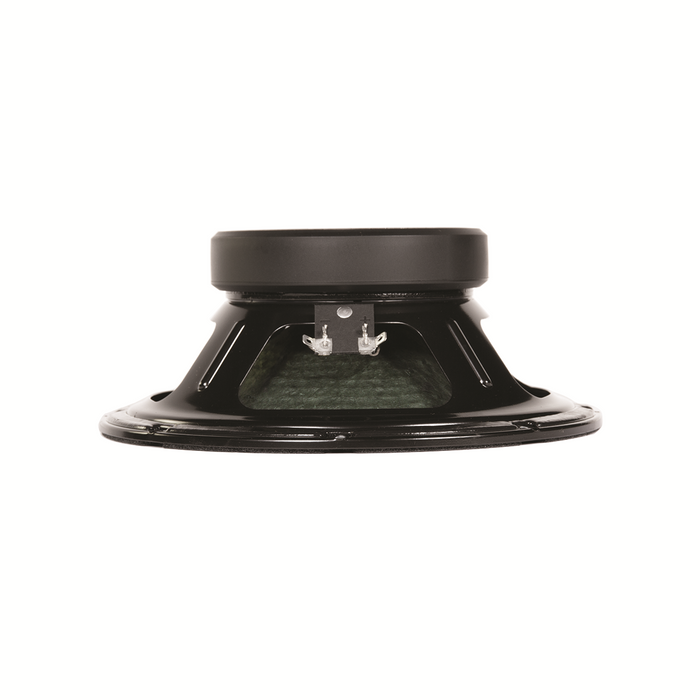

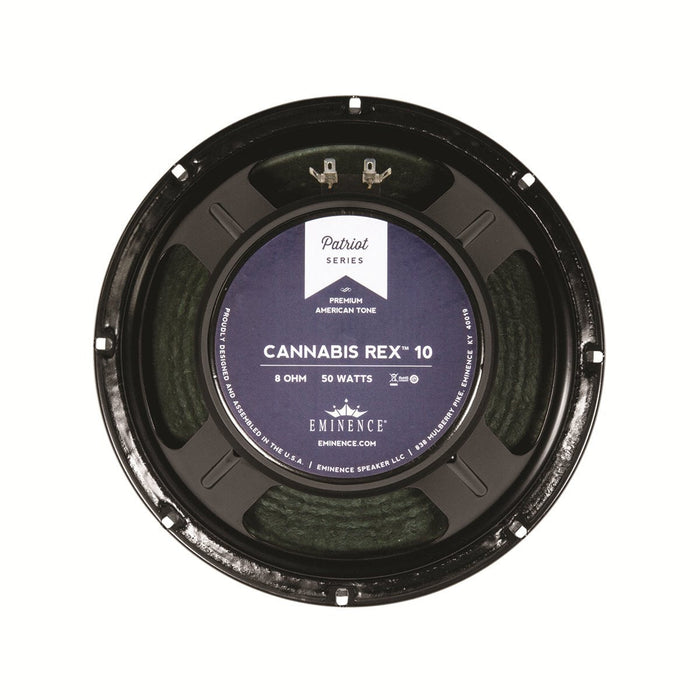

The Eminence Cannabis Rex guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.
Specifications:
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating*: | |
| Program Power | N/A |
| Watts | 50 W |
| Resonance | 130 Hz |
| Usable Frequency Range | 80 Hz - 5.3 kHz |
| Sensitivity* | 99.3 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.313", 8 mm |
| Voice Coil Diameter | 1.75", 44 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 130 Hz |
| DC Resistance (Re) | 6.35 Ω |
| Coil Inductance (Le) | 0.49m H |
| Mechanical Q (Qms) | 15.4 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.58 |
| Compliance Equivalent Volume (Vas) | 13.02 liters / 0.46 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 0 cc |
| Mechanical Compliance of Suspension (Cms) | 0.07 mm/N |
| BL Product (BL) | 13.16 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 20 grams |
| Efficiency Bandwidth Product (EBP) | 216 |
| Maximum Linear Excursion (Xmax) | 0.79 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 0 mm |
| MOUNTING INFORMATION: | |
| Recommended Enclosure Volume: | |
| Sealed | N/a |
| Vented | N/a |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 4", 101.6 mm |
| Net Weight | 7.3 lbs, 3.31 kg |
| Shipping Weight | 8.4 lbs, 3.81 kgs |
| MATERIALS OF CONSTRUCTION: | |
| Coil Construction | Copper voice coil |
| Coil Former | Paper former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Hemp cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
