Sommer Cable

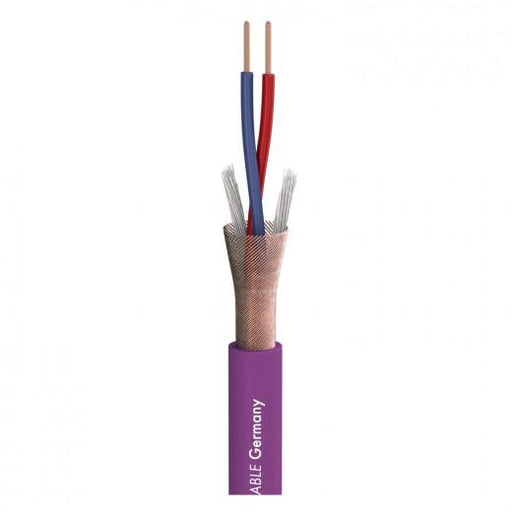

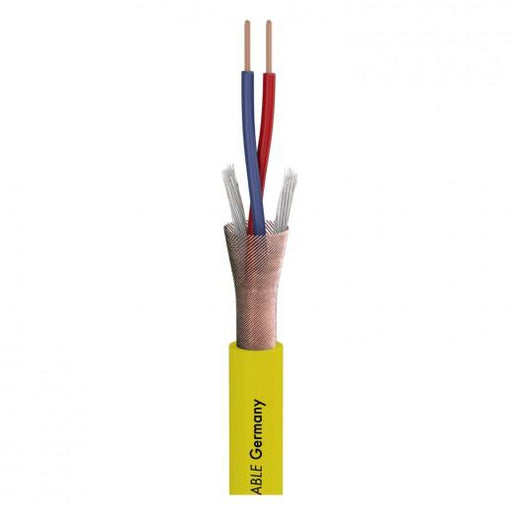

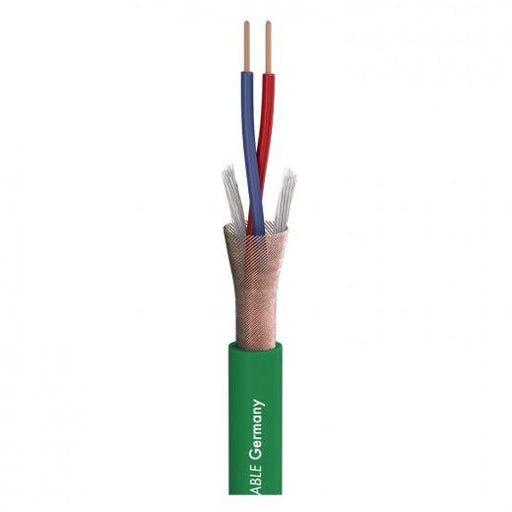

***Price Is Per Meter*** One thick coat... will protect the interior against mechanical wear, such as pulling, tugging, kinking and knotting. For this reason we have fitted the  STAGE 22  with a thick 6,40 mm outer jacket. The electrical data and the technical construction are also worth a look: Because of the fine, densely, stranded single wires, the  STAGE 22  offers low capacitance and high bending cycles. The shielding, made of bare copper wires, has a 99 % optical coverage (instead of the usual 85 %). Thus, the  STAGE 22  is the ideal cable for stage, home recording, rental companies and ELA-100V-applications technicians. The  STAGE 22  is a very affordable cable with no need to compromise. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0004 Name Stage 22 Highflex EAN 4049371001878 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Microphone Cable Colour green Colour detailed green Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 44 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0008 Name Stage 22 Highflex EAN 4049371001908 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Microphone Cable Colour purple Colour detailed purple Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 44 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0007 Name Stage 22 Highflex EAN 4049371001892 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application Microphone Cable Colour yellow Colour detailed yellow Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 44 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

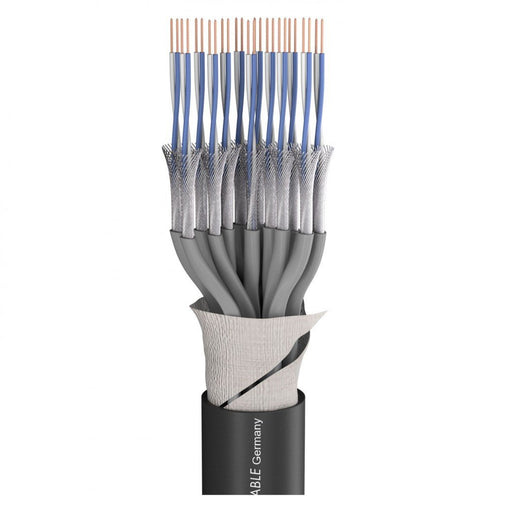

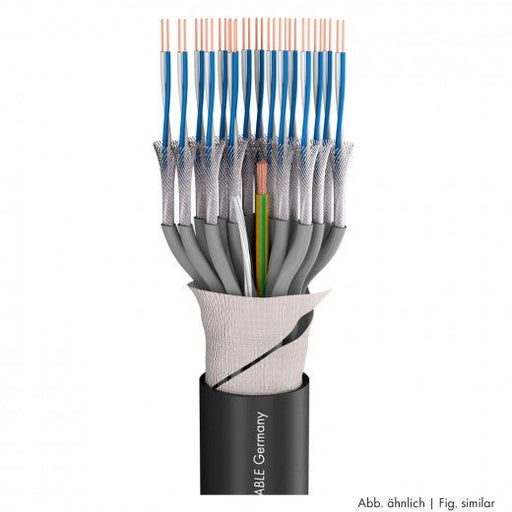

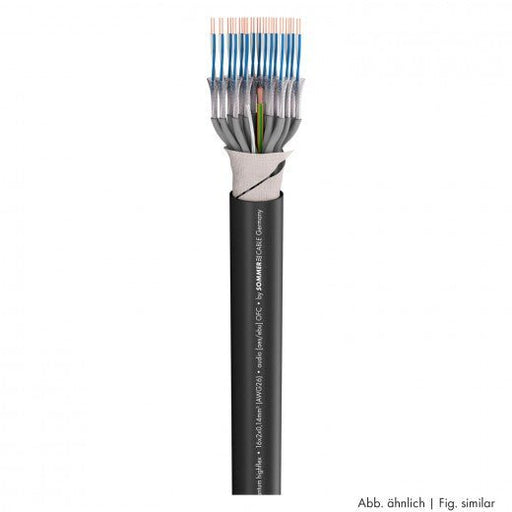

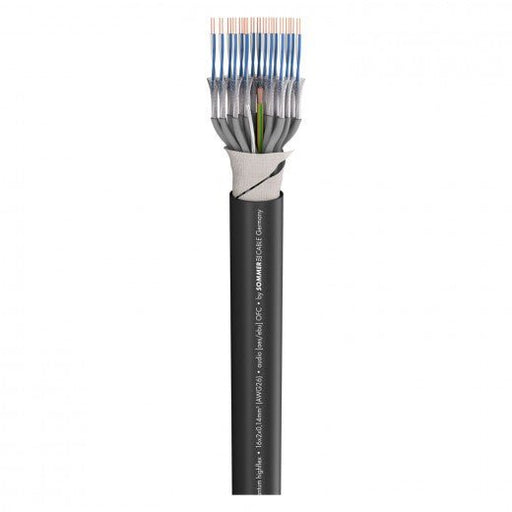

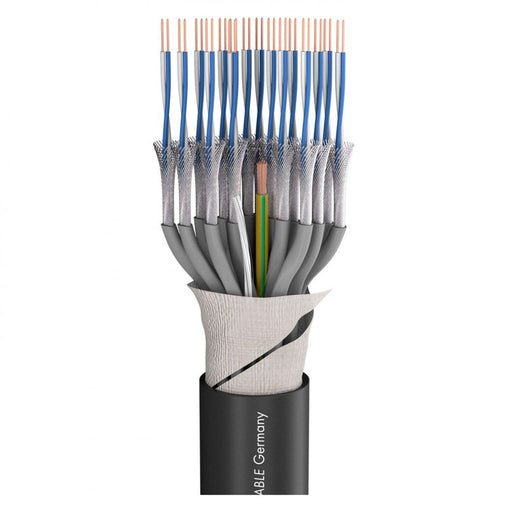

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible. The  SC-Quantum QMC  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-12 Name SC-Quantum QMC12 EAN 4049371001014 Construction [12(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 16,00 Number of Channels (audio) 12 Fire load per m [kWh] 0,83 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 12 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specification: Article number 200-0006 Name Stage 22 Highflex EAN 4049371001885 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Microphone Cable Colour grey Colour detailed icy grey Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 44 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0003 Name Stage 22 Highflex EAN 4049371001861 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Microphone Cable Colour red Colour detailed red Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 44 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the usw of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dence helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0002 Name Stage 22 Highflex EAN 4049371001854 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Mobile outdoor / indoor Application area Stage / live Application Microphone Cable Colour blue Colour detailed blue Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 47 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Packing 500 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** One thick coat... Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single litz wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs. Advantages: High transmission quality due to the use of fine stranding Very rugged owing to the thick, soft PVC jacket Good shielding due to dense helical copper mesh screen High flexibility makes it easy to reel Affordable price Application: Stage application Home recording Specifications: Article number 200-0001 Name Stage 22 Highflex EAN 4049371001830 Properties OFC oxygen free copper Properties Analog Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction (2LI2Y0,22mm²)DY Jacket material PVC Jacket Ø [mm] 6,40 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding Copper spiral shielding with 0.10 mm indiv. strands Shielding factor [%] 99 Copper strands (audio) 28 Copper strand Ø (audio) [mm] 0,10 Weight per 1 m [g] 47 UV-resistant yes Fire load per m [kWh] 0,22 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 6,4 Height [mm] 6,4 Capac. cond./cond. per 1 m (audio) [pF] 68 Capacity wire/wire at 1 ft. (audio) [pF] 20,7264 Capac. cond./shield. per 1 m (audio) [pF] 130 Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624 Impedance [Ω] 100 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 87 Conductor resistance per 1000 ft. [Ω] 26,5176 Shield. resistance per 1 km [Ω] 30 Shield. resistance per 1000 ft. [Ω] 9,144 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible. The  SC-Quantum QMC  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-48 Name SC-Quantum QMC48 EAN 4049371001076 Construction [48(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 29,00 Number of Channels (audio) 48 Weight per 1 m [g] 950 Fire load per m [kWh] 2,94 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 48 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible. The  SC-Quantum QMC  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-24 Name SC-Quantum QMC24 EAN 4049371001045 Construction [24(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 21,50 Number of Channels (audio) 24 Weight per 1 m [g] 550 Fire load per m [kWh] 1,5 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 24 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible. The  SC-Quantum QMC  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-16 Name SC-Quantum QMC16 EAN 4049371001021 Construction [16(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 17,50 Number of Channels (audio) 16 Weight per 1 m [g] 325 Fire load per m [kWh] 1,04 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 16 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible. The  SC-Quantum QMC  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifiactions: Article number 100-0451-08 Name SC-Quantum QMC08 EAN 4049371000994 Construction [08(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 13,80 Number of Channels (audio) 8 Weight per 1 m [g] 200 Fire load per m [kWh] 0,55 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 8 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible.  SC-Quantum QMC HIGHFLEX  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC HIGHFLEX  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PEinsulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC HIGHFLEX  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-04 Name SC-Quantum QMC04 EAN 4049371000987 Construction [04(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 10,20 Number of Channels (audio) 4 Weight per 1 m [g] 108 Fire load per m [kWh] 0,41 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 4 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

***Price Is Per Meter*** A true allrounder... because it could not be any longer, faster or more flexible.  SC-Quantum QMC HIGHFLEX  is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The  SC-Quantum QMC HIGHFLEX  is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0,07 mm (!) individual copper litz and the PEinsulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth). The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage. Go figure this: the  SC-Quantum QMC HIGHFLEX  stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres! The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm. There has never been a cable with such electrical and mechanical values for such a low price! Advantages: Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage) Very low wire/wire capacitance Highly flexible and reelable without twisting In compliance with AES/EBU () Affordable price Application: Professional stage and live multicore for separate or central earthing Creation of highly flexible studio looms, analogue and digital Permanent Installation Specifications: Article number 100-0451-02 Name SC-Quantum QMC02 EAN 4049371000970 Construction [02(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y Jacket Ø [mm] 8,50 Number of Channels (audio) 2 Weight per 1 m [g] 80 Fire load per m [kWh] 0,26 Article number 100-0451 Name SC-Quantum QMC Properties Strong PVC-jacket Properties Torsion-free Properties Digital 110 Ω AES / EBU Properties Analog Properties OFC oxygen free copper Application area Stage / live Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Jacket material S-PVC Number of Channels (audio) 2 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,14 Inner conductor Ø (audio) [mm] 0,42 AWG (audio) 26 Shielding Copper spiral in pairs, tin-plated Shielding factor [%] 99 Copper strands (audio) 36 Copper strand Ø (audio) [mm] 0,07 UV-resistant yes Fire load per m [kWh] 0,26 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 80 Capac. cond./cond. per 1 m (audio) [pF] 45 Capacity wire/wire at 1 ft. (audio) [pF] 13,716 Capac. cond./shield. per 1 m (audio) [pF] 90 Capacity wire/electic screen at 1 ft. (audio) [pF] 27,432 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 0,02 Insulation resist. per 1000 feet [GΩ] 0,0061 Insulation resist. per 1 km (audio) [GΩ] 0,02 Insulation resist. per 1000 feet (audio) [GΩ] 0,0061 Conductor resistance per 1 km [Ω] 138 Conductor resistance per 1000 ft. [Ω] 42,0624 BPVo-Euroclass Fca

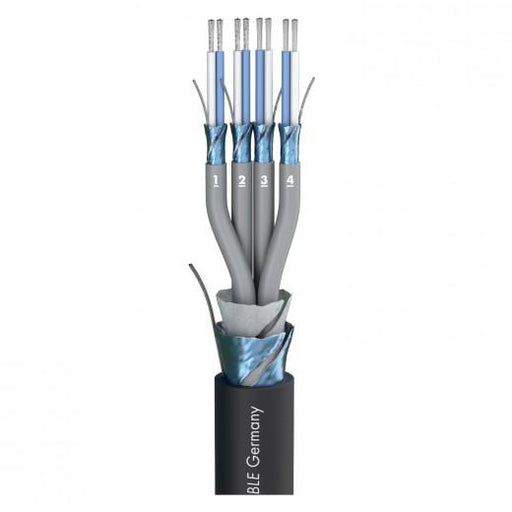

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications: Article number 100-0101-24 Name SC-Mistral MCF24 EAN 4049371000758 Construction [24(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 24,50 Number of Channels (audio) 24 Weight per 1 m [g] 670 Fire load per m [kWh] 3,06 Width [mm] 24,5 Height [mm] 24,5 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 24 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Article number 100-0101-32 Name SC-Mistral MCF32 EAN 4049371000598 Construction [32(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 26,80 Number of Channels (audio) 32 Weight per 1 m [g] 836 Fire load per m [kWh] 4,04 Width [mm] 26,8 Height [mm] 26,8 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 32 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications:  Article number 100-0101-16 Name SC-Mistral MCF16 EAN 4049371000611 Construction [16(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 19,40 Number of Channels (audio) 16 Fire load per m [kWh] 2,25 Width [mm] 19,4 Height [mm] 19,4 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 16 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications: Article number 100-0101-04 Name SC-Mistral MCF04 EAN 4049371000536 Construction [04(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 11,00 Number of Channels (audio) 4 Fire load per m [kWh] 0,76 Width [mm] 11 Height [mm] 11 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 4 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications: Article number 100-0101-12 Name SC-Mistral MCF12 EAN 4049371000734 Construction [12(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 17,60 Number of Channels (audio) 12 Weight per 1 m [g] 338 Fire load per m [kWh] 1,78 Width [mm] 17,6 Height [mm] 17,6 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 12 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that’s the  SC-Mistral MCF  multipair. We have been making it for almost 10 years using the same proven technology. The  SC-Mistral MCF  features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the  SC-Mistral MCF  have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The  SC-Mistral MCF  is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications: Article number 100-0101-08 Name SC-Mistral MCF08 EAN 4049371000604 Construction [08(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket Ø [mm] 14,80 Number of Channels (audio) 8 Weight per 1 m [g] 256 Fire load per m [kWh] 1,21 Width [mm] 14,8 Height [mm] 14,8 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 8 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor Ø (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand Ø (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

***Price Is Per Meter*** Almost as old as Methuselah... that's the SC-Mistral MCF multipair. We have been making it for almost 10 years using the same proven technology. The SC-Mistral MCF features the pairwise PVC insulation, as it is usual for studio cores. It has a hardwearing number overprint plus an extra colour-coding in steps of 8. The wire pairs of the SC-Mistral MCF have a pre twisted drain wire and another shielding made of AL/PT compound foil. For added protection against corrosion and oxidation both the conductors and the drain wire have been tinned. The cable is particularly easy to handle because the AL/PT foil will stick to the outer jacket when stripping. The SC-Mistral MCF is very easy to lay and reel. We also recommend it for the assembly of multicore adapters. Here the XLR and jack connectors can be mounted directly on the PVC jacket. Advantages: Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve Very flexible and tread-resistant owing to the use of a rubberlike jacket material Simple and fast handling due to the use of compound foil and a pre-twisted drain wire High bending cycles due to the tightly stranded Cu litz wires Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs High transmission quality even with excess distances (low capacitance!) Affordable price Application: Ideal for studio installation and permanent installation Fixed installation in theatres, public buildings etc. Construction of dependable cable reel systems Specifications: Article number 100-0101-02 Name SC-Mistral MCF02 EAN 4049371000727 Construction [02(2LI2Y0,22mm²)(ST)Y]F(ST)Y Jacket ˜ [mm] 9,00 Number of Channels (audio) 2 Weight per 1 m [g] 90 Fire load per m [kWh] 0,58 Width [mm] 9 Height [mm] 9 Article number 100-0101 Name SC-Mistral MCF Properties Digital 110 Ω AES / EBU Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application Multipair Colour black Colour detailed black, mat Signal transmission symmetrical Number of Channels (audio) 2 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 0,22 Inner conductor (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + total foil shielding + filler strand Shielding factor [%] 100 Copper strands (audio) 7 Copper strand˜ (audio) [mm] 0,20 Conductor insulation material Foam / Skin-PE Conductor insulation˜ [mm] 1,60 UV-resistant yes Style variant round Packing bulk stock Temperature min. [°C] -30 Temperature max. [°C] 70 Capac. cond./cond. per 1 m (audio) [pF] 46 Capacity wire/wire at 1 ft. (audio) [pF] 14,0208 Capac. cond./shield. per 1 m (audio) [pF] 85 Capacity wire/electic screen at 1 ft. (audio) [pF] 25,908 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 1 Insulation resist. per 1000 feet [GΩ] 0,3048 Insulation resist. per 1 km (audio) [GΩ] 1 Insulation resist. per 1000 feet (audio) [GΩ] 0,3048 Conductor resistance per 1 km [Ω] 80 Conductor resistance per 1000 ft. [Ω] 24,384 Shield. resistance per 1 km [Ω] 75 Shield. resistance per 1000 ft. [Ω] 22,86 BPVo-Euroclass Fca

HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight. Specifications: Article number RJ45C6A-SW EAN 4049371057356 Colour black Article number RJ45C6A Brand HIROSE Application data Model RJ45 CAT.6a Style variant straight Gender male Material plastic Coding black Codable no Pole number 8-pole Connector / Socket male connector Type of contact crimp Contact coating gold plated Mounting Cable Max. cable diameter [mm] 6,6

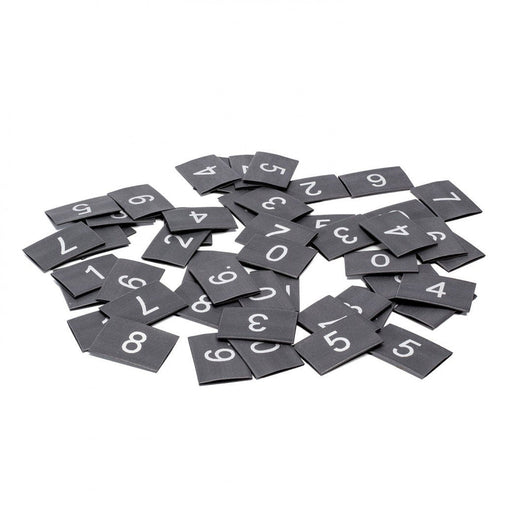

***Price Is Per Meter*** These short... pieces of shrink tubing are used for numbering and coding of multi-pair splices. The numbers from 0 - 9 can save you a lot of time and you will be able to immediately identify the assignments on your multi-pair. For 2-digit labeling you can simply slide two pieces of shrink tubing side by side. The shrinking rate is 3 : 1 with a fixing length of 20 mm. Specifications: Colour black EAN 4049371007481 Brand Sommer cable Type Shrink-on tube Content 50 Stck. (5 x 0 - 9) Sommer cable Shrink-on tube, 50 Stck. (5 x 0 - 9) Technical Data: - Type: Shrink-on tube - Content: 50 Stck. (5 x 0 - 9)

***Price Is Per Meter*** One step forward, one step back... round and round, don’t break your neck! When data need to be passed back and forth, a digital cable with a check-back channel should be used. The wave impedance of this cable is also specified at 110 Ω. Two of the 4 wires are responsible for the check-back function. The sturdy jacket is suitable both for outdoor and permanent installation. Colour coding according to DIN 47100. Due to the dual shielding (AL/PT foil + copper braiding) and wire coding it conforms with the generally applicable guidelines (VDE 0812/VDE 0207). Transmission rate 256 Kbs according to EIA 485 standard. Advantages: Digital transmission over long distances due to the DMX and AES/EBU standards Excellent protection against electric interference (Cu mesh screen + AL/PT foil) Extremely robust due to the special tough jacket Application: Networking of scanners and lighting systems with check-back function Connection of digital control units and devices of all kinds Specifications: Article number 540-0056 Name Binary 434 DMX512 EAN 4049371002394 Properties OFC oxygen free copper Properties Analog Properties Digital 110 Ω AES / EBU Application area Installation Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application area Stage / live Application DMX Colour grey Colour detailed grey Signal transmission symmetrical Construction [2(2LI2YS0,34mm²)(ST)]CY Jacket material PVC Jacket Ø [mm] 7,00 Number of Channels (AES/EBU, DMX) 1 Inner conductor (AES/EBU, DMX) 4 Inner conductor (AES/EBU, DMX) [mm²] 0,34 Inner conductor Ø (AES/EBU, DMX) [mm] 0,66 AWG (AES/EBU, DMX) 22 Shielding Copper-cross mesh, tined + AL / PT foil Shielding factor [%] 100 Copper strands (AES/EBU, DMX) 7 Copper strand Ø (AES/EBU, DMX) [mm] 0,25 Conductor insulation material PE Conductor insulation Ø [mm] 1,70 Weight per 1 m [g] 65 Fire load per m [kWh] 0,22 Style variant round Packing 100 m spool Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 7 Height [mm] 7 Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 58 Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 17,6784 Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 100 Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 30,48 Impedance [Ω] 110 Insulation resist. per 1 km [GΩ] 5 Insulation resist. per 1000 feet [GΩ] 1,524 Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 5 Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 1,524 Conductor resistance per 1 km [Ω] 53 Conductor resistance per 1000 ft. [Ω] 16,1544 Shield. resistance per 1 km [Ω] 15 Shield. resistance per 1000 ft. [Ω] 4,572 BPVo-Euroclass Fca

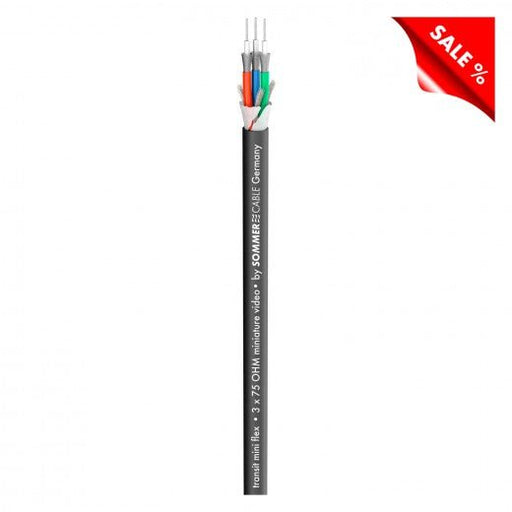

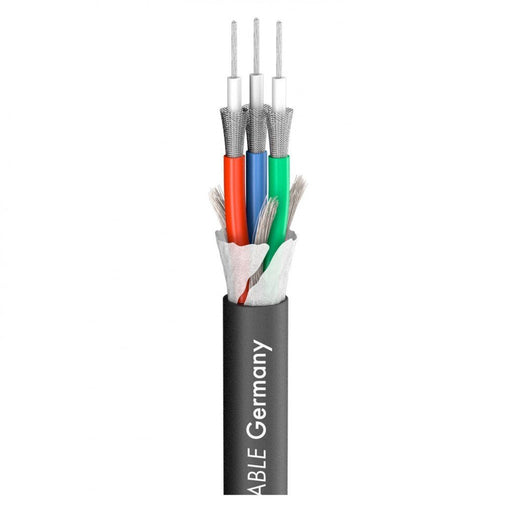

***Price Is Per Meter*** Like silk and satin... that’s how the outer jacket of the  Transit MINI Flex  feels in your hands. This is achieved through the use of a special jacket mixture made of an extremely coldresistant material. It makes the cable highly flexible and sturdy. Each wire is shielded by a dense cross mesh. Both the litz wires and the screen are tinned and very easy to work with. Wire colours according to RGB: red, green, blue, black, and white. Advantages: Highly flexible, easy to reel and cold-resistant due to fine single litz wires and a special jacket mixture, compact Excellent shielding, low damping Very dependable, tread-resistant and durable due to the viscose filler and tight litz stranding Application: Flexible video and monitor cable for professional demands Mobile applications with high bending cycles and for inconspicuous fixed installations Specifications: Article number 600-0251-03 Name Transit MINI Flex EAN 4049371001472 Properties Digital 75 Ω Properties OFC oxygen free copper Properties Analog Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area Stage / live Application area Installation Application video cable Colour black Colour detailed black Construction (3LI2Y0,32mmCY)Y Jacket material Antistatic-PVC Jacket Ø [mm] 8,20 Number of Channels (video) 1 Inner conductor (video) 3 Inner conductor (video) [mm²] 0,08 Inner conductor Ø (video) [mm] 0,32 AWG (video) 28 Shielding Copper braiding tin-plated Shielding factor [%] 95 Copper strands (video) 7 Copper strand Ø (video) [mm] 0,12 Conductor insulation material Foam / Skin-PE Conductor insulation Ø [mm] 1,60 Weight per 1 m [g] 78 UV-resistant yes Fire load per m [kWh] 0,27 Style variant round Packing bulk stock Velocity factor 0,66 Temperature min. [°C] -20 Temperature max. [°C] 70 Width [mm] 8,2 Height [mm] 8,2 Capacity wire/electic screen at 1m (video) [pF] 56 Capacity wire/electic screen at 1 ft. (video) [pF] 17,0688 Damping at 5 MHz (100m & 20° C) [dB] 4,3 Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 1,3106 Damping at 50 MHz (100m & 20° C) [dB] 15 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,572 Damping at 100 MHz (100m & 20° C) [dB] 21,5 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,5532 Damping at 1485 MHz (100m & 20° C) [dB] 94,5 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 28,8036 Damping at 3000 MHz (100m & 20° C) [dB] 148 Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 45,1104 Impedance [Ω] 75 Return loss [dB] 20 BPVo-Euroclass Fca

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust  Meridian Mobile SP225 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 425-0056 Name Meridian Mobile SP225 EAN 4049371002196 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application Speaker Cable Colour grey Colour detailed dark grey Construction (2LIY2,5mm²)Y Jacket material PVC Jacket Ø [mm] 7,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 2,50 Inner conductor Ø (audio) [mm] 1,78 AWG (audio) 13 Copper strands (audio) 140 Copper strand Ø (audio) [mm] 0,15 Conductor insulation Ø [mm] 3,05 Weight per 1 m [g] 106 Fire load per m [kWh] 0,33 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 7,8 Height [mm] 7,8 Capac. cond./cond. per 1 m (audio) [pF] 136 Capacity wire/wire at 1 ft. (audio) [pF] 41,4528 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 7,5 Conductor resistance per 1000 ft. [Ω] 2,286 BPVo-Euroclass Fca

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust Meridian Mobile SP240 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 440-0056 Name Meridian Mobile SP240 EAN 4049371002219 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application Speaker Cable Colour grey Colour detailed dark grey Construction (2LIY4,0mm²)Y Jacket material PVC Jacket Ø [mm] 9,50 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,76 AWG (audio) 11 Copper strands (audio) 56 Copper strand Ø (audio) [mm] 0,30 Conductor insulation Ø [mm] 4,20 Weight per 1 m [g] 150 Fire load per m [kWh] 0,46 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 9,5 Height [mm] 9,5 Capac. cond./cond. per 1 m (audio) [pF] 125 Capacity wire/wire at 1 ft. (audio) [pF] 38,1 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 BPVo-Euroclass Fca

***Price Is Per Meter*** Where brute force reigns in a useful manner... the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust Meridian Mobile SP215 . This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel. Advantages: flexible and easy to rollable for cable reel Small in diameter Very durable due to the use of special coating mixtures Affordable price Application: PA sound systems of all kinds For ELA technology Cabling of HiFi systems Specifications: Article number 415-0056 Name Meridian Mobile SP215 EAN 4049371003445 Properties Analog Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Stage / live Application area ELA 100 V Application area Studio / Broadcast Application Speaker Cable Colour grey Colour detailed dark grey Construction (2LIY1,50mm²)Y Jacket material PVC Jacket Ø [mm] 6,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 1,50 Inner conductor Ø (audio) [mm] 1,38 AWG (audio) 16 Copper strands (audio) 84 Copper strand Ø (audio) [mm] 0,15 Conductor insulation Ø [mm] 2,62 Weight per 1 m [g] 78 Fire load per m [kWh] 0,28 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 6,8 Height [mm] 6,8 Capac. cond./cond. per 1 m (audio) [pF] 150 Capacity wire/wire at 1 ft. (audio) [pF] 45,72 Insulation resist. per 1 km [GΩ] 0,005 Insulation resist. per 1000 feet [GΩ] 0,0015 Insulation resist. per 1 km (audio) [GΩ] 0,005 Insulation resist. per 1000 feet (audio) [GΩ] 0,0015 Conductor resistance per 1 km [Ω] 13 Conductor resistance per 1000 ft. [Ω] 3,9624 BPVo-Euroclass Fca

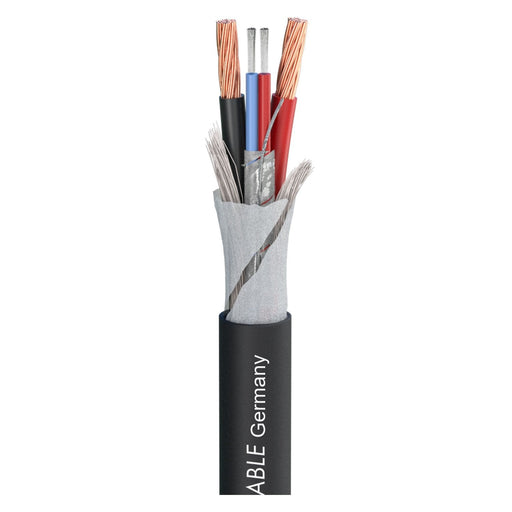

***Price Is Per Meter*** It brings colour to your life... for the SC-KOLORITH is the perfect cable for use with low-voltage loudspeaker products from MEYER SOUND, building installation systems on BUS basis as well as for connecting colour changers. The SC-KOLORITH transmits data and power supply in one line. The pairwise stranded data line (wave impedance 110 Ω) is shielded and, due to the use of fine, tinned 0.10 mm single litz wires, guarantees high bending cycles. With 1 mm² the two voltage supply wires are ideally dimensioned for the transmission of voltages up to 50 V with low power losses. The SC-KOLORITH MINI fits perfectly into the EN3 connector from Switchcraft. Advantages: Connection of building services engineering systems over distances of up to 1000 m Also suitable as audio/speaker hybrid cable Very compact, flexible and easy to use Application: For connecting colour changers For installation purposes (Studio, illumination, building services engineering) Outdoor installation applications For connecting low-voltage / intelligent DC products made by Meyer Sound Specifications: Article number 500-0101-1 Name SC-Kolorith 1 EAN 4049371000543 Properties OFC oxygen free copper Properties Analog Properties Digital 110 Ω AES / EBU Application area Studio / Broadcast Application area Mobile outdoor / indoor Application area ELA 100 V Application area Installation Application BUS Control cable Colour black Colour detailed black Signal transmission symmetrical Construction [2LIY2,0mm²+(2LIY0,38mm²)(ST)]Y Construction (audio) (2LIY0,38mm²)(ST) Construction (power) 2LIY2,0mm² Jacket material PVC Jacket Ø [mm] 7,40 Jacket Ø (audio) [mm] 2,50 Number of Channels (audio) 1 Number of Channels (power) 1 Inner conductor (audio) 2 Inner conductor (power) 2 Inner conductor (audio) [mm²] 0,38 Inner conductor (power) [mm²] 2,00 Inner conductor Ø (audio) [mm] 0,67 Inner conductor Ø (power) [mm] 1,60 AWG (audio) 21 AWG (power) 14 Shielding (audio) AL / PT foil + filler strand Shielding factor [%] 100 Copper strands (audio) 45 Copper strand Ø (audio) [mm] 0,10 Wire insulation material (audio) PP Conductor insulation Ø [mm] 0,00 Conductor insulation Ø (audio) [mm] 1,30 Weight per 1 m [g] 87 UV-resistant yes Fire load per m [kWh] 0,32 Style variant round Packing bulk stock Temperature min. [°C] -25 Temperature max. [°C] 70 Width [mm] 7,4 Height [mm] 7,4 Capac. cond./cond. per 1 m (audio) [pF] 65 Capacity wire/wire at 1 ft. (audio) [pF] 19,812 Capac. cond./shield. per 1 m (audio) [pF] 104 Capacity wire/electic screen at 1 ft. (audio) [pF] 31,6992 Impedance [Ω] 0 Surge impedance (audio) [Ω] 110 Conductor resistance per 1 km [Ω] 0 Conductor resistance per 1000 ft. [Ω] 0 Conductor resistance per 1 km (audio) [Ω] 60 Conductor resistance per 1000 ft. (audio) [Ω] 18,288 Shield. resistance per 1 km [Ω] 25 Shield. resistance per 1000 ft. [Ω] 7,62 BPVo-Euroclass Fca

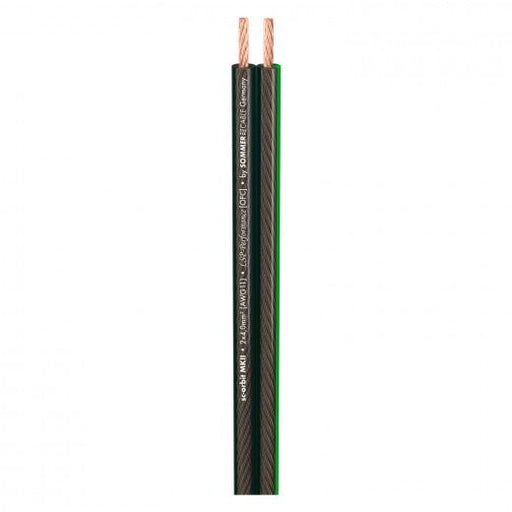

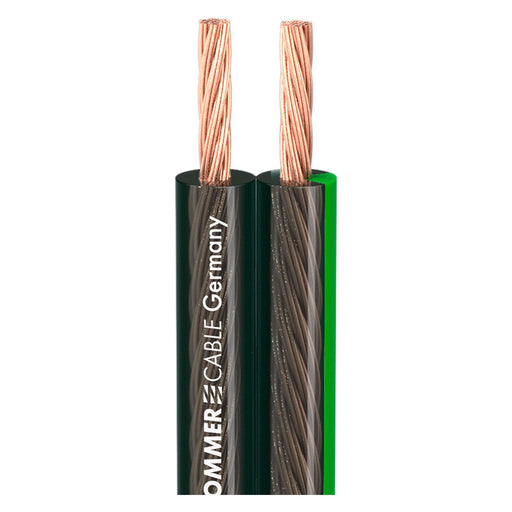

***Price Is Per Meter*** You can easily hear the grass grow... with our SC-Orbit 240 MKII, HighEnd . If you care for true, natural sound and dynamics, then the SC-Orbit 240 MKII, HighEnd is your cable. At the end of the audio signal path is the loudspeaker, but just how the music gets there is nowhere near bananas! You already have the good speaker, now all you need is the cable – and the difference is audible! Here too we offer top quality with an attractive look, because the cables are often laid visibly – or invisibly, therefore as flat as possible is the name of the game. Due to a very tight litz stranding, the copper strand has the necessary surface for a clean transmission of the treble range. The individual wires are reverse-braided. So this cable will always return to its original position, even after extreme twisting. Advantages: Absolutely neutral transmission quality due to fine, tightly tranded copper litz wires Highly flexible and easy to reel due to rubberlike PVC jacket Noble finish with a black, transparent outer jacket Very low impedance values due to special litz stranding Application: Connection to HiFi-High End Speaker Systems Interior wiring of HiFi Loudspeakers and PA Systems For fixed installation Car hifi connection Specifications: Article number 440-0151 Name SC-Orbit 240 MKII, HighEnd EAN 4049371003025 Properties Analog Properties OFC oxygen free copper Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour black Colour detailed black transparent Construction 2LIY4,00mm² Jacket material PVC Jacket Ø [mm] 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm²] 4,00 Inner conductor Ø (audio) [mm] 2,26 AWG (audio) 11 Copper strands (audio) 1036 Copper strand Ø (audio) [mm] 0,07 Weight per 1 m [g] 121 UV-resistant yes Fire load per m [kWh] 0,21 Style variant twin Packing 100 m spool Temperature min. [°C] -30 Temperature max. [°C] 70 Width [mm] 12 Height [mm] 5,9 Capac. cond./cond. per 1 m (audio) [pF] 55 Capacity wire/wire at 1 ft. (audio) [pF] 16,764 Insulation resist. per 1 km [GΩ] 0,01 Insulation resist. per 1000 feet [GΩ] 0,003 Insulation resist. per 1 km (audio) [GΩ] 0,01 Insulation resist. per 1000 feet (audio) [GΩ] 0,003 Conductor resistance per 1 km [Ω] 4,5 Conductor resistance per 1000 ft. [Ω] 1,3716 BPVo-Euroclass Fca

Extremely practical... Are the shrink tubing sets for multi-pair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3:1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels. Specifications: Brand Sommer cable Type Shrink-on tube Colour black Colour detailed black Diameter before shrinking [mm] 9,5 Content Speaker 1 - Speaker 4 EAN 4049371008389 Sommer cable Shrink-on tube, Speaker 1 Speaker 4 Technical Data: - Type: Shrink-on tube - Colour: black - Colour detailed: black - Content: Speaker 1 Speaker 4

Extremely practical... are the shrink tubing sets for multi-pair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3 : 1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels. Specifiactions: EAN 4049371008372 Brand Sommer cable Type Shrink-on tube Colour red Colour detailed red Diameter before shrinking [mm] 4,8 Content Return 1 – Return 12 Sommer cable Shrink-on tube, Return 1 – Return 12 Technical Data: - Type: Shrink-on tube - Colour: red - Colour detailed: red - Content: Return 1 – Return 12

Extremely practical... Are the shrink tubing sets for multi-pair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3:1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels. Specifications: Brand Sommer cable Type Shrink-on tube Colour blue Colour detailed blue Diameter before shrinking [mm] 4,8 Content Channel 41 - Channel 48 EAN 4049371008365 Sommer cable Shrink-on tube, Channel 41 Channel 48 Technical Data: - Type: Shrink-on tube - Colour: blue - Colour detailed: blue - Content: Channel 41 Channel 48

Extremely practical... are the shrink tubing sets for multi-pair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3 : 1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels Specifications : EAN 4049371008358 Brand Sommer cable Type Shrink-on tube Colour black Colour detailed black Diameter before shrinking [mm] 4,8 Content Channel 33 – Channel 40 Sommer cable Shrink-on tube, Channel 33 – Channel 40 Technical Data: - Type: Shrink-on tube - Colour: black - Colour detailed: black - Content: Channel 33 – Channel 40

Extremely practical... Are the shrink tubing sets for multipair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3:1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels. Specifications: Brand Sommer cable Type Shrink-on tube Colour blue Colour detailed blue Diameter before shrinking [mm] 4,8 Content Channel 25 - Channel 32 EAN 4049371008341 Sommer cable Shrink-on tube, Channel 25 Channel 32 Technical Data: - Type: Shrink-on tube - Colour: blue - Colour detailed: blue - Content: Channel 25 Channel 32

Extremely practical... are the shrink tubing sets for multi-pair splice coding. The fixing length of the shrink tubing is 90 mm, the shrinking rate 3:1. For enduring readability in extreme conditions we recommend that a 120 mm long piece of the transparent BT-48/TR, or the BT-95/TR for the somewhat thicker speaker coding, be used to cover the labels. Specifiactions: Brand Sommer cable Type Shrink-on tube Colour black Colour detailed black Diameter before shrinking [mm] 4,8 Content Channel 17 - Channel 24 EAN 4049371008334 Sommer cable Shrink-on tube, Channel 17 Channel 24 Technical Data: - Type: Shrink-on tube - Colour: black - Colour detailed: black - Content: Channel 17 Channel 24
