Roadcase Hardware

Mini Take Apart Hinge Dimensions: 26mm x 30mm Nickel Finish

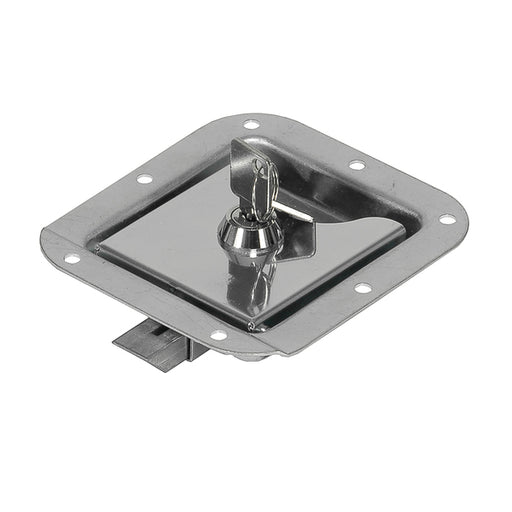

Lockable Die-Cast Latch Part No. L0575 Material Die Cast Aluminium Finish Polished Chrome Weight 85g

Dish Punched for 1 x Neutrik D-Series Connector (XLR, Speakon, RJ45, etc.) Part No. D021K Material 1.2mm Steel Finish Black Dish Depth 16mm Weight 0.25kg

Dish Punched for 1 x Neutrik D-Series Connector (XLR, Speakon, RJ45, etc.) Part No. D021Z Material 1.2mm Steel Finish PennBrite Dish Depth 16mm Weight 0.25kg

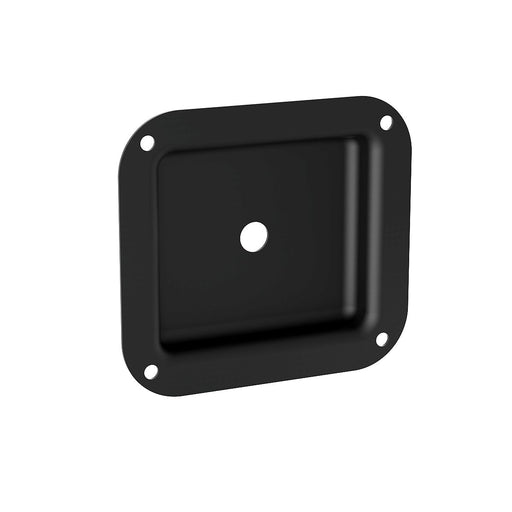

Small Dish Punched for 1 x 1/4" Jack Connectors Part No. D0944 K Material 1.2mm Steel Dish Depth 13mm Weight 0.11kg

4 Hole Brace Part No. B1933 Material 1.5mm Steel Finish PennBrite Description 4 Hole Brace Dimensions 56mm x 35mm Internal Radius 5mm Weight 34g

Tray Support Part No. B1610 Material 1.2mm Steel Finish PennBrite Weight 18g

4 Hole Brace Part No. B0700 Material 1.2mm Steel Finish PennBrite Description 4 Hole Brace Dimensions 33.6mm x 25.4mm Internal Radius 1mm Weight 13g

Brace Ball Corner 6 Mounting Holes Part No. C1374 /00/75 Material 1.5mm Finish PennBrite Length 75mm Internal Radius 4.5mm Weight 0.1kg

Large Heavy Duty Ball Corner with 30mm Offset 6 Mounting Holes Part No. C1992Z Material 2.0mm Steel Finish PennBrite Description Large Heavy Duty Offset Ball Corner Internal Radius 4mm Weight 0.13kg

Pozi Drive 8 x 5/8 Screws Ideal for speaker cabinet hardware like corners and handles etc. Sold as a pack of 50

Brace Ball Corner 6 Mounting Holes Part No. C1374/10/75 Material 1.5mm Steel Finish PennBrite Length 75mm Internal Radius 4.5mm Offset 30mm Weight 0.1kg

6 Hole Brace with 30mm offset. For use with E0850 , E0825 and E0826 Hybrid Edge Extrusions and E0885 , E0875 and E0876 Double Angle Extrusions. Part No. B1123 Material 1.2mm Steel Finish PennBrite Description Hole Brace Dimensions 51.5mm x 47mm Internal Radius 2mm Weight 37g

2 Hole Brace With Strengthening Ribs Part No. B0706 Material 0.75mm Steel Finish Nickel Description 2 Hole Brace Dimensions 29.2mm x 14.7mm Internal Radius 1.4mm Weight 4g

Large MOL Latch in Plain or Offset Dish Part No. L944/530 MOL Material 1.2mm Steel Finish PennBrite Description Plain Dish Dish Depth 16mm Offset No Lockable No Weight 0.44kg

M3 Flat CSK Socket Screws For Mounting Connectors. Available in Black, Zink or Stainless Steel.

50mm Fixed Castor fits to edge of case. Recommended Load Capacity per Wheel: 25kg Part No. A5250 Material Plastic Diameter 50mm

40mm Fixed Castor fits to edge of case. Sold as individual items. Part No. A5251 Material High Impact Polypropylene

Large MOL3 Latch in Plain or Offset Dish With new Cantilever Automatic Open/Close function. Part No. L944/537 /10MOL3 Material 1.2mm Steel Finish PennBrite Description Offset Shallow Dish Dish Depth 10mm Offset 27mm Lockable No Weight 0.44kg

Piano Hinge Part No. P1321 P Material 1.2mm Steel Finish Nickel Leaf Width (X) 27mm Length 1.83mm Hole Center To Hole Center 51mm Weight 0.53kg

ABS Sheet - Black Color may vary due to manufacturing process Part No. M8431 Material ABS Plastic Color Silver Thickness 1mm Sheet Size 2426mm x 1206mm Weight 2.7kg

ABS Sheet - Black Color may vary due to manufacturing process Part No. M8429 Material ABS Plastic Color Purple Thickness 1mm Sheet Size 2426mm x 1206mm Weight 2.7kg

ABS Sheet - Black Color may vary due to manufacturing process Part No. M8425 Material ABS Plastic Color Olive Green Thickness 1mm Sheet Size 2426mm x 1206mm Weight 2.7kg

ABS Sheet - Black Color may vary due to manufacturing process Part No. M8423 Material ABS Plastic Color Blue Thickness 1mm Sheet Size 2426mm x 1206mm Weight 2.7kg

Extra Wide Strap Handle with Heavy Duty End Caps. Part No. H1014K Material Plastic/Steel Description Complete Handle with Black Fittings Weight 89g

4 Hole Brace (4 Hole Version of B20 95 ) Part No. B20 96 Material 1.2mm Finish PennBrite Description 4 Hole Brace Dimensions 40mm x 22.2mm Internal Radius 1.5mm Weight 14g

Spring-loaded Lid Stay with anti-slam safety system that keeps the lid open, avoiding accidental closure of heavy lids. Our innovative new spring function holds the lid open even if knocked or tipped. Until the lid is pushed beyond the safety margin, this lid stay will hold it open, preventing unwanted or dangerous closure. Safety margin = 80 Degrees ~ 70 Degrees dependent on weight of lid. Part No. D0553 Z-SD Material 1.2mm Steel Finish PennBrite Description Lid Stay with Spring-loaded System

M6 Flat Black Plastic Washer Part No. HSM6FW Material Plastic Finish Black Description M6 Plastic Washer

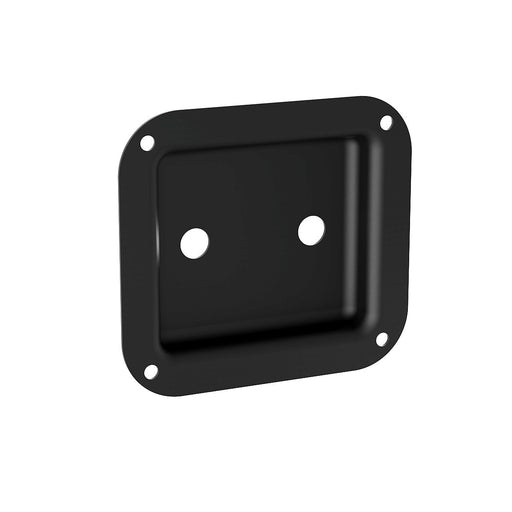

Small Dish Punched for 2 x 1/4" Jack Connectors Part No. D0938 K Material 1.2mm Steel Finish Black Dish Depth 13mm Weight 0.11kg

High Quality Wood Panels with ABS Laminate Color may vary due to manufacturing process Part No. M842111 Material ABS Plastic & Plywood Color Black Thickness 10mm Sheet Size 2426mm x 1206mm Weight 8kg

ABS Sheet - Black Color may vary due to manufacturing process Part No. M8422 Material ABS Plastic Color Red Thickness 1mm Sheet Size 2426mm x 1206mm Weight 2.7kg

Black lever latch with pop up lever mechanism. Part No. L0350 Material Die Cast Aluminium Description Lever Latch Lockable No

Brace Ball Corner 3 Mounting Holes Part No. C1359 Z Material 1.5mm Steel Finish PennBrite

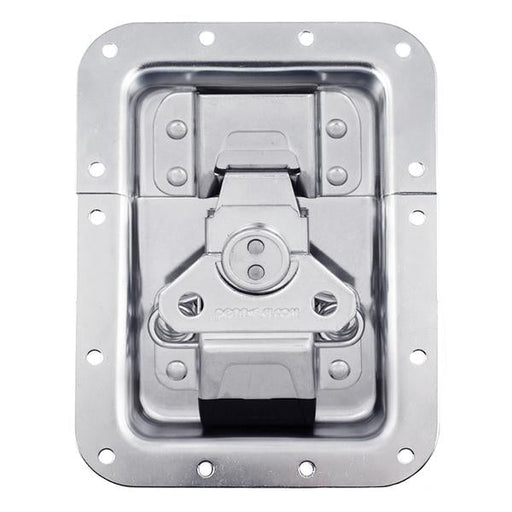

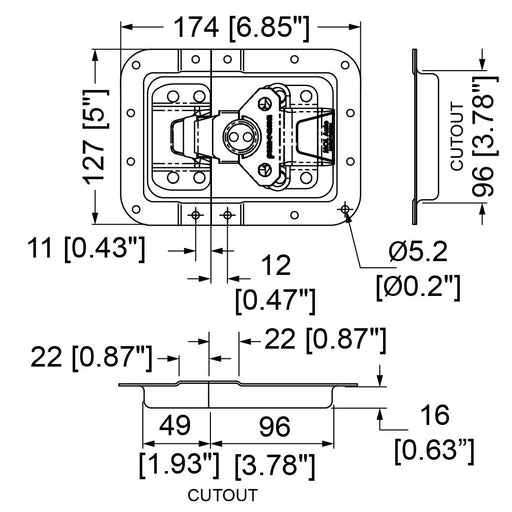

Large MOL 3 Latch in Plain or Offset Dish With new Cantilever Automatic Open/Close function. Part No. L944/578MOL3 Material 1.2mm Steel Finish PennBrite Description Offset Dish Dish Depth 10mm Offset 22mm Lockable No Weight 0.44kg

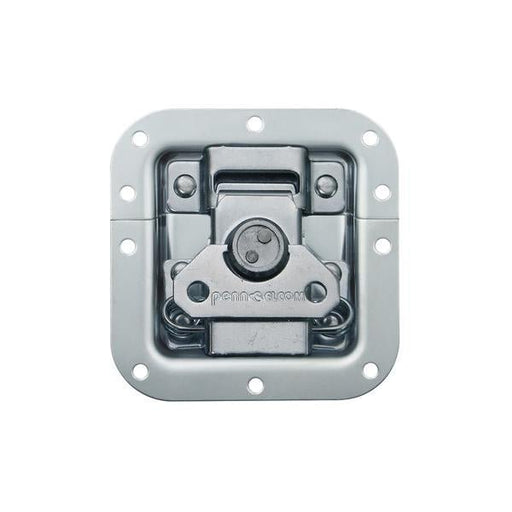

Medium MOL Latch in Offset Dish Part No. L978/928Z Material 1.2mm Steel Finish PennBrite Description Offset Dish Maximum working load capacity 90kg Dish Depth 13mm Offset 22mm Weight 0.23kg

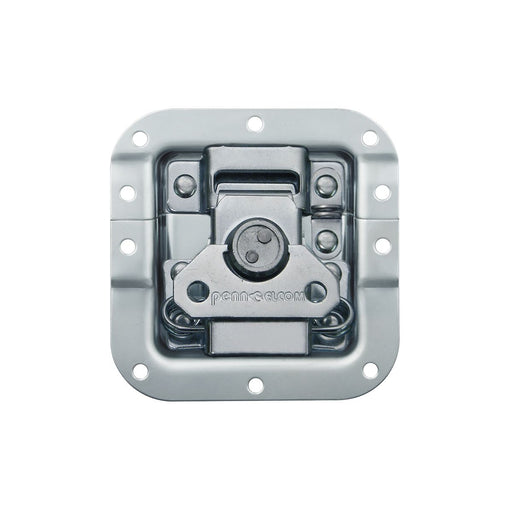

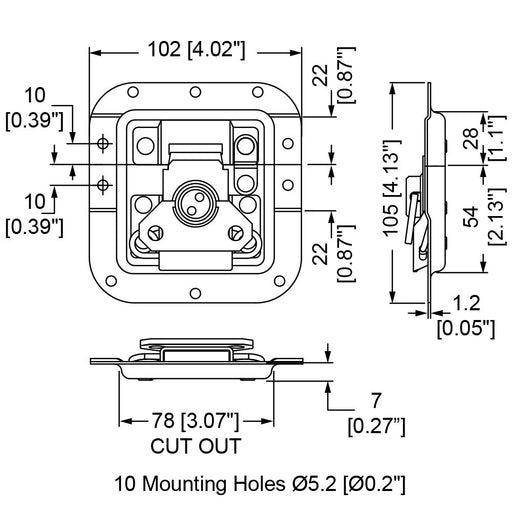

Medium MOL Latch in Plain or Offset Dish Part No. L978/928 /07 Material 1.2mm Steel Finish PennBrite Description Offset Dish Maximum working load capacity 90kg Dish Depth 7mm Offset 22mm Weight 0.21kg
