Neutrik Connectors

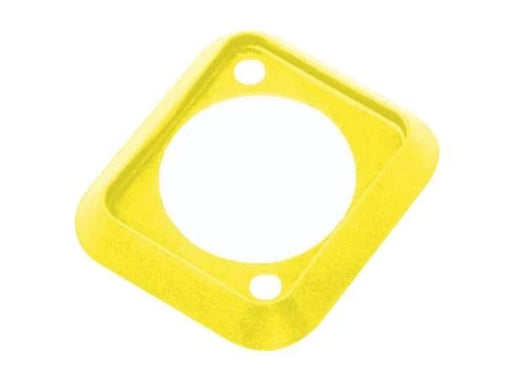

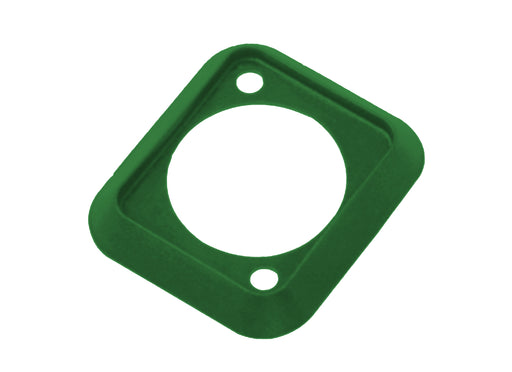

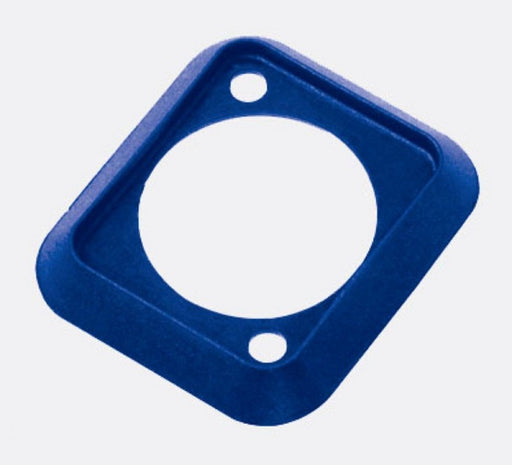

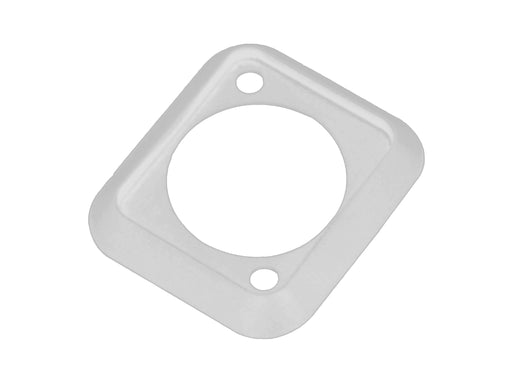

The SCDP-* sealing gasket provides a dust and water resistant assembly for all D-shape chassis connectors to front panels. Color coding: 0-black 2-red 4-yellow 5-green 6-blue 9-white

Soft plastic cover for the rear ends of several D-size chassis connectors. It is used to protect the gap between connector and cable. The protection cover works with all common wires and cables you simply cut off the cover end to the preferred diameter.

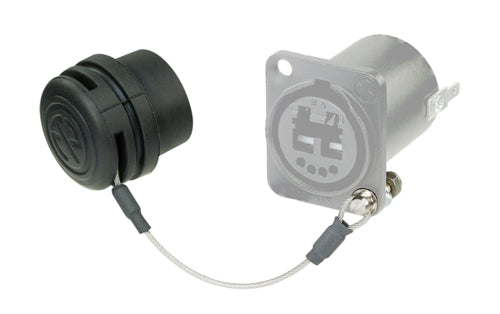

SCNAC-FPX The rubber sealing cover protects the powerCON TRUE1 female chassis connector NAC3FPX* from dust and water according to protection class IP65.

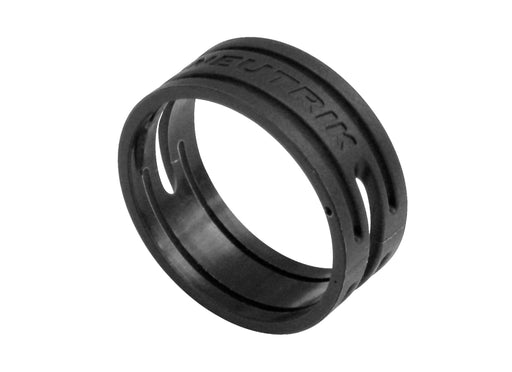

Neutrik - XXR-0 - Coloured Ring - Black Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-1 - Coloured Ring - Brown Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-2 - Coloured Ring - Red Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-3 - Coloured Ring - Orange Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-4 - Coloured Ring - Yellow Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-5 - Coloured Ring - Green Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-6 - Coloured Ring - Blue Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-7 - Coloured Ring - Violet Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-8 - Coloured Ring - Grey Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-9 - Coloured Ring - White Colored coding rings. Color ring can be changed without unsoldering insert

Neutrik - XXR-CR - Coloured Ring - Clear Colored coding rings. Color ring can be changed without unsoldering insert

8 pole male cable connector, black metal housing, chuck type strain relief, ¼“ flat tabs This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing. Features & Benefits IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1 Current rating 30 A rms Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment Precise “Quick Lock” system Compatible with complete speakON 8 pole product series Technical Information Product Title NLT8MXX-BAG Gender male Electrical Contact resistance < 2 mΩ Dielectric strength 1.5 kVac Insulation resistance > 0.1 GΩ (after dampheat) Rated current per contact 30 A rms continuous (acc. to IEC 61984) Rated voltage 250 V ac Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)! Mechanical Cable O.D. 8 - 20 mm Cable retention ≥ 220 N (subject to cable O.D. and material) Lifetime > 5000 mating cycles Wiresize 1.5 mm² - 6 mm² Wiresize 10 AWG Termination ¼" flat tabs Locking device Quick Lock Material Contact plating Ag Contacts Copper Alloy Shell Zinc diecast, black chrome plated Insert Polyamide (PA 6.6) Strain relief Polyacetal (POM) Environmental Temperature range -30 °C to +80 °C Flammability UL 94 V-0 Protection class IP 50 (mated condition)
