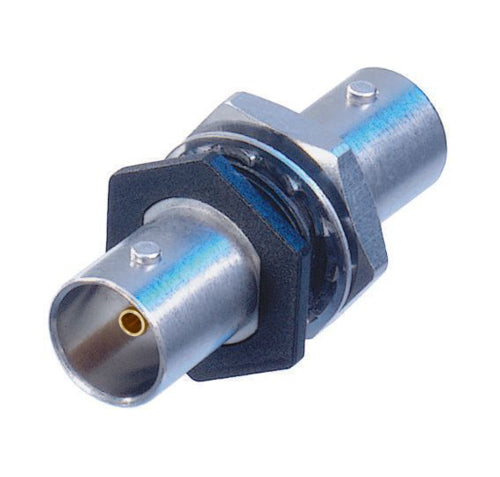

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing. Features & Benefits Optimized gold plated cage type center contact for UHD signals as 4K or 8K Swiss antraloy plating Isolated panel mount Standard D-shape housing provides flush mounting and protection from damage Color coding possible Fully compatible with conventional BNC cable connectors Optimized Return Loss Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper. New cage type contact Closed contact design - extremely robust Gold plated cage type clip - best possible shielding and lowest contact resistance Technical Information Product Title NBB75DFIX Connection Type BNC 75 Ω Gender female Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1.5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage < 50 V VSWR ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz Signal type UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV Mechanical Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Mounting direction Front mounting Chassis shape D Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) Insert PTFE Shell Polyacetal (POM) (insulation shell) Shell plating Antraloy D-shape housing Zinc diecast (ZnAl4Cu1) Environmental Temperature range -30 °C to +85 °C

Features & Benefits Gold plated cage type center contact True 75 Ω design meets the stringent HD & UHD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Extra wide fastening nut avoids damaging the plastic thread Technical Information Product Title NBB75FI Connection Type BNC 75 Ω Gender female Electrical Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Mounting direction Front mounting Chassis shape 12.7 mm Material Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C

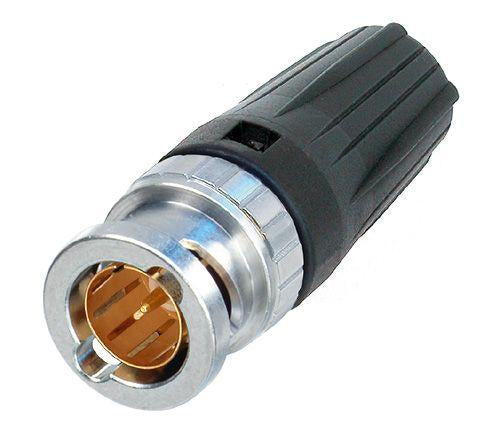

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1855A, Clark Wire CD7523-7, CommScope 7538 Crimp size: Pin: 1.6 mm (square) Shield: 4.53 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BDD6 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 4.3 mm Cable retention > 30 N (Center) Crimp size 4,53 Hex crimp (shield) acc. IEC 60803 (die designation C) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits Optimized contact pin and insulator design for UHD-data transmissions Proven rearTWIST technology Swiss antraloy plating Fully compatible with conventional BNC chassis connectors Improved return loss values at high frequencies Optimized Return Loss Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper. Crimp Dimensions In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced. Pin: 1.07 mm Shield: 4.53 mm Crimp die: DIE-R-BNCX-PDG Approved Cables To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below. Suitable cables: Belden 1855A, CommScope 7538 UHD optimized cables: Belden 4855P, Belden 4855R, Clark Wire CD7523, Gepco VDM230 Technical Information Product Title NBNC75BDD6X Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1.5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage < 50 V VSWR ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz Mechanical Cable O.D. 4.3 mm Cable retention > 30 N (center) Crimp size 4.53 Hex crimp (shield) Crimp size (pin) 1.07 crimp Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) Shell Brass (CuZn39Pb3) Shell plating Antraloy Insert PP Environmental Temperature range - 30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Sommer 600-2101 , Tesca Supra Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BFG7 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 4.7 mm Cable retention > 30 N (Center) Crimp size 5 Hex crimp (shield) acc. MIL22520/5-43(B) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95 Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BLP7 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 6.3 mm Cable retention > 30 N (Center) Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

Suitable for Sommer Cable - Vector The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6 Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BLP9 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 6.3 mm Cable retention > 30 N (Center) Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1694A (ANH), Belden 4694R, Bryant BD SD11, Canare L-4.5CHD, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77 Crimp size: Pin: 1.6 mm (square) Shield: 7.36 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BTU11 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 7.3 mm Cable retention > 30 N (Center) Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits Optimized contact pin and insulator design for UHD-data transmissions Proven rearTWIST technology Swiss antraloy plating Fully compatible with conventional BNC chassis connectors Improved return loss values at high frequencies Optimized Return Loss Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper. Crimp Dimensions In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced. Pin: 1.07 mm Shield: 7.36 mm Crimp die: DIE-R-BNCX-PU Approved Cables To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below. Suitable cables: CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77 UHD optimized cables: Belden 1694A, Belden 1694ANH, Belden 1694DNH, Belden 4694R, Belden 70082, Belden 70082NH, Belden 70082CH, Bryant SD11, Bryant SD10F, Canare L-4.5CHWS, Canare L-4.5CHD, Clark Wire CD7506, DirectCable 301-330 Evolution XPC, DirectCable 301-361 6 Channel Evolution XPC Technical Information Product Title NBNC75BTU11X Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1.5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage < 50 V VSWR ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz Mechanical Cable O.D. 7.3 mm Cable retention > 30 N (center) Crimp size 7.36 Hex crimp (shield) Crimp size (pin) 1.07 crimp Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) Shell Brass (CuZn39Pb3) Shell plating Antraloy Insert PP Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

Suitable for Sommer Cable - Vector Plus The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Draka 1.2L/4.8Dz, Draka 1.2L/4.95AF, Canford SDV-F-HD, Cordial CVM 12-50 HD-FLEX, Cordial CVM 12-50 UHD-Flex, Percon VK770F Crimp size: Pin: 1.6 mm (square) Shield: 7.36 mm (hex) Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BWU13 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 7.3 mm Cable retention > 30 N (Center) Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

Features & Benefits “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies Technical Information Product Title NBNC75BYY11 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. 8 mm Cable retention > 30 N (Center) Crimp size 8,23 Hex crimp (shield) acc. IEC 60803 (die designation G) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits Optimized contact pin and insulator design for UHD-data transmissions Proven rearTWIST technology Swiss antraloy plating Fully compatible with conventional BNC chassis connectors Improved return loss values at high frequencies Optimized Return Loss Due to optimized insulator design and adjusted crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper. Technical Information Product Title NBNC75BZV14X Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1.5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage < 50 V VSWR ≤ 1.6 / > 23 dB up to 6 GHz ≤ 2.3 / >15 dB up to 12 GHz ≤ 3.9 / >12 dB up to 18 GHz Mechanical Cable O.D. 8.1 mm Cable retention > 30 N (center) Crimp size 8.23 Hex crimp (shield) Crimp size (pin) 1.6 crimp Insertion force < 25 N Lifetime > 1000 mating cycles Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) Shell Brass (CuZn39Pb3) Shell plating Antraloy Insert PP Environmental Temperature range - 30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2

Easy to assemble 8 + 2 pole female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief. Features & Benefits Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities Superior ruggedness compared to RJ45 type connectors All metal housing offers best overall RF protection and electromagnetic shielding Technical Information Product Title NC10FXX-14-B Connection Type XLR Gender female Electrical Contact resistance ≤ 3 mΩ Dielectric strength 1 kVdc Insulation resistance > 10 GΩ (initial); 0.1 (after damp heat test) Number of electronical contacts 8 + 2 Rated current per contact 16 A (power pins), 3 A (data pins) Cable shield - shell connection: choosable Transmission performance CAT 5e Mechanical Cable O.D. 8.0 - 10.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins) Material Bushing PA / PU Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert PA66 Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief POM Environmental Flammability UL 94 V-0 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Manufacturing Standard IEC 61076-2-103

Easy to assemble 8 + 2 pole male XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief. Features & Benefits Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities Superior ruggedness compared to RJ45 type connectors All metal housing offers best overall RF protection and electromagnetic shielding Technical Information Product Title NC10MXX-14-B Connection Type XLR Gender male Electrical Contact resistance ≤ 3 mΩ Dielectric strength 1 kVdc Insulation resistance > 10 GΩ , 0.1 (after damp heat test) Number of electronical contacts 8 + 2 Rated current per contact 16 A (power pins), 3 A (data pins) Cable shield - shell connection choosable Transmission performance CAT 5e Mechanical Cable O.D. 8.0 - 10.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins) Material Bushing PA / PU Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert PA66 Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief POM Environmental Flammability UL 94 V-0 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Manufacturing Standard IEC 61076-2-103

3 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3FD-LX Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product: Title NC3FD-LX Connection Type XLR Gender female Electrical: Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical: Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Retention Spring Chassis shape D Material: Contact plating 2 µm Ag over 2 µm Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental: Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female receptacle, solder cups, black metal housing, gold contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3FD-LX-B Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3FD-LX-BAG Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female receptacle, solder cups, Nickel housing, silver contacts, M3 mounting holes The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3FD-LX-M3 Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Mounting direction Rear mounting Chassis shape D Mounting Mounting holes with M3 threads Material Contact plating 2 µm Ag over 2 µm Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

World's first 3 pole unisex XLR cable connector, black Features & Benefits World's first unisex XLR 3 pole male and female cable connector in one housing Easy selectable gender - converted by sliding housing back and forth Substitute adapters, ideal as an emergency kit With all benefits of the XLR XX series Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3FM-C-B Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1.5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage <50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 0.2 µm Au Contacts Brass (CuZn39Pb3) (male) Insert Polyamdie (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Black chromium Shell plating Nickel Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole right angle female cable connector, nickel housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Extra slim right-angle connector 5 selectable cable outlet positions Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Coloured rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3FRX Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole right angle female cable connector, black metal housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Extra slim right-angle connector 5 selectable cable outlet positions Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Coloured rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3FRX-BAG Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Technical Information Product Title NC3FRX-BAG Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3FXX Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Technical Information Product Title NC3FXX-B Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Bronze (CuSn8) Insert Polyamide (PA66) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3FXX-BAG Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Male connector's retention bar replaces plastic design with all metal version improving pull-out force Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3MD-LX Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male receptacle, solder cups, black metal housing, gold contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Male connector's retention bar replaces plastic design with all metal version improving pull-out force Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3MD-LX-B Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Male connector's retention bar replaces plastic design with all metal version improving pull-out force Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3MD-LX-BAG Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male receptacle, solder cups, Nickel housing, silver contacts, M3 mounting holes The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Male connector's retention bar replaces plastic design with all metal version improving pull-out force Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC3MD-LX-M3 Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Mounting direction Rear mounting Chassis shape D Mounting Mounting holes with M3 threads Material Contact plating 2 µm Ag over 2 µm Ni Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole right angle male cable connector, nickel housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Extra slim right-angle connector 7 selectable cable outlet positions Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Coloured rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3MRX Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole right angle male cable connector, black metal housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Extra slim right-angle connector 7 selectable cable outlet positions Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Coloured rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3MRX-BAG Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 2 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3MXX Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male cable connector with black metal housing and gold contacts The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Technical Information Product Title NC3MXX-B Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA66) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

3 pole male cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NC3MXX-BAG Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Cable O.D. 3.5 - 8.0 mm Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material Boot Polyurethan Contact plating 2 µm Ag Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

4 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC4FD-LX Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 7 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 10 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 1.5 mm² Wiresize max. 16 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

4 pole female receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Features & Benefits All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connector Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions Technical Information Product Title NC4FD-LX-B Connection Type XLR Gender female Electrical Capacitance between contacts ≤ 7 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 10 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize max. 1.5 mm² Wiresize max. 16 AWG Wiring Solder contacts Locking device Latch lock Chassis shape D Material Contact plating 0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert PA66 Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
