Neutrik Connectors

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features and Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches) Product related questions and answers Question Answer What is the different between the -S and -L Version? Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1. The S-version is certified other Cables then the L-version, cables as follows: S-Version: H05VV-F 3G1.5mm², H05VV-F 3G2.5mm², H07RN-F 3G 1.5 mm² and SJOOW 14/3 AWG. L-Version: H07RN-F 3G 2.5 mm², SOOW 16/3, SJOOW 16/3 and SJOOW 14/3 When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. Technical Information Product Title NAC3F-TRUE1-S Product family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance >0.1GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Cable O.D. 6 - 12 mm (0.23 – 0.47 inches) Lifetime > 5000 mating cycles Wiresize (mm²) 1.0 – 2.5mm² Wiresize (AWG) 14 AWG Material Contact plating 2 μm Ag Locking element Polyamide (PA 66) Contacts Copper Alloy Insert Polyamide (PA 66) Shell Polyamide (PA 66) Strain relief Polyketon Environmental Flammability UL 94 V-0 Protection class IP 65 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

powerCON 32 A cable connector The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Features & Benefits 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Cable O.D. Range: 8 - 20 mm Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10) Excellent cable handling and protection Extremely robust and reliable VDE, UL, cUL and JET approved Technical Information Product Title NAC3FC-HC Connection Type powerCON Gender female Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 10 GΩ (initial) Rated current per contact 32 A (30A for cUL) Rated voltage 250 V ac Mechanical Cable O.D. 8 - 20 mm Lifetime > 1000 mating cycles Wiresize 2.5 - 6 mm² Wiresize 14 - 10 AWG Wiring screw terminals Locking device Quick Lock Material Contact plating 4 µm Ag Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 25 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Polyamide (PA 6 30 % GR) Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Protection class IP 20 (mated) Safety Requirements EN/IEC 61984 Solderability Complies with IEC 68-2-20 Temperature range -25 °C to +70 °C

Lockable cable connector, power-in, screw terminals, blue The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! Features & Benefits Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design Unique Neutrik chuck type strain relief Improved kink protection by two-component bushing UL, cUL recognized components VDE certified SEV approved Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NAC3FCA Gender female Electrical Contact resistance ? 3 m? Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 G? (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 20 A rms Rated voltage 250 V ac Mechanical Cable O.D. 6 - 15 mm (1) Lifetime > 1000 mating cycles Wiresize 2,5 mm? Wiresize 12 AWG Locking device Quick Lock (1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE Material Contact plating 4 ?m Ag Contacts Bronze (CuSn6) Insert Polyamide (PA 6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Polyamide (PA 6 30 % GR) Strain relief Polyacetal (POM) Environmental Temperature range -30 ?C to +80 ?C

Lockable cable connector, power-out, screw terminals, grey The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! ? Features & Benefits Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design Unique Neutrik chuck type strain relief Improved kink protection by two-component bushing UL, cUL recognized components VDE certified SEV approved Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NAC3FCB Gender female Electrical Contact resistance ? 3 m? Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 G? (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 20 A rms Rated voltage 250 V ac Mechanical Cable O.D. 6 - 15 mm (1) Lifetime > 1000 mating cycles Wiresize 2,5 mm? Wiresize 12 AWG Locking device Quick Lock (1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE Material Contact plating 4 ?m Ag Contacts Bronze (CuSn6) Insert Polyamide (PA 6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Polyamide (PA 6 30 % GR) Strain relief Polyacetal (POM) Environmental Temperature range -30 ?C to +80 ?C

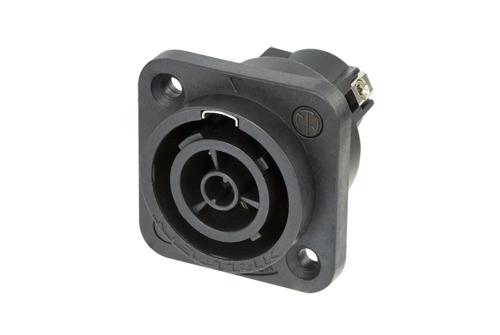

Appliance outlet connector, 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Appliance outlet True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable ENEC certified according to IEC 60320 UL recognized components IP65 ingress protection in mated condition and unmated in combination with SCNAC-FPX Technical Information Product Title NAC3FPX Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Temperature range - 30 °C - +80 °C

Appliance outlet connector, screw terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3FPX-ST-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 14 AWG Wiring screw terminals Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX) Temperature range - 30 °C - +80 °C

Appliance outlet connector, 1/4" flat tab terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3FPX-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX) Temperature range - 30 °C - +80 °C

The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65, IP66 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Technical Information Product Title NAC3FPX-TRUE1 Product family powerCON® TRUE1 E lectrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Lifetime > 5000 mating cycles Wiresize (mm²) 2.5 mm² Wiresize (AWG) 12 AWG Material Contact plating 2 μm Ag Locking element Stainless steel Contacts Copper Alloy Shell Polyamide (PA 66) Environmental Flammability UL 94 V-0 Protection class IP 65 / 66 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

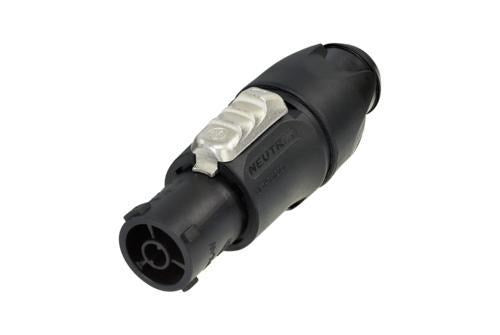

Locking female cable connector, screw terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3FX-W-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Cable O.D. 6 - 12 mm Lifetime > 5000 mating cycles Wiresize 1.0 - 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Contacts Bronze (CuSn0.2) Insert Polyamide (PA 6.6 30 % GR) Locking element ZuAl4Cu1 Shell Polyamide (PA 6.6 30 % GR) Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated) Temperature range -30 °C to +80 °C

Locking female cable connector, screw terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3FX-W-TOP-L Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Cable O.D. 12 - 18mm Lifetime > 5000 mating cycles Wiresize 1.0 - 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Contacts Bronze (CuSn0.2) Insert Polyamide (PA 6.6 30 % GR) Locking element ZuAl4Cu1 Shell Polyamide (PA 6.6 30 % GR) Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated) Temperature range -30 °C to +80 °C

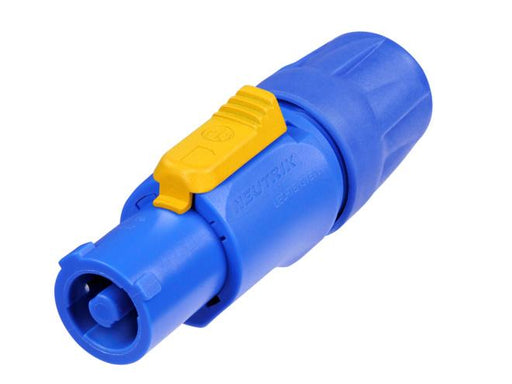

IEC EN 60320-1 compliant | Accepted for cord sets as per IEC EN 60799:2021 Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm . The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection. Features & Benefits IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Ergonomic design with slip-proof two-component molded housing Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Superior NEUTRIK quality standard, extremely robust and reliable Easy and reliable twist lock system Improved kink protection by two-component bushing Technical Information Product Title NAC3FXXA-W-S Connector series powerCON blue/grey Electrical Contact resistance ≤ 2 mΩ Dielectric strength > 3 kVac (after mating cycles) Insulation resistance > 10 GΩ (initially) Number of electrical contacts 2 + PE Rating Europe EN 60320-1: 16 A 250 V AC, CBC Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC Mechanical Cable O.D. 6 - 12 mm Lifetime Typically 5’000 mating cycles Wiresize (mm²) 1.5 – 2.5 mm² Wiresize (AWG) 16 – 12 AWG Locking device Twist lock Termination Screw type terminals Material Contact plating Ag Contacts Copper Alloy Insert Polyamide (PA6.6) Locking element Zinc diecast Shell Polyamide (PA6) / TPE Strain relief Polyketone Bushing Polypropylene / TPE Environmental Temperature range -33 °C to +80 °C Protection class IP20 Flammability acc. to UL94 V-0

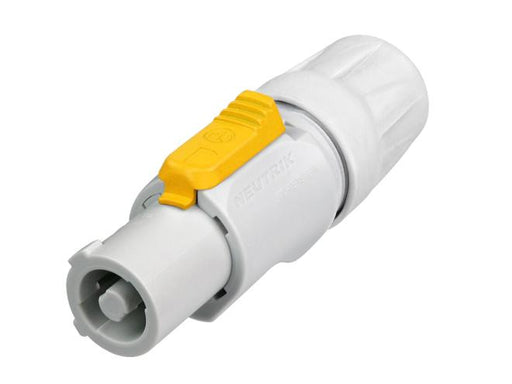

IEC EN 60320-1 compliant | Accepted for cord sets as per IEC EN 60799:2021 Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm . The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection. Features & Benefits IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Ergonomic design with slip-proof two-component molded housing Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Superior NEUTRIK quality standard, extremely robust and reliable Easy and reliable twist lock system Improved kink protection by two-component bushing Technical Information Product Title NAC3FXXB-W-S Connector series powerCON blue/grey Electrical Contact resistance ≤ 2 mΩ Dielectric strength > 3 kVac (after mating cycles) Insulation resistance > 10 GΩ (initially) Number of electrical contacts 2 + PE Rating Europe EN 60320-1: 16 A 250 V AC, CBC Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC Mechanical Cable O.D. 6 - 12 mm Lifetime typically 5’000 mating cycles Wiresize (mm²) 1.5 – 2.5 mm² Wiresize (AWG) 16 – 12 AWG, see above cable list Locking device Twist lock Termination Screw type terminals Material Contact plating Ag Contacts Copper Alloy Insert Polyamide (PA6.6) Locking element Zinc diecast Shell Polyamide (PA6) / TPE Strain relief Polyketone Bushing Polypropylene / TPE Environmental Temperature range -33 °C to + 80 °C Protection class IP20 Flammability acc. to UL94 V-0

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features and Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches) Product related questions and answers Question Answer What is the different between the -S and -L Version? Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1. The S-version is certified other Cables then the L-version, cables as follows: S-Version: H05VV-F 3G1.5mm², H05VV-F 3G2.5mm², H07RN-F 3G 1.5 mm² and SJOOW 14/3 AWG. L-Version: H07RN-F 3G 2.5 mm², SOOW 16/3, SJOOW 16/3 and SJOOW 14/3 When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. Technical Information Product Title NAC3M-TRUE1-L Product family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance >0.1GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Cable O.D. 10 - 16 mm (0.39 – 0.63 inches) Lifetime > 5000 mating cycles Wiresize (mm²) 1.0 – 2.5mm² Wiresize (AWG) 14 - 12 AWG Material Contact plating 2 μm Ag Locking element Polyamide (PA 66) Contacts Copper Alloy Insert Polyamide (PA 66) Shell Polyamide (PA 66) Strain relief Polyketon Environmental Flammability UL 94 V-0 Protection class IP 65 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Lockable single phase connector Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches) Product related questions and answers Question Answer What is the different between the -S and -L Version? Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1. The S-version is certified other Cables then the L-version, cables as follows: S-Version: H05VV-F 3G1.5mm², H05VV-F 3G2.5mm², H07RN-F 3G 1.5 mm² and SJOOW 14/3 AWG. L-Version: H07RN-F 3G 2.5 mm², SOOW 16/3, SJOOW 16/3 and SJOOW 14/3 When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. Technical Information Product Title NAC3F-TRUE1-L Product Family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance >0.1GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Cable O.D. 10 - 16 mm (0.39 – 0.63 inches) Lifetime > 5000 mating cycles Wiresize (mm²) 1.0 – 2.5mm² Wiresize (AWG) 14 - 12 AWG Material Contact plating 2 μm Ag Locking element Polyamide (PA 66) Contacts Copper Alloy Insert Polyamide (PA 66) Shell Polyamide (PA 66) Strain relief Polyketon Environmental Flammability UL 94 V-0 Protection class IP 65 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

powerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables. powerCON 20 A The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention : The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! Technical Information Product Title NAC3MM-1 Connection Type Adapter Gender male Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30) Rated current per contact 20 A rms Rated voltage 250 V ac Mechanical Lifetime > 1000 mating cycles Wiresize Locking device Quick Lock Material Contact plating 2 µm Ag Locking element Steel Ck67 Shell Polyamide (PA 6.6 30 % GR) Contacts Bronze (CuNi1Si0.2) Environmental Flammability UL 94 V-0 Protection class IP 20 (mated) Safety Requirements EN/IEC 61984 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

powerCON 32 A chassis connector, power-in The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Features & Benefits 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C) Premating contact for protective earth Fast and easy locking system to prevent unintentional disengagement Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10) Extremely robust and reliable VDE, UL, cUL and JET approved Technical Information Product Title NAC3MP-HC Connection Type powerCON Gender male Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 10 GΩ (initial) Rated current per contact 32 A (30A for cUL) Rated voltage 250 V ac Mechanical Lifetime > 1000 mating cycles Wiresize 2.5 - 6 mm² Wiresize 14 - 10 AWG Wiring screw terminals Locking device Quick Lock Material Contact plating 4 µm Ag Contacts Bronze (CuSn0.2) Locking element Steel Ck67 Shell Polyamide (PA 6.6 25 % GR) Environmental Flammability UL 94 V-0 Protection class IP 20 (mated) Safety Requirements EN/IEC 61984 Solderability Complies with IEC 68-2-20 Temperature range -25 °C to +70 °C

Chassis connector, power-out, 3/16'' flat tab terminals, grey The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! Features & Benefits Locking 20 A / 250 V ac appliance coupler 3 contacts for line, neutral and premating safety ground Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design User friendly latch design for easy handling UL, cUL recognized components VDE certified Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information Product Title NAC3MPB-1 Gender male Electrical Contact resistance ? 3 m? Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 G? (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 20 A rms Rated voltage 250 V ac Mechanical Lifetime > 1000 mating cycles Wiresize Locking device Quick Lock Mounting direction Front mounting Chassis shape D Material Contact plating 2 ?m Ag Locking element Steel Ck67 Shell Polyamide (PA 6.6 30 % GR) Contacts Bronze (CuNi1Si0.2) Environmental Flammability UL 94 V-0 Temperature range -30 ?C to +80 ?C

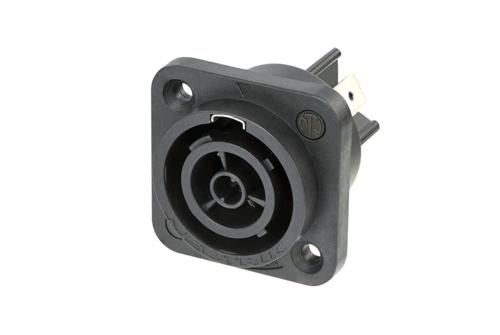

Appliance inlet connector, 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Appliance inlet True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable ENEC certified according to IEC 60320 UL recognized components IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX Technical Information Product Title NAC3MPX Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Temperature range - 30 °C - +80 °C

Appliance inlet connector, 1/4" flat tab terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3MPX-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-MPX) Temperature range - 30 °C - +80 °C

The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features and Benefits Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65, IP66 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Technical Information Product Title NAC3MPX-TRUE1 Product family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Lifetime > 5000 mating cycles Wiresize (mm²) 2.5 mm² Wiresize (AWG) 12 AWG Material Contact plating 2 μm Ag Locking element Stainless steel Contacts Copper Alloy Shell Polyamide (PA 66) Environmental Flammability UL 94 V-0 Protection class IP 65 / 66 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1. Appliance inlet connector, 3/16" flat tab terminals, blue The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Lockable single phase connector Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors Certified according to IEC 60320-1 & UL 60320-1 3 contacts for line, neutral and premating safety ground Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3 Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Extremely robust and reliable IEC 62368-1 compliant Technical Information Product Title NAC3MPXXA Gender male Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 10 GΩ (initial) Number of electrical contacts 2 + PE Rating Europe EN 60320-1: 16 A 250 V AC EN 61984: 20 A 250 V AC Rating USA UL 60320-1:20 A 127 V AC UL 1977: 20 A 250 V AC Mechanical Lifetime > 5000 mating cycles Wiresize 2,5 mm² Wiresize 12 AWG Material Contact plating Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Copper Alloy Environmental Flammability UL 94 V-0 Protection class IP 20 Temperature range -30 °C to +80 °C

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1. Appliance outlet connector, 3/16" flat tab terminals, grey The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Lockable single phase connector Certified according to IEC 60320-1 & UL 60320-1 3 contacts for line, neutral and premating safety ground Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3 Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Extremely robust and reliable IEC 62368-1 compliant UL94 V-0 materials used Technical Information Product Title NAC3MPXXB Gender male Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 10 GΩ (initial) Number of electrical contacts 2 + PE Rating Europe EN 60320-1: 16 A 250 V AC EN 61984: 20 A 250 V AC Rating USA UL 60320-1:20 A 127 V AC UL 1977: 20 A 250 V AC Mechanical Lifetime > 5000 mating cycles Wiresize 2,5 mm² Wiresize 12 AWG Material Contact plating Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Copper Alloy Environmental Flammability UL 94 V-0 Protection class IP 20 Temperature range -30 °C to +80 °C

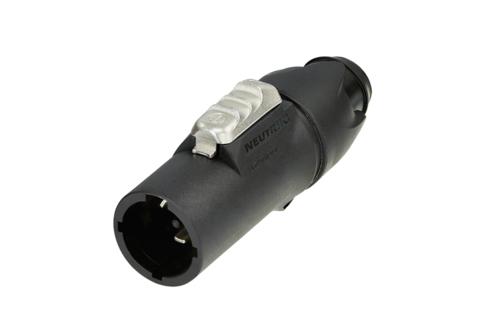

Locking male cable connector, screw terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3MX-W-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance 0,1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Cable O.D. 6 - 12 mm Lifetime > 5000 mating cycles Wiresize 1.0 - 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Contacts CuNi1Si0.2 Insert Polyamide (PA 6.6 30 % GR) Locking element ZuAl4Cu1 Shell Polyamide (PA 6.6 30 % GR) Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated) Temperature range -30 °C - +80 °C

Locking male cable connector, screw terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Heavy duty sealed power connector for harsh and demanding environment IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition) Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3MX-W-TOP-L Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance 0,1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Cable O.D. 12 - 18mm Lifetime > 5000 mating cycles Wiresize 1.0 - 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Contacts CuNi1Si0.2 Insert Polyamide (PA 6.6 30 % GR) Locking element ZuAl4Cu1 Shell Polyamide (PA 6.6 30 % GR) Strain relief Polyacetal (POM) Environmental Flammability UL 94 V-0 Protection class IP65, UL50E enclosure type 4 (mated) Temperature range -30 °C - +80 °C

Appliance inlet-outlet combination, 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Appliance inlet-outlet combination for daisy-chaining True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable ENEC certified according to IEC 60320 UL recognized components IP65 ingress protection in mated condition and unmated in combination with SCNAC-PX Technical Information Product Title NAC3PX Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Temperature range -30 °C - +80 °C

Appliance inlet-outlet combination, 1/4" flat tab terminals The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-PX) Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials True mains connector with breaking capacity (CBC) Lockable 16 A single phase connector (USA: 20 A) Easy and reliable twist lock system Extremely robust and reliable Unique Neutrik cable retention ENEC certified according to IEC 60320 UL498 certified Technical Information Product Title NAC3PX-TOP Electrical Contact resistance ≤ 3 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30) Number of electronical contacts 2 + PE Rated current per contact 16 A rms (USA: 20 A) Rated voltage 250 V ac Mechanical Lifetime > 5000 mating cycles Wiresize 2.5 mm² Wiresize 12 AWG Material Contact plating 2 µm Ag Locking element Stainless steel Shell Polyamide (PA 6.6) Contacts Spring Copper (CuSn0.2) Environmental Flammability UL 94 V-0 Protection class UL50E enclosure type 4 (mated or in combination with SCNAC-PX) Temperature range -30 °C - +80 °C

NAC3PX-TRUE1 The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Features & Benefits Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices Heavy duty sealed power connector for harsh and demanding environment Uses high impact UV-resistant materials Extremely robust and reliable ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1 UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1 IP65, IP66 and IP67 (mated or with closed cap) True mains connector with breaking capacity (CBC) Easy and reliable twist lock system Technical Information Product Title NAC3PX-TRUE1 Product family powerCON® TRUE1 Electrical Contact resistance ≤ 2 mΩ Dielectric strength 4 kVdc / 2.8 kVac Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30) Number of electrical contacts 2 + PE Rating Europe 16 A / 250 V AC according to EN IEC 60320-1 Rating America 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 Mechanical Lifetime > 5000 mating cycles Wiresize (mm²) 2.5 mm² Wiresize (AWG) 12 AWG Material Contact plating 2 μm Ag Locking element Stainless steel Contacts Copper Alloy Shell Polyamide (PA 66) Environmental Flammability UL 94 V-0 Protection class IP 65 / 66 / 67 (mated or with closed caps) UV resistance F1 rated material withstands UV exposure Temperature range -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1

HDMI feedthrough adapter, D-shape housing Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy. Features & Benefits To transmit any digital TV and PC video format including high-definition video (HDTV). HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-* Universally accepted standard D-shape housing Removable screen to chassis grounding Technical Information Product Title NAHDMI-W Connection Type Adapter Gender female Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBT Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 V-0 Standard compliance HDMI 2.0 specifications (in combination with Neutrik HDMI cable up to 5 m cable length; in combinati Temperature range -25 °C to +85 °C

HDMI feedthrough adapter, black D-shape housing Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy. Features & Benefits To transmit any digital TV and PC video format including high-definition video (HDTV) HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-* Universally accepted standard D-shape housing Removable screen to chassis grounding Technical Information Product Title NAHDMI-W-B Connection Type Adapter Gender female Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBT Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 V-0 Standard compliance HDMI 2.0 specifications Temperature range -25 °C to +85 °C

Reversible USB 2.0 gender changer (type A and B), Nickel D-housing Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. A rugged solution is needed. Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, and the rugged patch cables solve this problem. Features & Benefits Ideal for audio networking and integration of computerbased equipment into audio systems Dust and water resistant acc. to IP65 safety standard in combination with NKUSB-* USB 2.0 gender changer type A-B (B-A) Reversible insert offering type A or B on front or rear end Universally accepted standard D-shape housing Removable screen to chassis grounding: Technical Information Product Title NAUSB-W Connection Type Adapter Gender female Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBTP 15 % GR Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 V-0 Standard compliance USB 2.0 specifications Temperature range -25 °C to +85 °C

Reversible USB 2.0 gender changer (type A and B), black D-housing Due to the rising digitisation the interface problems between audio/video networks, IT equipment, MP3 camcorders, etc. increase. A rugged solution is needed. Neutrik's reversible USB gender changer, mounted in the standardized D-shape housing, and the rugged patch cables solve this problem. Features & Benefits Ideal for audio networking and integration of computerbased equipment into audio systems Dust and water resistant acc. to IP65 safety standard in combination with NKUSB-* Optional screen to chassis grounding USB 2.0 gender changer type A-B (B-A) Reversible insert offering type A or B on front or rear end Universally accepted standard D-shape housing Removable screen to chassis grounding: Technical Information Product Title NAUSB-W-B Connection Type Adapter Gender female Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBTP 15 % GR Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Environmental Flammability UL 94 V-0 Standard compliance USB 2.0 specifications Temperature range -25 °C to +85 °C

Reversible USB 3.0 gender changer (type A and B), Nickel D-housing The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector. Not compatible with NKUSB-* cables. Features & Benefits USB 3.0 feedthrough adapter Reversible insert offering type A or B on front or rear end Standard D-shape housing Removable screen for chassis grounding Meets USB 3.0 specifications USB 3.0 Performance To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s. Optimized Ground Connection An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip. Cable lengths To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable. Wire gauge Cable length AWG 22 1.75 m AWG 24 1.0 m AWG 26 0.6 m AWG 28 0.35 m Technical Information Product Title NAUSB3 Connection Type Adapter Gender female Electrical Reading / Writing speed >200 MB/s Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBTP 15 % GR Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 V-0 Standard compliance USB 3.0 specifications Temperature range -25 °C to +85 °C

Reversible USB 3.0 gender changer (type A and B), black D-housing The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector. Not compatible with NKUSB-* cables. Features & Benefits USB 3.0 feedthrough adapter Reversible insert offering type A or B on front or rear end Standard D-shape housing Removable screen for chassis grounding Meets USB 3.0 specifications USB 3.0 Performance To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s. Gender Changeable Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools. Optimized Ground Connection An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip. Cable lengths To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable. Wire gauge Cable length AWG 22 1.75 m AWG 24 1.0 m AWG 26 0.6 m AWG 28 0.35 m Technical Information Product Title NAUSB3-B Connection Type Adapter Gender female Electrical Reading / Writing speed >200 MB/s Mechanical Wiresize Mounting direction Front mounting Chassis shape D Lifetime > 1000 mating cycles Material Contact plating Au Contacts Brass (CuZn39Pb3) Insert PBTP 15 % GR Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Flammability UL 94 V-0 Standard compliance USB 3.0 specifications Temperature range -25 °C to +85 °C

Grounded BNC chassis connector, feedthrough in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Features & Benefits Gold plated cage type center contact True 75 Ω design meets the stringent HD requirements Grounded panel mount Standard D-shape housing - provides flush mounting and protection from demage Color coding possible New cage type contact Closed contact design - extremely robust Gold plated cage type clip - best possible shielding and lowest contact resistance Product: Title NBB75DFGB Connection Type BNC 75 Ω Gender female Electrical: Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz Mechanical: Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Mounting direction Front mounting Chassis shape D Material: Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) Insert PTFE Shell Polyacetal (POM) (Insulation Sheell) Shell plating Optalloy® D-Shape housing Zinc diecast (ZnAl4Cu1) gal black chrome plating Environmental: Temperature range -30 °C to +85 °C

Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing. Features & Benefits Optimized gold plated cage type center contact for UHD signals as 4K or 8K Swiss antraloy plating Grounded panel mount Standard D-shape housing provides flush mounting and protection from damage Color coding possible Fully compatible with conventional BNC cable connectors Optimized Return Loss Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. For more details see Neutrik UHD BNC White Paper. New cage type contact Closed contact design - extremely robust Gold plated cage type clip - best possible shielding and lowest contact resistance Specifications: Product Title NBB75DFGX Connection Type BNC 75 Ω Gender female Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1.5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage < 50 V VSWR ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz Signal type UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV Mechanical Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Mounting direction Front mounting Chassis shape D Material Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (center contact) Insert PTFE Shell Polyacetal (POM) (insulation shell) Shell plating Antraloy D-shape housing Zinc diecast (ZnAl4Cu1) Environmental Temperature range -30 °C to +85 °C

Isolated BNC chassis connectors, feedthrough in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Features & Benefits Gold plated cage type center contact True 75 Ω design meets the stringent HD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Standard D-shape housing - provides flush mounting and protection from demage Color coding possible Technical Information Product Title NBB75DFIB Connection Type BNC 75 Ω Gender female Electrical Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage <50 V VSWR ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz Mechanical Insertion force < 25 N Lifetime > 1000 mating cycles Wiresize Locking device Bayonett Mounting direction Front mounting Chassis shape D Material Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) Insert PTFE Shell Polyacetal (POM) (Insulation Sheell) Shell plating Optalloy® D-Shape housing Zinc diecast (ZnAl4Cu1) gal black chrome plating Environmental Temperature range -30 °C to +85 °C
