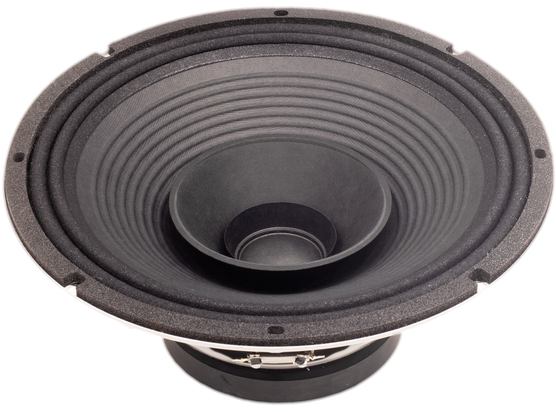

The F12M-150 is a full range, LIVE response speaker, purpose designed for use with amp modellers and IRs. Its unique design features two additional tweeter cones integrated into the main woofer cone (making it ?Triple Cone?). This enables the speaker to deliver near full-range frequency performance: from 60Hz up to 12kHz, for a rich and detailed sound, whatever your set-up.
Designed with Celestion?s Pro Audio know-how, response is flat and neutral, ensuring no unwanted colourations that could overwhelm the input signal. But with an optimised woofer cone and lighter moving mass the F12M-150 is designed to closely mimic the responsiveness of a traditional guitar speaker, delivering all the tactile feel you would expect from playing through a conventional guitar rig.
?
General Specifications
| Nominal diameter | 12", 305mm |
| Power rating | 150Wrms |
| Nominal impedance | 8? |
| Sensitivity | 97dB |
| Chassis type | Pressed steel |
| Voice coil diameter | 2in, 50mm |
| Voice coil material | Round copper |
| Magnet type | Ceramic |
| Magnet weight | 35oz, 0.99kg |
| Frequency range | 60-12000Hz |
| Resonance frequency, Fs | 60Hz |
Mounting Information
| Cut-out diameter | 11.1", 283mm |
| Diameter | 12.2", 309mm |
| Magnet structure diameter | 5.7", 145mm |
| Mounting slot dimensions | 0.31in, 7.9mm |
| Mounting slot PCD |
11.7in, 297mm
|
| Number of mounting slots | 8 |
| Overall depth | 5.1", 130mm |
| Unit weight |
7.9lb, 3.6kg
|
