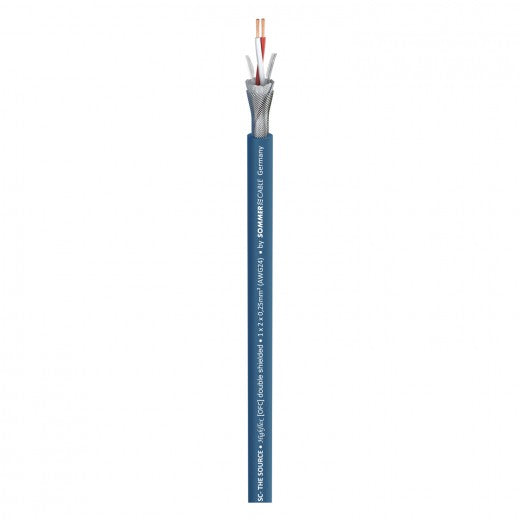

Sommer Cable - Source MkII Highflex - Blue

Sommer Cable - Source MkII Highflex - Blue

by Sommer Cable
Currently Out Of Stock
$6.99
SKU 200-0102
***Price Is Per Meter***

The hymns of praise by cable...

experts have made this cable a bestseller. Originally this microphone cable was developed for manufacturers of professional studio microphones such as BPM and Schoeps. Their demands for top quality helped us design a professional and yet affordable studio microphone cable.??SC-Source MKII??is 100 % shielded due to the use of a tight helical copper mesh screen and a rugged braided fleece around the wire pairs (FRNC version with AL foil). The fleece has been vaporised on both sides with a conductive aluminium layer. This guarantees the 100 % shielding to last even with strong wear. This cable should be
used wherever electrical sources could interfere with audio and data transmission. Cables with similar excellent values cost almost twice as much at our competitors.
The fine 0,05 mm copper stranding makes it a very popular cable for outdoor transmission and mobile applications.

Advantages:

  • Neutral and loss-free audio transmission due to special copper strand design
  • 100 % shielding due to dense helical copper mesh screen plus extra AL fleece/AL foil
  • Professional technology at a budget price
  • Available in a notch- and cold-resistant PUR version

Application:

  • Professional studio and microphone technology
  • Outdoor transmission/OB van
  • Permanent stage application

Specifications:

Article number 200-0102
Name SC-Source MKII
EAN 4049371003407
Properties OFC oxygen free copper
Properties Analog
Application area Mobile outdoor / indoor
Application area ELA 100 V
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application Microphone Cable
Colour blue
Colour detailed blue
Signal transmission symmetrical
Construction (2LI2Y0,25mm??)(ST)DY
Jacket material PVC
Jacket ?? [mm] 6,50
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,25
Inner conductor ?? (audio) [mm] 0,56
AWG (audio) 23
Shielding copper spiral sleeve tin-plated 95 % + AL-fleece
Shielding factor [%] 100
Copper strands (audio) 128
Copper strand ?? (audio) [mm] 0,05
Conductor insulation material PE
Conductor insulation ?? [mm] 1,55
Weight per 1 m [g] 48
Fire load per m [kWh] 0,21
Style variant round
Packing 100 m spool
Packing 500 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 6,5
Height [mm] 6,5
Capac. cond./cond. per 1 m (audio) [pF] 60
Capacity wire/wire at 1 ft. (audio) [pF] 18,288
Capac. cond./shield. per 1 m (audio) [pF] 110
Capacity wire/electic screen at 1 ft. (audio) [pF] 33,528
Insulation resist. per 1 km [G??] 0,2
Insulation resist. per 1000 feet [G??] 0,061
Insulation resist. per 1 km (audio) [G??] 0,2
Insulation resist. per 1000 feet (audio) [G??] 0,061
Conductor resistance per 1 km [??] 78
Conductor resistance per 1000 ft. [??] 23,7744
Shield. resistance per 1 km [??] 25
Shield. resistance per 1000 ft. [??] 7,62
BPVo-Euroclass Fca
