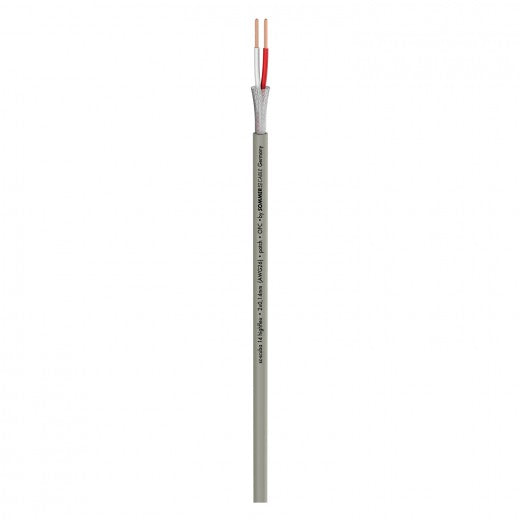

Sommer Cable - Scuba 14 Highflex - Grey

Sommer Cable - Scuba 14 Highflex - Grey

by Sommer Cable
Currently Out Of Stock
$4.99
SKU 200-0316
***Price Is Per Meter***

Through thick and thin...

the new??SC-Scuba 14 HIGHFLEX??will be right by your side. It is very thin, space-saving, flexible and ideally suited for connectors with a small diameter, e.g. LEMO patchboards, mini jacks, RCA etc. (and thus perfect for patch cables) and rack cabling. Their diameter and wire construction has been designed according to common broadcasting standards and a dense copper mesh screen with90 % shielding coverage protects the cable from interference. For reasons of clarity we offer the??SC-Scuba 14 HIGHFLEX??in five different jacket colors.

Advantages:

  • Very thin, high tensile strength and flexibility
  • Available in five different colours
  • Good shielding due to the dense Cu mesh screen
  • Affordable price

Application:

  • Patch cabling (LEMO), gooseneck microphone cable
  • Home recording
  • Rack and console cabling

Specifications:

Article number 200-0316
Name SC-Scuba 14
EAN 4049371002035
Properties OFC oxygen free copper
Properties Analog
Application area Studio / Broadcast
Application Patch & Microphone Cable
Colour grey
Colour detailed grey
Signal transmission symmetrical
Construction (2LI2Y0,14mm??)CY
Jacket material PVC
Jacket ?? [mm] 3,80
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,14
Inner conductor ?? (audio) [mm] 0,42
AWG (audio) 26
Shielding Copper braiding shield., tin-plated, with 0.10 mm indiv. strand
Shielding factor [%] 90
Copper strands (audio) 18
Copper strand ?? (audio) [mm] 0,10
Conductor insulation material PE
Conductor insulation ?? [mm] 1,15
Weight per 1 m [g] 25
Fire load per m [kWh] 0,09
Style variant round
Packing 500 m spool
Packing 100 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 3,8
Height [mm] 3,8
Capac. cond./cond. per 1 m (audio) [pF] 65
Capacity wire/wire at 1 ft. (audio) [pF] 19,812
Capac. cond./shield. per 1 m (audio) [pF] 130
Capacity wire/electic screen at 1 ft. (audio) [pF] 39,624
Impedance [??] 100
Insulation resist. per 1 km [G??] 1
Insulation resist. per 1000 feet [G??] 0,3048
Insulation resist. per 1 km (audio) [G??] 1
Insulation resist. per 1000 feet (audio) [G??] 0,3048
Conductor resistance per 1 km [??] 135
Conductor resistance per 1000 ft. [??] 41,148
Shield. resistance per 1 km [??] 30
Shield. resistance per 1000 ft. [??] 9,144
BPVo-Euroclass Fca
