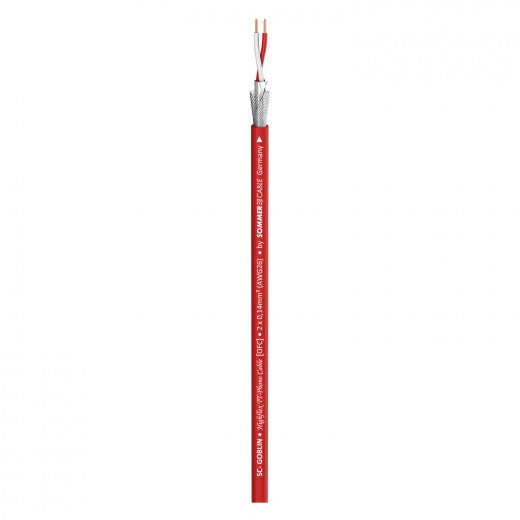

Sommer Cable - Goblin - Red

$4.99
SKU 200-0353
***Price Is Per Meter***

No less, but lesser...

and easy to handle since it is available in four colors. Otherwise the technical and electrical construction is similar to the??SC-SOURCE??cable.
With its the small diameter it fits virtually all current TT-phone and B-gauge connectors and can also be used for Y-adapter cables. Due to its carefully designed shielding the cable offers the extra benefit of an amazing tread resistance and tensile strength. The white version is recommended for the unobtrusive installation in churches.

Advantages:

  • Ideal for patch cables owing to its small outside diameter of 4.6 mm
  • Very good tensile strength due to the dual shielding construction and special
    PVC jacket
  • Linear sound transmission due to the special-designed conductor pairs and the
    copper litz wire stranding
  • 100 % shielding due to a metallised fleece plus additional
    helical copper mesh screen

Application:

  • Professional studio patch connection
  • High-quality mini microphone cable
  • High-class phono and RCA connections
  • Long-distance MIDI cabling
  • Interior rack wiring and connection of audio components and effects devices

???Specifications:

Article number 200-0353
Name SC-Goblin
EAN 4049371004459
Properties OFC oxygen free copper
Properties Analog
Application area Studio / Broadcast
Application area Installation
Application Patch & Microphone Cable
Colour red
Colour detailed red
Signal transmission symmetrical
Construction (2LI2Y0,14mm??)(ST)DY
Jacket material PVC
Jacket ?? [mm] 4,60
Number of Channels (audio) 1
Inner conductor (audio) 2
Inner conductor (audio) [mm??] 0,14
Inner conductor ?? (audio) [mm] 0,42
AWG (audio) 26
Shielding Copper spiral sleeve tin-plated + metalic fleece
Shielding factor [%] 100
Copper strands (audio) 18
Copper strand ?? (audio) [mm] 0,10
Conductor insulation material PE
Conductor insulation ?? [mm] 1,05
Weight per 1 m [g] 27
Fire load per m [kWh] 0,1
Style variant round
Packing 100 m spool
Temperature min. [??C] -25
Temperature max. [??C] 70
Width [mm] 4,6
Height [mm] 4,6
Capac. cond./cond. per 1 m (audio) [pF] 65
Capacity wire/wire at 1 ft. (audio) [pF] 19,812
Capac. cond./shield. per 1 m (audio) [pF] 120
Capacity wire/electic screen at 1 ft. (audio) [pF] 36,576
Insulation resist. per 1 km [G??] 0,2
Insulation resist. per 1000 feet [G??] 0,061
Insulation resist. per 1 km (audio) [G??] 0,2
Insulation resist. per 1000 feet (audio) [G??] 0,061
Conductor resistance per 1 km [??] 140
Conductor resistance per 1000 ft. [??] 42,672
Shield. resistance per 1 km [??] 30
Shield. resistance per 1000 ft. [??] 9,144
BPVo-Euroclass Fca
