Ten47

Colored Rubber Locking Ring Sleeves For 25 Pin Connectors.

Colored Rubber Locking Ring Sleeves For 37 Pin Connectors.

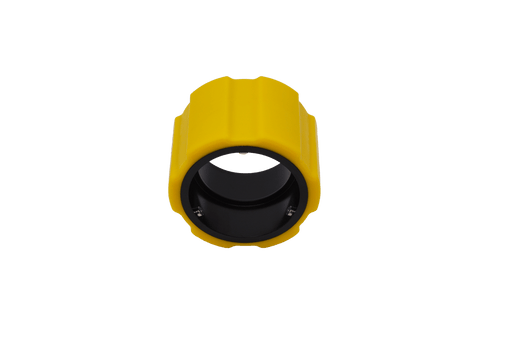

Colored Rubber Locking Ring Sleeves For 54 Pin Connectors.

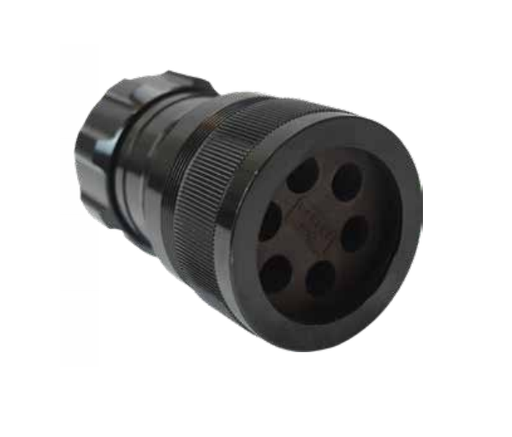

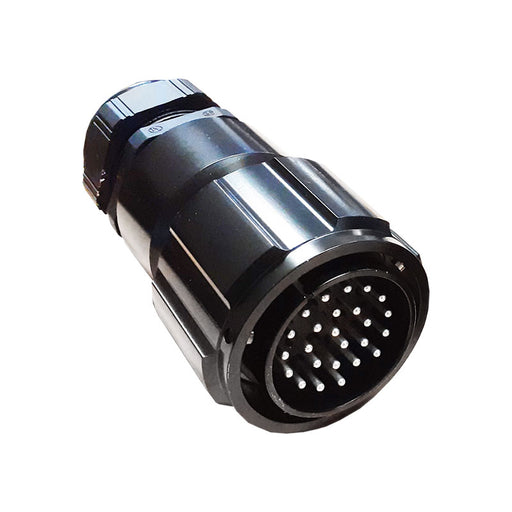

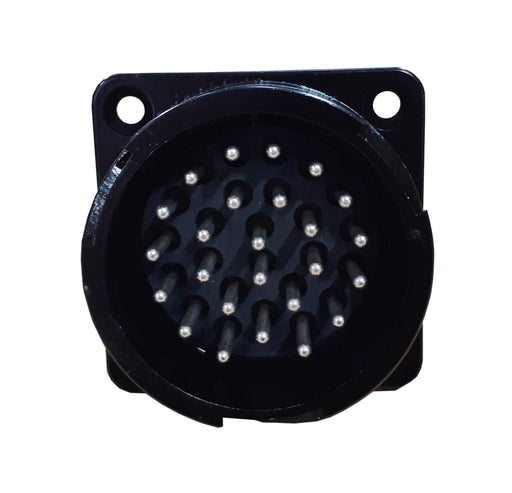

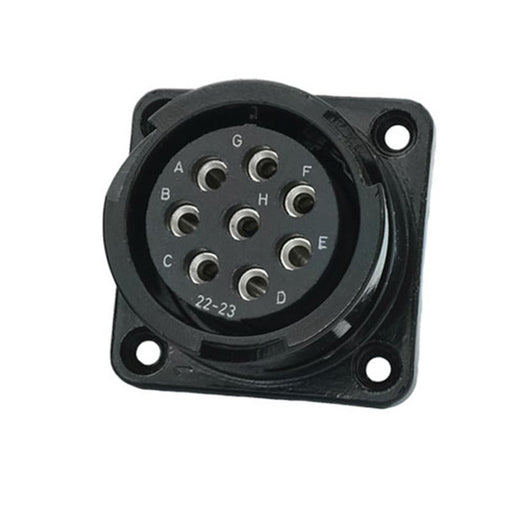

PA-COM Series These connectors use the industry standard 8 pin and 19 pin configuration for speaker array connections and are fully intermateable with CA-COM connectors, commonly used by many loudspeakers manufacturers. Tourline Size 32, 25 Way Connectors Tourline Size 32, 25 way multipin connectors for speaker applications designed to connect up to 12 channel line array systems in a single housing. Adopted by some of the world’s leading speaker manufacturers, these connectors are based on our popular Tourline series and are manufactured to ensure continual and reliable operation in the harsh environment of professional sound applications. Kay Features: Crimp or solder contacts for up to 4mm2 wire IP67 grade waterproof (when mated) for outdoor applications Metal shells and rubber covered coupling rings with increased wall sections to improve impact resistance Fast and reliable bayonet locking of the coupling nut under vibration or shock conditions

PA-COM Series These connectors use the industry standard 8 pin and 19 pin configuration for speaker array connections and are fully intermateable with CA-COM connectors, commonly used by many loudspeakers manufacturers. Tourline Size 32, 25 Way Connectors Tourline Size 32, 25 way multipin connectors for speaker applications designed to connect up to 12 channel line array systems in a single housing. Adopted by some of the world’s leading speaker manufacturers, these connectors are based on our popular Tourline series and are manufactured to ensure continual and reliable operation in the harsh environment of professional sound applications. Kay Features: Crimp or solder contacts for up to 4mm2 wire IP67 grade waterproof (when mated) for outdoor applications Metal shells and rubber covered coupling rings with increased wall sections to improve impact resistance Fast and reliable bayonet locking of the coupling nut under vibration or shock conditions

PA-COM Series These connectors use the industry standard 8 pin and 19 pin configuration for speaker array connections and are fully intermateable with CA-COM connectors, commonly used by many loudspeakers manufacturers. Tourline Size 32, 25 Way Connectors Tourline Size 32, 25 way multipin connectors for speaker applications designed to connect up to 12 channel line array systems in a single housing. Adopted by some of the world’s leading speaker manufacturers, these connectors are based on our popular Tourline series and are manufactured to ensure continual and reliable operation in the harsh environment of professional sound applications. Kay Features: Crimp or solder contacts for up to 4mm2 wire IP67 grade waterproof (when mated) for outdoor applications Metal shells and rubber covered coupling rings with increased wall sections to improve impact resistance Fast and reliable bayonet locking of the coupling nut under vibration or shock conditions

PA-COM Series These connectors use the industry standard 8 pin and 19 pin configuration for speaker array connections and are fully intermateable with CA-COM connectors, commonly used by many loudspeakers manufacturers. Tourline Size 32, 25 Way Connectors Tourline Size 32, 25 way multipin connectors for speaker applications designed to connect up to 12 channel line array systems in a single housing. Adopted by some of the world’s leading speaker manufacturers, these connectors are based on our popular Tourline series and are manufactured to ensure continual and reliable operation in the harsh environment of professional sound applications. Kay Features: Crimp or solder contacts for up to 4mm2 wire IP67 grade waterproof (when mated) for outdoor applications Metal shells and rubber covered coupling rings with increased wall sections to improve impact resistance Fast and reliable bayonet locking of the coupling nut under vibration or shock conditions

PA-COM Series These connectors use the industry standard 8 pin and 19 pin configuration for speaker array connections and are fully intermateable with CA-COM connectors, commonly used by many loudspeakers manufacturers. Tourline Size 32, 25 Way Connectors Tourline Size 32, 25 way multipin connectors for speaker applications designed to connect up to 12 channel line array systems in a single housing. Adopted by some of the world’s leading speaker manufacturers, these connectors are based on our popular Tourline series and are manufactured to ensure continual and reliable operation in the harsh environment of professional sound applications. Kay Features: Crimp or solder contacts for up to 4mm2 wire IP67 grade waterproof (when mated) for outdoor applications Metal shells and rubber covered coupling rings with increased wall sections to improve impact resistance Fast and reliable bayonet locking of the coupling nut under vibration or shock conditions

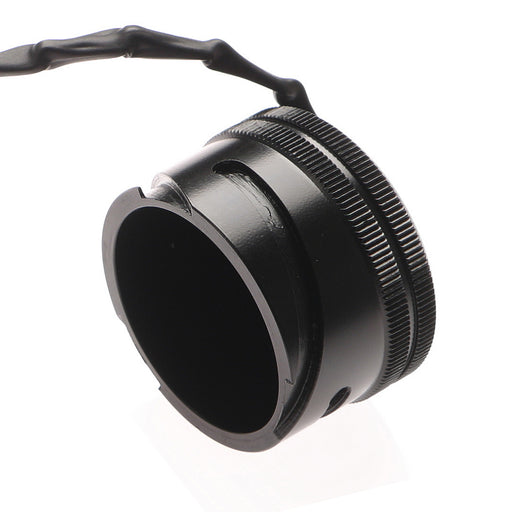

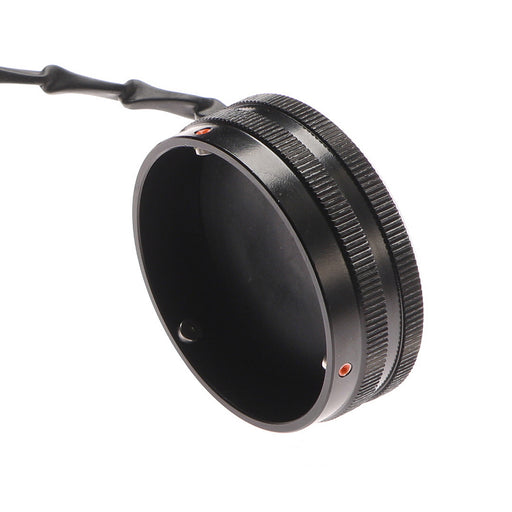

Replacement Screw Kit for Ten47 Dust Caps. Includes the Washer, Screw and Spring Lock.

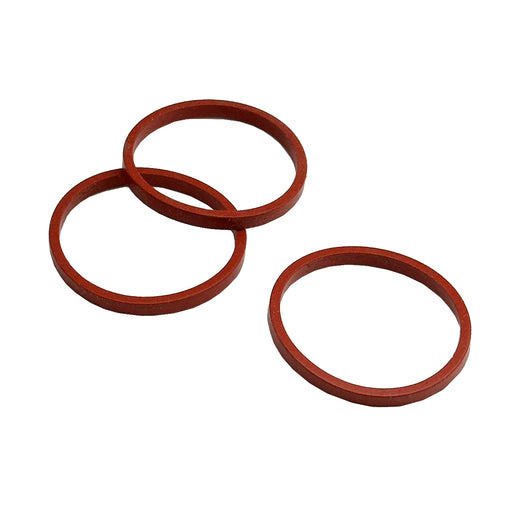

Replacement O Ring for Ten47 Multipin Connectors.

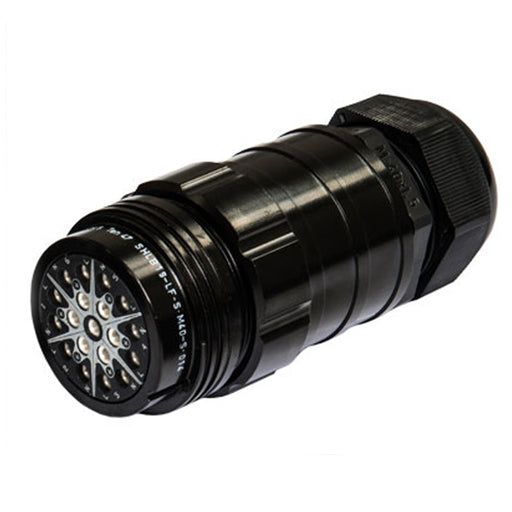

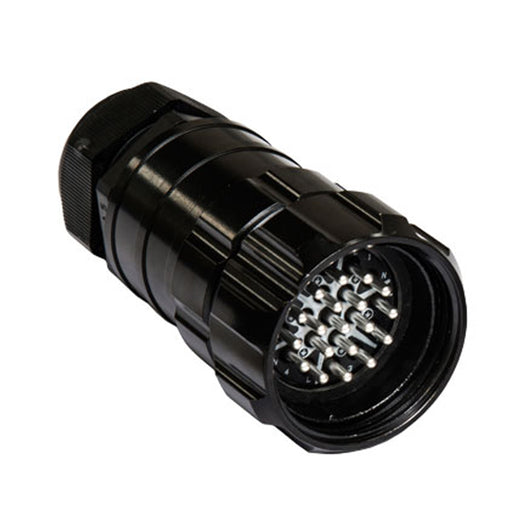

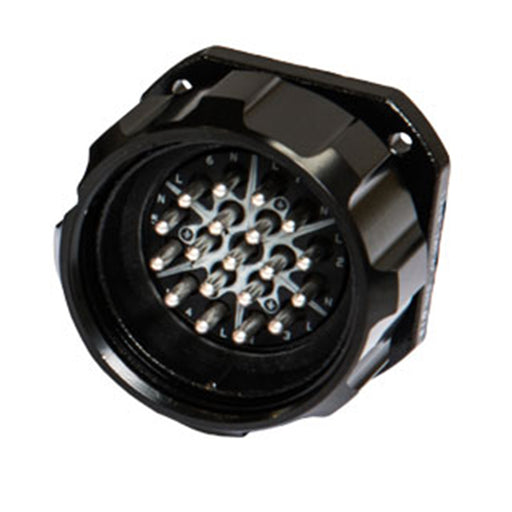

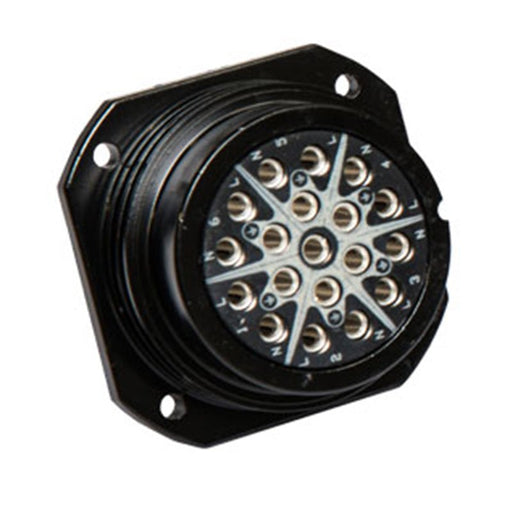

Showline 19 Pin Socapex Connectors Showline 19 pin Socapex compatible connectors for entertainment lighting systems. Designed to meet the highest standards our connectors include the following features: Proprietary 6-circuit socapex compatible lighting connectors feature 12 interlocking keys to help prevent spinning of the interior within the male and female housing Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections Helps prevent broken conductors and loose or damaged ground rings Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding six individual runs of cable “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections Machined aluminium housing with a hard wearing black finish provides enhanced durability Silver plated brass contacts provide high conductivity Available as standard for 1.5mm and 2.5mm cable to meet specific requirements All black construction blends into scenery and is ideal for stage or studio lighting applications Specifications: Current Rating 23 Amps Voltage Rating 600 VAC Max Operating Temp –55°C / +60°C Ingress Protection IP67 watertight when mated Shells Machined Aluminium Finish Hard Wearing Black Insert Silicone Cable Entry Standard M40 – 15–23mm M40 O/S – 26–32mm Conductor Size Standard 1.5 mm/2.5 mm Contacts Silver plated Brass

Showline 19 Pin Socapex Connectors Showline 19 pin Socapex compatible connectors for entertainment lighting systems. Designed to meet the highest standards our connectors include the following features: Proprietary 6-circuit socapex compatible lighting connectors feature 12 interlocking keys to help prevent spinning of the interior within the male and female housing Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections Helps prevent broken conductors and loose or damaged ground rings Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding six individual runs of cable “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections Machined aluminium housing with a hard wearing black finish provides enhanced durability Silver plated brass contacts provide high conductivity Available as standard for 1.5mm and 2.5mm cable to meet specific requirements All black construction blends into scenery and is ideal for stage or studio lighting applications Specifications: Current Rating 23 Amps Voltage Rating 600 VAC Max Operating Temp –55°C / +60°C Ingress Protection IP67 watertight when mated Shells Machined Aluminium Finish Hard Wearing Black Insert Silicone Cable Entry Standard M40 – 15–23mm M40 O/S – 26–32mm Conductor Size Standard 1.5 mm/2.5 mm Contacts Silver plated Brass Download Wiring Diagrams and Spec Sheet Here.

Showline 19 Pin Socapex Connectors Showline 19 pin Socapex compatible connectors for entertainment lighting systems. Designed to meet the highest standards our connectors include the following features: Proprietary 6-circuit socapex compatible lighting connectors feature 12 interlocking keys to help prevent spinning of the interior within the male and female housing Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections Helps prevent broken conductors and loose or damaged ground rings Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding six individual runs of cable “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections Machined aluminium housing with a hard wearing black finish provides enhanced durability Silver plated brass contacts provide high conductivity Available as standard for 1.5mm and 2.5mm cable to meet specific requirements All black construction blends into scenery and is ideal for stage or studio lighting applications Specifications: Current Rating 23 Amps Voltage Rating 600 VAC Max Operating Temp –55°C / +60°C Ingress Protection IP67 watertight when mated Shells Machined Aluminium Finish Hard Wearing Black Insert Silicone Cable Entry Standard M40 – 15–23mm M40 O/S – 26–32mm Conductor Size Standard 1.5 mm/2.5 mm Contacts Silver plated Brass

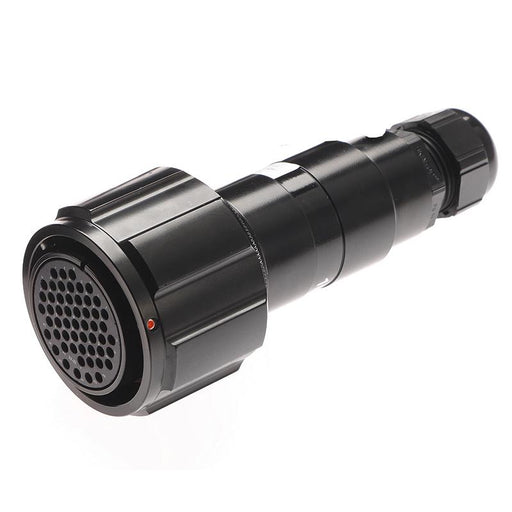

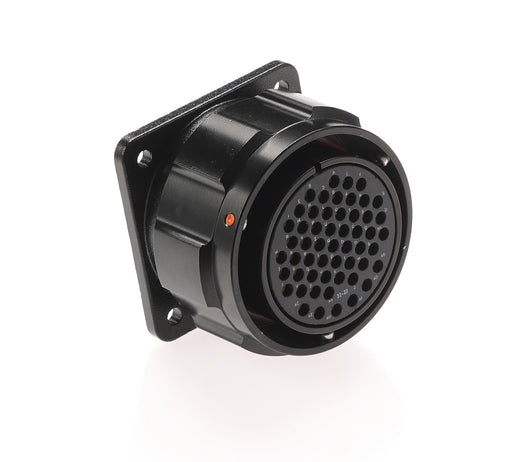

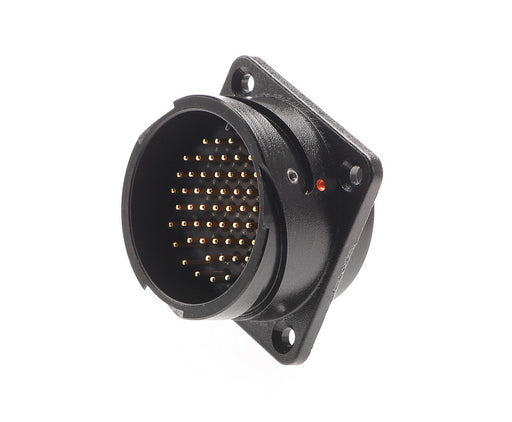

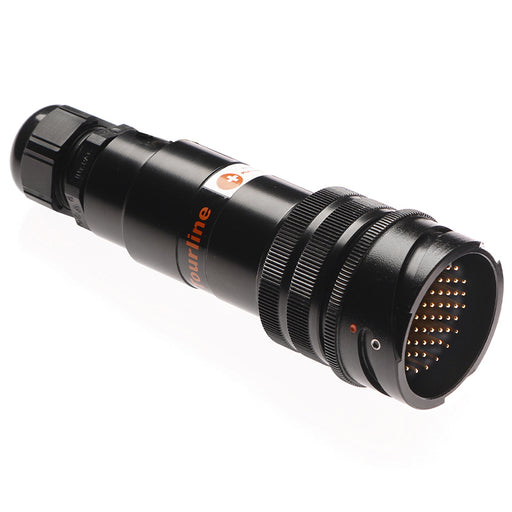

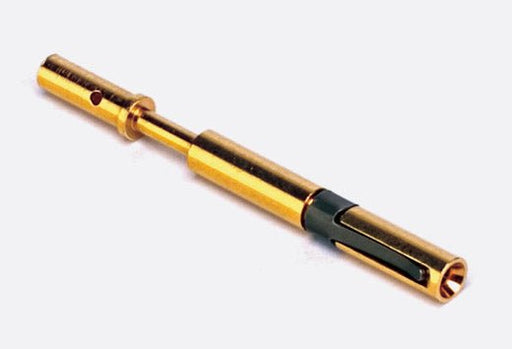

Tourline Multi Pin Connector With Crimp Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Pre-Loaded Solder Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Crimp Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Pre-Loaded Solder Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Crimp Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Pre-Loaded Solder Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Crimp Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

Tourline Multi Pin Connector With Pre-Loaded Solder Pins Circular Audio Multipin Connectors designed and manufactured to ensure continual and reliable operation in the harsh environment of professional audio. A wide range of available insert arrangement allows connections from 13 poles (4 channel) to 201 poles (67 channels). The metal shells and coupling rings have increased wall sections to improve the impact resistance at these critical points of any connector design. Inline connectors are available with watertight cable glands as standard or with optional metal basket weave grips. Features: Heavy duty design Fast and reliable bayonet locking IP67 when mated Minimum 2000 matings Removable Crimp or fixed Solder contacts High quality Gold Plated contacts Protective caps to IP67 Download Wiring Diagrams and Spec Sheet Here.

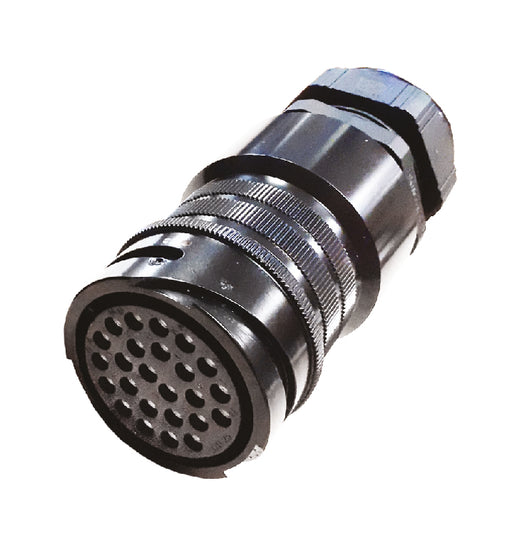

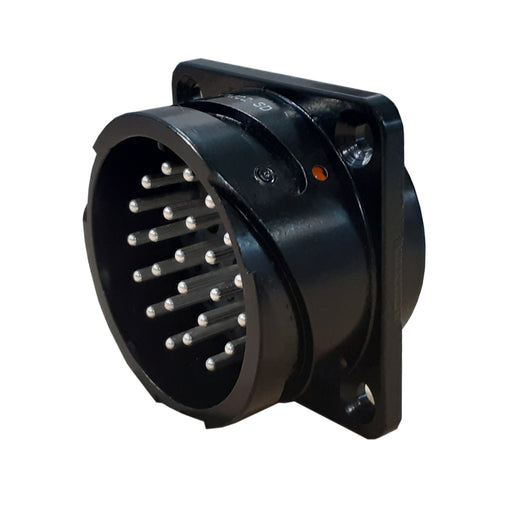

This range of heavy duty, circular, bayonet-lock connectors, inter-mate fully with similar connector series derived from the MIL-C-5015 / VG95234 specifications, used widely throughout Europe for both broadcast and live performance audio applications. Male and female cable connectors may be joined in-line, offer IP67 protection against dust and water when mated, and are available in a range of capacities from 25 pins to 150 pins. Pins can be crimped using the appropriate tools or soldered if preferred. Versions with 25, 37, 54, 85 and 150 pins are suitable for 8, 12, 16, 24 and 48 channel connections. The housings have a black anodised finish with key-ways which ensure accurate alignment before the contacts mate. Female connectors have female contacts and a locking ring. Male connectors have male contacts and external locking grooves. All cable connectors have a pressure gland at the rear giving enormous cable retention strength. In addition the 25, 37, 54 and 85 pin types incorporate a glass-filled nylon, extra heavy duty spiral strain relief. Panel connectors have a square mounting flange. Dust caps are available, fitting both panel and cable types. Download Wiring Diagrams and Spec Sheet Here.

This range of heavy duty, circular, bayonet-lock connectors, inter-mate fully with similar connector series derived from the MIL-C-5015 / VG95234 specifications, used widely throughout Europe for both broadcast and live performance audio applications. Male and female cable connectors may be joined in-line, offer IP67 protection against dust and water when mated, and are available in a range of capacities from 25 pins to 150 pins. Pins can be crimped using the appropriate tools or soldered if preferred. Versions with 25, 37, 54, 85 and 150 pins are suitable for 8, 12, 16, 24 and 48 channel connections. The housings have a black anodised finish with key-ways which ensure accurate alignment before the contacts mate. Female connectors have female contacts and a locking ring. Male connectors have male contacts and external locking grooves. All cable connectors have a pressure gland at the rear giving enormous cable retention strength. In addition the 25, 37, 54 and 85 pin types incorporate a glass-filled nylon, extra heavy duty spiral strain relief. Panel connectors have a square mounting flange. Dust caps are available, fitting both panel and cable types. Download Wiring Diagrams and Spec Sheet Here.

This range of heavy duty, circular, bayonet-lock connectors, inter-mate fully with similar connector series derived from the MIL-C-5015 / VG95234 specifications, used widely throughout Europe for both broadcast and live performance audio applications. Male and female cable connectors may be joined in-line, offer IP67 protection against dust and water when mated, and are available in a range of capacities from 25 pins to 150 pins. Pins can be crimped using the appropriate tools or soldered if preferred. Versions with 25, 37, 54, 85 and 150 pins are suitable for 8, 12, 16, 24 and 48 channel connections. The housings have a black anodised finish with key-ways which ensure accurate alignment before the contacts mate. Female connectors have female contacts and a locking ring. Male connectors have male contacts and external locking grooves. All cable connectors have a pressure gland at the rear giving enormous cable retention strength. In addition the 25, 37, 54 and 85 pin types incorporate a glass-filled nylon, extra heavy duty spiral strain relief. Panel connectors have a square mounting flange. Download Wiring Diagrams and Spec Sheet Here.
