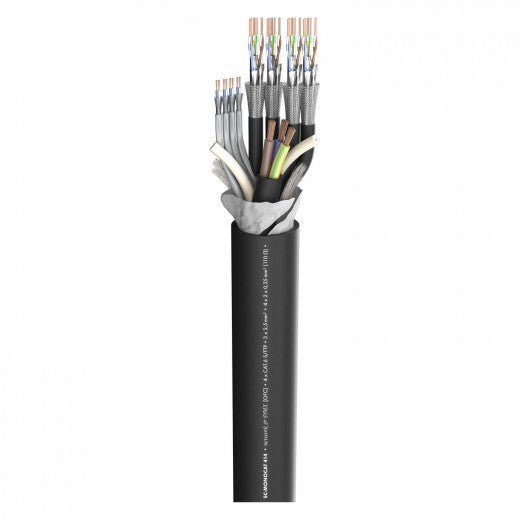

Sommer Cable - Monocat Power 414 - Data Power And DMX/Signal Cable

Sommer Cable - Monocat Power 414 - Data Power And DMX/Signal Cable

by Sommer Cable
Currently Out Of Stock
$136.99
SKU 500-0191-4

Currently Out Of Stock

***Price Is Per Meter***

Thicker and bigger …

Apart from the combi lines 110C (CAT+Power), 111C (CAT+Power+DMX), 202 (2xCAT+2xDMX) and 212 (2xCAT+2xDMX+Power) we also offer the extended variants SC-MONOCAT POWER 414 and 810. In addition to the power line, the SC-MONOCAT POWER 414 has four CAT and four DMX lines each, the SC-MONOCAT POWER 810 with its super robust, notch and cold resistant PUR jacket has eight CAT lines.

Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line
  • LAN line suitable for audio transmission

Application:

  • Mobile applications
  • Control of DMX lighting consoles
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation

Specifications:

Article number 500-0191-4
Name SC-Monocat Power 414
EAN 4049371166379
Properties Digital 110 Ω AES / EBU
Properties OFC oxygen free copper
Properties Analog
Application area Stage / live
Application area Installation
Application area Studio / Broadcast
Application area Mobile outdoor / indoor
Application hybrid cable
Colour black
Colour detailed black
Signal transmission symmetrical

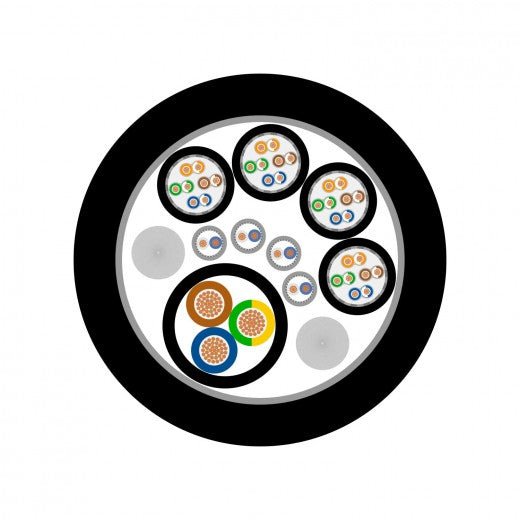

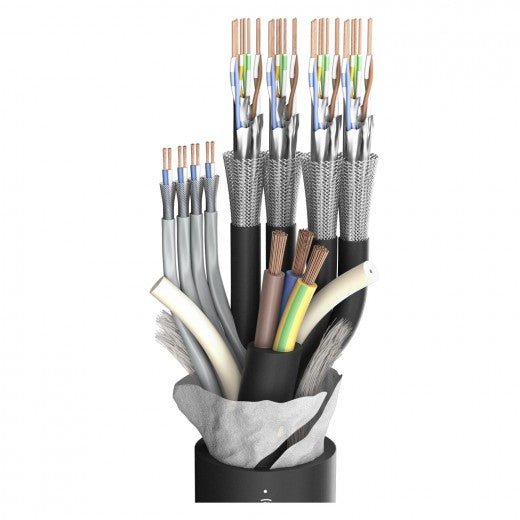

Construction [(3LIY3x2,5mm²)Y+4x(4x(2x0,51mm))(ST)CY+4x(2x(2LI2YS0,25mm²)ST))CY]Y
Construction (power) (3LIY3x2,5mm²)Y
Construction (AES/EBU, DMX) 4x(2x(2LI2YS0,25mm²)ST))
Construction (network) 4x(4x(2x0,51mm))(ST)CY
Jacket material PVC
Jacket Ø [mm] 27,00
Number of Channels (power) 1
Number of Channels (AES/EBU, DMX) 4
Number of Channels (network) 4
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (network) 8
Inner conductor (power) [mm²] 2,50
Inner conductor (AES/EBU, DMX) [mm²] 0,25
Inner conductor Ø (network) [mm] 0,51
AWG (AES/EBU, DMX) 23
Shielding (AES/EBU, DMX) Copper braiding tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor [%] 100
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 850
UV-resistant yes
Fire load per m [kWh] 3,25
Style variant round
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 110
Temperature min. [°C] -20
Temperature max. [°C] 75
Width [mm] 27
Height [mm] 27
Capacity wire/wire at 1m (network) [pF] 44
Capacity wire/wire at 1 ft. (network) [pF] 13,4112
Impedance (network) [Ω] 100
Insulation resist. per 1km (power) [GΩ] 5
Insulation resist. per 1000 feet (power) [GΩ] 1,524
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 300
BPVo-Euroclass Fca
