Video killed the radio star...

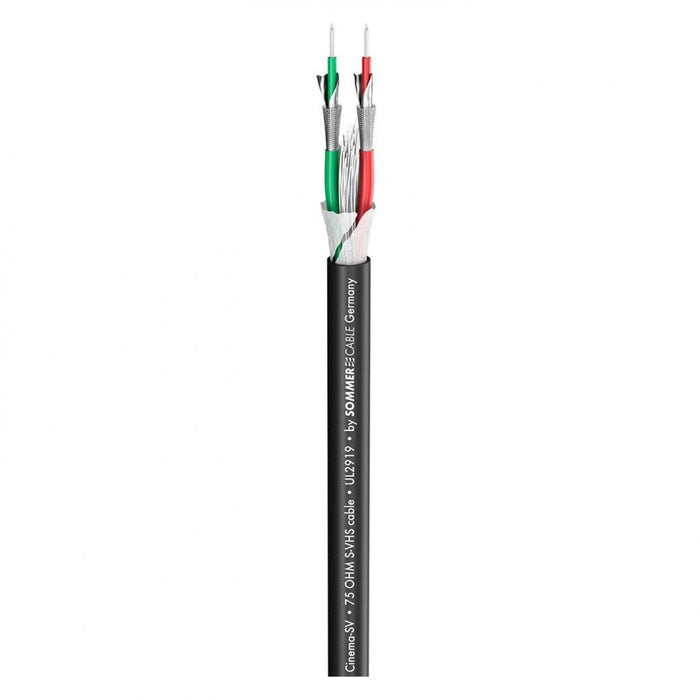

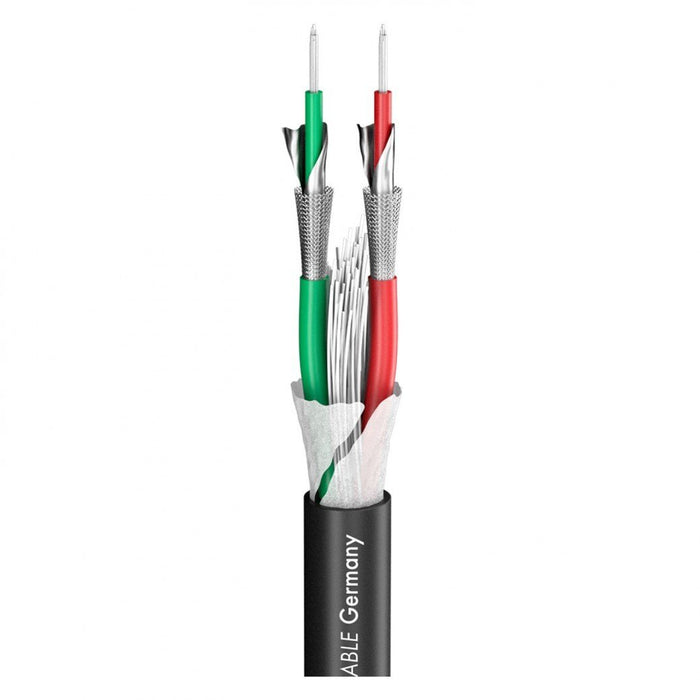

The prophecy of that Buggles pop song has not (yet) come true “ but still: already today a good picture goes hand in hand with good sound, Meanwhile, the S-video standard is an integral part of the good picture for all cameras, computers, audio, video, and TV end devices. A lossfree high-quality connection of these components is crucial for the picture quality. Especially with high-grade components the Cinema-SV can shine with its constant wave impedance of 75 Ohm. The robust PVC jacket is very flexible and protects two coaxial lines, each of which is embedded in a coloured fleece-banded PVC sleeve. Each wire is individually shielded by a cross mesh and an AL compound foil. Both the litz wires and the mesh screen are tinned.
The Cinema-SV nis the ideal connection line for the upper S-video standard.
Advantages:
- Easy and safe installation due to the robust and flexible outer jacket
- Dependable, high-quality transmission of S-video signals
- Good shielding due to single mesh screen plus AL compound foil
Application:
- Video and monitor cable for higher demands
- For connection of high quality components
- Mobile application and fixed installation
| Article number | 600-0701 |
|---|---|
| Name | Cinema-SV |
| EAN | 4049371000581 |
| Properties | Digital 75 Ohm |
| Properties | Analog |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application | video cable |
| Colour | black |
| Colour detailed | black |
| Construction | [2LI2Y0,32mm(ST)CY]Y |
| Jacket material | PVC |
| Jacket [mm] | 7,50 |
| Number of Channels (video) | 2 |
| Inner conductor (video) | 1 |
| Inner conductor (video) [mm²] | 0,08 |
| Inner conductor (video) [mm] | 0,32 |
| AWG (video) | 28 |
| Shielding | Copper braiding tin-plated + AL-compound foil |
| Shielding factor [%] | 100 |
| Copper strands (video) | 7 |
| Copper strand ˜ (video) [mm] | 0,12 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation ˜ [mm] | 1,60 |
| Weight per 1 m [g] | 68 |
| UV-resistant | yes |
| Style variant | round |
| Packing | 200 m spool |
| Temperature min. [°C] | -15 |
| Temperature max. [°C] | 70 |
| Width [mm] | 7,5 |
| Height [mm] | 7,5 |
| Capacity wire/electic screen at 1m (video) [pF] | 64 |
| Capacity wire/electic screen at 1 ft. (video) [pF] | 19,5072 |
| Damping at 5 MHz (100m & 20° C) [dB] | 4,3 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] | 1,3106 |
| Damping at 50 MHz (100m & 20° C) [dB] | 16,6 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] | 5,0597 |
| Damping at 100 MHz (100m & 20° C) [dB] | 22,5 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] | 6,858 |
| Damping at 200 MHz (100m & 20° C) [dB] | 30,6 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] | 9,3269 |
| Damping at 470 MHz (100m & 20° C) [dB] | 60,5 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] | 18,4404 |
| Damping at 862 MHz (100m & 20° C) [dB] | 99,3 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] | 30,2666 |
| Impedance [Ω] | 75 |
| BPVo-Euroclass | Fca |
