Roadcase Hardware

Large Heavy Duty Ball Corner. 6 Mounting Holes Part No. C1375 Z Material 2.0mm Steel Finish PennBrite Description Large Ball Corner Internal Radius 3mm Weight 0.12kg

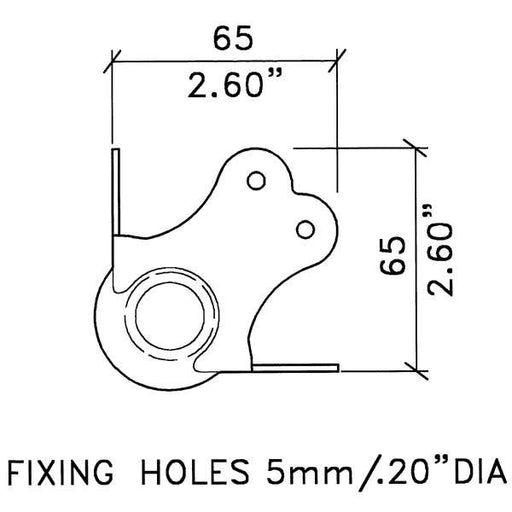

Large Heavy Duty Ball Corner. 6 Mounting Holes. Part No. C1385Z Material 2.0mm Finish PennBrite Description Large Ball Corner Internal Radius 3mm Stackable Female Weight 0.12kg

Medium Ball Corner 6 Mounting Holes Part No. C1345 Z Material 1.2mm Steel Finish PennBrite Description Medium Ball Corner Internal Radius 1.2mm Weight 31g

Flat Corner 3 Mounting Holes Part No. C1180 Z Material 1.0mm Steel Finish PennBrite Description Flat Corner Internal Radius 2.4mm Weight 24g

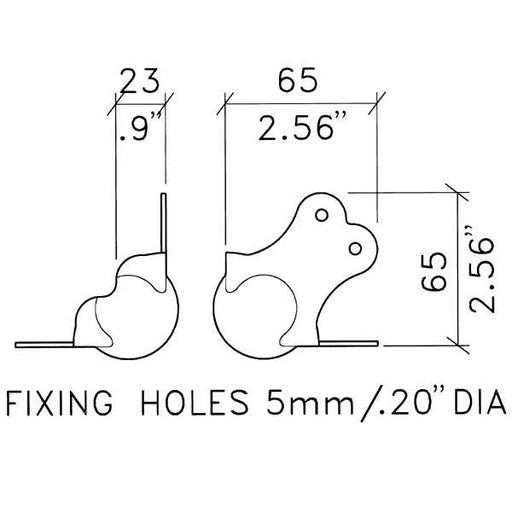

Large Heavy Duty Ball Corner. 6 Mounting Holes Part No. C1380 Z Material 2.0mm Steel Finish PennBrite Description LArge 2 Leg Ball Corner Internal Radius 3mm Weight 97g

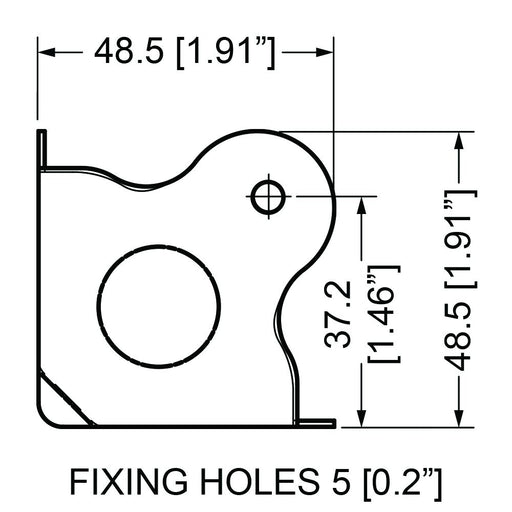

Medium PennBrite Zinc Male Stackable Flat Corner Mates with C1935Z Medium PennBrite Zinc Female Stackable Flat Corner 3 Mounting Holes Male and Female Stacking Options Part No. C1150 Z Material 1.0mm Steel Finish PennBrite Description Male Stacking, mates with C1935 Internal Radius 4mm Stackable Male Weight 40g

Medium Ball Corner 3 Mounting Holes Part No. C1080 Z Material 1.2mm Steel Finish PennBrite Description Medium Ball Corner Internal Radius 1mm Weight 49g

3 Leg Flat Corner, Tight Radius. 6 Mounting Holes Part No. C1980Z Material 1.2mm Steel Finish PennBrite Weight 79g

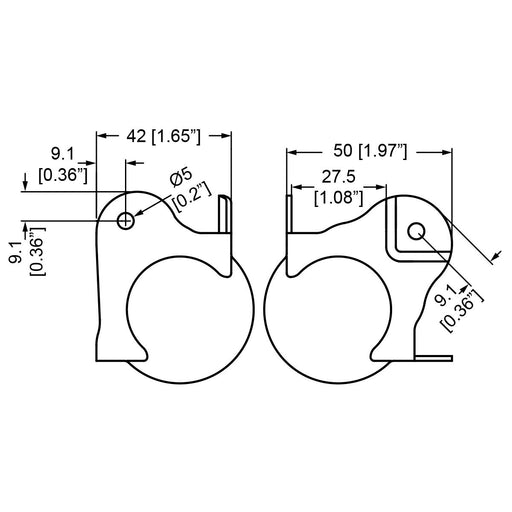

Brace Ball Corner with 30mm Offset on one leg only (for use in lidmaker applications). 3 Mounting Holes Mates with Extrusions: E2540 , E0870 , E2245 and E2410 Part No. C1358 Z Material 1.5mm Steel Finish PennBrite Offset 30mm Weight 70g

Brace Ball Corner, 30mm Offset on one leg only (for use in lidmaker applications). For use with Extrusion E0870 or other Female Stacking Corner. 3 Mounting Holes Part No. C1082 Z Material 1.2mm Steel Finish PennBrite Description Offset Brace Ball Corner Internal Radius 0.8mm Offset 30mm Weight 46g

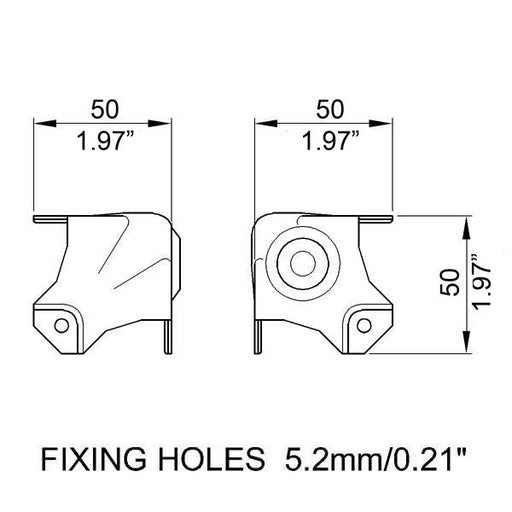

Medium Ball Corner with 30mm offset. 3 Mounting Holes Part No. C1081 /01 Material 1.2mm Finish PennBrite Description Stackable Medium Offset Ball Corner Internal Radius 1mm Offset 30mm Stackable Female Weight 49g

Large Heavy Duty Ball Corner. 6 Mounting Holes. Part No. C1375 S Material 2.0mm Stainless Steel Finish Stainless Steel Description Large Ball Corner Internal Radius 3mm Weight 0.12kg

Brace Ball Corner with 30mm Offset on one leg only (for use in lidmaker applications). 3 Mounting Holes. Part No. C1346 Z Material 1.5mm Steel Finish PennBrite Offset 30mm Internal Radius 1.5mm Weight 74g

2 Leg Flat Corner 2 Mounting Holes Part No. C0680 Z Material 1.1mm Steel Finish PennBrite Description 2 Leg Flat Corner Internal Radius 2.5mm Weight 42g

Medium Ball Corner with 30mm offset. 3 Mounting Holes Part No. C1081 /04 Material 1.2mm Steel Finish PennBrite Description Stackable Medium Offset Ball Corner Internal Radius 1mm Offset 30mm Stackable Male Weight 49g

2 Hole Brace Part No. B0701 Material 1.2mm Steel Finish PennBrite Description 2 Hole Brace Dimensions 40mm x 25mm Internal Radius 1.5mm Weight 17g

Large Heavy Duty Ball Corner 6 Mounting Holes Part No. C0650Z Material 2.0mm Steel Finish PennBrite Description Large Heavy Duty Ball Corner Internal Radius 2mm Weight 0.14kg

6 Hole Brace As B1128 but without Offset. Part No. B1131 Material 1.2mm Steel Finish PennBrite Description 6 Hole Brace Dimensions 51.5mm x 42mm Internal Radius 1.5mm Weight 33g

Mini Knuckle Corner. Part No. C0596 Material 0.75mm Steel Finish Nickel Weight 9g

4-Way Divider Brace for 6mm panels. Part No. B16 40 Material 1.2mm Steel Finish PennBrite

L-Joiner. Both Legs 20mm Part No. B1141 Material 1.2mm Steel Finish PennBrite Weight 45g

4 Hole Brace Part No. B0702 Material 1.2mm Steel Finish PennBrite Description 4 Hole Brace Dimensions 40mm x 25.4mm Internal Radius 1.5mm Weight 16g

Extendable Handle - 5 Stage Part No. 4081 Material Alloy/Plastic Description Extendable Handle - 5 Stage Dimensions Closed 180mm x 360mm Dimensions Extended 180mm x 1.04mmm Recommended Load Capacity 20kg Weight 0.74kg

3-Way Divider Brace for 9mm panels. Part No. B1631 Material 1.2mm Steel Finish PennBrite

4-Way Divider Brace for 9mm panels. Part No. B1641 Material Steel Finish PennBrite

2 Hole Brace Part No. B0715 Z Material 1.2mm Steel Finish PennBrite Description 2 Hole Brace Dimensions 32.2mm x 19mm Internal Radius 0.8mm Weight 10g

3-Way Divider Brace for 6mm panels Part No. B16 30 Material 1.2mm Steel Finish PennBrite

6 Hole Brace Part No. B1931 Material 1.2mm Steel Finish PennBrite Description 6 Hole Brace Dimensions 61mm x 43.1mm Internal Radius 2.8mm Weight 44g

Flat Corner Part No. C0630 Finish Nickel Material 1mm Steel Internal Radius 2.25mm Weight 9g

Plastic Attach Handle. 2-Piece Brackets. Part No. 0326 Material Plastic/Steel Finish Black Description Nickel Brackets

Extendable Handle - 4 Stage Part No. 4080 Material Steel/Plastic Description Extendable Handle - 4 Stage Dimensions Closed 180mm x 341mm Dimensions Extended 180mm x 890mm Recommended Load Capacity 20kg Weight 0.74kg

2 Hole Male Foot Part No. 3005 Material 1.2mm Steel Finish Zinc Description Nickel Brackets Height 10.2mm Weight 12g

Medium PennBrite Zinc Flat Corner Mounting Holes: 3 Internal Radius: 4mm Part No. C0675Z Material 1.0mm Steel Finish PennBrite Internal Radius 4mm Weight 52g

4 Hole Brace to cover all 30mm x 30mm Aluminium Extrusions. Part No. B1121 Material 1.2mm Steel Finish PennBrite Description 4 Hole Brace Dimensions 31.2mm x 40mm Internal Radius 2mm Weight 23g

Pozidriv Pan Head Screws (M6) Part No. S1090 Material Steel Finish Zinc Thread M6 Length (L) 40mm Weight 10.8g

Drawer Slides. Demountable. Sold in pairs. Part No. R2418Z Material Steel Closed Length 450mm Extension 452mm Load Capacity 45kg Weight 1.35kg
