Quest - QX4280 - 4 Channel Amplifier ***END OF LINE CLEARANCE***
QX-280 Series Corporate Power
Studio quality sound and plenty of channels - the QX-280 Series is available in a wide range of single and multi-channel configurations. Specifically designed for AV installations and high end commercial sound, where hi-fidelity audio is required.
Powered the latest in quality, energy efficient, Class D amplifiers; the QX-280 Series amplifiers can be integrated into both low impedance, and 70/100V line installations without compromise
A Closer Look
The QX-280 range consists of three, separate 280 Watt per channel models, available as single, two channel, and four channel variants.
Audio quality is studio class in both high and low impedance operation. High quality class D amplifier technology makes it possible to have a compact single rack format with the right combination of power and channel density.

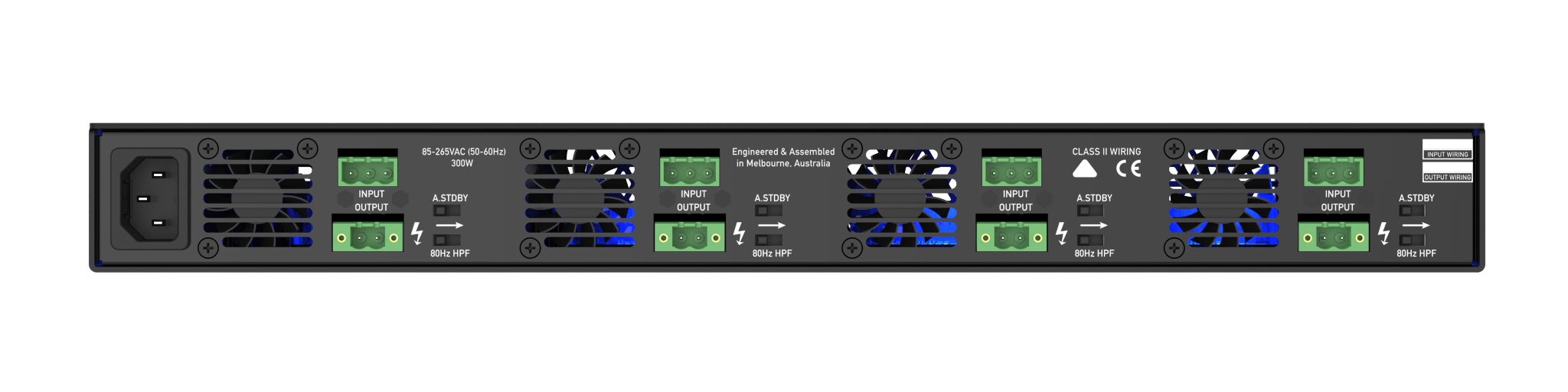

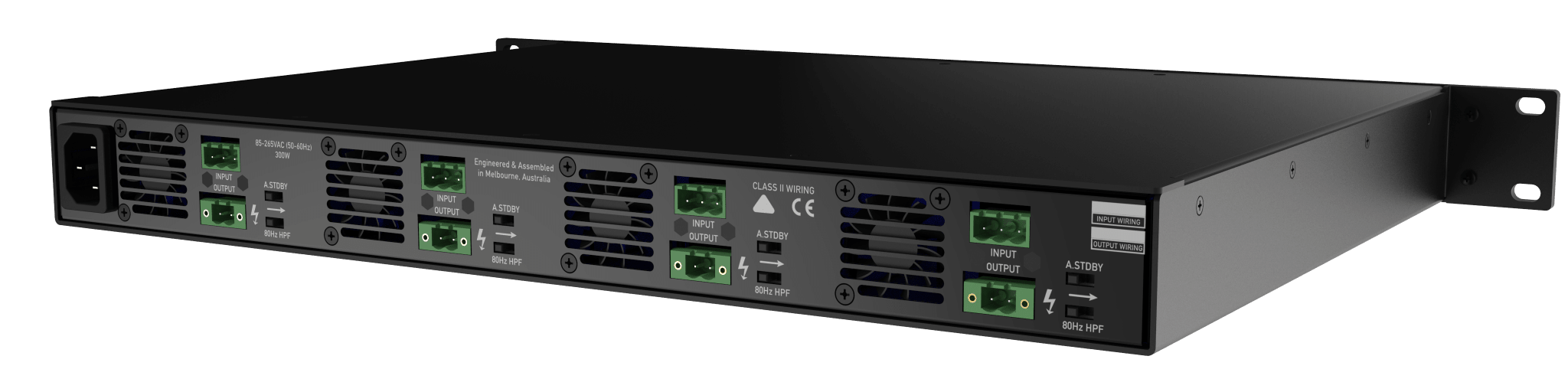

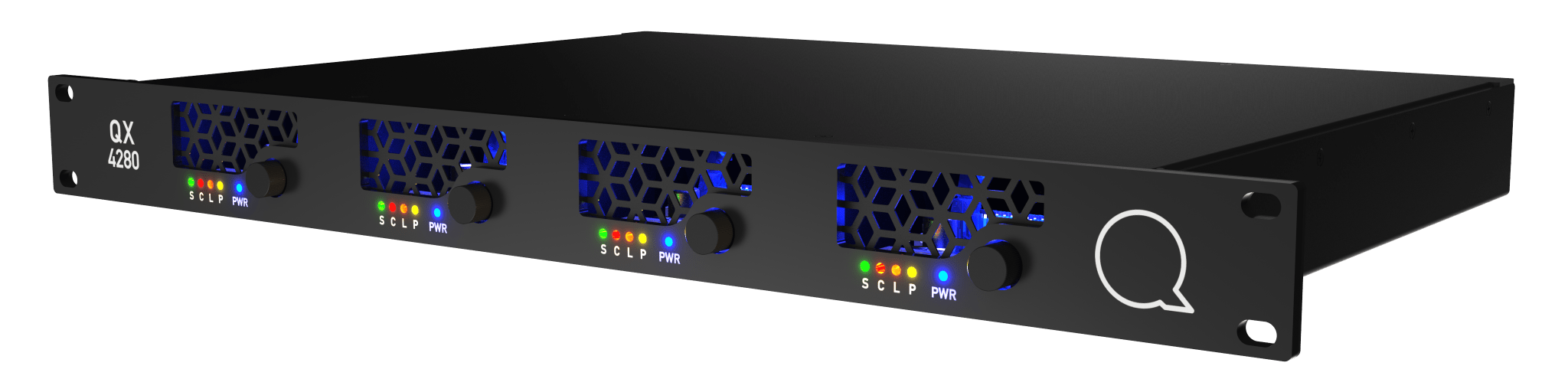

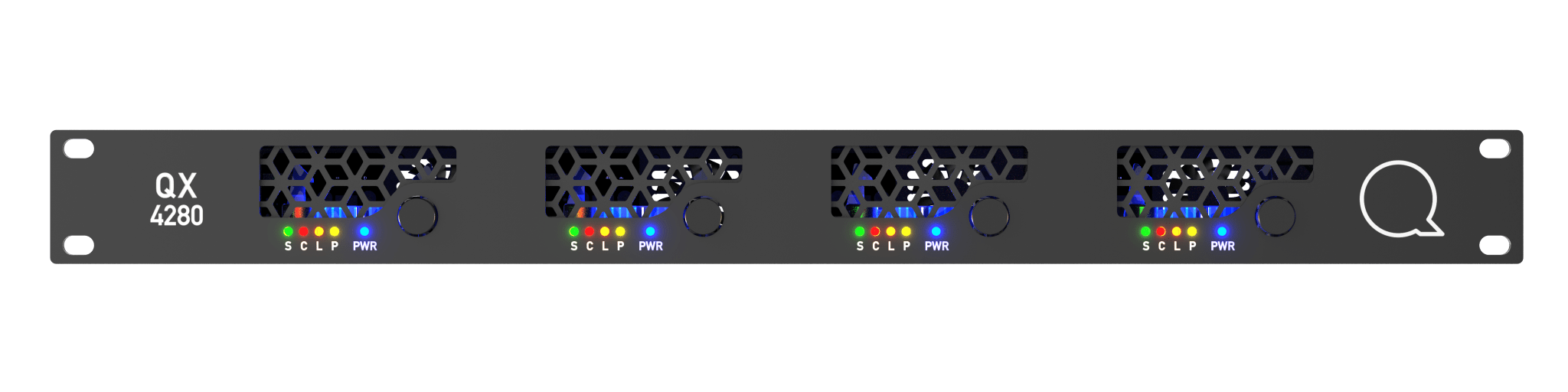

The transformerless outputs deliver full range audio to all impedance loads from 4? to 70/100V systems. Each amplifier channel has a selectable 80 Hz high-pass filter (selectable via a swith located on the rear panel), and a volume control for each channel that can be accessed directly from the front panel. Each amplifier channel is also provided with a thermally controlled cooling fan.
Features
- High Efficiency Class-D Amplifier(s)
- 70/100V or Low Impedance Operation
- Compact 1RU Chassis
- Auto-Sleep Function
- Selectable 80Hz High Pass Filter
- Built-In Limiter Circuit
- Thermally Controlled Fans
- AC power range 85-265VAC 50/60Hz.
- ErP (1275/2008/EC) compliant standby consumption < 0.5W (*per channel)
- Available in 1, 2 or 4 Channel Models
Energy Conserver
Whether awake or asleep, the QX-280 amplifiers are not hungry for power. The amplifier functions across the power range at an 89.5% efficiency rate.
With a sleep mode mains current draw of less than 0.5 watts per amplifier channel. This is a great benefit for venues with a high amplifier channel count.
The automatic standby functionality mutes an individual amplifier channel after no signal has been detected for 10mins or more; and will put the amplifier into sleep a mode after 30mins. Automatic standby can be turned on and off for individual channels via a switch located on the rear panel.
The operational voltage range of the QX-280 Series is also wide ? from 85 to 265VAC, and no manual switching is required for high and low impedance operation. This is a great reliability benefit for installations subject to inconsistent mains supply.
Made in Australia
Like all Quest products, the QX-280 Series is made to survive in a tough world.
Australian QC and advanced design engineering mean years of trouble free service in professional applications. The QX-280 Series provides a price/performance ratio that is hard to beat.
Specifications
| Peak Output Current | 25A | ||
| THD+N (1kHz @ 1W / 1kHz ? Rated Power) | 0.022% / 0.015% | ||
| Dynamic Range | 119dBA | ||
| Output Resistance (1kHz) | 43.6m? | ||
| Peak Output Voltage (unloaded) | ?140V | ||
| Power Output | 4? | 280W | |
| 8? | 245W | ||
| 70V | 250W | ||
| 100V | 240W | ||
| DC Offset | ?7mV | ||
| Frequency Response | ?0.1dB 20Hz - 20kHz (1st order 22kHz LPF) | ||
| Voltage Gain (@ 1kHz) | 32dB | ||
| Mechanical Specifications | |
| Net Weight | QX4280 - 5.7kg |
| Gross Weight | QX4280 - 8.3kg |
| Dimensions (H x W x D) | 44 x 485 x 304mm |
| Input Connections | 3-Way 5.08mm Captive Screw Connector |
| Output Connections | 2-Way 5.08mm Locking Captive Screw Connector |
| Mains Power Connection | IEC C14 |
| Mains Input Voltage | 85 - 265VAC |
