Eminence

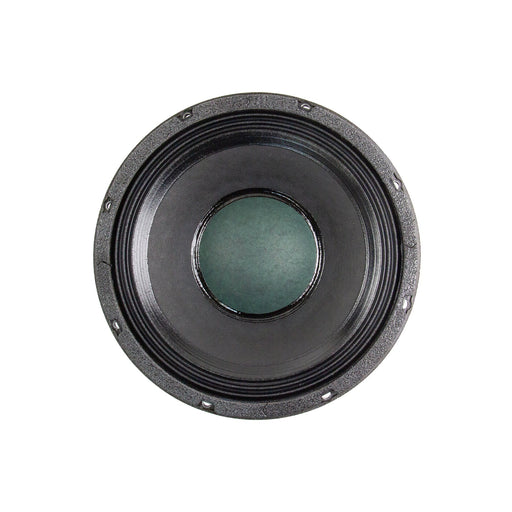

Eminence is proud to introduce the CannaBass™ CB3010N-8. Engineered with the modern player in mind, the CB3010N-8 features organic and natural damping properties delivering a cleaner, more authentic sound through a unique combination of cutting-edge speaker technology, the superior qualities of a hemp dust cap, and a proprietary CBD coating. The CannaBass™ CB3010N-8’s black paper cone features a CBD coating on the back that supplies a damping quality and enhances the smooth frequency response. The natural material in the green hemp dust cap makes it an eco-friendly choice and provides additional natural damping for the CB3010N-8, creating a more pristine sound. The CannaBass™ CB3010N-8 is ideal for players who demand the best sound quality. Featuring a high-temperature Neo magnet, the CannaBass™ CB3010N-8 is powerful and lightweight yet durable, offering a steady flux field that ensures high-quality sound. With a 6.48mm xMax and 900-watt music power rating (450W EIA), the CB3010N-8 is expertly voiced to provide a loud, low distortion, low-frequency range. It delivers a powerful, high-quality sound that is perfect for modern musicians. Additionally, our three-inch inside/outside wound voice coil on a vented fiberglass bobbin provides lower power compression and distortion for a more accurate and authentic sound. Specifications: Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating* Program Power 900 W Watts 450 W Resonance 41.62 Hz Usable Frequency Range 43 Hz - 3.4 kHz Sensitivity* 94 dB Magnet Weight 11 oz. Gap Height 0.365", 9.27 mm Voice Coil Diameter 3", 76.2 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 41.62 Hz DC Resistance (Re) 5.62 Ω Coil Inductance (Le) 0.62m H Mechanical Q (Qms) 7.95 Electromagnetic Q (Qes) 0.25 Total Q (Qts) 0.25 Compliance Equivalent Volume (Vas) 55.22 liters / 1.95 cu.ft. Peak Diaphragm Displacement Volume (Vd) 244.23 cc Mechanical Compliance of Suspension (Cms) 0.28 mm/N BL Product (BL) 17.22 T-M Diaphragm Mass Inc. Airload (MMs) 51.42 grams Efficiency Bandwidth Product (EBP) 163.48 Maximum Linear Excursion (Xmax) 6.48 mm Surface Area of Cone (Sd) 376.9 cm2 Maximum Mechanical Limit (Xlim) 14.16 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Not Recommended Vented Acceptable Driver Volume Displaced 64.68 cu.in. / 1.06 liters Overall Diameter 10.25", 260.35 mm Baffle Hole Diameter 9.12", 231.65 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.112mm Mounting Holes B.C.D. 9.73", 247.14mm Depth 4.25", 108 mm Net Weight 7.1 lbs, 3.22 kg Shipping Weight 8.9 lbs, 4.04 kgs MATERIALS OF CONSTRUCTION Coil Construction Inside/Outside copper voice coil Coil Former Fiberglass former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Cast Aluminum Basket Cone Composition CBD treated paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Hempylene paper dustcap

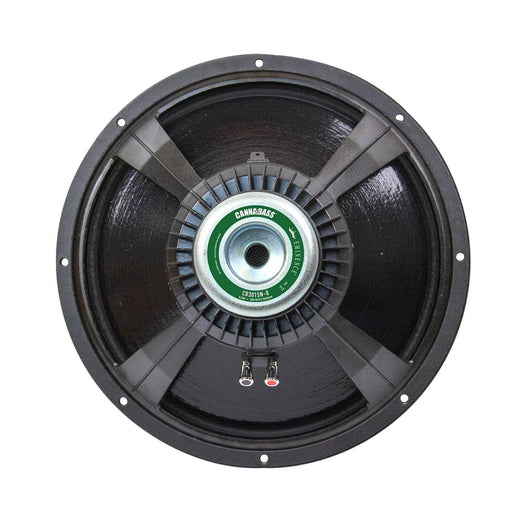

Eminence is proud to introduce the CannaBass™ CB3015N-8. Engineered with the modern player in mind, the CB3015N-8 features organic and natural damping properties delivering a cleaner, more authentic sound through a unique combination of cutting-edge speaker technology, the superior qualities of a hemp dust cap, and a proprietary CBD coating. The CannaBass™ CB3015N-8’s black paper cone features a CBD coating on the back that supplies a damping quality and enhances the smooth frequency response. The natural material in the green hemp dust cap makes it an eco-friendly choice and provides additional natural damping for the CB3015N-8, creating a more pristine sound. The CannaBass™ CB3015N-8 is ideal for players who demand the best sound quality. Featuring a high-temperature Neo magnet, the CannaBass™ CB3010N-8 is powerful and lightweight yet durable, offering a steady flux field that ensures high-quality sound. With a 7.22mm xMax and 1000-watt music power rating (500W EIA), the CB3015N-8 is expertly voiced to provide a loud, low distortion, low-frequency range. It delivers a powerful, high-quality sound that is perfect for modern musicians. Additionally, our three-inch inside/outside wound voice coil on a vented fiberglass bobbin provides lower power compression and distortion for a more accurate and authentic sound. Specifications: Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1000 W Watts 500 W Resonance 40.67 Hz Usable Frequency Range 40 Hz - 3.7 kHz Sensitivity* 98.1 dB Magnet Weight 11 oz. Gap Height 0.365", 9.27 mm Voice Coil Diameter 3", 76.2 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 40.67 Hz DC Resistance (Re) 5.50 Ω Coil Inductance (Le) 0.59m H Mechanical Q (Qms) 3.6 Electromagnetic Q (Qes) 0.43 Total Q (Qts) 0.39 Compliance Equivalent Volume (Vas) 162.87 liters / 5.75 cu.ft. Peak Diaphragm Displacement Volume (Vd) 618.25 cc Mechanical Compliance of Suspension (Cms) 0.16 mm/N BL Product (BL) 17.76 T-M Diaphragm Mass Inc. Airload (MMs) 96.75 grams Efficiency Bandwidth Product (EBP) 94.34 Maximum Linear Excursion (Xmax) 7.22 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 14.2 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Not Recommended Vented Acceptable Driver Volume Displaced 155.52 cu.in. / 2.56 liters Overall Diameter 15.32", 389.13 mm Baffle Hole Diameter 14.03", 356.36 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.112mm Mounting Holes B.C.D. 14.56", 389.82mm Depth 7.1", 180.34 mm Net Weight 8.2 lbs, 3.72 kg Shipping Weight 10.4 lbs, 4.72 kgs MATERIALS OF CONSTRUCTION Coil Construction Inside/Outside copper voice coil Coil Former Fiberglass former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Cast Aluminum Basket Cone Composition CBD treated paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Hempylene paper dustcap

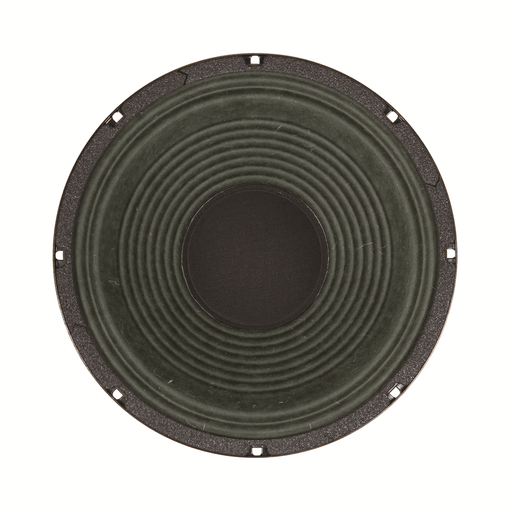

The Eminence Cannabis Rex guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice. Specifications: Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 or 16 Ω Power Rating*: Program Power N/A Watts 50 W Resonance 101 Hz Usable Frequency Range 80 Hz - 4.2 kHz Sensitivity* 101.8 dB Magnet Weight 38 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS: Resonant Frequency (fs) 101 Hz DC Resistance (Re) 6.56 or 13.1 Ω Coil Inductance (Le) 0.75m H Mechanical Q (Qms) 9.95 Electromagnetic Q (Qes) 0.82 Total Q (Qts) 0.75 Compliance Equivalent Volume (Vas) 36.4 liters / 1.29 cu.ft. Peak Diaphragm Displacement Volume (Vd) 42.6 cc Mechanical Compliance of Suspension (Cms) 0.09 mm/N BL Product (BL) 16.7 T-M Diaphragm Mass Inc. Airload (MMs) 27 grams Efficiency Bandwidth Product (EBP) 124 Maximum Linear Excursion (Xmax) 0.8 mm Surface Area of Cone (Sd) 532.4 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume: Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.071 cu.ft. / 2 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.1", 129.5 mm Net Weight 8.2 lbs, 3.72 kg Shipping Weight 9.8 lbs, 4.45 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Hemp cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

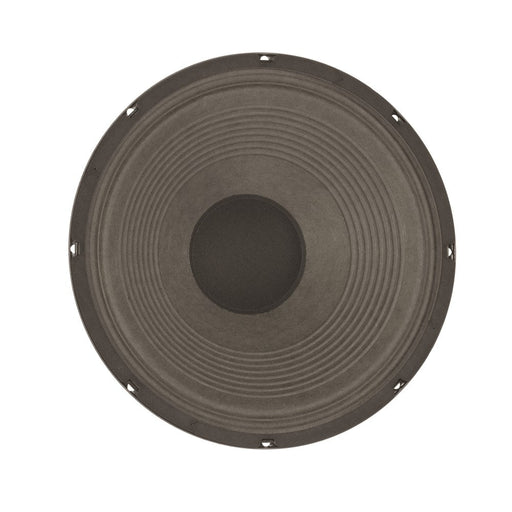

The Eminence Cannabis Rex guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice. Specifications: Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating*: Program Power N/A Watts 50 W Resonance 130 Hz Usable Frequency Range 80 Hz - 5.3 kHz Sensitivity* 99.3 dB Magnet Weight 38 oz. Gap Height 0.313", 8 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 130 Hz DC Resistance (Re) 6.35 Ω Coil Inductance (Le) 0.49m H Mechanical Q (Qms) 15.4 Electromagnetic Q (Qes) 0.6 Total Q (Qts) 0.58 Compliance Equivalent Volume (Vas) 13.02 liters / 0.46 cu.ft. Peak Diaphragm Displacement Volume (Vd) 0 cc Mechanical Compliance of Suspension (Cms) 0.07 mm/N BL Product (BL) 13.16 T-M Diaphragm Mass Inc. Airload (MMs) 20 grams Efficiency Bandwidth Product (EBP) 216 Maximum Linear Excursion (Xmax) 0.79 mm Surface Area of Cone (Sd) 366.1 cm2 Maximum Mechanical Limit (Xlim) 0 mm MOUNTING INFORMATION: Recommended Enclosure Volume: Sealed N/a Vented N/a Driver Volume Displaced 0.039 cu.ft. / 1.1 liters Overall Diameter 10.11", 256.8 mm Baffle Hole Diameter 9.13", 231.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.23", 5.8mm Mounting Holes B.C.D. 9.6", 243.8mm Depth 4", 101.6 mm Net Weight 7.3 lbs, 3.31 kg Shipping Weight 8.4 lbs, 3.81 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Hemp cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

Recommended for professional bass guitar applications in a sealed or vented enclosure. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 600 W Watts 300 W Resonance 34 Hz Usable Frequency Range 47 Hz - 3 kHz Sensitivity* 98.2 dB Magnet Weight 80 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 34 Hz DC Resistance (Re) 6.15 Ω Coil Inductance (Le) 0.33m H Mechanical Q (Qms) 5.9 Electromagnetic Q (Qes) 0.36 Total Q (Qts) 0.34 Compliance Equivalent Volume (Vas) 336.1 liters / 11.87 cu.ft. Peak Diaphragm Displacement Volume (Vd) 411 cc Mechanical Compliance of Suspension (Cms) 0.31 mm/N BL Product (BL) 16 T-M Diaphragm Mass Inc. Airload (MMs) 70 grams Efficiency Bandwidth Product (EBP) 95 Maximum Linear Excursion (Xmax) 4.8 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 9.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.138 cu.ft. / 3.92 liters Overall Diameter 15.22", 386.6 mm Baffle Hole Diameter 13.99", 355.4 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.5", 165.1 mm Net Weight 17.3 lbs, 7.85 kg Shipping Weight 19.4 lbs, 8.8 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

The epitome of British tone with a complete tonal balance, grunt and punch in the lows, warm/tailored mids, and nice, clear, open/airy highs. Specifications: Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 or 16 Ω Power Rating*: Program Power N/A Watts 75 W Resonance 79 Hz Usable Frequency Range 80 Hz - 5.5 kHz Sensitivity* 102.2 dB Magnet Weight 56 oz. Gap Height 0.313", 8 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS: Resonant Frequency (fs) 79 Hz DC Resistance (Re) 6.89 or 14.23 Ω Coil Inductance (Le) 0.52m H Mechanical Q (Qms) 15.07 Electromagnetic Q (Qes) 0.43 Total Q (Qts) 0.42 Compliance Equivalent Volume (Vas) 52.45 liters / 1.85 cu.ft. Peak Diaphragm Displacement Volume (Vd) 64 cc Mechanical Compliance of Suspension (Cms) 0.14 mm/N BL Product (BL) 15 T-M Diaphragm Mass Inc. Airload (MMs) 28 grams Efficiency Bandwidth Product (EBP) 183 Maximum Linear Excursion (Xmax) 1.23 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION: Recommended Enclosure Volume: Sealed N/a Vented N/a Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.17", 309.1 mm Baffle Hole Diameter 11.13", 282.7 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.24", 6.1mm Mounting Holes B.C.D. 11.75", 298.5mm Depth 5.25", 133.4 mm Net Weight 10.8 lbs, 4.9 kg Shipping Weight 12.5 lbs, 5.67 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Nomex former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

Recommended for professional audio in both sealed and vented enclosures. Ideal for full-range, mid/hi, and monitor wedges. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 800 W Watts 400 W Resonance 51 Hz Usable Frequency Range 52 Hz - 4.5 kHz Sensitivity* 99.2 dB Magnet Weight 80 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 51 Hz DC Resistance (Re) 5.71 Ω Coil Inductance (Le) 0.84m H Mechanical Q (Qms) 7.56 Electromagnetic Q (Qes) 0.37 Total Q (Qts) 0.35 Compliance Equivalent Volume (Vas) 81.7 liters / 2.89 cu.ft. Peak Diaphragm Displacement Volume (Vd) 242 cc Mechanical Compliance of Suspension (Cms) 0.21 mm/N BL Product (BL) 15.3 T-M Diaphragm Mass Inc. Airload (MMs) 48 grams Efficiency Bandwidth Product (EBP) 138 Maximum Linear Excursion (Xmax) 4.6 mm Surface Area of Cone (Sd) 532.4 cm2 Maximum Mechanical Limit (Xlim) 13.7 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 28-35 liters / 1-1.25 cu.ft. Vented 31-91 liters / 1.1-3.2 cu.ft. Driver Volume Displaced 0.09 cu.ft. / 2.55 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.27", 6.9mm Mounting Holes B.C.D. 11.69", 296.9mm Depth 6.22", 158 mm Net Weight 16.3 lbs, 7.39 kg Shipping Weight 18 lbs, 8.16 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 or 16 Ω Power Rating* Program Power 800 W Watts 400 W Resonance 55 Hz Usable Frequency Range 54 Hz - 5 kHz Sensitivity* 98.3 dB Magnet Weight 56 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 55 Hz DC Resistance (Re) 6.3 or 11.4 Ω Coil Inductance (Le) 0.74m H Mechanical Q (Qms) 5.27 Electromagnetic Q (Qes) 0.46 Total Q (Qts) 0.43 Compliance Equivalent Volume (Vas) 81.3 liters / 2.87 cu.ft. Peak Diaphragm Displacement Volume (Vd) 125 cc Mechanical Compliance of Suspension (Cms) 0.21 mm/N BL Product (BL) 13.5 T-M Diaphragm Mass Inc. Airload (MMs) 39 grams Efficiency Bandwidth Product (EBP) 120 Maximum Linear Excursion (Xmax) 2.4 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 9.9 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 25.5-85 liters / 0.9-3 cu.ft. Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.35", 135.9 mm Net Weight 11.4 lbs, 5.17 kg Shipping Weight 13.5 lbs, 6.12 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition felt dust cap

Low frequency woofer for pro audio mid-bass or floor monitor applications in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures in vented, bass guitar or PA enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 4 or 8 Ω Power Rating* Program Power 1000 W Watts 500 W Resonance 51 Hz Usable Frequency Range 44 Hz - 3 kHz Sensitivity* 94.6 dB Magnet Weight 56 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 51 Hz DC Resistance (Re) 3.2 or 6.06 Ω Coil Inductance (Le) 1.45m H Mechanical Q (Qms) 7.28 Electromagnetic Q (Qes) 0.51 Total Q (Qts) 0.47 Compliance Equivalent Volume (Vas) 67.9 liters / 2.4 cu.ft. Peak Diaphragm Displacement Volume (Vd) 243 cc Mechanical Compliance of Suspension (Cms) 0.19 mm/N BL Product (BL) 14.1 T-M Diaphragm Mass Inc. Airload (MMs) 51 grams Efficiency Bandwidth Product (EBP) 100 Maximum Linear Excursion (Xmax) 4.8 mm Surface Area of Cone (Sd) 506.7 cm2 Maximum Mechanical Limit (Xlim) 13.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 19.8-28 liters / 0.7-1 cu.ft. Vented 25.5-102 liters / 0.9-3.6 cu.ft. Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.35", 135.9 mm Net Weight 11.8 lbs, 5.35 kg Shipping Weight 14 lbs, 6.35 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio as a mid-bass or vocal wedge in a sealed enclosure. Also suitable as a mid-bass or woofer in vented enclosures. SPECIFICATION: Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 or 16 Ω Power Rating* Program Power 800 W Watts 400 W Resonance 45 Hz Usable Frequency Range 64 Hz - 4 kHz Sensitivity* 100 dB Magnet Weight 56 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 45 Hz DC Resistance (Re) 6.3 or 11.3 Ω Coil Inductance (Le) 1.35m H Mechanical Q (Qms) 6.54 Electromagnetic Q (Qes) 0.67 Total Q (Qts) 0.61 Compliance Equivalent Volume (Vas) 204 liters / 7.2 cu.ft. Peak Diaphragm Displacement Volume (Vd) 137 cc Mechanical Compliance of Suspension (Cms) 0.19 mm/N BL Product (BL) 17.6 T-M Diaphragm Mass Inc. Airload (MMs) 64 grams Efficiency Bandwidth Product (EBP) 68 Maximum Linear Excursion (Xmax) 1.6 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 11.1 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 31-42.5 liters / 1.09-1.5 cu.ft. Vented 81.8-87.8 liters / 2.89-3.1 cu.ft. Driver Volume Displaced 0.128 cu.ft. / 3.62 liters Overall Diameter 15.15", 384.8 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.05", 153.7 mm Net Weight 12.3 lbs, 5.58 kg Shipping Weight 14.3 lbs, 6.49 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Low frequency woofer for pro audio as a mid-bass or floor monitor in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 4 Ω Power Rating* Program Power 1200 W Watts 600 W Resonance 40 Hz Usable Frequency Range 40 Hz - 2.2 kHz Sensitivity* 95 dB Magnet Weight 56 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 40 Hz DC Resistance (Re) 3.37 Ω Coil Inductance (Le) 0.76m H Mechanical Q (Qms) 6.22 Electromagnetic Q (Qes) 0.53 Total Q (Qts) 0.49 Compliance Equivalent Volume (Vas) 253.93 liters / 8.97 cu.ft. Peak Diaphragm Displacement Volume (Vd) 521.2 cc Mechanical Compliance of Suspension (Cms) 0.24 mm/N BL Product (BL) 10.32 T-M Diaphragm Mass Inc. Airload (MMs) 66 grams Efficiency Bandwidth Product (EBP) 76 Maximum Linear Excursion (Xmax) 5.97 mm Surface Area of Cone (Sd) 873 cm2 Maximum Mechanical Limit (Xlim) 16.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 52.95-97.69 liters / 1.87-3.45 cu.ft. Vented 75.04-154.33 liters / 2.65-5.45 cu.ft. Driver Volume Displaced 0.128 cu.ft. / 3.62 liters Overall Diameter 15.15", 384.8 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.3", 160 mm Net Weight 12.8 lbs, 5.81 kg Shipping Weight 14.8 lbs, 6.71 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Low frequency woofer for pro audio as a mid-bass or floor monitor in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1000 W Watts 500 W Resonance 39 Hz Usable Frequency Range 42 Hz - 3.2 kHz Sensitivity* 96 dB Magnet Weight 56 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 39 Hz DC Resistance (Re) 6.11 Ω Coil Inductance (Le) 1.37m H Mechanical Q (Qms) 6.3 Electromagnetic Q (Qes) 0.52 Total Q (Qts) 0.48 Compliance Equivalent Volume (Vas) 241 liters / 8.51 cu.ft. Peak Diaphragm Displacement Volume (Vd) 419 cc Mechanical Compliance of Suspension (Cms) 0.23 mm/N BL Product (BL) 14.6 T-M Diaphragm Mass Inc. Airload (MMs) 75 grams Efficiency Bandwidth Product (EBP) 75 Maximum Linear Excursion (Xmax) 4.8 mm Surface Area of Cone (Sd) 873 cm2 Maximum Mechanical Limit (Xlim) 16.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 36.8-42.5 liters / 1.3-1.5 cu.ft. Vented 85-167 liters / 3-5.9 cu.ft. Driver Volume Displaced 0.128 cu.ft. / 3.62 liters Overall Diameter 15.15", 384.8 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.3", 160 mm Net Weight 12.8 lbs, 5.81 kg Shipping Weight 14.8 lbs, 6.71 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Suited for pro audio as a mid/hi or full-range and monitor. Also recommended for bass guitar. Works well in sealed or vented enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 500 W Watts 250 W Resonance 44 Hz Usable Frequency Range 58 Hz - 4.3 kHz Sensitivity* 99.9 dB Magnet Weight 7 oz. Gap Height 0.275", 7 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 44 Hz DC Resistance (Re) 5.17 Ω Coil Inductance (Le) 0.43m H Mechanical Q (Qms) 4.17 Electromagnetic Q (Qes) 0.45 Total Q (Qts) 0.41 Compliance Equivalent Volume (Vas) 134.88 liters / 4.76 cu.ft. Peak Diaphragm Displacement Volume (Vd) 255 cc Mechanical Compliance of Suspension (Cms) 0.36 mm/N BL Product (BL) 10.69 T-M Diaphragm Mass Inc. Airload (MMs) 37 grams Efficiency Bandwidth Product (EBP) 96 Maximum Linear Excursion (Xmax) 4.9 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 8.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 25.49-42.48 liters / 0.9-1.5 cu.ft. Vented 32.56-127.43 liters / 1.15-4.5 cu.ft. Driver Volume Displaced 0.05 cu.ft. / 1.42 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.06", 280.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 11.62", 295.2mm Depth 6.06", 153.9 mm Net Weight 5.1 lbs, 2.31 kg Shipping Weight 6.8 lbs, 3.08 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket/ heatsink Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for pro audio as a mid/hi or full-range and monitor. Also suited for bass guitar. Works well in sealed or vented enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 600 W Watts 300 W Resonance 42 Hz Usable Frequency Range 54 Hz - 3.7 kHz Sensitivity* 99.2 dB Magnet Weight 7 oz. Gap Height 0.27", 7 mm Voice Coil Diameter 2.5".

Suited for pro audio as a mid/hi or full-range and monitor. Also recommended for bass guitar. Works well in sealed or vented enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 500 W Watts 250 W Resonance 44 Hz Usable Frequency Range 58 Hz - 4.3 kHz Sensitivity* 99.9 dB Magnet Weight 7 oz. Gap Height 0.275", 7 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 44 Hz DC Resistance (Re) 5.17 Ω Coil Inductance (Le) 0.43m H Mechanical Q (Qms) 4.17 Electromagnetic Q (Qes) 0.45 Total Q (Qts) 0.41 Compliance Equivalent Volume (Vas) 134.88 liters / 4.76 cu.ft. Peak Diaphragm Displacement Volume (Vd) 255 cc Mechanical Compliance of Suspension (Cms) 0.36 mm/N BL Product (BL) 10.69 T-M Diaphragm Mass Inc. Airload (MMs) 37 grams Efficiency Bandwidth Product (EBP) 96 Maximum Linear Excursion (Xmax) 4.9 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 8.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 25.49-42.48 liters / 0.9-1.5 cu.ft. Vented 32.56-127.43 liters / 1.15-4.5 cu.ft. Driver Volume Displaced 0.05 cu.ft. / 1.42 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.06", 280.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 11.62", 295.2mm Depth 6.06", 153.9 mm Net Weight 5.1 lbs, 2.31 kg Shipping Weight 6.8 lbs, 3.08 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket/ heatsink Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for pro audio as a mid/hi or full-range and monitor. Also suited for bass guitar. Works well in sealed or vented enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 600 W Watts 300 W Resonance 42 Hz Usable Frequency Range 54 Hz - 3.7 kHz Sensitivity* 99.2 dB Magnet Weight 7 oz. Gap Height 0.275", 7 mm Voice Coil Diameter 2.5", 64 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 42 Hz DC Resistance (Re) 5.29 Ω Coil Inductance (Le) 1.15m H Mechanical Q (Qms) 4.56 Electromagnetic Q (Qes) 0.41 Total Q (Qts) 0.38 Compliance Equivalent Volume (Vas) 204 liters / 7.2 cu.ft. Peak Diaphragm Displacement Volume (Vd) 411 cc Mechanical Compliance of Suspension (Cms) 0.2 mm/N BL Product (BL) 15.7 T-M Diaphragm Mass Inc. Airload (MMs) 72 grams Efficiency Bandwidth Product (EBP) 103 Maximum Linear Excursion (Xmax) 4.8 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 9 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 42.5-48 liters / 1.5-1.7 cu.ft. Vented 51-119 liters / 1.8-4.2 cu.ft. Driver Volume Displaced 0.084 cu.ft. / 2.38 liters Overall Diameter 15.32", 389.1 mm Baffle Hole Diameter 14", 355.6 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.81", 173 mm Net Weight 5.7 lbs, 2.59 kg Shipping Weight 7.9 lbs, 3.58 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket/ heatsink Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

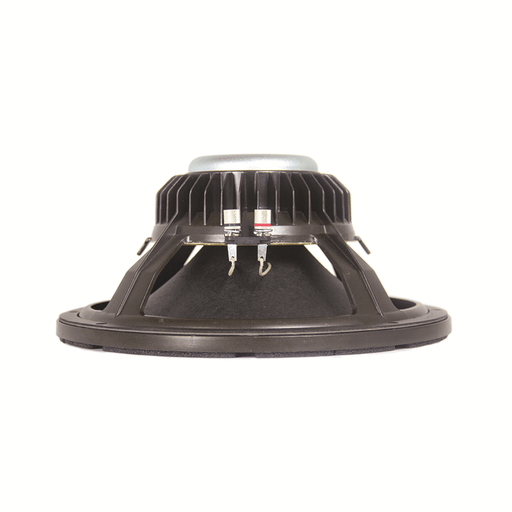

Rated at 300 watts, the Travis Toy Signature Double-T 12 pedal steel guitar speaker features a tight low end, a midrange bite that can cut through a mix, and detailed high end without being too bright. Travis worked closely with the engineers at Eminence to achieve these characteristics and even managed to pack them all into a 12 inch speaker that weighs just over 7 lbs ? less than half the weight of the speakers he replaced. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 300 W Resonance 53 Hz Usable Frequency Range 50 Hz - 3.8 kHz Sensitivity* 100.2 dB Magnet Weight 11 oz. Gap Height 0.36", 9.1 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 53 Hz DC Resistance (Re) 5.6 Ω Coil Inductance (Le) 0.57m H Mechanical Q (Qms) 19.59 Electromagnetic Q (Qes) 0.3 Total Q (Qts) 0.3 Compliance Equivalent Volume (Vas) 63.69 liters / 2.25 cu.ft. Peak Diaphragm Displacement Volume (Vd) 122.1 cc Mechanical Compliance of Suspension (Cms) 0.17 mm/N BL Product (BL) 18.23 T-M Diaphragm Mass Inc. Airload (MMs) 54 grams Efficiency Bandwidth Product (EBP) 177 Maximum Linear Excursion (Xmax) 2.35 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.09 cu.ft. / 2.54 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.04", 280.4 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 11.62", 295.2mm Depth 5.63", 143 mm Net Weight 7.1 lbs, 3.22 kg Shipping Weight 8.7 lbs, 3.95 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth edge Dust Cap Composition Paper dust cap

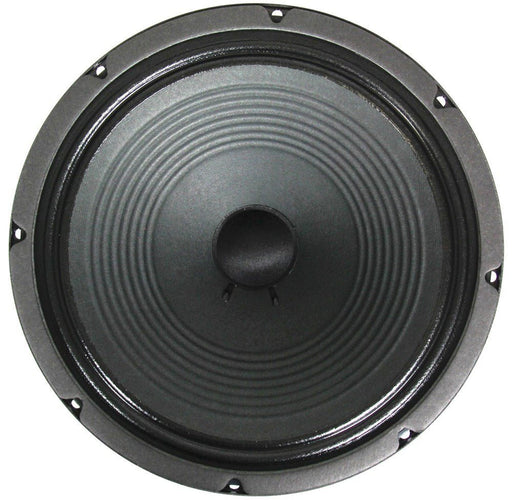

Introducing the DV-77 Mick Thomson Signature Speaker. Designed by Mike Smith of OMEGA and Mick Thomson of Slipknot, this speaker represents the future of Mick's signature tone. Assembled in the USA by Eminence, the DV-77 leverages a new custom-designed basket, new voice coil design, new spider design, and a carefully chosen UK made Kurt Mueller cone to deliver exceptional tone and reliability. From the beginning, the focus of this speaker was balance, response, and a very musical tone. Delivering tight punchy lows, thick harmonically complex mid-range & detailed highs without excess fizz. Not a clone or a copy, this speaker was designed in the studio and proven on the stage. With over a year of real-world testing by Mick, the DV-77 Mick Thomson Signature Speaker is the perfect addition to your rig. SPECIFICATION: Nominal Basket Diameter 12", 304 mm Nominal Impedance* 8 & 16 Ω Power Rating* Program Power N/A Watts 70 W Resonance 70 Hz Usable Frequency Range 70 Hz - 5.3 kHz Sensitivity* 100.6 dB Magnet Weight 50 oz. Gap Height 0.313", 7.95 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS: Resonant Frequency (fs) 70 Hz DC Resistance (Re) 6.47 Ω Coil Inductance (Le) 0.49m H Mechanical Q (Qms) 11.46 Electromagnetic Q (Qes) 0.45 Total Q (Qts) 0.43 Compliance Equivalent Volume (Vas) 71.19 liters / 2.51 cu.ft. Peak Diaphragm Displacement Volume (Vd) 41.04 cc Mechanical Compliance of Suspension (Cms) 0.19 mm/N BL Product (BL) 13.18 T-M Diaphragm Mass Inc. Airload (MMs) 27 grams Efficiency Bandwidth Product (EBP) 156 Maximum Linear Excursion (Xmax) 0.79 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION: Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.24", 310.9 mm Baffle Hole Diameter 11.09", 281.69 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.134", 3.4036mm Mounting Holes B.C.D. 11.69", 296.93mm Depth 5.19", 131.826 mm Net Weight 10.4 lbs, 4.72 kg Shipping Weight 12.1 lbs, 5.49 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Nomex former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

Vintage American ceramic magnet tone approved by legendary amp builder, George Alessandro. Well-balanced from top to bottom with tight, full lows, warm mids, and warm, but open highs. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 40 W Resonance 88 Hz Usable Frequency Range 80 Hz - 5.3 kHz Sensitivity* 100.5 dB Magnet Weight 38 oz. Gap Height 0.313", 8 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 88 Hz DC Resistance (Re) 7.63 Ω Coil Inductance (Le) 0.67m H Mechanical Q (Qms) 16.82 Electromagnetic Q (Qes) 0.6 Total Q (Qts) 0.58 Compliance Equivalent Volume (Vas) 44.96 liters / 1.59 cu.ft. Peak Diaphragm Displacement Volume (Vd) 83.8 cc Mechanical Compliance of Suspension (Cms) 0.12 mm/N BL Product (BL) 13.8 T-M Diaphragm Mass Inc. Airload (MMs) 27 grams Efficiency Bandwidth Product (EBP) 146 Maximum Linear Excursion (Xmax) 1.23 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.071 cu.ft. / 2 liters Overall Diameter 12.17", 309.1 mm Baffle Hole Diameter 11.13", 282.7 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.24", 6.1mm Mounting Holes B.C.D. 11.75", 298.5mm Depth 5.13", 130.2 mm Net Weight 7.5 lbs, 3.4 kg Shipping Weight 8.4 lbs, 3.81 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Solid composition felt dust cap

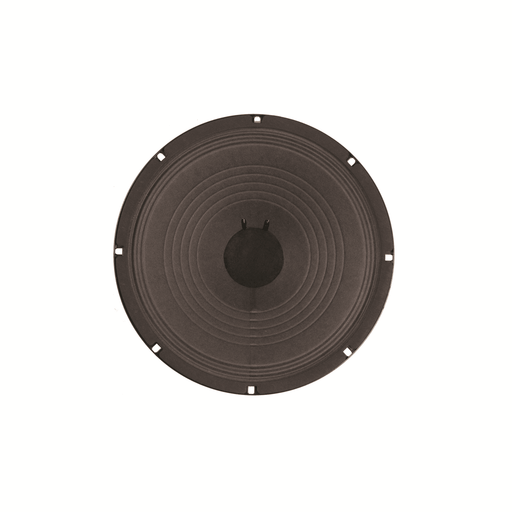

Tones of 1964 still ring true in this vintage voiced 10 inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs. SPECIFICATION Nominal Basket Diameter 10", 254 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 20 W Resonance 100 Hz Usable Frequency Range 100 Hz - 5.5 kHz Sensitivity* 98.2 dB Magnet Weight 15 oz. Gap Height 0.25", 6.4 mm Voice Coil Diameter 1", 25 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 100 Hz DC Resistance (Re) 7.58 Ω Coil Inductance (Le) 0.48m H Mechanical Q (Qms) 16.89 Electromagnetic Q (Qes) 1.38 Total Q (Qts) 1.28 Compliance Equivalent Volume (Vas) 33.49 liters / 1.18 cu.ft. Peak Diaphragm Displacement Volume (Vd) 58.2 cc Mechanical Compliance of Suspension (Cms) 0.18 mm/N BL Product (BL) 7.05 T-M Diaphragm Mass Inc. Airload (MMs) 14 grams Efficiency Bandwidth Product (EBP) 72 Maximum Linear Excursion (Xmax) 1.59 mm Surface Area of Cone (Sd) 366.1 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.027 cu.ft. / 0.77 liters Overall Diameter 10.11", 256.8 mm Baffle Hole Diameter 9.13", 231.9 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.22", 5.6mm Mounting Holes B.C.D. 9.6", 243.8mm Depth 3.93", 99.7 mm Net Weight 3.3 lbs, 1.5 kg Shipping Weight 4.4 lbs, 2 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Paper former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Solid composition felt dust cap

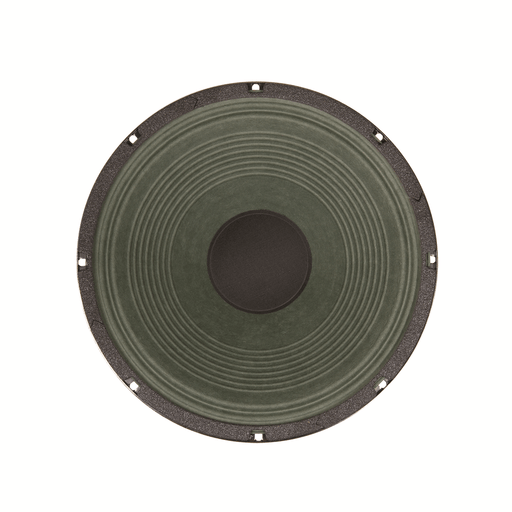

Finally, a 12 inch speaker voiced specifically for fiddle. Reduced bow friction noise and tame upper-mids. It's also great for guitar if you want thick tone with warm, smooth, more mellow mids and highs. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 100 W Resonance 82 Hz Usable Frequency Range 80 Hz - 4.5 kHz Sensitivity* 100.1 dB Magnet Weight 38 oz. Gap Height 0.313", 8 mm Voice Coil Diameter 2", 51 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 82 Hz DC Resistance (Re) 7.34 Ω Coil Inductance (Le) 0.63m H Mechanical Q (Qms) 15.49 Electromagnetic Q (Qes) 0.58 Total Q (Qts) 0.56 Compliance Equivalent Volume (Vas) 57.81 liters / 2.04 cu.ft. Peak Diaphragm Displacement Volume (Vd) 43.1 cc Mechanical Compliance of Suspension (Cms) 0.14 mm/N BL Product (BL) 13.11 T-M Diaphragm Mass Inc. Airload (MMs) 26 grams Efficiency Bandwidth Product (EBP) 141 Maximum Linear Excursion (Xmax) 0.79 mm Surface Area of Cone (Sd) 545.4 cm2 Maximum Mechanical Limit (Xlim) 0 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented N/a Driver Volume Displaced 0 cu.ft. / 0 liters Overall Diameter 12.17", 309.1 mm Baffle Hole Diameter 11.13", 282.7 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.24", 6.1mm Mounting Holes B.C.D. 11.75", 298.5mm Depth 5.13", 130.2 mm Net Weight 7.9 lbs, 3.58 kg Shipping Weight 9.8 lbs, 4.45 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Cone Edge Composition Full molded paper Dust Cap Composition Zurette dust cap

H14EA Horn Flare SPECIFICATION Type Exponential Throat Size 1.4", 35.6mm Attachment Method Bolt-on Dispersion 60 X 40 Low Rec. Crossover 600 Hz WxHxD (in) 12.6" x 7.5" x 7.9" WxHxD (mm) 320mm x 190.5mm x 200.7mm Cut Out 11.3 x 6.1", 287 x 155mm Weight 4.8lbs, 2.18g Material Aluminum

1" CD Horn 90x40° - 305 x 152 mm The specially developed bi-radial and CD horns are characterized by their particularly precise radiation characteristics. The Adam Hall horns are made of high-quality plastic polyamide PA 6.6, which has excellent acoustic properties Properties guaranteed with optimal mechanical stability.The two-part construction (horn body and 6-fold screwed flange) further reinforces the critical flange/horn transition.WxHxD Specifications: Type Constant Directivity Throat Size 1", 25.4mm Dispersion 90 x 40 Low Rec. Crossover 1 kHz WxHxD (in) 4.49" x 7.55" x 3.18" WxHxD (mm) 305mm x 152mm x 101mm Cut Out 265 x 100mm Weight 0.56g Material ABS

HEA2 SPECIFICATION Type Exponential Throat Size 2", 50.8mm Attachment Method Bolt-on Dispersion 60 x 40 Low Rec. Crossover 700 Hz WxHxD (in) 12.4" x 7.3" x 6.1" WxHxD (mm) 315mm x 185.4mm x 154.9mm Cut Out 11.3 x 6.3", 287 x 160mm Weight 4.9lbs, 2.22g Material Aluminum

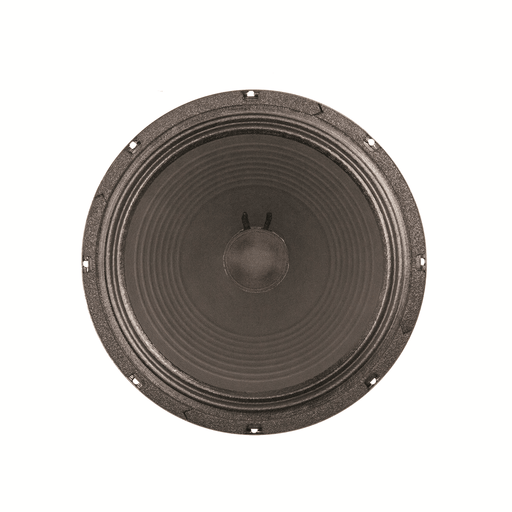

Respected as much for his tone as his guitar skills, Josh Smith?s concept for the ultimate guitar speaker involved combining the lows of the Eminence Tonespotter, the clean highs of the Wizard, and the natural grit and sparkle of the Red Fang alnico. The result is an extremely versatile speaker with vintage tone and the ability to handle the power of modern amps. SPECIFICATION Nominal Basket Diameter 12", 0 mm Nominal Impedance* 8 Ω Power Rating* Program Power N/A Watts 50 W Resonance 92 Hz Usable Frequency Range 80 Hz - 5.2 kHz Sensitivity* 101.4 dB Magnet Weight 38 oz. Gap Height 0.313", 8 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 92 Hz DC Resistance (Re) 6.42 Ω Coil Inductance (Le) 0.5m H Mechanical Q (Qms) 15.69 Electromagnetic Q (Qes) 0.63 Total Q (Qts) 0.61 Compliance Equivalent Volume (Vas) 41.21 liters / 1.46 cu.ft. Peak Diaphragm Displacement Volume (Vd) 41 cc Mechanical Compliance of Suspension (Cms) 0.11 mm/N BL Product (BL) 12.91 T-M Diaphragm Mass Inc. Airload (MMs) 28 grams Efficiency Bandwidth Product (EBP) 145 Maximum Linear Excursion (Xmax) 0.79 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 0 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented N/a Driver Volume Displaced 0.071 cu.ft. / 2 liters Overall Diameter 12.17", 309.1 mm Baffle Hole Diameter 11.13", 282.7 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.24", 6.1mm Mounting Holes B.C.D. 11.75", 298.5mm Depth 5.23", 132.8 mm Net Weight 8 lbs, 3.63 kg Shipping Weight 9.8 lbs, 4.45 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Nomex former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Cone Edge Composition Full molded paper Dust Cap Composition Zurette dust cap

High efficiency pro audio driver for vented mid-bass, and vented bass enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1000 W Watts 500 W Resonance 37 Hz Usable Frequency Range 57 Hz - 2.8 kHz Sensitivity* 97.1 dB Magnet Weight 80 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 37 Hz DC Resistance (Re) 5.46 Ω Coil Inductance (Le) 1.22m H Mechanical Q (Qms) 6.93 Electromagnetic Q (Qes) 0.25 Total Q (Qts) 0.24 Compliance Equivalent Volume (Vas) 121 liters / 4.27 cu.ft. Peak Diaphragm Displacement Volume (Vd) 249 cc Mechanical Compliance of Suspension (Cms) 0.32 mm/N BL Product (BL) 17.3 T-M Diaphragm Mass Inc. Airload (MMs) 59 grams Efficiency Bandwidth Product (EBP) 148 Maximum Linear Excursion (Xmax) 4.8 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 14.8 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 17-34 liters / 0.6-1.2 cu.ft. Driver Volume Displaced 0.09 cu.ft. / 2.55 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.27", 6.9mm Mounting Holes B.C.D. 11.69", 296.9mm Depth 6.22", 158 mm Net Weight 16.6 lbs, 7.53 kg Shipping Weight 18.4 lbs, 8.35 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1000 W Watts 500 W Resonance 47 Hz Usable Frequency Range 46 Hz - 4 kHz Sensitivity* 101 dB Magnet Weight 80 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 47 Hz DC Resistance (Re) 5.23 Ω Coil Inductance (Le) 1.01m H Mechanical Q (Qms) 8.01 Electromagnetic Q (Qes) 0.4 Total Q (Qts) 0.38 Compliance Equivalent Volume (Vas) 167.7 liters / 5.92 cu.ft. Peak Diaphragm Displacement Volume (Vd) 274 cc Mechanical Compliance of Suspension (Cms) 0.16 mm/N BL Product (BL) 16.6 T-M Diaphragm Mass Inc. Airload (MMs) 72 grams Efficiency Bandwidth Product (EBP) 118 Maximum Linear Excursion (Xmax) 3.2 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 13.2 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 54-184 liters / 1.9-6.5 cu.ft. Driver Volume Displaced 0.138 cu.ft. / 3.92 liters Overall Diameter 15.32", 389.1 mm Baffle Hole Diameter 14", 355.6 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.06", 153.9 mm Net Weight 16.9 lbs, 7.67 kg Shipping Weight 19.5 lbs, 8.85 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1200 W Watts 600 W Resonance 35 Hz Usable Frequency Range 38 Hz - 1.8 kHz Sensitivity* 97.8 dB Magnet Weight 120 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 35 Hz DC Resistance (Re) 6.5 Ω Coil Inductance (Le) 1.4m H Mechanical Q (Qms) 7.3 Electromagnetic Q (Qes) 0.32 Total Q (Qts) 0.3 Compliance Equivalent Volume (Vas) 198.8 liters / 7.02 cu.ft. Peak Diaphragm Displacement Volume (Vd) 571.2 cc Mechanical Compliance of Suspension (Cms) 0.2 mm/N BL Product (BL) 21.6 T-M Diaphragm Mass Inc. Airload (MMs) 102 grams Efficiency Bandwidth Product (EBP) 112 Maximum Linear Excursion (Xmax) 6.7 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 18 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 76.5-164 liters / 2.7-5.8 cu.ft. Driver Volume Displaced 0.152 cu.ft. / 4.31 liters Overall Diameter 15.21", 386.3 mm Baffle Hole Diameter 14", 355.6 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.57", 166.9 mm Net Weight 22.3 lbs, 10.12 kg Shipping Weight 24.8 lbs, 11.25 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented and extended core Basket Materials Die-cast aluminum basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio as a mid/hi or full range in a vented enclosure. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 900 W Watts 450 W Resonance 45 Hz Usable Frequency Range 62 Hz - 4.2 kHz Sensitivity* 99.3 dB Magnet Weight 80 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 45 Hz DC Resistance (Re) 5.41 Ω Coil Inductance (Le) 0.77m H Mechanical Q (Qms) 7.76 Electromagnetic Q (Qes) 0.28 Total Q (Qts) 0.27 Compliance Equivalent Volume (Vas) 112.1 liters / 3.96 cu.ft. Peak Diaphragm Displacement Volume (Vd) 166 cc Mechanical Compliance of Suspension (Cms) 0.3 mm/N BL Product (BL) 15.2 T-M Diaphragm Mass Inc. Airload (MMs) 42 grams Efficiency Bandwidth Product (EBP) 161 Maximum Linear Excursion (Xmax) 3.2 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 11.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 34-62 liters / 1.2-2.2 cu.ft. Driver Volume Displaced 0.09 cu.ft. / 2.55 liters Overall Diameter 12.26", 311.4 mm Baffle Hole Diameter 11", 279.4 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.71", 297.4mm Depth 5.63", 143 mm Net Weight 14.9 lbs, 6.76 kg Shipping Weight 17.9 lbs, 8.12 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Low frequency woofer for pro audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 1200 W Watts 600 W Resonance 39 Hz Usable Frequency Range 38 Hz - 2.7 kHz Sensitivity* 99 dB Magnet Weight 95 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 39 Hz DC Resistance (Re) 5.4 Ω Coil Inductance (Le) 1.27m H Mechanical Q (Qms) 6.08 Electromagnetic Q (Qes) 0.41 Total Q (Qts) 0.38 Compliance Equivalent Volume (Vas) 159 liters / 5.62 cu.ft. Peak Diaphragm Displacement Volume (Vd) 471 cc Mechanical Compliance of Suspension (Cms) 0.15 mm/N BL Product (BL) 18.6 T-M Diaphragm Mass Inc. Airload (MMs) 105 grams Efficiency Bandwidth Product (EBP) 95 Maximum Linear Excursion (Xmax) 5.5 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 10.4 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 62-193 liters / 2.2-6.8 cu.ft. Driver Volume Displaced 0.145 cu.ft. / 4.12 liters Overall Diameter 15.16", 385.1 mm Baffle Hole Diameter 13.87", 352.3 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.38", 162.1 mm Net Weight 20 lbs, 9.07 kg Shipping Weight 22.3 lbs, 10.12 kgs Ω Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended as a woofer, midbass or midrange in sealed and vented enclosures. A popular choice choice for 12 inch line arrays and bass guitar applications. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 800 W Watts 400 W Resonance 52 Hz Usable Frequency Range 51 Hz - 3.5 kHz Sensitivity* 100.5 dB Magnet Weight 11 oz. Gap Height 0.365", 9.3 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 52 Hz DC Resistance (Re) 5.5 Ω Coil Inductance (Le) 0.57m H Mechanical Q (Qms) 8.39 Electromagnetic Q (Qes) 0.33 Total Q (Qts) 0.32 Compliance Equivalent Volume (Vas) 81.1 liters / 2.86 cu.ft. Peak Diaphragm Displacement Volume (Vd) 330 cc Mechanical Compliance of Suspension (Cms) 0.2 mm/N BL Product (BL) 15.9 T-M Diaphragm Mass Inc. Airload (MMs) 47 grams Efficiency Bandwidth Product (EBP) 157 Maximum Linear Excursion (Xmax) 6.2 mm Surface Area of Cone (Sd) 532.4 cm2 Maximum Mechanical Limit (Xlim) 12.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 28-76 liters / 1-2.7 cu.ft. Vented 41-110 liters / 1.5-3.9 cu.ft. Driver Volume Displaced 0.054 cu.ft. / 1.53 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.06", 280.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 11.62", 295.2mm Depth 5.63", 143 mm Net Weight 7.1 lbs, 3.22 kg Shipping Weight 8.7 lbs, 3.95 kgs MATERIALS OF CONSTRUCTION Coil Construction Aluminum voice coil Coil Former Kapton former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket Cone Composition Treated paper cone Cone Edge Composition Sealed cloth surround Dust Cap Composition Treated paper dust cap

Recommended for pro audio and bass in vented enclosures. SPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 8 Ω Power Rating* Program Power 900 W Watts 450 W Resonance 37 Hz Usable Frequency Range 46 Hz - 2 kHz Sensitivity* 95.5 dB Magnet Weight 11 oz. Gap Height 0.365", 9.3 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 37 Hz DC Resistance (Re) 5.6 Ω Coil Inductance (Le) 0.98m H Mechanical Q (Qms) 6.94 Electromagnetic Q (Qes) 0.34 Total Q (Qts) 0.32 Compliance Equivalent Volume (Vas) 106.65 liters / 3.77 cu.ft. Peak Diaphragm Displacement Volume (Vd) 496 cc Mechanical Compliance of Suspension (Cms) 0.26 mm/N BL Product (BL) 16.7 T-M Diaphragm Mass Inc. Airload (MMs) 72 grams Efficiency Bandwidth Product (EBP) 110 Maximum Linear Excursion (Xmax) 9.1 mm Surface Area of Cone (Sd) 545.4 cm2 Maximum Mechanical Limit (Xlim) 14.5 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed 23-59 liters / 0.8-2.1 cu.ft. Vented 37-85 liters / 1.3-3 cu.ft. Driver Volume Displaced 0.055 cu.ft. / 1.56 liters Overall Diameter 12.38", 314.5 mm Baffle Hole Diameter 11.06", 280.9 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 11.62", 295.2mm Depth 6", 152.4 mm Net Weight 7.6 lbs, 3.45 kg Shipping Weight 9.2 lbs, 4.17 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Kapton former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket Cone Composition Treated paper cone Cone Edge Composition Sealed cloth Edge Dust Cap Composition Treated paper dust cap

Recommended as a woofer or midbass in vented professional audio enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 8 Ω Power Rating* Program Power 900 W Watts 450 W Resonance 45 Hz Usable Frequency Range 40 Hz - 4 kHz Sensitivity* 100.8 dB Magnet Weight 11 oz. Gap Height 0.365", 9.3 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 45 Hz DC Resistance (Re) 5.27 Ω Coil Inductance (Le) 0.64m H Mechanical Q (Qms) 6.7 Electromagnetic Q (Qes) 0.36 Total Q (Qts) 0.34 Compliance Equivalent Volume (Vas) 153 liters / 5.4 cu.ft. Peak Diaphragm Displacement Volume (Vd) 505 cc Mechanical Compliance of Suspension (Cms) 0.15 mm/N BL Product (BL) 18.6 T-M Diaphragm Mass Inc. Airload (MMs) 84 grams Efficiency Bandwidth Product (EBP) 125 Maximum Linear Excursion (Xmax) 5.9 mm Surface Area of Cone (Sd) 856 cm2 Maximum Mechanical Limit (Xlim) 11 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 51-144 liters / 1.8-5.1 cu.ft. Driver Volume Displaced 0.09 cu.ft. / 2.54 liters Overall Diameter 15.32", 389.1 mm Baffle Hole Diameter 14", 355.6 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 6.8", 172.7 mm Net Weight 7.9 lbs, 3.58 kg Shipping Weight 10.1 lbs, 4.58 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket/ heatsink Cone Composition Paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition paper dust cap

Recommended for professional audio and bass in vented enclosures. SPECIFICATION Nominal Basket Diameter 15", 381 mm Nominal Impedance* 4 or 8 Ω Power Rating* Program Power 1100W (4 Ω) or 900 W ( Ω) Watts 500W (4 Ω) or 450 W (8 Ω) Resonance 44 Hz Usable Frequency Range 40 Hz - 1.5 kHz Sensitivity* 98.4 dB Magnet Weight 11 oz. Gap Height 0.365", 9.3 mm Voice Coil Diameter 3", 76 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 44 Hz DC Resistance (Re) 3.85 or 5.5 Ω Coil Inductance (Le) 0.93m H Mechanical Q (Qms) 8.97 Electromagnetic Q (Qes) 0.48 Total Q (Qts) 0.46 Compliance Equivalent Volume (Vas) 150.9 liters / 5.33 cu.ft. Peak Diaphragm Displacement Volume (Vd) 846 cc Mechanical Compliance of Suspension (Cms) 0.14 mm/N BL Product (BL) 17 T-M Diaphragm Mass Inc. Airload (MMs) 93 grams Efficiency Bandwidth Product (EBP) 90 Maximum Linear Excursion (Xmax) 9.6 mm Surface Area of Cone (Sd) 881.1 cm2 Maximum Mechanical Limit (Xlim) 17 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed N/a Vented 99-195 liters / 3.5-6.9 cu.ft. Driver Volume Displaced 0.09 cu.ft. / 2.56 liters Overall Diameter 15.32", 389.1 mm Baffle Hole Diameter 14.03", 356.4 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.1mm Mounting Holes B.C.D. 14.56", 369.8mm Depth 7.25", 184.2 mm Net Weight 8.6 lbs, 3.9 kg Shipping Weight 10.7 lbs, 4.85 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Kapton former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Die-cast aluminum basket/heatsink Cone Composition Treated paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Treated paper dust cap
