DI (Direct Injection) boxes are devices that are used to convert an unbalanced, high impedance instrument level signal into a balanced, low impedance mic level signal. This allows musicians to connect their instruments, such as a guitar or bass, directly to a mixing console or audio interface.
DI boxes come in a variety of shapes and sizes, but the most common type is the passive DI box. Passive DI boxes do not require any external power source and are simple to use, making them a popular choice for musicians and engineers.
Another type of DI box is the active DI box, which uses an internal preamp to boost the signal before it is sent to the mixing console. Active DI boxes are useful for musicians who need to drive long cable runs or overcome high levels of noise in their signal.
Specialist DI Boxes include USB input & output devices, these are broadcast quality devices. ARX has a wide range of products for these scenarios.
Overall, DI boxes are a valuable tool for any musician or audio engineer looking to capture high-quality recordings of their instruments. They provide a convenient and efficient way to connect instruments to recording and live sound equipment, and offer a range of features to suit different needs.
-

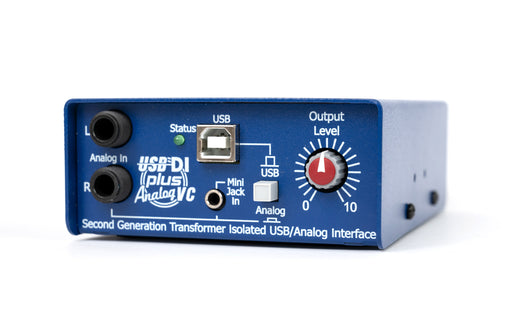

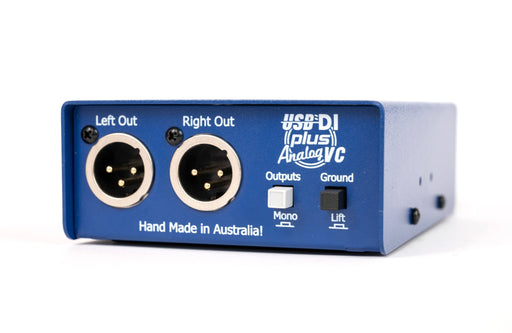

ARX - USB DI PLUS VC - USB/Analog In Bal Stereo O/P DI Box Vol Control
ARX$604.99The USB DI Plus VC is ARX's 'Second Generation' USB DI , and the first with Dual Mode audio interface - Digital and Analog. In fact, it's "Two DI's in One! " In Digital USB Mode The USB DI Plus VC has an inbuilt 24 bit High Resolution digital to analog converter (DAC) which removes the need to use a Computer's existing internal sound card outputs, with their inherent noise and distortion. The USB DI Plus VC installs as a fully compatible generic "Plug and Play" USB audio device, requiring no special driver program installation. The USB DI Plus VC 's DAC delivers Professional Line Level audio signals to Left and Right balanced XLR outputs. When switched to USB mode the USB DI Plus VC is powered via the USB cable, so no batteries or phantom power required to use it. In Analog Mode: Many Tablet Devices, Phones and iPads have no direct USB Digital Audio output, and interfacing their Audio with the professional world of balanced audio can be problematic. Switching the USB DI Plus VC to Analog mode effortlessly solves this problem by buffering the audio signal from the Headphone or Line output and producing a Professional Balanced Line Level audio signal on Left and Right balanced XLR outputs. To ensure reliability, Analog mode is passive with no batteries or phantom power required for use. Low Noise Both the USB DI Plus VC Digital and Analog operating modes feature full transformer balanced output isolation. This eliminates earth loops / ground hum and helps remove extraneous interaction noise and distortion ensuringt noise free operation even in the harshest audio environments. Two Models The USB DI Plus is available in two models: USB DI Plus - Standard version, with no external gain / volume control, making it as Tamper Proof as possible. Straightforward Plug-and-Play makes it ideal for Production Companies. USB DI Plus VC - Still Plug-and-Play but with an external gain / volume control allowing users to vary the sound levels at a distance from the mixing console. Plug and Play The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX and Win XP or later The front panel has a Type B USB input connector, plus a Mini-Jack stereo Analog input, as well as two 6.5mm Left and Right analog jack inputs. A front panel switch will switch between the USB or Analog Inputs The rear has two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input, with a Mono Outputs switch and an audio Ground lift switch A USB status LED on the front panel indicates that the USB DI Plus is connected and operating in USB mode. The USB DI Plus VC is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include an optional bracket kit for under-table mounting. The USB DI Plus VC includes a premium quality USB-A to USB-B cable, and is hand made in Australia. Specifications: Input Connector: Digital - USB type B port Input Connectors: Analog - Stereo Mini-Jack input, standard Left and Right 6.5mm Jacks Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: Maximum nominal output level 0dB, user variable via front panel volume control Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA in USB mode Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 - switchable via Ground Lift switch on rear Construction: All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad System Requirements for USB operation: Computer running Windows XP, 7/8/10 or Mac running OS X or later USB port Precision engineered: With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.$604.99 -

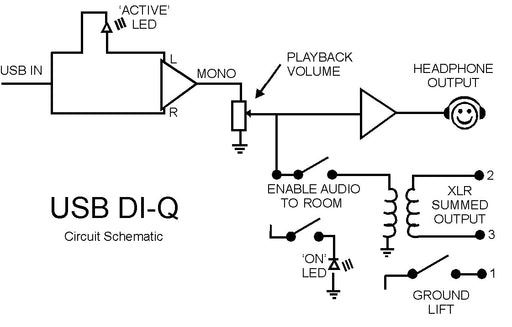

ARX - USB DI-Q - USB To Analog Audio Playback Interface.
ARX$666.50The ARX USB DI-Q The ARX USB DI-Q is an USB to Analog audio playback interface for the playback and monitoring of audio files from Windows or Mac computers for applications including education lecture theatres, corporate presentations and courtroom environments. Monitor and Cue: The USB DI-Q allows the user to monitor and cue audio files in a closed headphone environment and switches / enables the audio output to a Public Address/sound system as required. Plug and Play: The USB DI-Q installs as a fully compatible 'Plug and Play' generic USB audio device so does not require any special driver installation on Mac OSX, Win7/8/10. Compatible: The USB DI-Q is ideal for interfacing any USB equipped computer with the balanced inputs of a professional sound system. Retrofit: The simplicity of the setup of the USB DI-Q means that this product can be integrated easily into the existing AV infrastructure of a building. Simple: Once in place, the USB DI-Q only requires touch button operation so that it can be used by non technical operators. The USB DI-Q is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and non-slip rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs of professional sound systems. Security features include an optional bracket kit for under-table mounting. The USB DI-Q includes a premium quality USB-A to USB-B cable , and is hand made in Australia Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: 0dB max USB System dependent ISO transformer Environment sensitive Frequency Response: 20 - 20 KHz ? 0.5 dB Power: Operating current via USB Port 80mA Headphone output specs Max. output level 300mW @ 32 Ohms Dynamic range 90dB ?A? Weighted Balanced Output Frequency Response 20 - 20 KHz ?0.5 dB Output Connectors: 1 x Male XLR, wired Pin 2 + Hot, Pin 3 ? Cold. Pin 1 Chassis Ground Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber feet System Requirements: Windows PC running Windows XP , Windows 7/8/10, Mac running OS X or later USB port$666.50 -

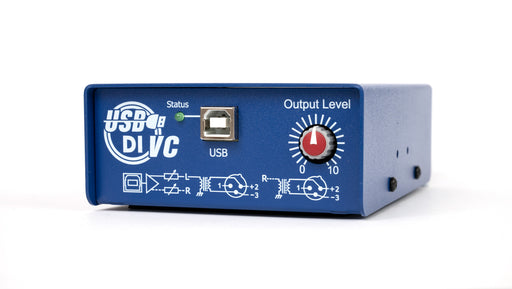

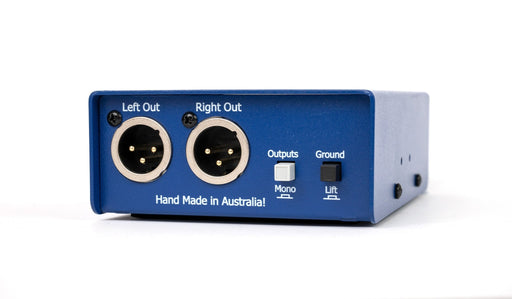

ARX - USB DI-VC - DI Box USB In Bal Iso Output & O/P Volume
ARX$525.99In response to many requests from users of our original USB DI who have been using it for specific applications, ARX is excited to present the new ARX USB DI- VC - everything that the original USB DI was, with the addition of an output level control. It is still a true Plug and Play digital to analog pro audio interface, removing the need to use any existing sound card outputs, but now the output level can be modified quickly and accurately.. Naturally it still features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion. The addition of the volume control allows the USB DI- VC to be used without a mixer. This is a very useful option when driving active loudspeakers from a laptop - the level control lets you reduce the level instantly to suit the required SPL, which still retaining an excellent signal-to-noise ratio. Plug and Play The USB DI- VC installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Windows XP, 7/8/10 The rear panel has a Type B USB input connector while the front panel has an Output Level control and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input. A status LED on the rear panel next to the USB Input indicates that the USB DI- VC is connected and operating. The USB DI- VC is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The USB DI- VC is available in Dual Channel format, includes a premium quality USB-A to USB-B cable , and is hand made in Australia. Specifications: Input Connector: USB type B port Codec: 24 bit High Resolution, 44.1 and 48 KHz Output Impedance: 300 Ohms Transformer Balanced Output Level: User variable from 0dB down to infinity (off) Output Noise: USB - System dependent ISO transformer - Environment sensitive Frequency Response: 20 - 20 KHz ± 0.5 dB Power: Operating current via USB Port 80mA Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber feet System Requirements: Windows PC running Windows XP, 7/8/10 , Mac running OS X or later USB port$525.99Currently Sold Out -

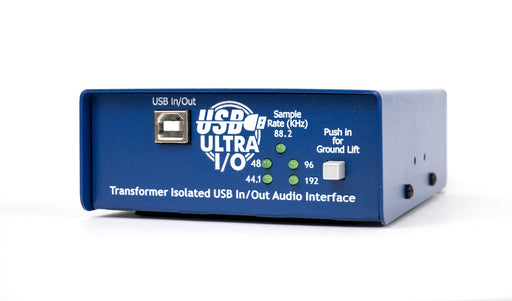

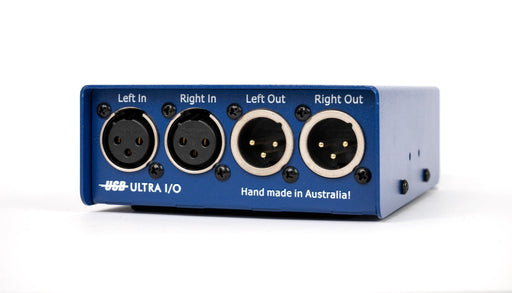

ARX - USB Ultra I/O - Trans Iso USB In/Out Interface Multi Sample Rate 192KHz
ARX$845.99USB Ultra I/O Dual Channel USB Audio Interface. ARX is excited to present the ARX USB Ultra I/O - a true 24 bit High Resolution Plug and Play USB 2 channel play and record digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. The ARX USB Ultra I/O - a true 24 bit High Resolution Plug and Play USB 2 digital/analog pro audio interface with five selectable sample rates: 44.1 KHz, 48 KHz, 88.2KHz, 96KHz or 192 KHz . Full transformer balanced Inputs and Outputs provide the isolation required to eliminate earth loops / ground hum and other extraneous noise and distortion Plug and Play The USB ULTRA I/O installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows 10 or Mac OSX On the Front panel there is a standard Type B USB connector, as well as a ground lift switch and Status LEDs indicating the sample rate selected or available. The Rear panel has Left and Right transformer balanced analog Amphenol XLR Input and output connectors that connect to any standard balanced analog inputs and outputs. The USB ULTRA I/O is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing USB equipped computers (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Optional features include an optional bracket kit for under-table mounting. The ARX USB ULTRA I/O ships with a premium quality USB-A to USB-B cable, and is hand made in Australia. USB ULTRA I/O Technical Specifications: Connector: USB type B port Codec: Hi Resolution 24 bit 192 KHz Sample Rate: Software selectable : 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz and 192 KHz Input Impedance: 10 KOhms Transformer Balanced Output Impedance: 300 Ohms Transformer Balanced Maximum Input Level: Nominal 0 dB Maximum Output Level: Nominal 0 dB Input/Output Noise: USB - System dependent ISO transformer - Enviroment sensitive Frequency Response: 20 - 20 KHz ? 0.5 dB Power Consumption: via USB Port - typically 0.8W Input Connectors: Channel 1 / Left and Channel 2 / Right 2 x Female Amphenol XLR, wired Pin 2 + Hot, Pin 3 ? Cold. Pin 1 screen/shield via ground Lift switch Output Connectors: Channel 1 / Left and Channel 2 / Right 2 x Male Amphenol XLR, wired Pin 2 + Hot, Pin 3 ? Cold. Pin 1 screen/shield via ground Lift switch Construction: All-steel polyurethane coated chassis, fibreglass PCB, epoxy printing, USB Ultra I/O chassis grounded via USB connection slip-resistant rubber base. Package includes a premium quality USB-A to USB-B cable Recommended ASIO Driver (if required or desired): ASIO4all download at: www.asio4all.org System Requirements Windows 10 Mac running OS X or later Audio software installed$845.99 -

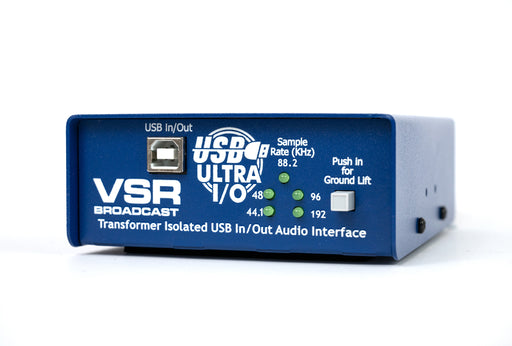

ARX - USB Ultra I/O VSR - Broadcast USB Interface Multi Sample Rate 192KHz
ARX$1,286.99USB ULTRA VSR Broadcast In keeping with our aim of creating essential audio interfaces, ARX is excited to present the ARX USB Ultra VSR Broadcast - a true 24 bit High Resolution Plug and Play USB 2 channel play and record digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. Analog style headroom - Exclusive to the Ultra VSR Broadcast The ARX USB ULTRA VSR Broadcast model features Analog style headroom when recording in the digital domain. With five selectable sample rates: 44.1 KHz, 48 KHz, 88.2KHz, 96KHz or 192 KHz , 24 bit High Resolution and USB 2 Plug and Play performance. Full transformer balanced Inputs and Outputs provide the isolation required to eliminate earth loops / ground hum and other extraneous noise and distortion Plug and Play The USB ULTRA VSR Broadcast installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows 10 or Mac OSX On the Front panel there is a standard Type B USB connector, as well as a ground lift switch and Status LEDs indicating the sample rate selected or available. The Rear panel has Left and Right transformer balanced analog Amphenol XLR Input and output connectors that connect to any standard balanced analog inputs and outputs. The USB ULTRA VSR Broadcast is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing USB equipped computers (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Optional features include an optional bracket kit for under-table mounting. The USB ULTRA VSR Broadcast ships with a premium quality USB-A to USB-B cable, and is hand made in Australia. USB ULTRA VSR Broadcast Technical Specifications Connector : USB type B port Codec : Hi Resolution 24 bit 192 KHz Sample Rate : Software selectable : 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz and 192 KHz Input Impedance : 10 KOhms Transformer Balanced Output Impedance : 300 Ohms Transformer Balanced Maximum Input Level : Nominal 0 dB Maximum Output Level : Nominal 0 dB Input/Output Noise : USB - System dependent ISO transformer - Enviroment sensitive Frequency Response : 20 - 20 KHz ? 0.5 dB Power Consumption : via USB Port - typically 0.8W Input Connectors Channel 1 / Left and Channel 2 / Right 2 x Female Amphenol XLR, wired Pin 2 + Hot, Pin 3 ? Cold. Pin 1 screen/shield via ground Lift switch Output Connectors Channel 1 / Left and Channel 2 / Right 2 x Male Amphenol XLR, wired Pin 2 + Hot, Pin 3 ? Cold. Pin 1 screen/shield via ground Lift switch Construction : All-steel powder coated chassis, fibreglass PCB, epoxy printing, USB Ultra I/O chassis grounded via USB connection Slip-resistant rubber base pad. Package includes a premium quality USB-A to USB-B cable System Requirements Windows 10 Mac running OS X or later Audio software installed$1,286.99Currently Sold Out -
ARX - ZoneMix - Wireless Audio, USB, Mic/Line Zone Mixer
ARX$1,972.99SmartPhones, Tablets, Laptops and other Wireless audio and USB enabled devices have rapidly become the program source of convenience for Corporate A.V Presentations, Seminars, Musicians, D.Js, Entertainment Venues, System Demonstrations and Testing, and many other audio playback applications. To cope with all these audio sources. ARX introduces the MIXXMaker - a new multi-channel Mic/Line Master Mixer. This unique device features Wireless audio, USB and MiniJack inputs, 2 Mic/Line inputs, 2 stereo line inputs, and Left/Right (or Zone 1 and 2) Master level controls, as well as an Auxiliary mono output with its own level control. That's a lot of Inputs and a lot of control in a compact, user-friendly unit only 1 RU tall! Great Features The Wireless audio receiver, USB connector and the MiniJack inputs all have their own individual level controls. Each Microphone channel on the MIXXMaker has a Balanced Low Noise Mic input, plus individual Gain and Level controls. The Mic input can also be switched to be a Line input as required. Switchable Phantom power is also available on both Mic Inputs. The Stereo Line Inputs 3/4 and 5/6 each have rear panel input trim controls, as well as front panel output level controls, and their inputs are industry standard RCA type connectors. Additionally there are Left and Right Master controls, and a mono L+R Aux Output with its own level control. The Left and Right Master Output XLR connectors can also be switched to Mono if required, by a rear panel switch. The rear panel also has a connector for a push-to-talk jack, and a Priority override ducker switch for Channel 1. Pressing this switch in will duck the level of the other channels by 20dB when Channel 1 is used. LED Indicators The front panel has LED indicators for Wireless audio (see Specifications below), USB active, Priority Override enabled, Phantom Power enabled, Outputs switched to Mono, and AC power. AC Power It is available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch. The ARX MIXXMaker is an intuitive, user-friendly Master mixer, capable of handling all commonly used current audio interfaces. In other words, a total solution to today’s install requirements. Features Has Wireless audio, USB and MiniJack inputs! Plus 2 x Balanced XLR Mic / Line Inputs Plus 2 x stereo Line In channels Global 3 way EQ control Switchable Phantom power Switchable push-to-talk with a Priority override ducker for Mic channel 1 User-friendly layout in 1 RU package Flawless performance in any audio environment Applications Clubs /Gyms /Karaoke /Restaurants Industrial Paging/BGM Systems AV Systems Broadcast Submixers Sound Reinforcement ...and much, much more Specifications: Microphone Inputs: Electronically Balanced on XLR Connectors Stereo Line Inputs: Line level inputs on RCA Connectors Mic Priority: Switchable Channel 1 override; 20dB attenuation to all other channels Input Gain: Variable 0dB to 60dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB) Channel Level: Infinity to +6dB Gain Mic and Line Channel EQ: Low 100Hz 15dB Cut/Boost Shelving Mid 800HZ 15dB Cut/Boost Bell, Broad Q High 10KHz 15dB Cut/Boost Shelving Frequency Response: 20-20KHz +or- 1dB Distortion: Below .005% 100Hz to 10KHz Phantom Power: +48VDC switchable on all Microphone Inputs Master Outputs: Electronically Balanced XLR 300 ohms Line Level Master Outputs Signal/Noise: -90dB unweighted. Max Output Level: +20dB Input Connector: USB type B port Codec: 24 bit High Resolution USB Power: Operating current via USB Port 80mA MIXXMaker AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable Wireless audio Receiver Specifications: Range: Approx 2 - 4 metres Depends on paired source device LED Indicators: Scan Red LED Red LED Flashes Lock Blue LED Matching/Pairing: Blue LED Flashes Matched/Paired: Blue LED On Frequency 2.402 - 2.480 GHz Sensitivity -90dBM @0.1% BER$1,972.99 -
Neutrik - NA2-IO-DLINE - Dante I/O Converter
Neutrik$1,034.00Connect your legacy audio gear to the Dante ? ? world. The NA2-IO-DLINE is an end-of-network device. It is a breakout box which allows two channels of audio to be integrated into a Dante ? ? network. Simultaneously, NA2-IO-DLINE converts a Dante ? ? stream into analog audio signals. Hence, it is possible to use this tiny box to feed analog audio signals into the Dante ? ? network while at the same time receiving a mix from another Dante ? ? source. NA2-IO-DLINE is designed for harsh stage conditions. It therefore features lockable chassis connectors for both the audio and network connections. For fixed installations, the rubber protection can be removed. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, or in equipment racks. Features & Benefits Connect analog audio equipment to a Dante ? ? network Heavy duty adapter for rugged stage conditions Lockable audio and network connections Convert up to two analog line signals to a Dante ? ? network Feed non Dante ? ? ready amplifiers, speakers or mixing desks with signals from the Dante ? ? network Requires a Power over Ethernet switch or a PoE injector (802.3 af/at; class 1) AES67 compliant Rack mountable For Dante ? ? related questions, refer to the Audinate web site: ? www.audinate.com . The Audinate web site features a wealth of manuals, teaching material, FAQs and videos. Please see the Technical Specifications in the NA2-IO-DLINE brochure.? Audinate? is a registered trademark of Audinate Pty Ltd. Dante ? ? is a trademark of Audinate Pty Ltd. ?$1,034.00Currently Sold Out -
Optogate - BP-09 - Table/ Foot Automatic Mic Gate
Optogate$337.99The Optogate PB-09 is our new automatic microphone gate unit, implemented in a table stand. The PB-09 contains a mic on button what can be used as "push to talk" or "mic latch" switch. These different functions are user programmable with 3 dip switches. The PB-09 contains also a galvanically separated trigger input for the mic control. The switching noise is not measureable. A red status LED indicates if the microphone is switched on. The PB-09 works with 48V phantom power and can be used in connection with dynamic mics and condenser mics. The phantom power passes the microphone. The 1,2 kg heavy body of the PB-09 is iron made and equipped with 3 anti noise rubber feet on the bottom in order for a safety silent fixed position. The PB-09 is the best all in one solution for conference applications. ? Physical dimensions: 125mm length x 31mm height x 90mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Iron, black powdercoatedl Distance: Adjustable between 15 - 120 cm (depending of the type of reflection surface) Angle: + / - 10 degrees Trigger Input Voltage: 2.6-30V Switching noise: Immeasurable Frequency response: 0 Hz - 30kHz, - 3 dB in connection with 150 Ohm microphone impedance Signal noise ratio: -114 dB / -120 dB, Mic on / off with 150 Ohm Mic. Distortion: < 0,05 % with 100mV signal Delaytime Mic on: < 0 ,2 Seconds Delaytime Mic off: About 1 second (Other times on request) Attenuation "mic on": -1 dB Attenuation "mic off": 42 dB in connection with 150 Ohm microphone impedance Usuable mic. types: All type of dynamic - and phantom powered mics. up to 10 mA current consumption Maximum input level: 3 dB (1.1V) Operating temperature: 0 - 55 degrees Celsius Background light range: 0 - 20000 Lux daylight and 0 - 12000 Lux electric bulblight Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantompower (passes phantompower to the microphone) Current consumption: Ca. 3.7 mA$337.99 -
Optogate - PB-05D - Automatic Mic Gate For In-ear Monitors
Optogate$327.99PB-05D (DEVELOPED FOR IN-EAR MONITORS) Reduces the signal to -16 db. You will hear some overall ambience, which is sometimes preferred by artists using In-Ear monitor systems. Includes the by-pass button. BENEFITS TURNS OFF YOUR MIC AUTOMATICALLY VIA INFRARED SIGNAL WHEN YOU ARE NOT USING IT! NO FALSE AUDIO TRIGGERS! SET THE DISTANCE AND PLAY! ELIMINATES UNWANTED SOUND FROM GOING TO YOUR MIX, MONITORS, AND P.A.! EXCELLENT FOR IN-EAR MONITORS AND LOUD STAGE ENVIRONMENTS! YOUR SOUND WILL BE BETTER THAN EVER BEFORE! YOUR AMPS WILL SOUND BETTER! YOUR EARS AND YOUR AUDIENCES WILL THANK YOU! ONE YEAR WARRANTY! YOU WILL NOT BE ABLE TO LIVE WITHOUT THESE GEMS ONCE YOU USE THEM! THE PB-05 IS AN AUTOMATIC MICROPHONE GATE AND IS BASED ON THE LATEST IR OPTICAL TECHNOLOGY. The PB-05 is inserted between a microphone and the xlr mic cable. It's equipped with an infrared sensor. The PB-05 senses if someone is in front of the microphone and will switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance can be adjusted between 2 inches and 4 feet with the help of the trim pot and a small screwdriver. The singer will see a red status LED indicating that the microphone is switched on. The PB-05 is powered by 48 Volt phantom power from the mixing console. Condenser or Dynamic microphones can be used with the PB-05M and PB-05D. On these two units a small push button on the top allows the user to toggle between "Mic always On" and "Optogate Enable". The PB-05 is ideal for lead and back-up Vocals, Acoustical instruments and Talk-Back mics. Optogate products are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments, like drums and guitar amps into unused open microphones on stage. The clarity of the mix and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics! Specifications: Dimensions: 69mm Length x 35mm Height x 21mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Aircraft-aluminum, black galvanized Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface) Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm Microphone impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % with 100mV signal Delay time mic on: < 0,2 Sec Delay time mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 16 dB or 42 dB in connection with 150 Ohm mics, depending of the model Usable mic types: All types of dynamic - Phantom powered mics up to 10 mA current consumption (M and D models) Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 degrees Celsius Background light range: 0 - 20000 Lux daylight and 0 - 12000 Lux electric light bulb Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantom power (passes phantom power to the microphone) Current consumption: ca. 3.7 mA$327.99 -
Optogate - PB-05E - Automatic Mic Gate For Dynamic Mics Only.
Optogate$254.99PB-05E (USES ONLY DYNAMIC MICS) The “economy” version has the same performance of the "Pro" models with a couple of changes to make it economy. Less circuitry less cost. It is made of the same material, looks the same but it works only with dynamic mics, SM-58’s and the like. Instead of a bypass switch built in, it uses the mixing board’s phantom power to by-pass the unit. The distance trim pot only turns 270 degrees, please do not over rotate. BENEFITS TURNS OFF YOUR MIC AUTOMATICALLY VIA INFRARED SIGNAL WHEN YOU ARE NOT USING IT! NO FALSE AUDIO TRIGGERS! SET THE DISTANCE AND PLAY! ELIMINATES UNWANTED SOUND FROM GOING TO YOUR MIX, MONITORS, AND P.A.! EXCELLENT FOR IN-EAR MONITORS AND LOUD STAGE ENVIRONMENTS! YOUR SOUND WILL BE BETTER THAN EVER BEFORE! YOUR AMPS WILL SOUND BETTER! YOUR EARS AND YOUR AUDIENCES WILL THANK YOU! ONE YEAR WARRANTY! YOU WILL NOT BE ABLE TO LIVE WITHOUT THESE GEMS ONCE YOU USE THEM! The PB-05 is inserted between a microphone and the xlr mic cable. It's equipped with an infrared sensor. The PB-05 senses if someone is in front of the microphone and will switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance can be adjusted between 2 inches and 4 feet with the help of the trim pot and a small screwdriver. The singer will see a red status LED indicating that the microphone is switched on. The PB-05 is powered by 48 Volt phantom power from the mixing console. Condenser or Dynamic microphones can be used with the PB-05M and PB-05D. On these two units a small push button on the top allows the user to toggle between "Mic always On" and "Optogate Enable". The PB-05 is ideal for lead and back-up Vocals, Acoustical instruments and Talk-Back mics. Optogate products are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments, like drums and guitar amps into unused open microphones on stage. The clarity of the mix and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics! Specifications: Dimensions: 69mm Length x 35mm Height x 21mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Aircraft-aluminum, black galvanized Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface) Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm Microphone impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % with 100mV signal Delay time mic on: < 0,2 Sec Delay time mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 16 dB or 42 dB in connection with 150 Ohm mics, depending of the model Usable mic types: All types of dynamic - Phantom powered mics up to 10 mA current consumption (M and D models) Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 degrees Celsius Background light range: 0 - 20000 Lux daylight and 0 - 12000 Lux electric light bulb Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantom power (passes phantom power to the microphone) Current consumption: ca. 3.7 mA$254.99 -
Optogate - PB-05M - Automatic Mic Gate, -42db
Optogate$327.99PB-05M (STANDARD PRO UNIT) Has an attenuation of -42 dB in the "Mic Off" position. Includes a by-pass button. (Original unit) BENEFITS TURNS OFF YOUR MIC AUTOMATICALLY VIA INFRARED SIGNAL WHEN YOU ARE NOT USING IT! NO FALSE AUDIO TRIGGERS! SET THE DISTANCE AND PLAY! ELIMINATES UNWANTED SOUND FROM GOING TO YOUR MIX, MONITORS, AND P.A.! EXCELLENT FOR IN-EAR MONITORS AND LOUD STAGE ENVIRONMENTS! YOUR SOUND WILL BE BETTER THAN EVER BEFORE! YOUR AMPS WILL SOUND BETTER! YOUR EARS AND YOUR AUDIENCES WILL THANK YOU! ONE YEAR WARRANTY! YOU WILL NOT BE ABLE TO LIVE WITHOUT THESE GEMS ONCE YOU USE THEM! THE PB-05 IS AN AUTOMATIC MICROPHONE GATE AND IS BASED ON THE LATEST IR OPTICAL TECHNOLOGY. The PB-05 is inserted between a microphone and the xlr mic cable. It's equipped with an infrared sensor. The PB-05 senses if someone is in front of the microphone and will switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance can be adjusted between 2 inches and 4 feet with the help of the trim pot and a small screwdriver. The singer will see a red status LED indicating that the microphone is switched on. The PB-05 is powered by 48 Volt phantom power from the mixing console. Condenser or Dynamic microphones can be used with the PB-05M and PB-05D. On these two units a small push button on the top allows the user to toggle between "Mic always On" and "Optogate Enable". The PB-05 is ideal for lead and back-up Vocals, Acoustical instruments and Talk-Back mics. Optogate products are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments, like drums and guitar amps into unused open microphones on stage. The clarity of the mix and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics! Specifications: Dimensions: 69mm Length x 35mm Height x 21mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Aircraft-aluminum, black galvanized Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface) Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm Microphone impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % with 100mV signal Delay time mic on: < 0,2 Sec Delay time mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 16 dB or 42 dB in connection with 150 Ohm mics, depending of the model Usable mic types: All types of dynamic - Phantom powered mics up to 10 mA current consumption (M and D models) Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 degrees Celsius Background light range: 0 - 20000 Lux daylight and 0 - 12000 Lux electric light bulb Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantom power (passes phantom power to the microphone) Current consumption: ca. 3.7 mA$327.99 -
Optogate - PB-06 - Push Buttom Mic Gate For Fixed Installs.
Optogate$435.99THE OPTOGATE PB-06 IS OUR MICROPHONE GATE FOR FIXED INSTALLATIONS, I.E. TABLES, LECTERNS AND PODIUMS. THIS UNIT IS IDEAL FOR CHURCHES AND HOUSES OF WORSHIP. The New Optogate PB-06 is a Brand New upgraded version of the old well known model for conferences, recording studios, talk-backs, houses of worship podiums / lecterns and any table top applications. The combination of the optical gate along with a push button, xlr cables and 4 different modes allow this to be the most versatile PB-06 ever! The PB-06 is equipped with an infrared sensor and senses if someone is in front of the microphone in order to switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance of activation can be adjusted between 2 inches and 3 feet with the help of the trim pot located on the top of the unit. It is powered by 48v phantom from your console. Optogates are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments into unused, open microphones on stage. So, the clarity of the sound and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics! BENEFITS TURNS OFF YOUR MIC AUTOMATICALLY VIA INFRARED SIGNAL WHEN YOU ARE NOT USING IT! NO FALSE AUDIO TRIGGERS! SET THE DISTANCE AND PLAY! ELIMINATES UNWANTED SOUND FROM GOING TO YOUR MIX, MONITORS, AND P.A.! EXCELLENT FOR IN-EAR MONITORS AND LOUD STAGE ENVIRONMENTS! YOUR SOUND WILL BE BETTER THAN EVER BEFORE! YOUR AMPS WILL SOUND BETTER! YOUR EARS AND YOUR AUDIENCES WILL THANK YOU! ONE YEAR WARRANTY! YOU WILL NOT BE ABLE TO LIVE WITHOUT THESE GEMS ONCE YOU USE THEM! Specifications: Dimensions: 40 mm long x 25 mm high x 12 mm wide Connectors: 2 x 50 cm cable with xlr connectors Case Construction: 1,2 mm steel, powder coated Distance Adjustable between 15 - 120 cm (depending on the type of reflection surface) Angle + / - 10 ° Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm mic impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % at 100mV Delay time mic on: < 0,2 Sec Delay time mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 42 dB at 150 Ohm mic impedance Usable mic types: All types of dynamic - and phantom powered mics. Up to 10 mA current consumption Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 Grad Celsius Background light range: 0 - 20000 Lux daylight und 0 - 12000 Lux electric light bulb Distance measurement: Active infrared reflection principle with daylight filter. Power: 24-48 V Phantom power Current consumption: ca. 3.7 mA$435.99 -
Optogate - PB-07 - Automatic Mic Gate For Fixing On Mic Stand.
Optogate$430.99THE PB-07 HAS A FRONT FACING FLAT IR SENSOR AND MOUNTS VERTICAL ON MIC STANDS, (PLEASE BE SURE THAT THE PB-07 IS CORRECT FOR YOUR APPLICATION). IT IS IDEAL FOR TALK-BACK MICS, LECTERNS AND PODIUMS OR WHERE A GOOSENECK MICROPHONE IS USED, (ADAPTER MAY NOT FIT ALL MIC STANDS). GREAT FOR LEAD AND BACK-UP VOCALS, ACOUSTICAL INSTRUMENTS IN THIS VERTICAL CONFIGURATION WHERE YOU DO NOT WANT IT IN-BACK OF THE MIC SUCH AS A PB-05. The PB-07 is an automatic microphone gate and is based on the latest optical technology. It is equipped with an infrared sensor. On this model the sensor is on the flat side. Like the other models the PB-07 will switch on the microphone if someone is in front of the mic. The PB-07 is inserted between a microphone and the xlr mic cable or on a gooseneck stand. On the back of the unit is a 4mm threaded hole if you choose to use the supplied plastic clip and screw to mount on the PB-07. You will then clip it to the mic stand and the clip will disappear behind the stand. The PB-07 can be connected to a gooseneck microphone as well. The PB-07 senses if someone is in front of the microphone and will switch on the microphone. The microphone will be switched off automatically if no one is in front of it. The distance can be adjusted between 2 inches and 4 feet with the help of the trim pot and a small screwdriver. The performer will see a red status LED indicating that the microphone is switched on. The PB-07 is powered by 48 Volt phantom power from the mixing console. Condenser or Dynamic microphones can be used with the PB-07. Optogate products are by far the best and easiest solution for the most common problems in live audio applications. It eliminates unwanted background noise of other instruments, drums, and guitar amps into unused, open microphones on stage. The clarity of the mix and the dynamics are increased due to less phase cancellation between other open mics and stage background noise. It also reduces the possibility of Feedback from unused open mics! BENEFITS TURNS OFF YOUR MIC AUTOMATICALLY VIA INFRARED SIGNAL WHEN YOU ARE NOT USING IT! NO FALSE AUDIO TRIGGERS! SET THE DISTANCE AND PLAY! ELIMINATES UNWANTED SOUND FROM GOING TO YOUR MIX, MONITORS, AND P.A.! EXCELLENT FOR IN-EAR MONITORS AND LOUD STAGE ENVIRONMENTS! YOUR SOUND WILL BE BETTER THAN EVER BEFORE! YOUR AMPS WILL SOUND BETTER! YOUR EARS AND YOUR AUDIENCES WILL THANK YOU! ONE YEAR WARRANTY! YOU WILL NOT BE ABLE TO LIVE WITHOUT THESE GEMS ONCE YOU USE THEM! Specifications: Dimensions: 68mm length x 35mm height x 21mm width Connectors: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) Case construction: Aircraft-aluminum, black galvanized Distance Adjustable between 15 - 120 cm (depending of the type of reflection surface) Angle + / - 10 ° Switching noise: Immeasurable Frequency responses 0 Hz - 30kHz, - 3 dB at 150 Ohm mic impedance Signal noise ratio: -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. Distortion < 0,05 % at 100mV Delay time mic on: < 0,2 Sec Delay time mic off: ca. 1 Sec Attenuation "mic on": 0 dB Attenuation "mic off": 42 dB at 150 Ohm mic impedance Usable mic types: All type of dynamic - and phantom powered mics. up to 10 mA current consumption Maximum input level: 3 dB (1,1V) Operating temperature: 0 - 55 Grad Celsius Background light range: 0 - 20000 Lux daylight und 0 - 12000 Lux electric light bulb Distance measurement: Active infrared reflection principle with 3 bit code Power: 24-48 V Phantom power (passes phantom power to the microphone) Current consumption: ca. 3.7 mA$430.99
