Celestion

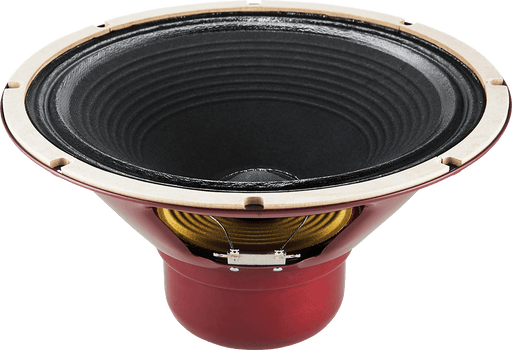

The Ruby is an alnico-magnet guitar speaker that's purpose-built to create vintage tones and at 35-watts power handling, it's ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious, dampened attack; the Ruby oozes a richly musical vintage warmth, with mellow highs and a smooth, sophisticated midrange. Listen to a sound clip of this speaker here! General Specifications Nominal diameter 12", 305mm Power rating 35W Nominal impedance 8 or 16 Ω Sensitivity 100dB Chassis type Pressed steel Voice coil diameter 1.75", 44.5mm Voice coil material Round copper Magnet type Alnico Frequency range 75-5000Hz Resonance frequency, Fs Fs: 75Hz DC resistance, Re 6.7 or 13.1 Ω Mounting Information Cut-out diameter 11.1, 283mm Diameter 12.2", 309mm Magnet structure diameter 5.0", 128mm Mounting slot PCD 11.7", 297mm Number of mounting slots 8 Overall depth 6.5, 165mm Unit weight 9.3lb, 4.2kg

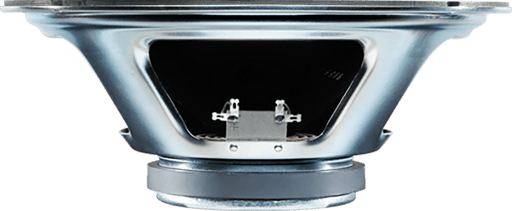

One of our best sellers, this 12 inch guitar speaker meets the expanded frequency range often requested by the new generation of amp manufacturers.The Seventy 80 is detailed and crisply defined, with a tightly controlled low-end and punchy, aggressive upper mid-range. The top-end response is also subtly increased. Used singly, in pairs or quartets it is capable of reproducing a wide range of sounds and styles whilst adding the undeniable Celestion character to any amp. Listen to a sound clip of this speaker here! General Specifications Nominal diameter 12", 305mm Power rating 80Wrms Nominal impedance 8 or 16 Ω Sensitivity 98dB Chassis type Pressed steel Voice coil diameter 1.75", 44.5mm Voice coil material Round copper Magnet type Ceramic Magnet weight 31oz, 0.88kg Frequency range 80-5000Hz Resonance frequency, Fs 85Hz DC resistance, Re 6.1 or 10.41 Ω Mounting Information Cut-out diameter 11.1", 283mm Diameter 12.2", 309mm Magnet structure diameter Magnet structure diameter5.3", 134mm Mounting slot dimensions 0.31", 7.9mm Mounting slot PCD 11.7", 297mm Number of mounting slots 4 Overall depth 4.7", 119mm Unit weight 6.8lb, 3.1kg

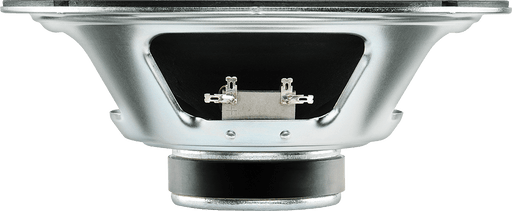

Rich and expressive, the Ten 30 is a 10 inch guitar speaker that combines warm lows with a vocal mid-range and an articulate top end. The clean sound is open and revealing; push hard and you're rewarded with full-blooded Celestion grind. General Specifications Nominal diameter 10", 254mm Power rating 30Wrms Nominal impedance Available 8Ω or 16Ω Sensitivity 95dB Chassis type Pressed steel Voice coil diameter 1.25", 31.25mm Voice coil material Round copper Magnet type Ceramic Magnet weight 13oz, 0.37kg Frequency range 85-5000Hz Resonance frequency, Fs 93.9Hz DC resistance, Re 6Ω Mounting Information Cut-out diameter 9.0", 229mm Diameter 10.1", 256mm Magnet structure diameter 3.8", 96mm Mounting slot dimensions 0.24 x 35", 6 x 9mm Mounting slot PCD 9.6", 245mm Number of mounting slots 8 Overall depth 3.8", 96mm Unit weight 3.5lb, 1.6kg

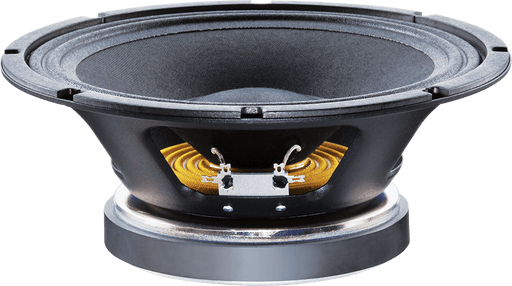

10in mid bass driver provides 97dB sensitivity and 150Wrms General Specifications: Nominal Diameter 254mm/10in Power Rating 150W Continuous Power Rating 300W Sensitivity 97dB Rated Impedance 8Ω Frequency Range 60Hz-6000Hz Voice Coil Diameter 50mm Chassis Type Pressed Steel Magnet Type Ferrite Magnet Weight 1.2kg/42oz Voice Coil Material Round Copper Former Material Polyimide Cone Material Kevlar loaded paper Surround Material Cloth-sealed Suspension Single Xmax 2mm Gap Depth 8mm Voice Coil Winding Width 12mm Additional Impedances 4 Mounting Information: Over All Diameter (mm) 256mm Cut-out diameter 229mm Mounting Slot Dimensions 8mm x 6mm Number of mounting slots 4 Overall depth 110mm Unit weight 9.7kg Mounting Slot PCD 245mm

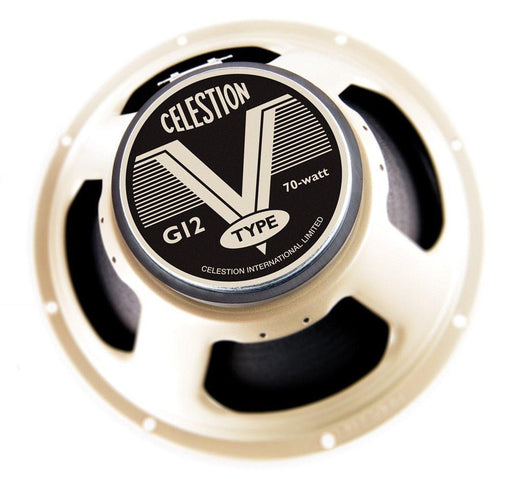

Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques. It produces a heady, exciting modern vintage sound that just makes you want to keep on playing: a guitar speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows, mids and highs, with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones, with plenty of mid-band warmth to give body and substance to lead note playing Listen to a sound clip of this speaker here! General Specifications Nominal diameter 12", 305mm Power rating 70Wrms Nominal impedance Available 8Ω or 16Ω Sensitivity 98dB Chassis type Pressed steel Voice coil diameter 1.75", 44.5mm Voice coil material Round copper Magnet type Ceramic Magnet weight 31oz, 0.88Kg Frequency range 70-5000 Hz Resonance frequency, Fs 75Hz DC resistance, Re 7.3Ω Mounting Information Cut-out diameter 11.1", 283mm Diameter 12.2", 309mm Magnet structure diameter 5.3?, 134mm Mounting slot dimensions 0.31", 7.9mm Mounting slot PCD 11.7", 297mm Number of mounting slots 8 Overall depth 4.84?, 123mm Unit weight 7.2lb, 3.3kg

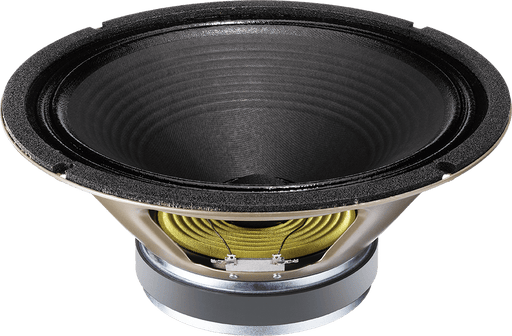

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials. Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton. Specifications: Nominal diameter 12in/305mm Power rating 60W Nominal impedance 8Ω & 16Ω Sensitivity 100dB Frequency Range 70-5000Hz Resonance frequency Fs 75Hz DC resistance, Re 7.3Ω or 12.9Ω Chassis type Pressed steel Voice coil diameter 44mm Voice coil material Round copper Magnet type Ceramic Magnet weight 50oz

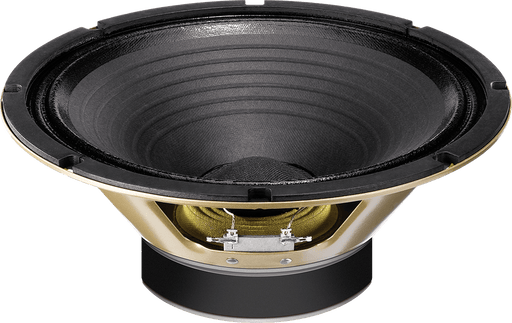

Loaded into many popular, branded practice combos the VT Jr, is now available to buy for replacement and upgrades. Delivering the same balance and musicality as its big brother the V-Type, the 10-inch VT Jr. has been formulated using the same recipe of old and new design techniques. Expect a juicy low mid punch together with plenty of high end sparkle, and the same thrilling responsiveness that will leave you feeling connected to your music. General Specifications Nominal diameter 10", 254mm Power rating 50W Nominal impedance 8Ω & 16Ω Sensitivity 95dB Chassis type Pressed steel Voice coil diameter 1.75", 44.5mm Voice coil material Round copper Magnet type Ceramic Magnet weight 20oz Frequency range 90-5500Hz Resonance frequency, Fs 90Hz
