Cable Reels, Stage Boxes & Wall Plates

Endplate, rackmount 4 units high x 2 units deep. Part No. 52240-20 Material 1.5mm Steel Description Plain Weight 0.24kg

Endplate, 4U x 2U, 1 Socapex/LK37 Part No. 52241-20 Material 1.5mm Steel Description Punched for Socapex/LK37 Weight 80g

Endplate, rackmount 4 units high x 2 units deep. Part No. 52242-20 Material 1.5mm Steel Description Punched for CEE 380V/16Amp Weight 0.24kg

Endplate, rackmount 4 units high x 2 units deep. Part No. 5224 4-20 Material 1.5mm Steel Description Punched for PG21 cable-gland Weight 0.26kg

Endplate, rackmount 4 units high x 2 units deep. Part No. 5224 5-20 Material 1.5mm Steel Description Punched for PG29 cable-gland Weight 0.24kg

Cover plate to blank off XLR-hole. Part No. 60801-20 Material 1.0mm Steel Description Cover plate to blank off XLR-hole. Weight 9g

Set of 4 rubber feet, includes screws. Part No. 91450-20 Material Rubber / Steel Weight 21g

Endplate for Rack Box or Stage Box, 3 units high. Part No. 52230-20 Material 1.5mm Steel Description Plain Weight 60g

Black screws B6x6 for Front Modules to Extrusions. Material Steel Weight 5g

Black screws 8x13. Sold as a pack of 4. For Endplates to Extrusions. Part No. 95813-20 Material Steel Weight 1g

Black screws B8x6. Sold as a pack of 4 For endplates to front modules. Part No. 95806-20 Material Steel Weight 1g

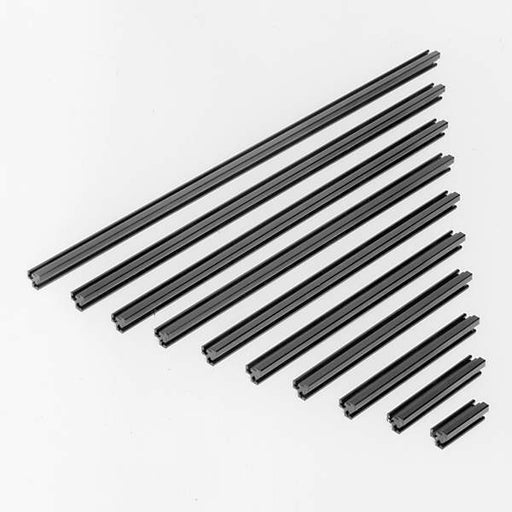

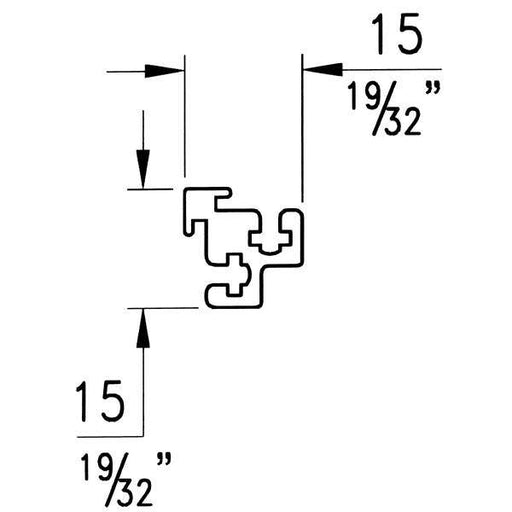

Corner extrusion. Available in 1 to 10 modules or 2m lengths. Material: Aluminium. Part No: Module: Length: Weight: 10301-20 1 Module 44mm 12g 10302-20 2 Modules 88mm 26g 10303-20 3 Modules 132mm 36g 10304-20 4 Modules 176mm 48g 10305-20 5 Modules 220mm 67g 10306-20 6 Modules 264mm 71g 10307-20 7 Modules 308mm 84g 10308-20 8 Modules 352mm 95g 10309-20 9 Modules 396mm 0.12kg 10310-20 10 Mod (19" Rackmount) 440mm 0.12kg 10345-20 2 Meter Length 2m 0.55kg

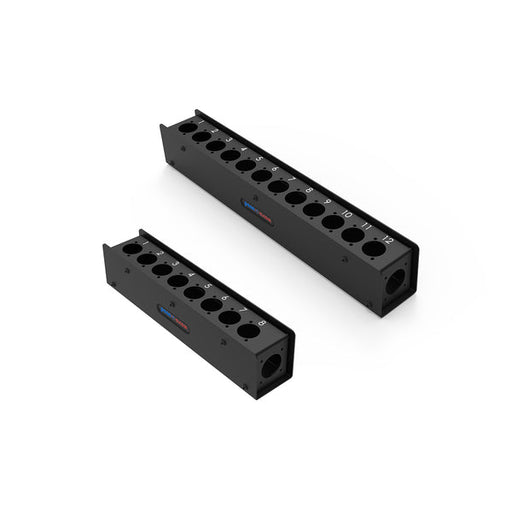

Stage boxes punched for D-series connectors. Can be fitted with a multi-pin connector or cable gland (with adapter plate). Black Powder coated. Stage boxes are also available pre-filled with your choice of connectors. Part No. R2340-08 Material Steel Finish Black Description 8 Channel Stage Box Depth 265mm Width 55mm Height 63mm

Stage boxes punched for D-series connectors. Can be fitted with a multi-pin connector or cable gland (with adapter plate). Black Powder coated. Stage boxes are also available pre-filled with your choice of connectors. Part No. R2340-08 Material Steel Finish Black Description 12 Channel Stage Box Depth 380mm Width 55mm Height 63mm

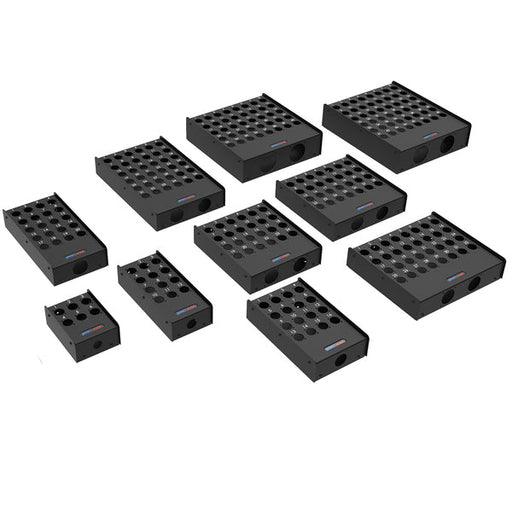

Stage boxes punched for D-series connectors. Can be fitted with a multi-pin connector or cable gland (with adapter plate). Black Powder coated. Stage boxes are also available pre-filled with your choice of connectors. Part No. R2345-12 Material Steel Finish Black Description 12 Channel Stage Box Depth 260mm Width 113mm Height 65mm

Stage boxes punched for D-series connectors. Can be fitted with a multi-pin connector or cable gland (with adapter plate). Black Powder coated. Stage boxes are also available pre-filled with your choice of connectors. Part No. R2345-16 Material Steel Finish Black Description 16 Channel Stage Box Depth 260mm Width 153mm Height 65mm

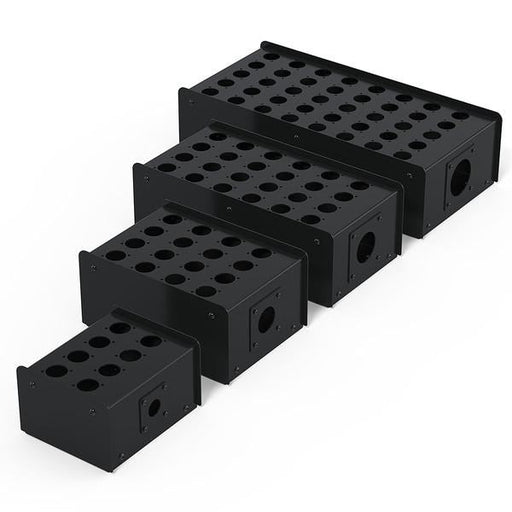

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -08 Material 1.5mm Steel Description 8 Hole Connector 25 Pin Cable Gland M20 Length (L) 130mm Height (H) 90mm Width (W) 153mm

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -12 Material 1.5mm Steel Description 12 Hole Connector 37 Pin Cable Gland M25 Length (L) 174mm Height (H) 90mm Width (W) 153mm

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -16 Material 1.5mm Steel Description 16 Hole Connector 54 Pin Cable Gland M32 Length (L) 218mm Height (H) 105mm Width (W) 153mm

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -20 Material 1.5mm Steel Description 20 Hole Connector 85 Pin Cable Gland M40 Length (L) 262mm Height (H) 105mm Width (W) 153mm

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -24 Material 1.5mm Steel Description 24 Hole Connector 85 Pin Cable Gland M40 Length (L) 306mm Height (H) 105mm Width (W) 153mm

Stage Box punched for Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.) Can be fitted with a Multi-Pin Connector or a Cable Gland (with an Adapter Plate). Custom Engraving Available Black Powder Coated. Part No. R2350 -32 Material 1.5mm Steel Description 32 Hole Connector 150 Pin Cable Gland M40 Length (L) 262mm Height (H) 105mm Width (W) 153mm

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is constructed so that there is plenty of room between you and the reel, therefore, your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a reel made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The GT235 reel is delivered without cable but with cover. Specifications: Article number GT235 Name GT235 EAN 4013046200002 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 135 Outer-Ø [mm] 235 Wind. width [mm] 110 Wind. length max. at Ø 7,0 mm [m] 60 Wind. length max. at Ø 8,0 mm [m] 45 Wind. length max. at Ø 9,0 mm [m] 34 Wind. length max. at Ø 12,0 mm [m] 20 Wind. length max. at Ø 14,0 mm [m] 12 Wind. length max. at Ø 20,0 mm [m] 5 Wind. length max. at Ø 26,0 mm [m] 4 Wind. length max. at Ø 30,0 mm [m] 1

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Specification: Article number GT310 Name GT310 EAN 4013046270005 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 170 Outer-Ø [mm] 310 Wind. width [mm] 132 Wind. length max. at Ø 7,0 mm [m] 135 Wind. length max. at Ø 8,0 mm [m] 96 Wind. length max. at Ø 9,0 mm [m] 73 Wind. length max. at Ø 12,0 mm [m] 41 Wind. length max. at Ø 14,0 mm [m] 33 Wind. length max. at Ø 20,0 mm [m] 13 Wind. length max. at Ø 26,0 mm [m] 7 Wind. length max. at Ø 30,0 mm [m] 6

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, sound-men, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistant to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. We have the complete SCHILL-assortment in stock – just ask us ! Miscellaneous: Inclusive RM - auxiliary spool NOTE: If we are out of stock of this model we can still most-likely make one up for you using the Schill - GT310 & Schill - KOMB.RM Specifications: Article number GT310.RM Name GT310.RM EAN 4013046270302 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 170 Outer-Ø [mm] 310 Wind. width [mm] 132 Wind. length max. at Ø 7,0 mm [m] 135 Wind. length max. at Ø 8,0 mm [m] 96 Wind. length max. at Ø 9,0 mm [m] 73 Wind. length max. at Ø 12,0 mm [m] 41 Wind. length max. at Ø 14,0 mm [m] 33 Wind. length max. at Ø 20,0 mm [m] 13 Wind. length max. at Ø 26,0 mm [m] 7 Wind. length max. at Ø 30,0 mm [m] 6 Miscellaneous Inclusive RM - auxilliary spool

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Miscellaneous: Inclusive a blank cover for self-tooling Specifications: Article number GT310.S0 Name GT310.S0 EAN 4013046270012 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 170 Outer-Ø [mm] 310 Wind. width [mm] 132 Wind. length max. at Ø 7,0 mm [m] 135 Wind. length max. at Ø 8,0 mm [m] 96 Wind. length max. at Ø 9,0 mm [m] 73 Wind. length max. at Ø 12,0 mm [m] 41 Wind. length max. at Ø 14,0 mm [m] 33 Wind. length max. at Ø 20,0 mm [m] 13 Wind. length max. at Ø 26,0 mm [m] 7 Wind. length max. at Ø 30,0 mm [m] 6

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Specifications: Article number GT380 Name GT380 EAN 4013046271446 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 236 Outer-Ø [mm] 380 Wind. width [mm] 182 Wind. length max. at Ø 7,0 mm [m] 249 Wind. length max. at Ø 8,0 mm [m] 190 Wind. length max. at Ø 9,0 mm [m] 153 Wind. length max. at Ø 12,0 mm [m] 86 Wind. length max. at Ø 14,0 mm [m] 62 Wind. length max. at Ø 20,0 mm [m] 25 Wind. length max. at Ø 26,0 mm [m] 13 Wind. length max. at Ø 30,0 mm [m] 11

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. We have the complete SCHILL-assortment in stock – just ask us ! Miscellaneous: Inclusive RM - auxilliary spool Specifications: Article number GT380.RM Name GT380.RM EAN 4013046275017 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 236 Outer-Ø [mm] 380 Wind. width [mm] 182 Wind. length max. at Ø 7,0 mm [m] 249 Wind. length max. at Ø 8,0 mm [m] 190 Wind. length max. at Ø 9,0 mm [m] 153 Wind. length max. at Ø 12,0 mm [m] 86 Wind. length max. at Ø 14,0 mm [m] 62 Wind. length max. at Ø 20,0 mm [m] 25 Wind. length max. at Ø 26,0 mm [m] 13 Wind. length max. at Ø 30,0 mm [m] 11 Miscellaneous Inclusive RM - auxilliary spool

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable. Name GT380 EAN 4013046275000 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 236 Outer-Ø [mm] 380 Wind. width [mm] 182 Wind. length max. at Ø 7,0 mm [m] 249 Wind. length max. at Ø 8,0 mm [m] 190 Wind. length max. at Ø 9,0 mm [m] 153 Wind. length max. at Ø 12,0 mm [m] 86 Wind. length max. at Ø 14,0 mm [m] 62 Wind. length max. at Ø 20,0 mm [m] 25 Wind. length max. at Ø 26,0 mm [m] 13 Wind. length max. at Ø 30,0 mm [m] 11 Miscellaneous Inclusive a blank cover for self-tooling

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistant to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a reel made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Specifications: Article number GT450 Name GT450 EAN 4013046280004 Brand SCHILL Type Kabeltrommel Material Solid rubber Core-Ø [mm] 296 Outer-Ø [mm] 445 Wind. width [mm] 187 Wind. length max. at Ø 7,0 mm [m] 301 Wind. length max. at Ø 8,0 mm [m] 240 Wind. length max. at Ø 9,0 mm [m] 185 Wind. length max. at Ø 12,0 mm [m] 104 Wind. length max. at Ø 14,0 mm [m] 75 Wind. length max. at Ø 20,0 mm [m] 31 Wind. length max. at Ø 26,0 mm [m] 16 Wind. length max. at Ø 30,0 mm [m] 13

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. Application: Inclusive RM - auxilliary spool The reels are empty, i.e. they are delivered without cable and cover. Specifications: Article number HT480.RM-SW Name HT480.RM-SW EAN 4013046374017 Brand SCHILL Type Kabeltrommel Material metal Core-Ø [mm] 178 Outer-Ø [mm] 460 Wind. width [mm] 142 Wind. length max. at Ø 7,0 mm [m] 400 Wind. length max. at Ø 8,0 mm [m] 289 Wind. length max. at Ø 9,0 mm [m] 225 Wind. length max. at Ø 12,0 mm [m] 121 Wind. length max. at Ø 14,0 mm [m] 100 Wind. length max. at Ø 20,0 mm [m] 49 Wind. length max. at Ø 26,0 mm [m] 25 Wind. length max. at Ø 30,0 mm [m] 16 Miscellaneous Inclusive RM - auxilliary spool

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, sound-men, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistant to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Specifications: Article number HT485-SW Name HT485-SW EAN 4013046370521 Brand SCHILL Type Kabeltrommel Material metal Core-Ø [mm] 178 Outer-Ø [mm] 460 Wind. width [mm] 210 Wind. length max. at Ø 7,0 mm [m] 600 Wind. length max. at Ø 8,0 mm [m] 442 Wind. length max. at Ø 9,0 mm [m] 345 Wind. length max. at Ø 12,0 mm [m] 187 Wind. length max. at Ø 14,0 mm [m] 150 Wind. length max. at Ø 20,0 mm [m] 67 Wind. length max. at Ø 26,0 mm [m] 40 Wind. length max. at Ø 30,0 mm [m] 28

Roll over Beethoven... or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage. The reels are empty, i.e. they are delivered without cable and cover. Specifications: Article number HT582-SW Name HT582-SW EAN 4013046380896 Brand SCHILL Type Kabeltrommel Material metal Core-Ø [mm] 320 Outer-Ø [mm] 580 Wind. width [mm] 170 Wind. length max. at Ø 7,0 mm [m] 609 Wind. length max. at Ø 8,0 mm [m] 473 Wind. length max. at Ø 9,0 mm [m] 355 Wind. length max. at Ø 12,0 mm [m] 197 Wind. length max. at Ø 14,0 mm [m] 152 Wind. length max. at Ø 20,0 mm [m] 67 Wind. length max. at Ø 26,0 mm [m] 42 Wind. length max. at Ø 30,0 mm [m] 28

SCHILL Cover with lockable door for GT310-, HT-model and SK 302 Technical Data: - Type: Cover with lockable door - Affiliation: GT310-, HT-model and SK 302 Specifications: EAN 4013046060361 Brand SCHILL Type Cover with lockable door Affiliation GT310-, HT-model and SK 302

SCHILL Cover with lockable door for GT380 and SK 380 Technical Data: - Type: Cover with lockable door - Affiliation: GT380 and SK 380 Specifications: EAN 4013046060378 Brand SCHILL Type Cover with lockable door Affiliation GT380 and SK 380

SCHILL Winding extension for GT380 Technical Data: - Type: Winding extension Specifications: Article number KOMB.380.RM EAN 4013046060026 Brand SCHILL Type Winding extension Affiliation GT380
