19" Racking

Blanking Plug for XLR/Neutrik D-Series Connector cut-out. Part No. M1905 Material Plastic Description Blanking Plug Weight 15g

Rear Mount Blanking and Converting Plugs for XLR/Neutrik D-Series Connector cut-out. Part No. M1906 /B9 Material Plastic Description Punched for BNC Weight 10g

Rear Mount Blanking and Converting Plugs for XLR/Neutrik D-Series Connector cut-out. Part No. M1906 /P7 Material Plastic Description Punched for RCA Weight 10g

Rear Mount Blanking and Converting Plugs for XLR/Neutrik D-Series Connector cut-out. Part No. M1906 /T11 Material Plastic Description Punched for Telejack Weight 10g

Front Mount Blanking and Converting Plugs for XLR/Neutrik D-Series Connector cut-out. Part No. M1908 Material Plastic Description Plain Weight 10g

10 way vertical PDU with 3m/118" mains cable with 16A power connector. They feature 10 sockets each with 8A on/off overload trip switch, along with master surge and lightening protection plus a LED condition indicator.

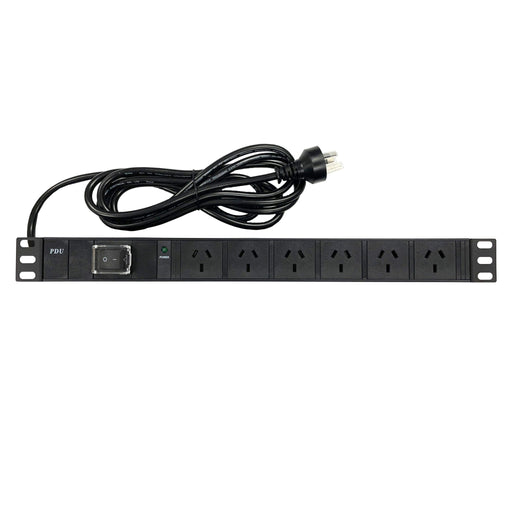

19 inch Rack Mount 6 Way Power Distribution Unit with On/Off overload trip switch, along with master surge and lightening protection plus a LED condition indicator. Part No. PDU-AU -6 Region Australia/NZ Cable 2m Plugs Type 1

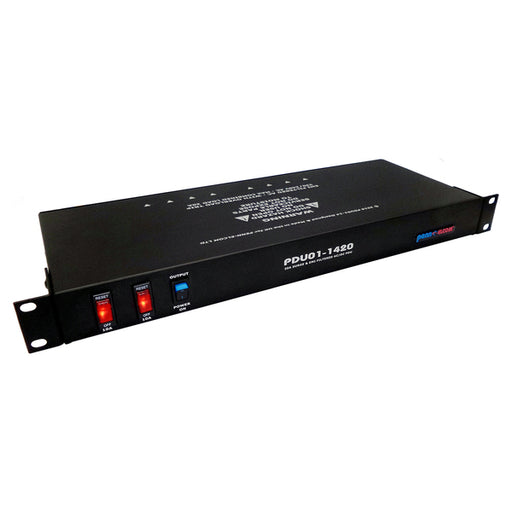

1U Rack Mounting PDU with Surge Protection & EMI Filter. Designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications. All components used in this unit conform to current RoHS, CE & UL certification. Case Size: 45mm x 140mm x 430mm DC PSU: Switchable Isolated DC supply Earth Link: M4 Screw Terminal for rack grounding. Frequency: 50/60Hz Input: Neutrik Power Con with Internal 20A line Fuse, 20A EMI filter & GDC/MOV Lightning Strike/Power Surge Protection Max. A/C Output: Current 20A Nominal voltage: 230V Output AC: 8 x IEC320 C13 Output DC: 12 Way pluggable screw terminal socket. 3 x 5V dc max load 2100mA. 3 x 12V dc max load 1200mA. Protection: 2 x 10 Amp Circuit Breakers Usable Voltages: 200V - 240V Part No. PDU01-14 Finish Black Description 1U PDU with Surge Protection & EMI Filter Weight 3.5kg

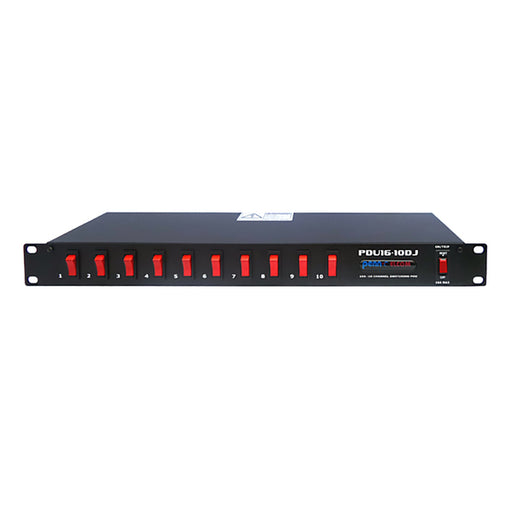

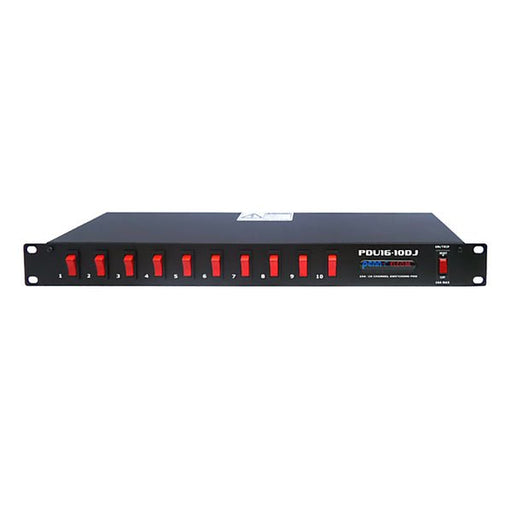

1U 16A 10-Channel Power Distribution Unit This model in the PDU16 series is a 1U distributor with ten switchable channels protected by an overload trip switch. Each numbered channel has a dedicated rocker switch with neon indicator light for quick and easy identification. The unit receives power through a C20 inlet and can output to ten C13 / IEC outlets. Each unit comes supplied with one 1.8m power cable. PDU16-10DJ -AU: Type 1 (10A for Australia, New Zealand, China & Argentina) Limited to 10A maximum load. For 16A use, replace with Blue C form. Part No. PDU16-10DJ-AU Finish Black Plug Type TYPE 1 (Australia, New Zealand, China & Argentina) Weight 2.5kg

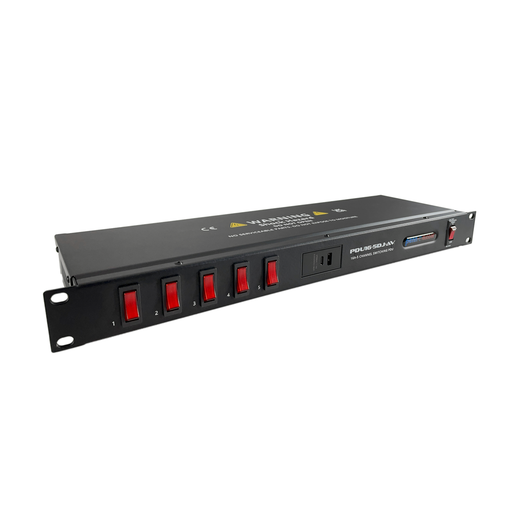

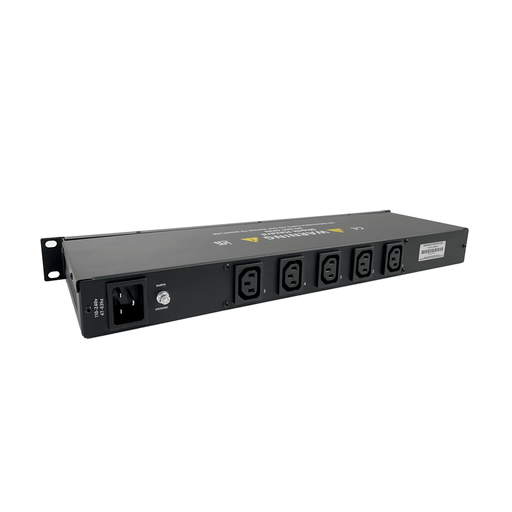

1U 16A 5 Channel Switched Power Distribution Unit. Cable Supplied: Type 1 (10A for Australia, New Zealand, China & Argentina) Limited to 10A maximum load. For 16A use, replace with 16amp Blue C form. This model in the PDU16 series is a 1U distributor with five switchable channels protected by an overload trip switch. Each numbered channel has a dedicated rocker switch with neon indicator light for quick and easy identification. The unit receives power through a C20 inlet and can output to five C13 / IEC outlets. Each unit comes supplied with one 1.8m power cable (choice of country type available) Specifications: Plug Type TYPE 1 (Australia, New Zealand, China & Argentina) Size (U) 1U Weight 3kg Finish Black

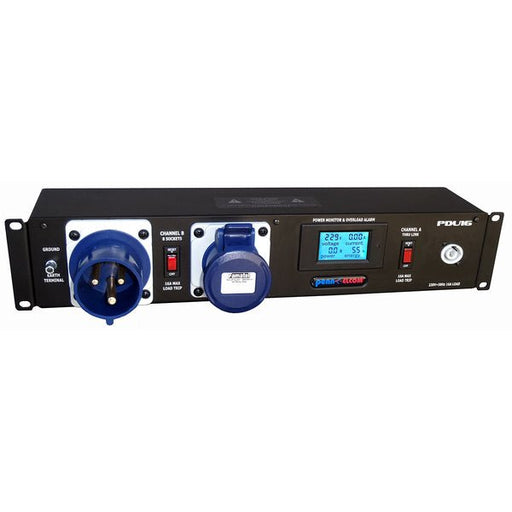

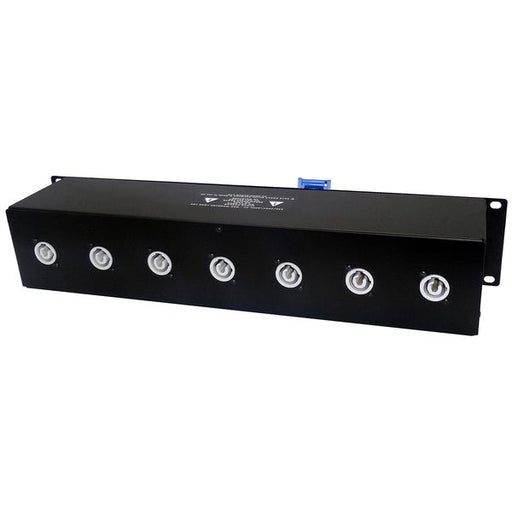

2U 16amp Rack Mount PDU with Power Monitor Pair of C-FORM Sockets with overload trip switch. 8 x Neutrik PowerCon Outlet Sockets with 16A overload trip switch. Ideal solution for fast power distribution in stage, studio, and touring environments. Circuit A - Main Input: C-FORM 240V 16A IP44 Panel Mount Appliance Inlet - Protection: Illuminated Circuit Breaker overload protection between dual 16A sockets - Output: C-FORM 240V 16A IP44 Panel Mount Appliance Outlet Circuit B - Output: 8 Neutrik powerCon sockets with a Maximum Combined Load 16A. - Protection: Illuminated Circuit Breaker 16A overload protection - LCD Monitor: LCD Power Monitor giving Voltage, Current , Power, Energy Levels & Overload Alarm. - Earth Link: M4 Screw Terminal for Rack Grounding Usage - Nominal Voltage: 110V-240V - Usable Voltages 110V~240V full range - Frequency: 50/60HZ full range - Max. A/C Output: Current 16A - Case Size: 87mm x 98mm x 430mm / 3.43" x 3.86" x 16.93" Compliance: All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A) Part No. PDU16-PC Finish Black Description 2U 16amp Rack Mount PDU with PowerCon Outputs Weight 2kg

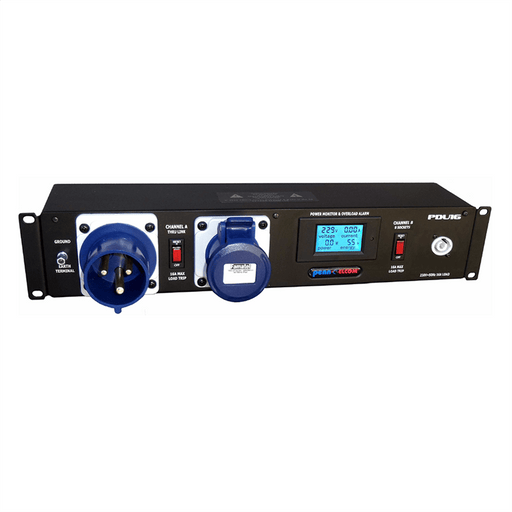

2U 32 Amp AC Rack Mount PDU With 8 x Neutrik powerCon Sockets, Overload Protection & Power Monitoring 2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Multimedia Theatre & Touring rack applications. Circuit A: Main Input - C-FORM 240V 32A IP44 Panel Mount Appliance Inlet Protection - Illuminated Circuit Breaker overload protection between dual 16A sockets Output - C-FORM 240V 16A IP44 Panel Mount Appliance Outlet Circuit B: Output - 8 Neutrik powerCon sockets with a Maximum Combined Load 16A. Protection - Illuminated Circuit Breaker 16A overload protection LCD Monitor - LCD Power Monitor giving Voltage, Current, Power, Energy Levels & Overload Alarm. Earth Link - M4 Screw Terminal for Rack Grounding Usage: Nominal Voltage: 110V-240V Usable Voltages: 110V-240V full range Frequency: 50/60HZ full range Max. A/C Output: Current 16A Case Size: 88mm x 140mm x 430mm (O.A. 483mm) Weight: 2.5kg All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A) Specifications: Plug Type powerCON Size (U) 2U Weight 2.5kg

New and innovative Clip Nuts for Rack Rails. Simply slides onto Rack Rail Square Holes, creating a Threaded Hole and eliminating the need for cage nuts. Keep your Rack Rail Threads from wearing with time. Fix broken Rail Threads. For up to 2mm thick Rails. Part No. PM6CNK Material Steel Finish Black Thread M6

New and innovative Clip Nuts for Rack Rails. Simply slides onto Rack Rail Square Holes, creating a Threaded Hole and eliminating the need for cage nuts. Keep your Rack Rail Threads from wearing with time. Fix broken Rail Threads. For up to 2mm thick Rails. Part No. PM6CNK-100 Material Steel Finish Black Thread M6

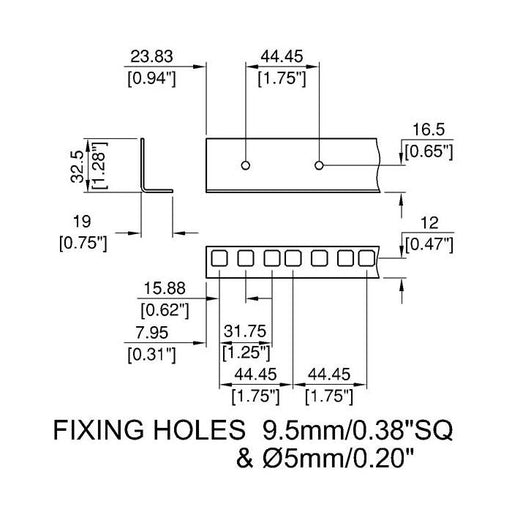

Full Hole Rack Rail with Square Holes. Cuts from 1 space 44.45mm to 45 spaces 2m are available. Please specify length (number of spaces) when ordering. Mounting Equipment on Rails: -Use our new and innovative Clip Nuts on Rack Rails for an easy and economic alternative. -Also compatible with S1170 Captive Nuts, SM6/HP M6 Screws and S1941 Cup Washers. Part No. R0863 Material 1.5mm Steel Finish Black Thickness 1.5mm Available Sizes From 1 Space to 45 Spaces Weight 0.9kg

Full Hole Double Rack Rail with Square Holes . Cuts from 1 space 44.45mm to 45 spaces 2m are available. See our other product listings. Mounting Equipment on Rails: -Use our new and innovative Clip Nuts on Rack Rails for an easy and economic alternative. -Also compatible with S1170 / S1172 Captive Nuts, S1045 M6 Screws and S1940 - S1941 Cup Washers. Part No. R0883 Material Steel Finish Black Thickness 1.5mm Description From 1 Space to 45 Spaces Weight 1.9kg

Rack Shelf Support, to suit R0883 . Sold individually. Part No. Finish Length Weight R0855K Black 305mm 0.3kg R0856K Black 406mm 0.34kg R0857K Black 508mm 0.43kg R0858K Black 610mm 0.52kg

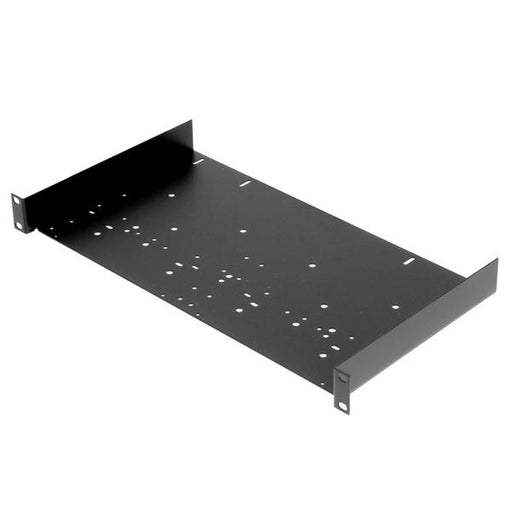

Utility Rack Shelf. Part No. R1191 /1UK Material 1.5mm Steel Color Black Size (U) 1U Depth 253.5mm Weight 1.53kg

Utility Rack Shelf. Part No. R1191 /2UK Material 1.5mm Steel Color Black Size (U) 2U Depth 253.5mm Weight 1.88kg

400mm Deep 2U Vented Rack Shelf. Perforation allows 61% free air. Recommended Load Capacity: 19kg Part No. R1194 -400/2UVK Material Steel Color Black Size (U) 2U Depth 400mm Weight 2.31kg

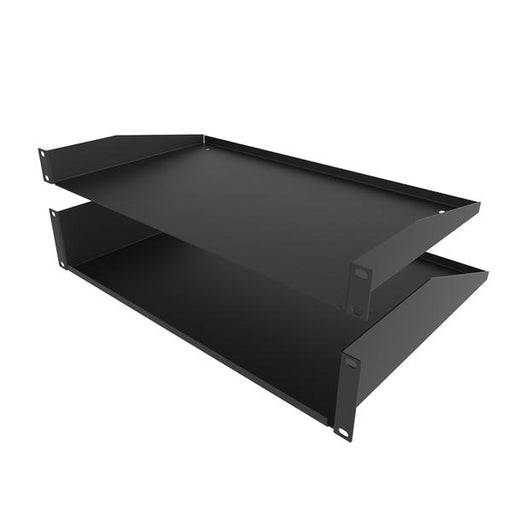

1U Plain Rack Shelf Part No. R1194 /1UK Material 1.5mm Steel Finish Black Size (U) 1U Depth 270.5mm Recommended Load Capacity 15kg Weight 1.54kg

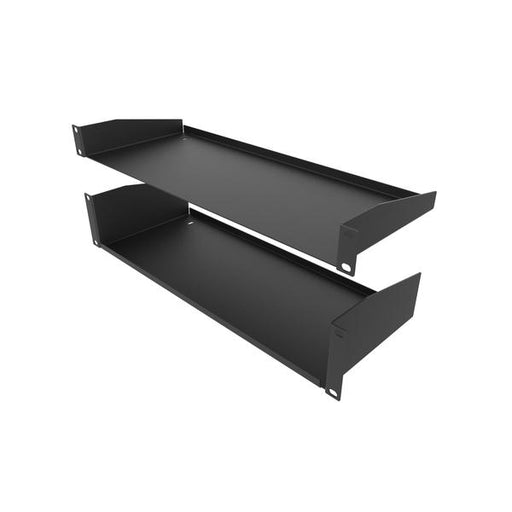

1U, 180mm Deep Rack Shelf Part No. R1194 /1UK-180 Material 1.5mm Steel Finish Black Size (U) 1U Depth 181.5mm Recommended Load Capacity 15kg Weight 1.23kg

1U Vented Rack Shelf. Perforation allows 61% free air. Part No. R1194 /1UVK Material 1.5mm Steel Finish Black Size (U) 1U Depth 270.5mm Recommended Load Capacity 15kg Weight 1kg

2U Rack Shelf. Part No. R1194/2UK Material 1.5mm Steel Finish Black Size (U) 2U Depth 368.2mm Recommended Load Capacity 22kg Weight 2.38kg
